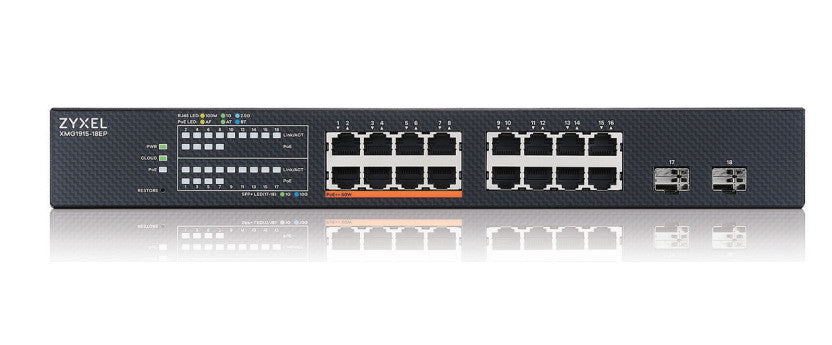

Zyxel XMG1915-18EP Networking
Zyxel XMG1915-18EP Networking
Couldn't load pickup availability
The Zyxel XMG1915-18EP is a dependable addition to any modern network installation.
The Zyxel XMG1915 series is a versatile family of 2.5G Multi-Gig Smart Managed switches, available in three models with and without PoE connectivity. Each Ethernet port on these models supports 2.5G speed, and they are equipped with two 10G SFP+ ports to cater to your business’s increasing need for high network speeds. The XMG1915 series is designed to support NebulaFlex, offering the most affordable Multi-Gig hybrid switch solution for the SB/SMB market. Whether you choose to set it up through the user-friendly Web GUI or the Nebula Control center for cloud-based unified management, configuration is a breeze. This series ensures that your network can keep up with the rapid growth in data demands without breaking the bank.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Network | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| 10G support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Voice VLAN |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Mean time between failures (MTBF) | 954.032 h |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Firmware upgradeable | Yes |
| Technical details | |
| Rack mounting | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Data transmission | |
| Jumbo frames | 12000 |
| MAC address table | 16000 entries |
| Switching capacity | 120 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 89.2 Mpps |
| Security | |
| SSH/SSL support | Yes |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| MAC address filtering | Yes |
| Authentication type | RADIUS |
| DHCP features | DHCP client, DHCP relay, DHCP snooping |
| Multicast features | |
| Multicast features | Multicast forwarding |
| Design | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 230.81 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC/PoE |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 180 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 330 mm |
| Depth | 230 mm |
| Height | 44 mm |
| Weight | 2.6 kg |
| Packaging data | |
| Cables included | AC |
