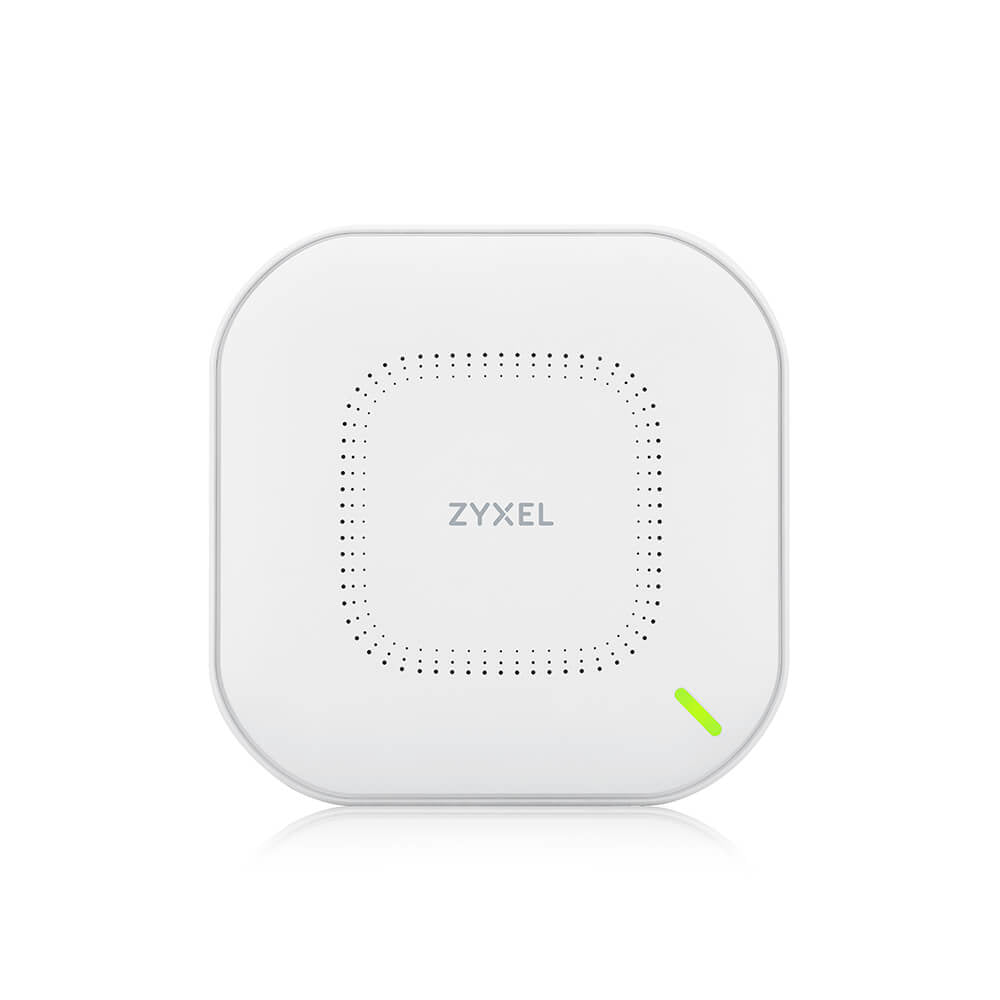

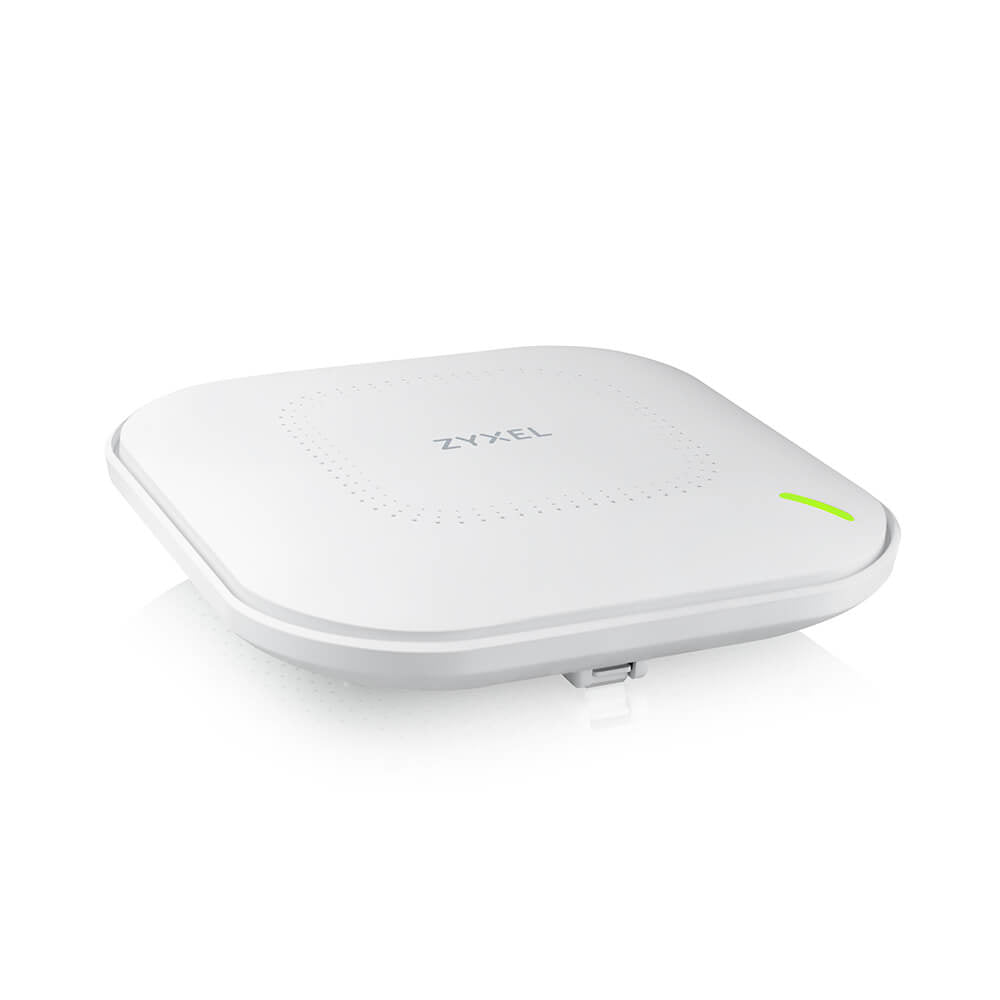

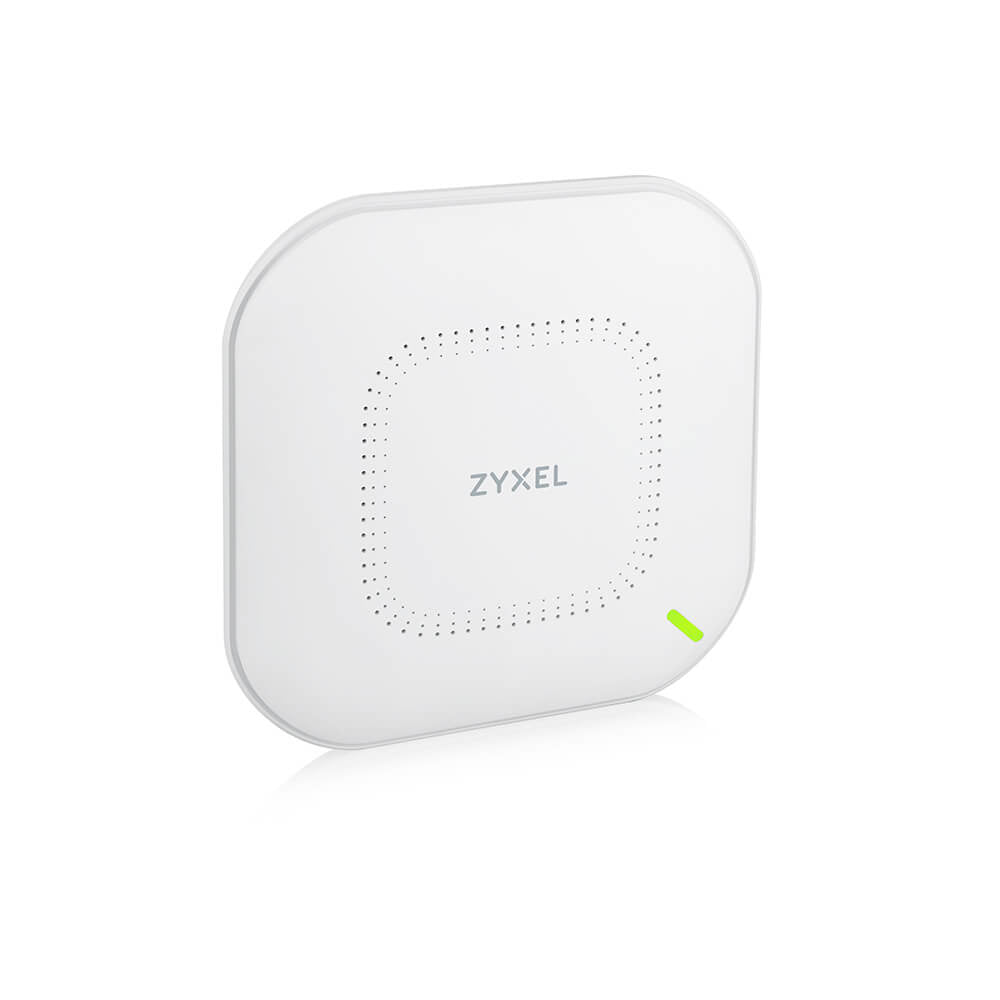

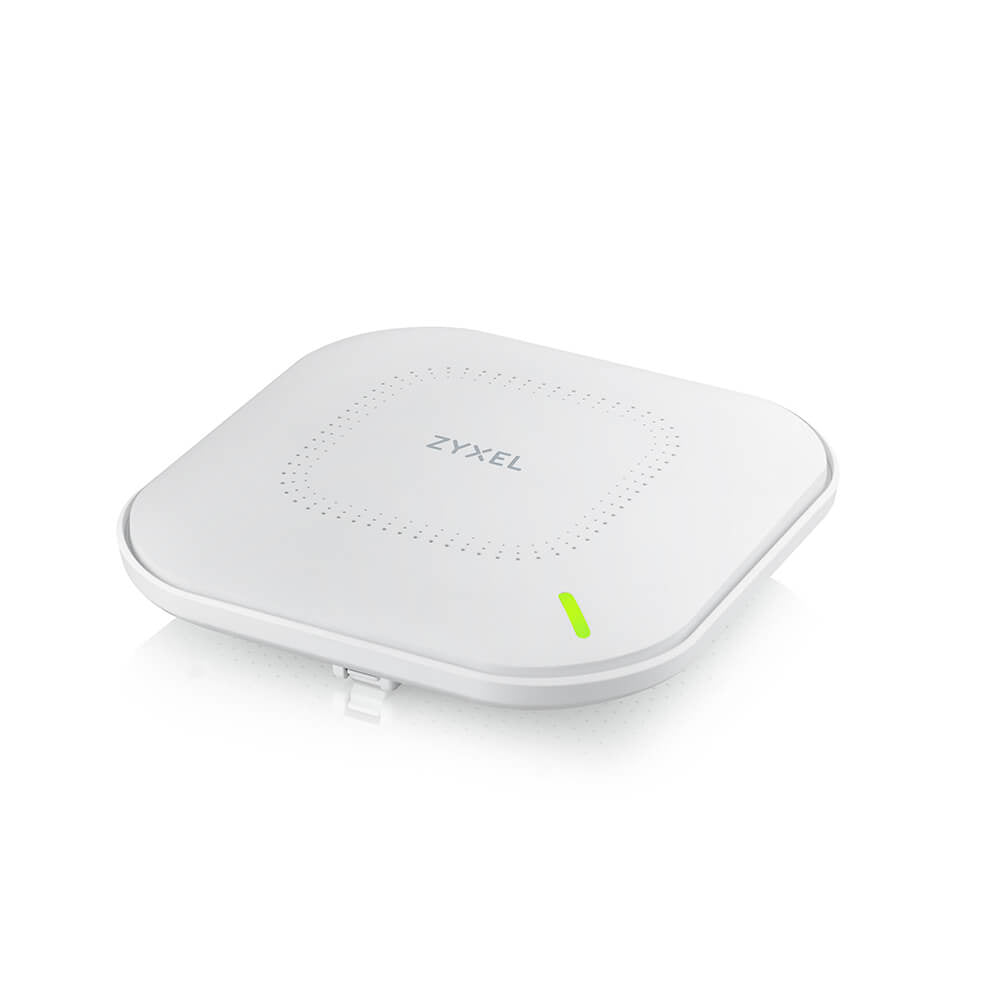

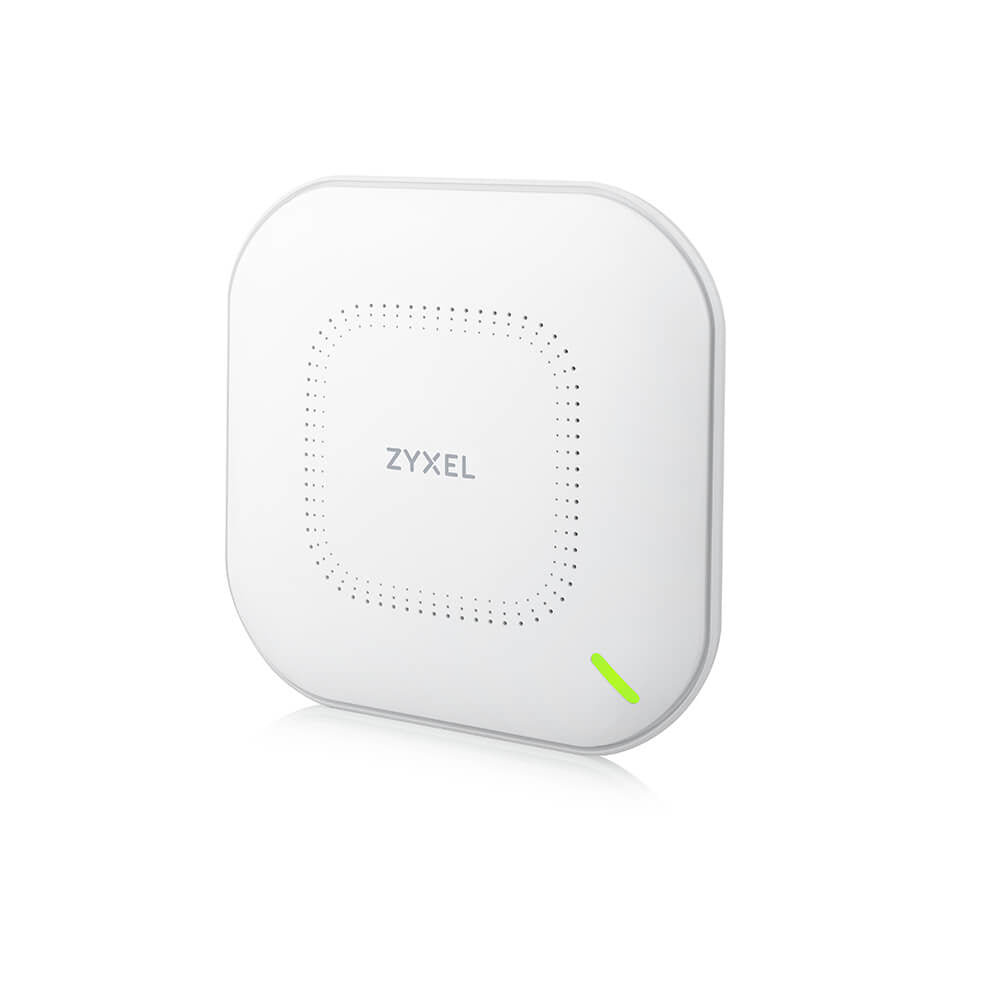

Zyxel WAX630S WiFi 6 Antenna

The Zyxel WAX630S is a dependable addition to any modern network installation.

Ultra-fast, Smarter WiFi 6 Access Point
Featuring 6 spatial streams (4x4:4 in 5GHz, 2x2:2 in 2.4GHz ), OFDMA and MU-MIMO capabilities, the Zyxel WAX630S is the true WiFi 6 access point that provides ultra-fast speed and consistent performance for your wireless network.

Any environment that needs to accommodate a large number of devices, it can offer a faster and smarter connection to everyone every time when they connect to the WiFi.

Unleashing the Power of Smart Antenna in WiFi 6
The built-in smart antenna technology, proven to be capable to mitigate co-channel interference, continuously monitors the connection and adaptively adjusts its antenna patterns to ensure that the optimum performance is delivered to every connection, which means more users and devices can be connected without any degradation in performance or response time even in high-density environments.


Robust Hardware You Can Trust
Every hardware design detail is critical to performance and reliability. The WAX630S access point is built with selected high quality components to warrant the best experience and longevity.

Hassle-free Upgrade
To meet the growing demands for WiFi connectivity, the WAX630S enhances the network capacity with 2.90 Gbps WiFi speed and 2.5 Gbps multi-gigabit Ethernet port, which allows multi-gigabit speed run on the existing infrastructure without the need of re-cabling.

Further boosted by smart antenna technology, it ensures everyone is provided with the optimum performance every time when they connect to the WiFi. Organizations such as schools, hotels, and retail stores can upgrade to the ultra-fast WiFi 6 network easily at an affordable price.

Manage it your way!
The WAX630S comes with the support of NebulaFlex Pro, which offers the full flexibility for users to easily switch between cloud-managed, controller-managed, and standalone modes. You can choose the appropriate managed-mode best suited for your needs.

Specifications

Data transmission
Ethernet LAN data rates	1000,2500 Mbit/s
Maximum data transfer rate	2400 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Web-based management	Yes
VLAN support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3at
MIMO type	Multi User MIMO
MIMO	Yes
Features
Maximum data transfer rate (2.4 GHz)	575 Mbit/s
Maximum data transfer rate (5 GHz)	2400 Mbit/s
Security
Security algorithms	EAP, WEP, WPA, WPA2-PSK, WPA3, WPA3-Enterprise
MAC address filtering	Yes
Ports & interfaces
USB 2.0 ports quantity	0

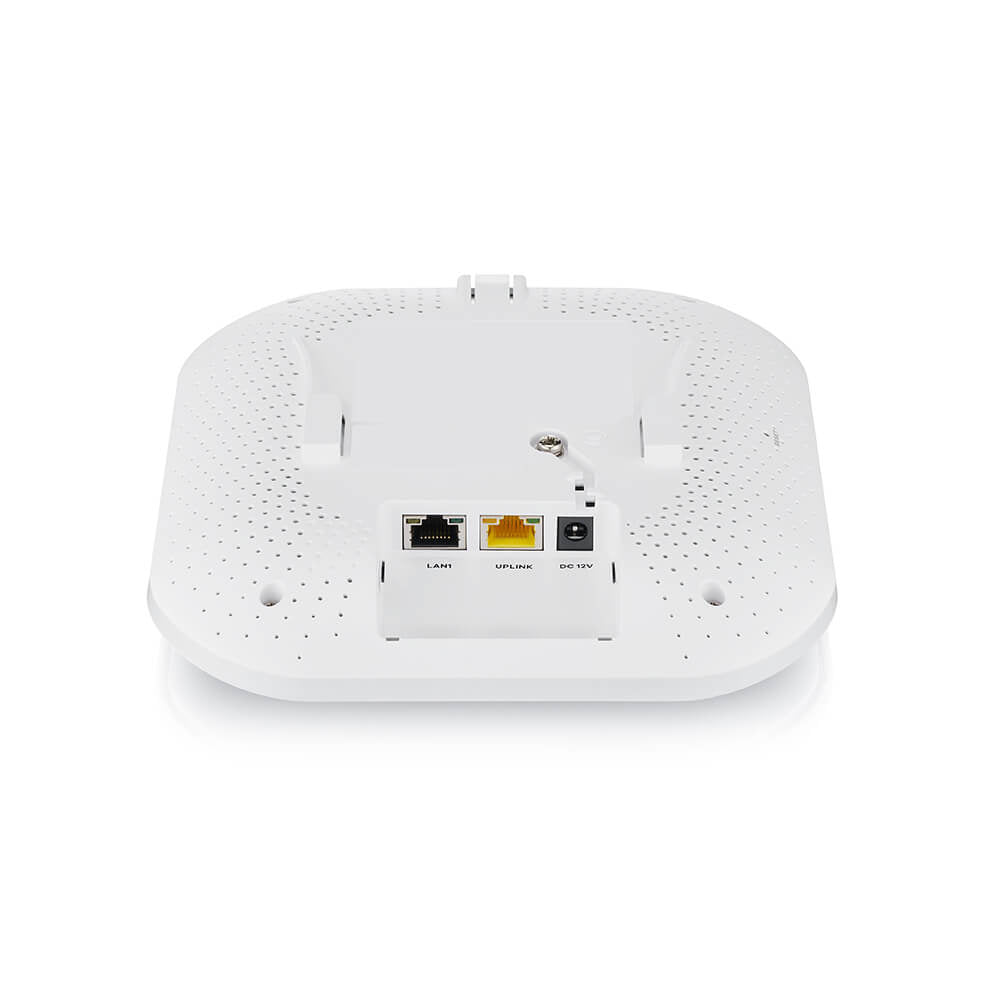

Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes
Power
Output voltage	12 V
Output current	2 A
Power over Ethernet (PoE)	Yes
Design
Product colour	White
LED indicators	Yes
Antenna
Antenna type	Internal
Technical details
Harmonized System (HS) code	85176990
Weight & dimensions
Width	180 mm
Depth	180 mm
Weight	530 g
Height	39 mm
Packaging data
Mounting kit	Yes
Packaging content
Quantity per pack	1 pc(s)

Downloads

• Datasheet (PDF)
