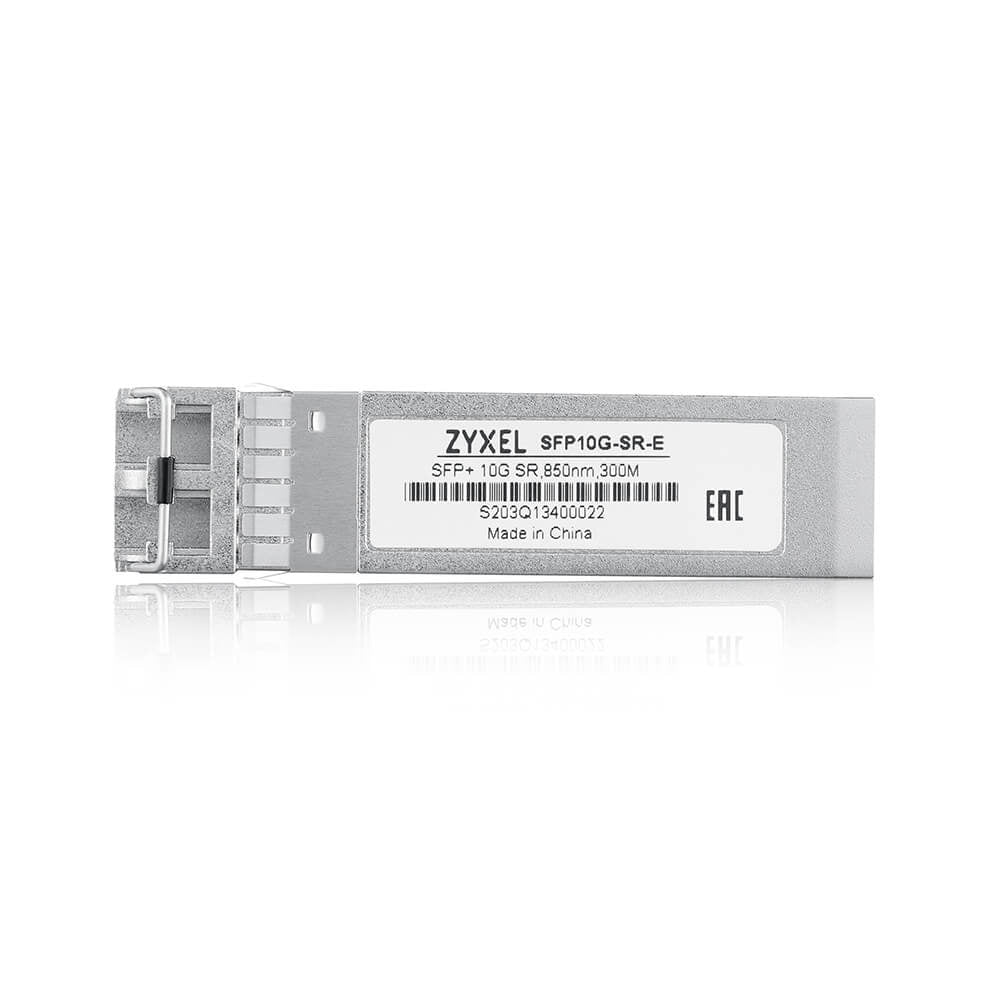

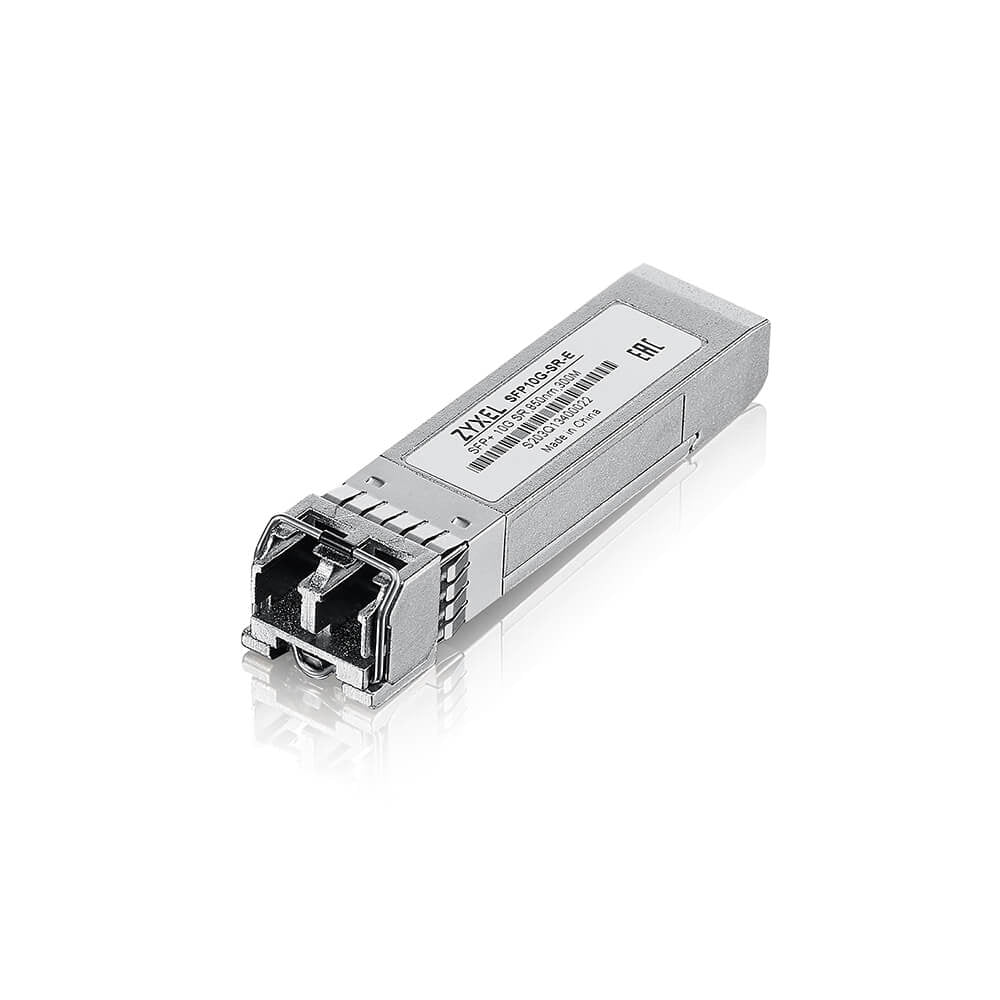

Zyxel SFP10G-SR-E network transceiver module Fiber optic Networking

The Zyxel SFP10G-SR-E network transceiver module Fiber optic is a dependable addition to any modern network installation.

Hot-pluggable with maximum flexibility Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be freely added when required, and infrastructure upgrades or transceiver repairs can be done easily by just replacing the transceiver instead of the whole device. No extra cabling cost to upgrade the fiber plant Traditional fiber optic networking requires two strands of fiber for sending and receiving signals to accomplish communications. The bi-directional, dual-wavelength transceivers can establish communications over just one strand of fiber. Transmission capacity can be expanded immediately without additional cost laying new fiber. Supports digital diagnostics monitoring interface (DDMI) DDMI enables the switch to access operating parameters within the fiber link. This includes digital features such as soft control and monitoring of SFP I/O signals. In addition, the DDMI functionality enables the capability to implement digital alarms and warnings. Complete fiber accessory portfolio We provide multiple options including 1G SFP, 10G SFP+ and 10G DAC cables for different installation requirements.

Specifications

Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Technical details
Maximum transfer distance	300 m
Wavelength	850 nm
Tx power (min)	-1 dBmW
Tx power (max)	-8.2 dBmW
Rx power (max)	-11.1 dBmW
Performance
Country of origin	China
Product colour	Steel
Brand compatibility	Zyxel
Multi-mode fiber (MMF) supported	Yes
Harmonized System (HS) code	85369010
Power
Maximum current	0.3 A
Input voltage	3.14-3.46 V
Weight & dimensions
Width	14.8 mm
Depth	56.5 mm
Height	11.8 mm
Weight	20 g
