Zyxel

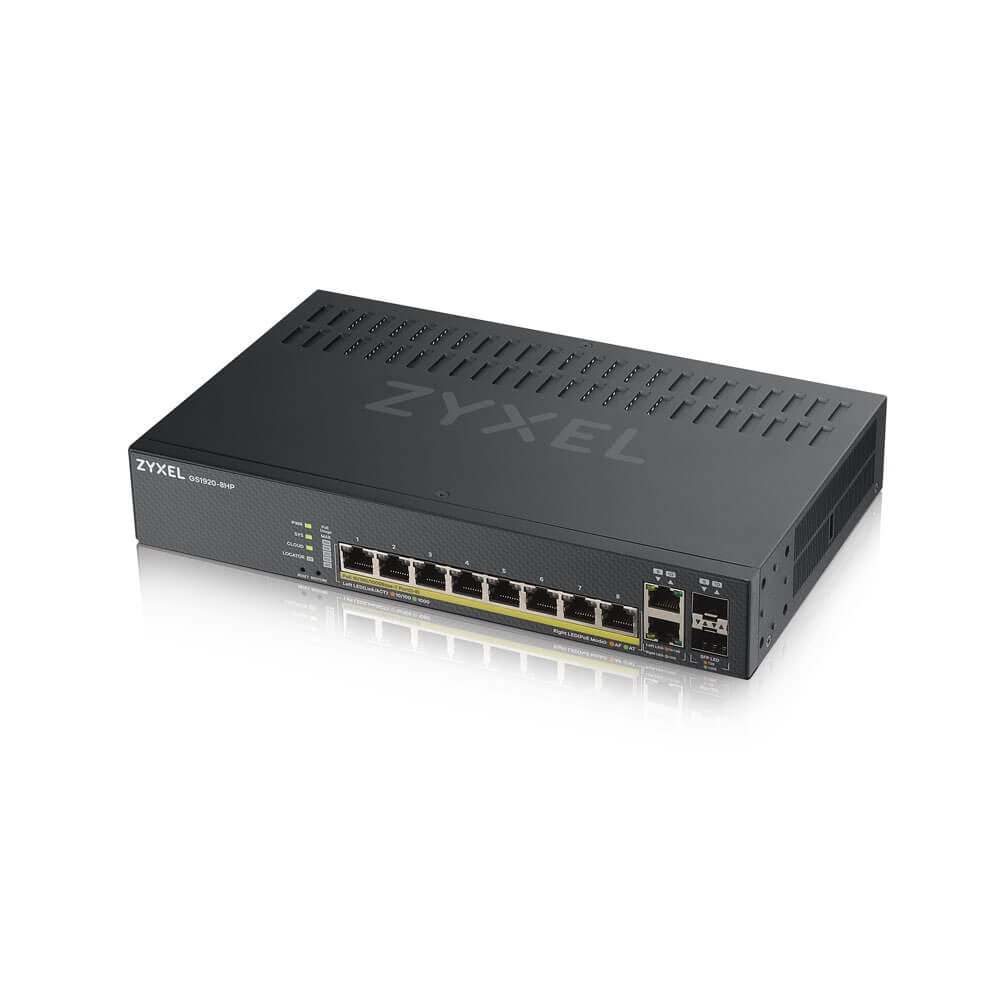

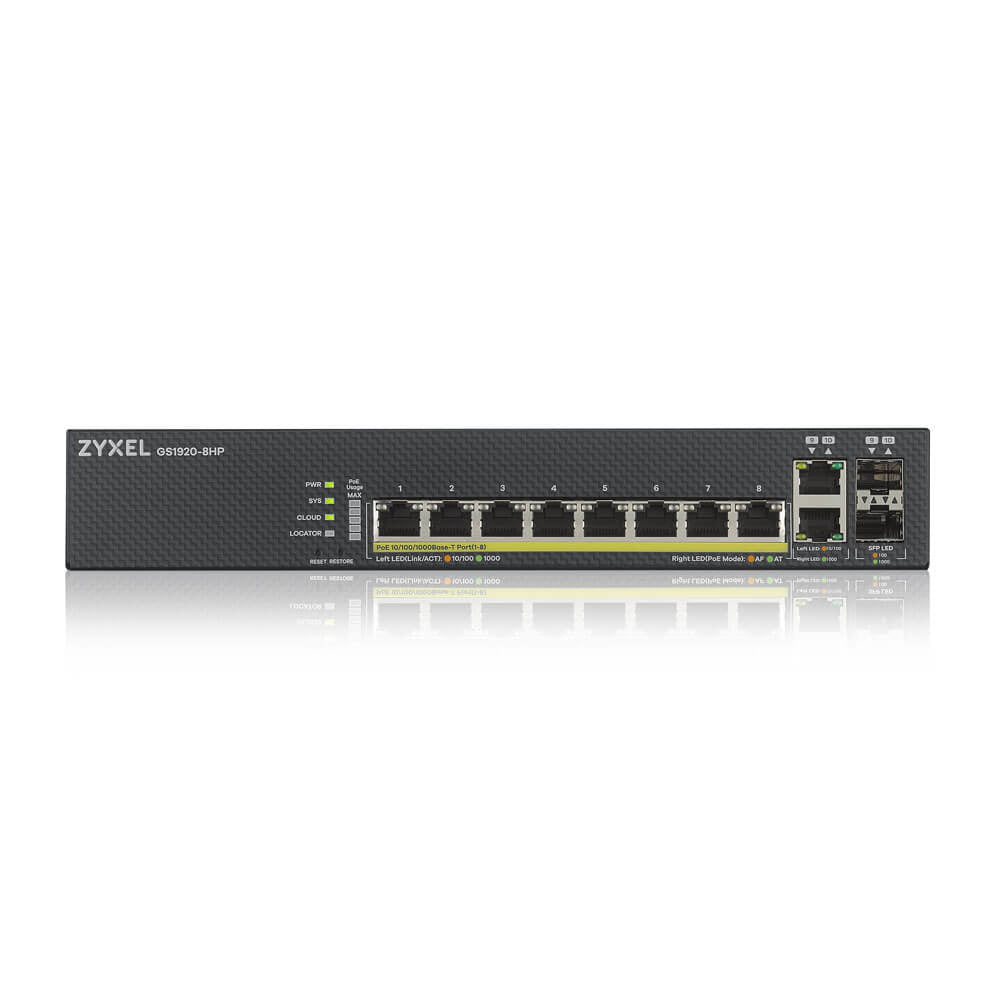

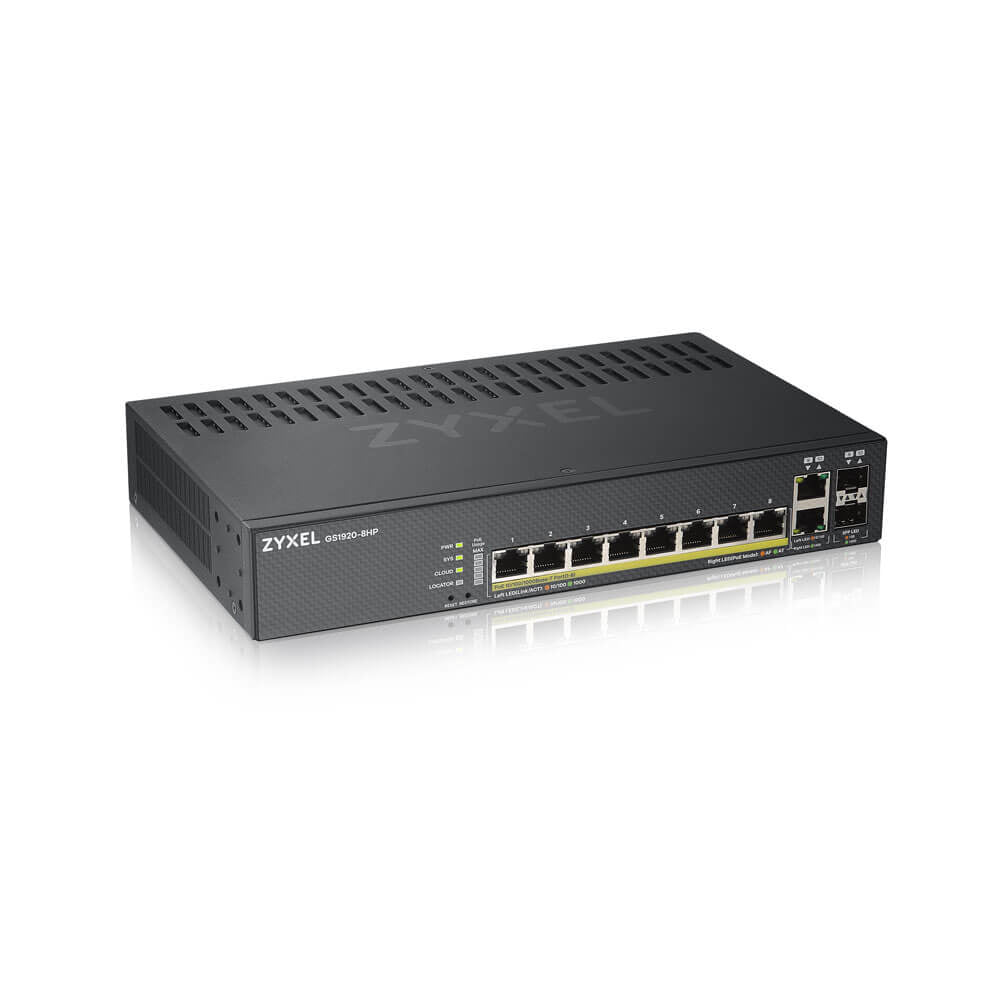

Zyxel GS1920-8HPv2 Switch PoE
Zyxel GS1920-8HPv2 Switch PoE
Regular price
£185.08 GBP
Regular price
Sale price
£185.08 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The Zyxel GS1920-8HPv2 keeps your wired network organised with 2 ports and PoE power for APs and cameras.
A new-look smart managed switch with a refreshed design inside and out!The GS1920v2 series extends the success of the best-selling GS1920 series with a stylish new look and enables cloud manageability with Zyxel NebulaFlexTM technology.
What’s new?
The GS1920v2 series comes with a fresh, modern look, a more intuitive user experience, and a new member—the 8HP model.
Manage it your way!
The GS1920v2 series introduces Zyxel NebulaFlexTM, which allows you to easily switch between standalone mode and our license-free Nebula cloud management platform anytime with just a few simple clicks.
Anytime, Anywhere with
Nebula Mobile App
Easy device onboarding: QR code scan
At a glance of network status
Remote control your network
Reboot AP, Camera by PoE power cycle
Block clients with unusual traffic
Maximum flexibility for your Gig
The GS1920v2 series is ideal for SMB deployment in multiple scenarios, with its unique port combinations futureproofing your network to ensure easy growth down the road.
Whisper-quiet operation
Smart fan and fanless designs for silent operation in your workplace.
User-friendly LED indicators
View real-time status instantly with cloud and PoE power-usage LED indicators.
Power more devices more easily
Provides 30W per port and a wide range of power budget options from 130W to 375W—ideal for denser PoE deployments.
Default consumption mode boosts efficiency by delivering the actual power required.
Zyxel ONE Network
Use the complimentary ZON Utility to configure and discover switches, WLANs, and gateways in your network with one click.
Designed for the long haul
A web smart managed switch with an enterprise-grade hardware design. Built-in state-of-the-art hardware technology brings high quality and robustness to SMB networks.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Multicast support | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Switch layer | L2/L3/L4 |
| Cloud-managed | Yes |
| Network | |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Flow control support | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Broadcast storm control | Yes |
| 10G support | No |
| Policy-based routing | Yes |
| Virtual LAN features | Port-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Data transmission | |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 15 Mpps |
| Performance | |
| Mean time between failures (MTBF) | 513985 h |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Fanless | Yes |
| Technical details | |
| Product colour | Black |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Security | |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, SSL/TLS |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), WFQ, Weighted Round Robin (WRR) |
| Password protection | Yes |
| Authentication type | RADIUS, TACACS+ |
| DHCP features | DHCP client, DHCP relay, DHCP snooping |
| Protocols | |
| Management protocols | SNMP v1, v2c, v3 |
| Certificates | |
| Electromagnetic compatibility | FCC Part 15 (Class A), CE EMC (Class A), BSMI ENC |
| Certification | RoHS |
| Design | |
| Wall mountable | Yes |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 161.8 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 130 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 551.74 BTU/h |
| Weight & dimensions | |
| Width | 267 mm |
| Depth | 162 mm |
| Height | 44 mm |
| Weight | 1.9 kg |
| Packaging data | |
| Cables included | AC |
