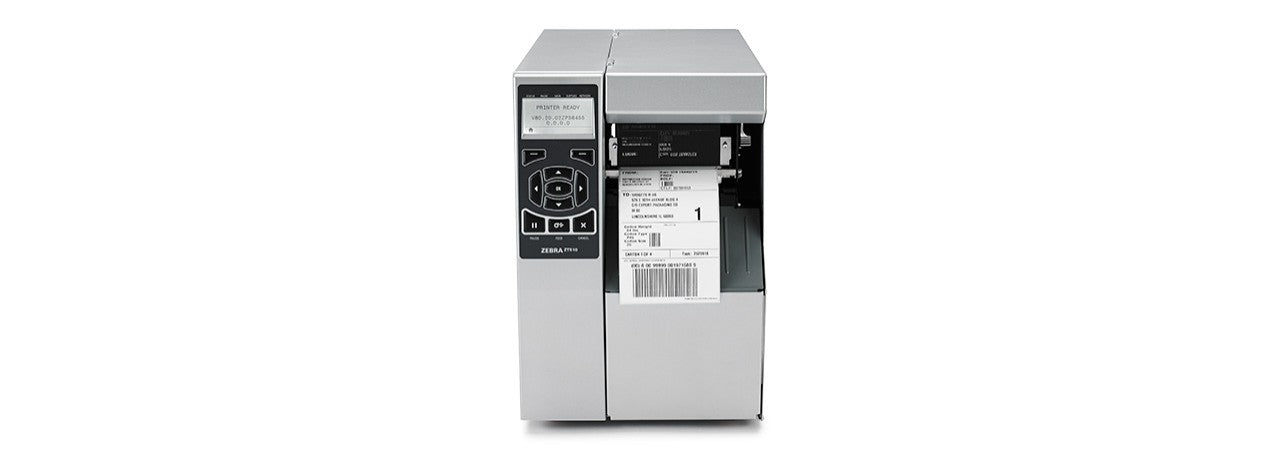

Zebra ZT510 label printer Thermal transfer 300 x 300 DPI 305 mm/sec Ethernet LAN

Print crisp labels on demand with the Zebra ZT510 label printer Thermal — print width, speed and connectivity are in the spec table.

TAKING THE 105SL PLUS TO A NEW LEVEL WITH EXPANDED PERFORMANCE AND VALUE
Building on the legacy of the industry-leading, 105SLPlus printer, the ZT510 includes the core features you need in an industrial printer at a cost-effective price point. The ZT510 provides a proven, durable design and construction while adding advanced management and monitoring capabilities. That means you get 24/7 reliability to keep your operations running smoothly today, plus longevity and advanced functionality to power through every challenge in the years to come — all at an exceptional value.

EXCEPTIONAL PERFORMANCE IN THE HARSHEST CONDITIONS
Boost your productivity with printers that just won’t quit. The ZT510 builds on the legacy of its industry-leading predecessor, the 105SLPlus. Durable steel structural components can withstand years of abuse in extreme temperatures, dust, debris and other challenging industrial conditions, and meticulously engineered printing mechanisms provide 24/7 reliability to meet your high-volume production needs.

OPERATIONAL VISIBILITY, REMOTE MANAGEMENT AND FUTURE-READY ADAPTABILITY
Zebra’s cloud-accessible Link-OS software platform and managed services offerings give you total visibility and control over your printing systems, whether you’re onsite or across the globe. Plus, with two available communication slots, field-installable media-handling options and optional USB Host for plug-and-play integration, it’s easy to stay ahead of your evolving business and technology needs, whatever they may be.

A VALUE THAT WON'T BREAK YOUR BUDGET
For cost-conscious decision makers, the ZT510 offers next-generation print performance at an exceptional value. It provides high-duty cycle, rugged reliability, fast processing, advanced Link-OS capabilities and all the basic features you need — without the added cost of those you don’t.

Specifications

Print quality
Maximum resolution	300 x 300 DPI
Maximum printing width	11.4 cm
Printing
Colour	No
Print speed	305 mm/sec
Print technology	Thermal transfer
Display
Display	LCD
Network
Wi-Fi	No
Ethernet LAN	Yes
Memory
Internal memory	512 MB
Flash memory	2048 MB
Paper handling
Ribbon width	11 cm
Ribbon length	450 m
Media thickness	0.076 x 0.305 mm
Maximum roll diameter	20.3 cm
Ports & interfaces
USB 2.0 ports quantity	1
RS-232 ports	1
Parallel ports quantity	1
Bluetooth	Yes
USB port	Yes
Performance
Built-in barcodes	Code 11, Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, MaxiCode, QR Code, TLC39, UPC-A, UPC-E
Certification	EC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3 cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN Metro
Cutter	Yes
Design
Product colour	Grey
Built-in display	Yes
Power
Power consumption (printing)	250 W
AC input voltage	90 - 265 V
AC input frequency	47 - 63 Hz
Technical details
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210
Operational conditions
Storage temperature (T-T)	-30 - 60 °C
Storage relative humidity (H-H)	20 - 85%
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 85%
Weight & dimensions
Width	268.2 mm
Depth	512.3 mm
Height	395.7 mm
Weight	22.7 kg
