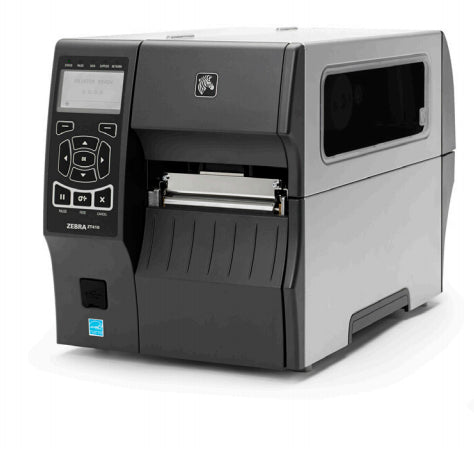

Zebra ZT410 label printer Thermal transfer 356 mm/sec Ethernet LAN

Print crisp labels on demand with the Zebra ZT410 label printer Thermal — print width, speed and connectivity are in the spec table.

- Integrated ThingMagic® RFID reader/encoder
- RFID system is available as a factory- or field-installable option
- Prints and encodes tags with a minimum pitch of 0.6”/16 mm
- Supports tags compatible with UHF EPC Gen 2 V1.2/ISO 18000-6C

RFID Features Continued
- Compliant with Global RFID radio to support multinational deployments
- Adaptive encoding technology automatically eliminates complex RFID placement guidelines
- Variable inlay placement supports a range of inlay positions for maximum media flexibility
- Auto-tag calibration for label lengths of 2” or greater
- Optimized for throughput of both small and large labels
- RFID job-monitoring tools track RFID performance
- Support for industry standard multi-vendor chip-based serialization (MCS)
- Supports block permalocking of user memory compatible with ATA Spec 2000
- RFID ZPL® commands provide compatibility with existing Zebra RFID printers

More Standard Features
- Construction: Metal frame and Bi-fold metal media cover with enlarged clear viewing window
- Side-loading supplies path for simplified media and ribbon loading
- Element Energy Equalizer™ (E3™) for superior print quality
- Communication - USB 2.0, High-Speed, RS-232 Serial, 10/100 Ethernet, Bluetooth 2.1, USB Host
- Back-lit, multiline graphic LCD display with intuitive menu and easy-to-use keypad for quick operation
- Link-OS
- Bi-colored status LEDs for quick printer status
- ENERGY STAR® qualified

Specifications

Print quality
Maximum printing width	10.4 cm
Printing
Colour	No
Print speed	356 mm/sec
Print technology	Thermal transfer
Display
Display	LCD
Network
Wi-Fi	No
Ethernet LAN	Yes
Paper handling
Ribbon width	11 cm
Ribbon length	450 m
Media thickness	0.058 - 0.25 mm
Maximum roll diameter	20.3 cm
Maximum label width	10.4 cm
Maximum label length	3.988 m
Ports & interfaces
USB 2.0 ports quantity	1
RS-232 ports	1
USB port	Yes
Performance
Built-in barcodes	Code 11, Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, MaxiCode, QR Code, TLC39, UPC-A, UPC-E
Design
Product colour	Grey
Built-in display	Yes
Technical details
Sustainability certificates	ENERGY STAR
Operational conditions
Storage temperature (T-T)	-40 - 60 °C
Weight & dimensions
Width	269 mm
Depth	495 mm
Height	324 mm
Weight	16.3 kg
