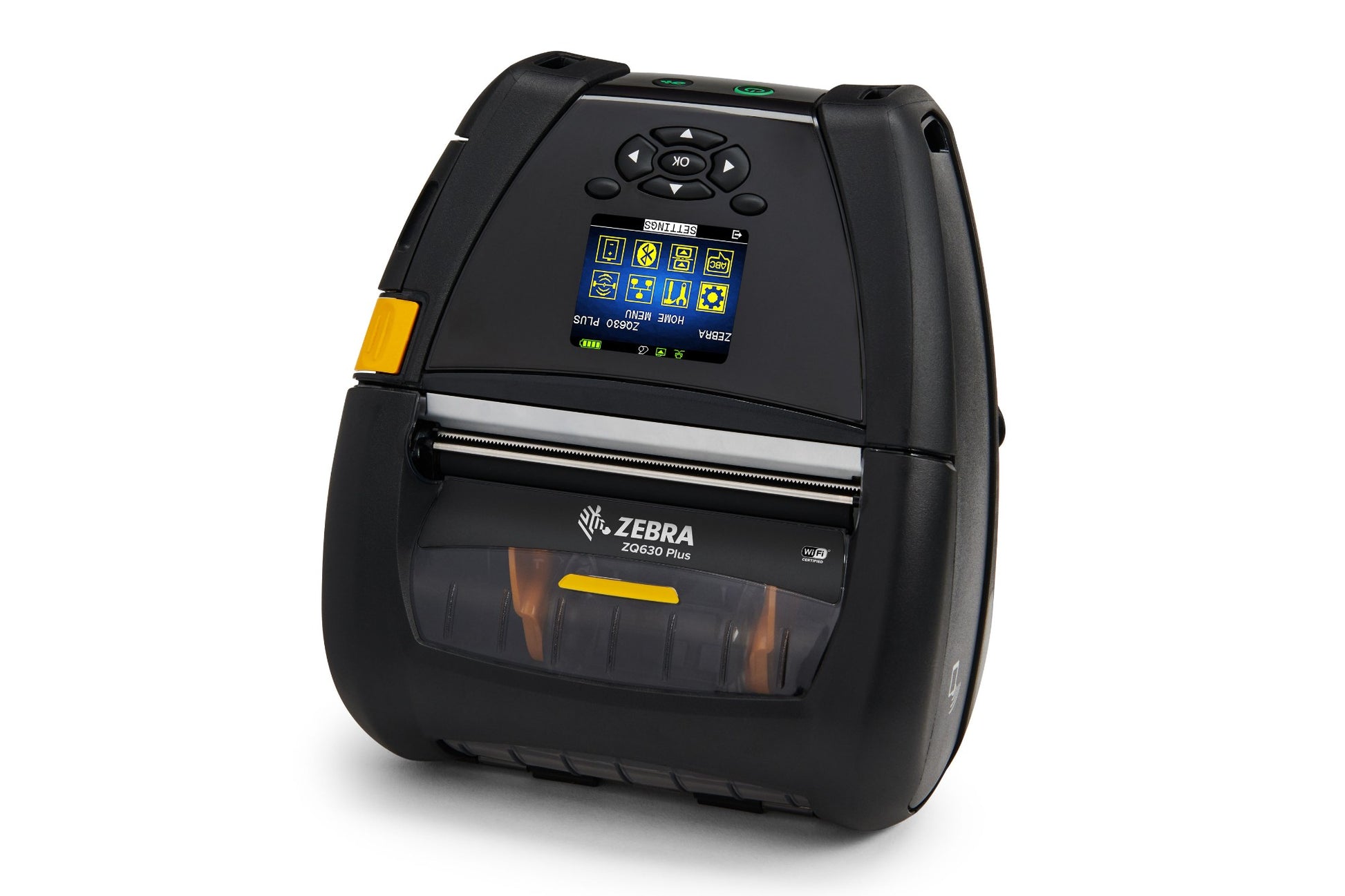

Zebra ZQ63-AUFAE14-00 label printer Direct thermal 203 x 203 DPI 115 mm/sec Wired &

Print crisp labels on demand with the Zebra ZQ63-AUFAE14-00 label printer Direct — print width, speed and connectivity are in the spec table.

Always on the edge of innovation, Zebra offers premium RFID mobile printers to give your workers a leading advantage. The ZQ630 Plus RFID rounds out Zebra’s ZQ600 Plus Series printers with advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. Save time, reduce errors, print and encode RFID labels and tags on the spot with ease. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity–6600 mAh–power every minute of the longest shift. The instant wake-up feature on Wi-Fi™ or Bluetooth® ensures the ZQ630 Plus RFID never sleeps on the job. And, the ZQ630 Plus RFID is easier to integrate, manage, setup and secure, thanks to Zebra’s Link-OS® printer operating system and powerful Print DNA™ suite of applications, utilities and developer tools.

Specifications

Print quality
Maximum resolution	203 x 203 DPI
Maximum printing width	10.4 cm
Printing
Print speed	115 mm/sec
Print technology	Direct thermal
Network
Wi-Fi	No
Ethernet LAN	No
Memory
Internal memory	256 MB
Flash memory	512 MB
Paper handling
Supported paper width	112 mm
Maximum media length	81.3 cm
Ports & interfaces
RS-232 ports	1
Connectivity technology	Wired & Wireless
Bluetooth version	4.2
Bluetooth	Yes
USB port	Yes
Bluetooth Low Energy (BLE)	Yes
Performance
Built-in barcodes	Code 93, GS1 DataBar, Plessey, Code-128 Codabar Library, QR Code, AZTECCODE, CODABAR (NW-7), Data Matrix, Interleaved 2/5, TLC39, Macro PDF417, UPC-A, EAN128, MaxiCode, EAN13, UPC-E, EAN8, PDF417, Code 39
Design
Product colour	Black
Power
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	6600 mAh
Power source type	Battery
Operational conditions
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	82.5 mm
Depth	165.1 mm
Height	186.7 mm
Weight	1.1 kg
