Vogel's PFW 6885 165.1 cm (65") Black Mount

Position your screen exactly where you need it with the Vogel's PFW — VESA fit and load ratings are below.

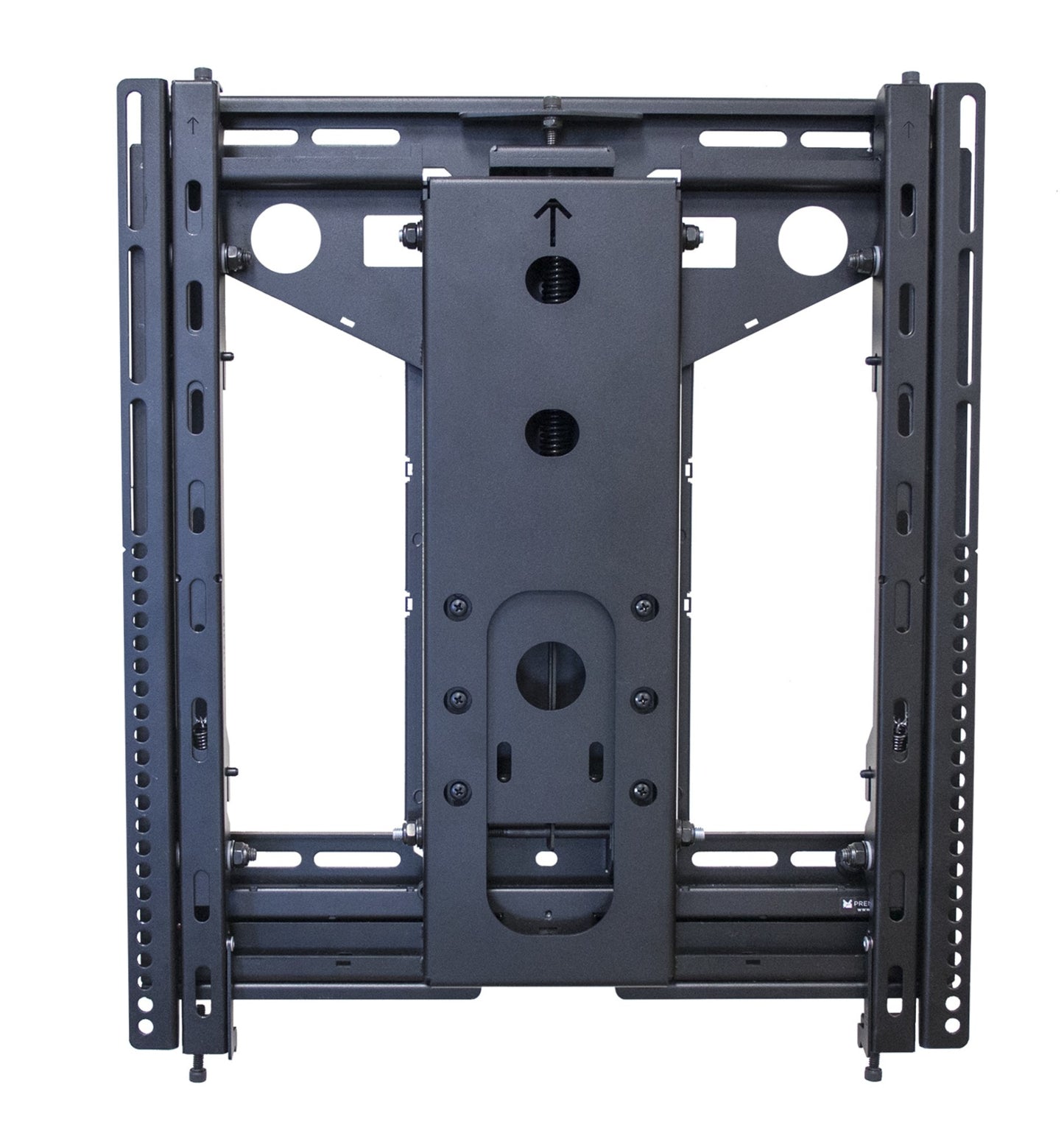

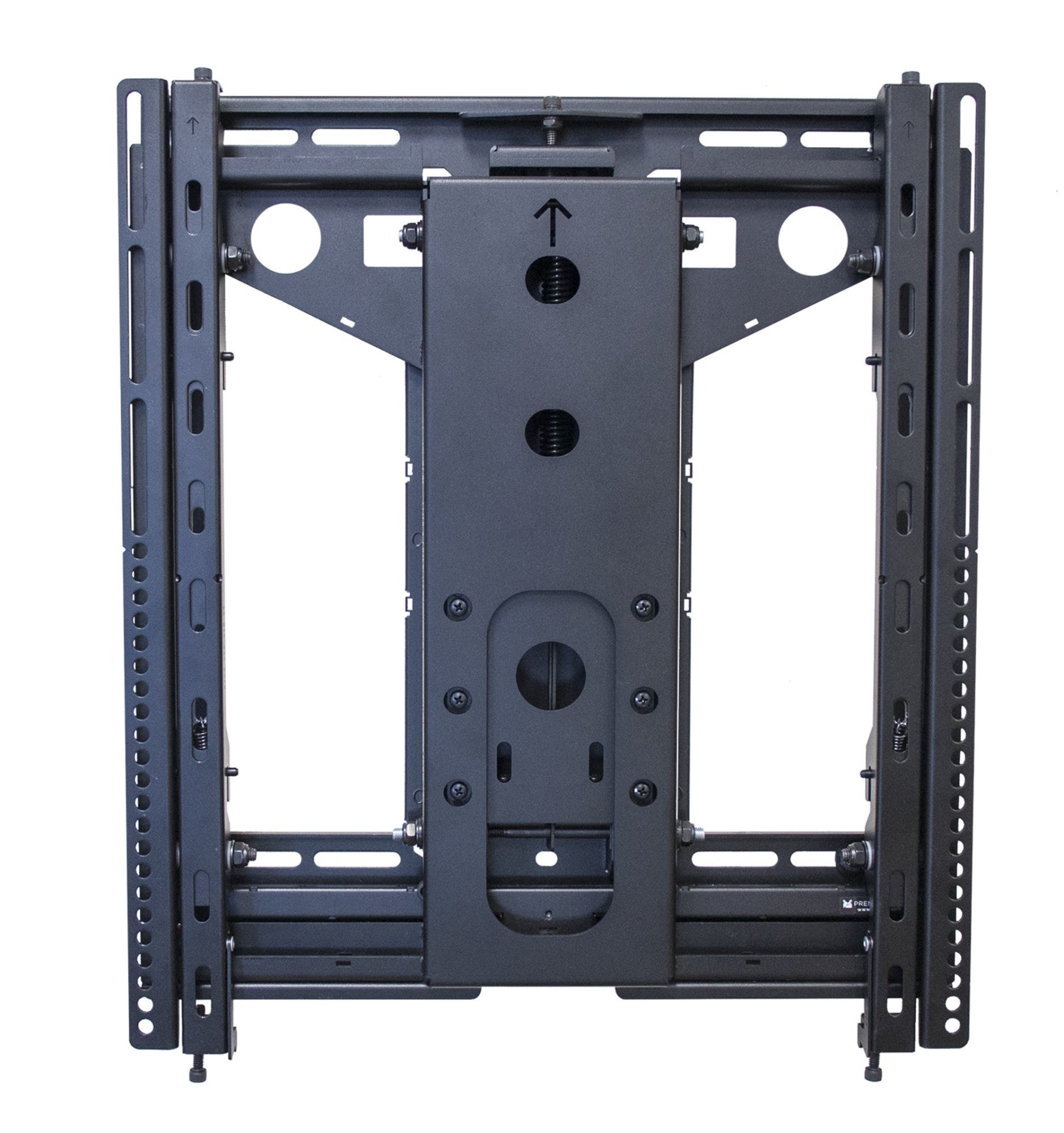

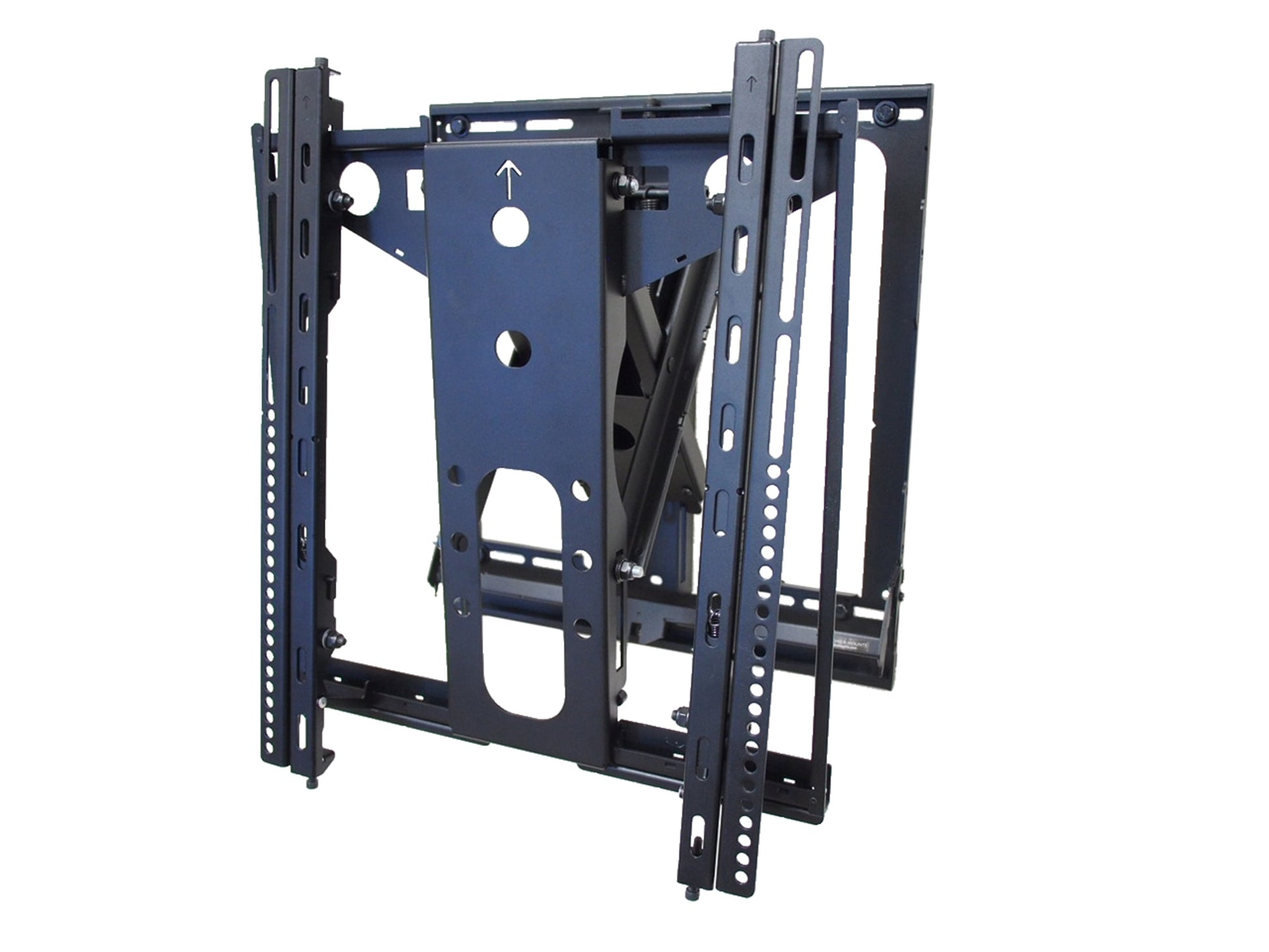

The PFW 6885 is an adjustable pop-out video- wall module for displays in portrait position. The PFW 6885 can be used for displays up to 72kg with mounting patterns from 200 x 200 up to 500 x 600 mm. It features multi-monitor stacking, spring-loaded release, open design, custom spacers, top adjustable mounting brackets and straight scissor-style extension.

Optional dedicated spacers dramatically reduce installation time. Spacers are available for the most used video wall displays or monitors.

Specifications

Mounting
Suitable for	Public display
Minimum screen size compatibility	94 cm (37")
Panel mounting interface	200 x 200,500 x 600 mm
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	500 x 600 mm
Maximum screen size compatibility	165.1 cm (65")
Maximum weight capacity	72 kg
Technical details
Product colour	Black
Packaging content
Screws included	Yes
Quick installation guide	Yes
Adapter bracket included	Yes
Anchors included	Yes
Number of anchors included	4
Washers included	Yes
Number of washers included	4
Spacer included	Yes
Number of spacers included	8
Mounting kit	Yes
Weight & dimensions
Depth	50 mm
Packaging data
Package type	Box

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
