Vogel's PFB 3407 Mount

Position your screen exactly where you need it with the Vogel's PFB — VESA fit and load ratings are below.

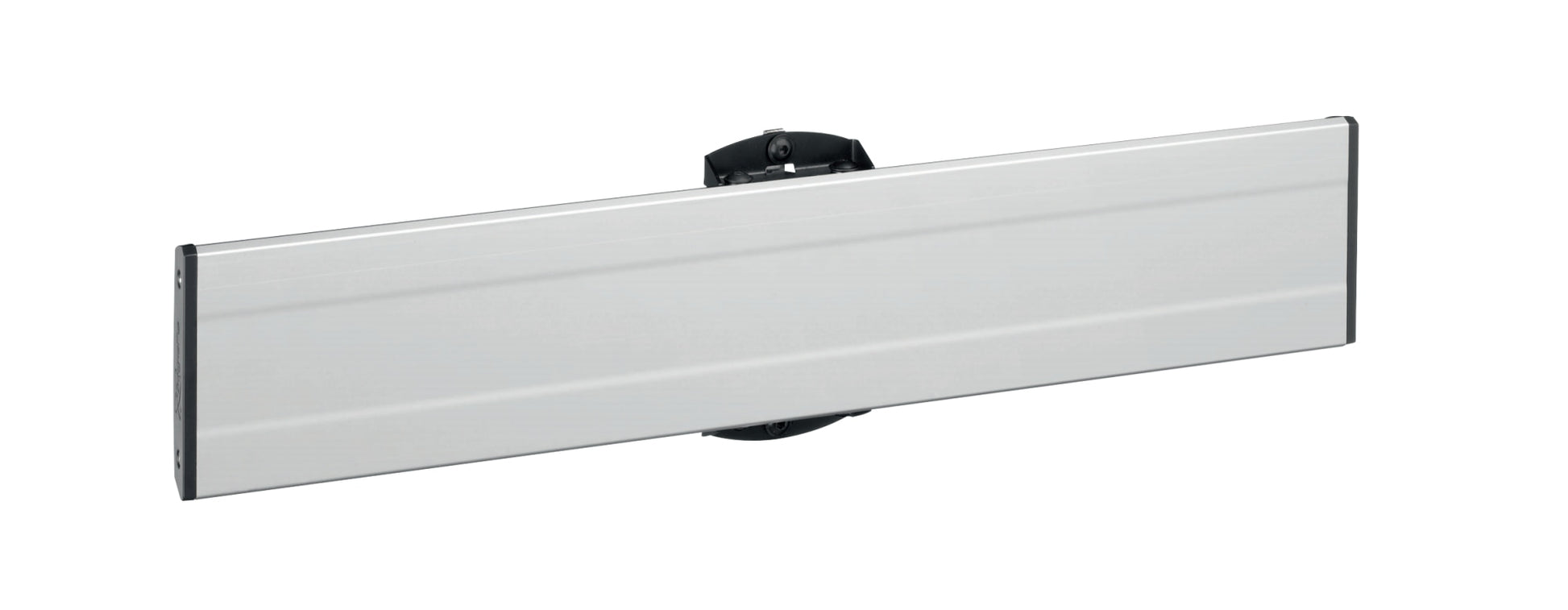

The PFB 3407 interface bar is a part of the modular Connect-it system with which you can create your own ceiling solution for medium- to large-sized displays.

The PFB 3407 is suitable for medium- to large-sized displays up to 80 kg with a max. horizontal fitment of 650 mm. Combine this interface bar with one of the Connect-it ceiling plates (PUC 1060/ 1070/ 1080/ 1090), a Connect-it pole (PUC 2508/ 2515/ 2530) and Connect-it interface display strips (PFS 3303/ 3304/ 3305/ 3306/ 3308/ 3311) for a complete ceiling solution.

Specifications

Technical details
Width (imperial)	71.4 cm (28.1")
Maximum weight capacity	80 kg
Material	Aluminium
Height (imperial)	13.7 cm (5.4")
Depth (imperial)	3.05 cm (1.2")
Product colour	Silver
Compatibility	Vogel's PUC 1060/ 1070/ 1080/ 1090/ 2508/ 2515/ 2530, PFS 3303/ 3304/ 3305/ 3306/ 3308/ 3311
Packaging content
Quantity	1

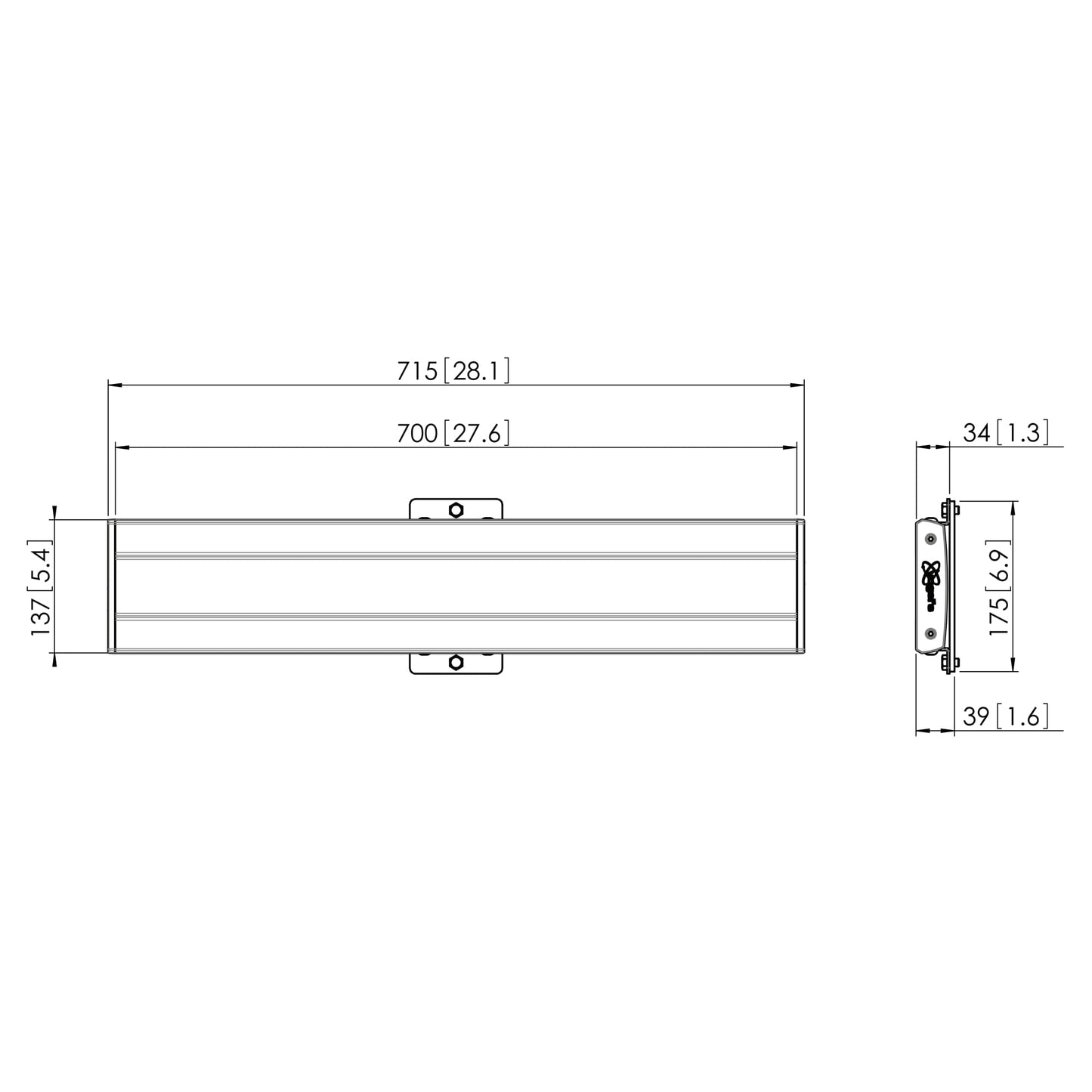

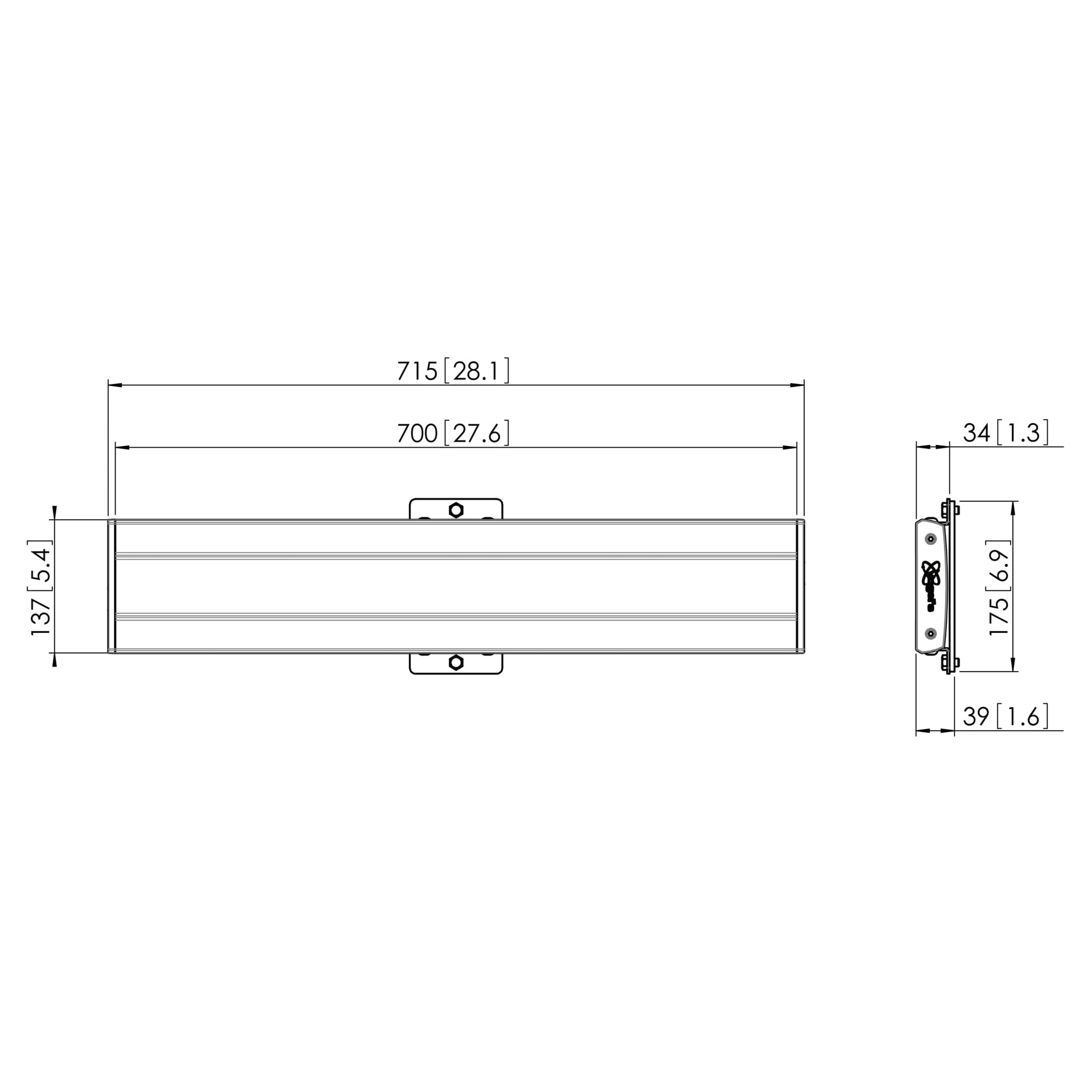

Weight & dimensions
Width	715 mm
Depth	30 mm
Height	137 mm
Packaging data
Package width	198 mm
Package height	74 mm
Package depth	735 mm
