VivoLink

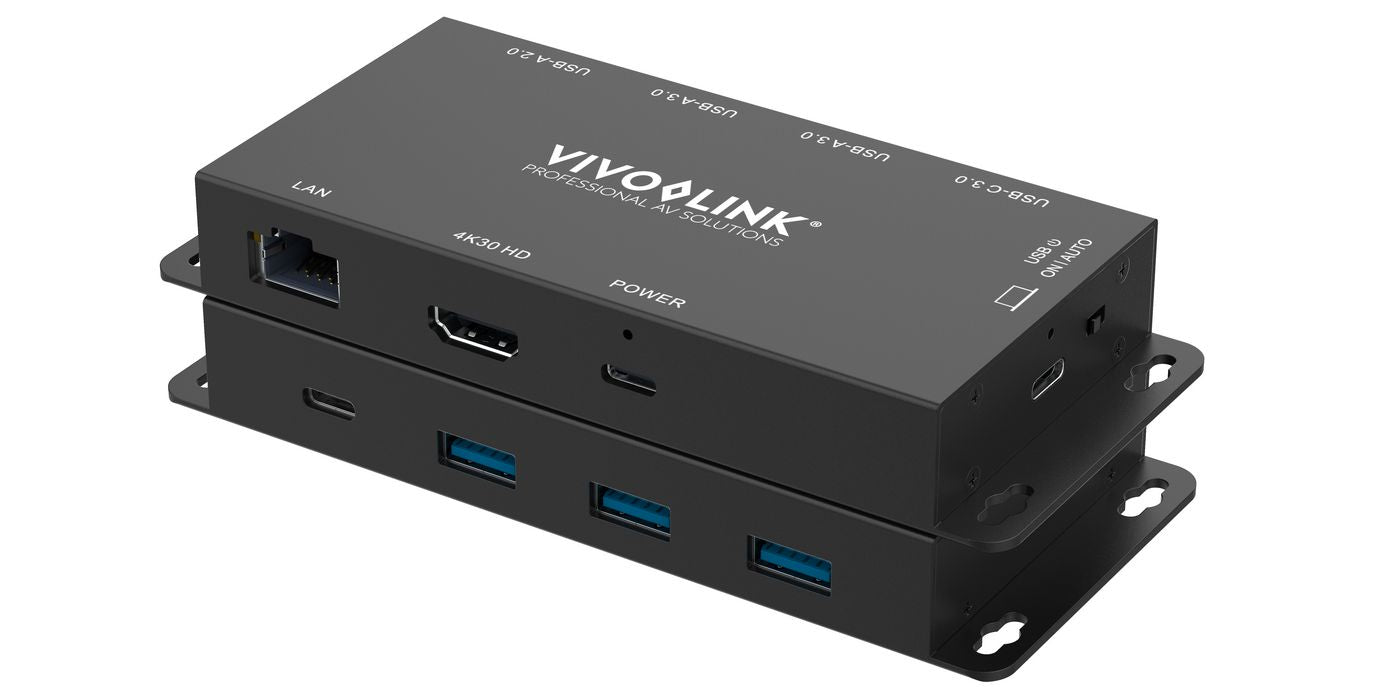

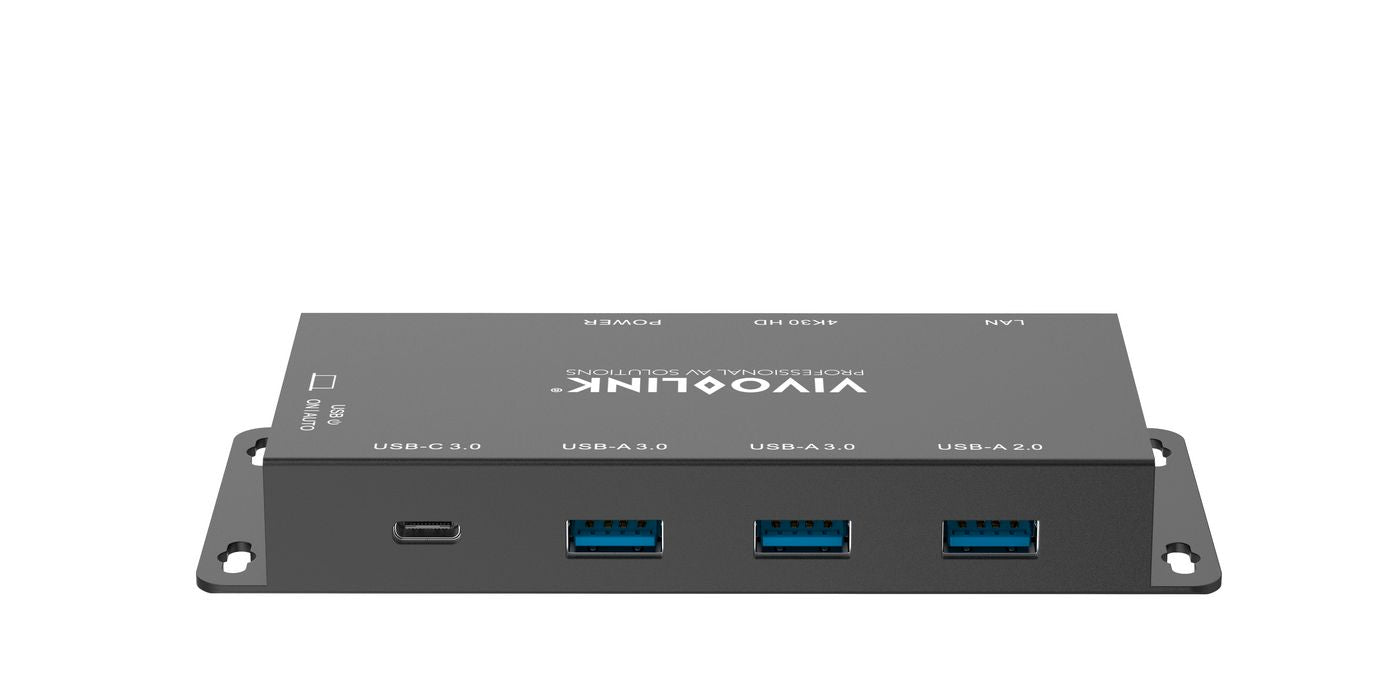

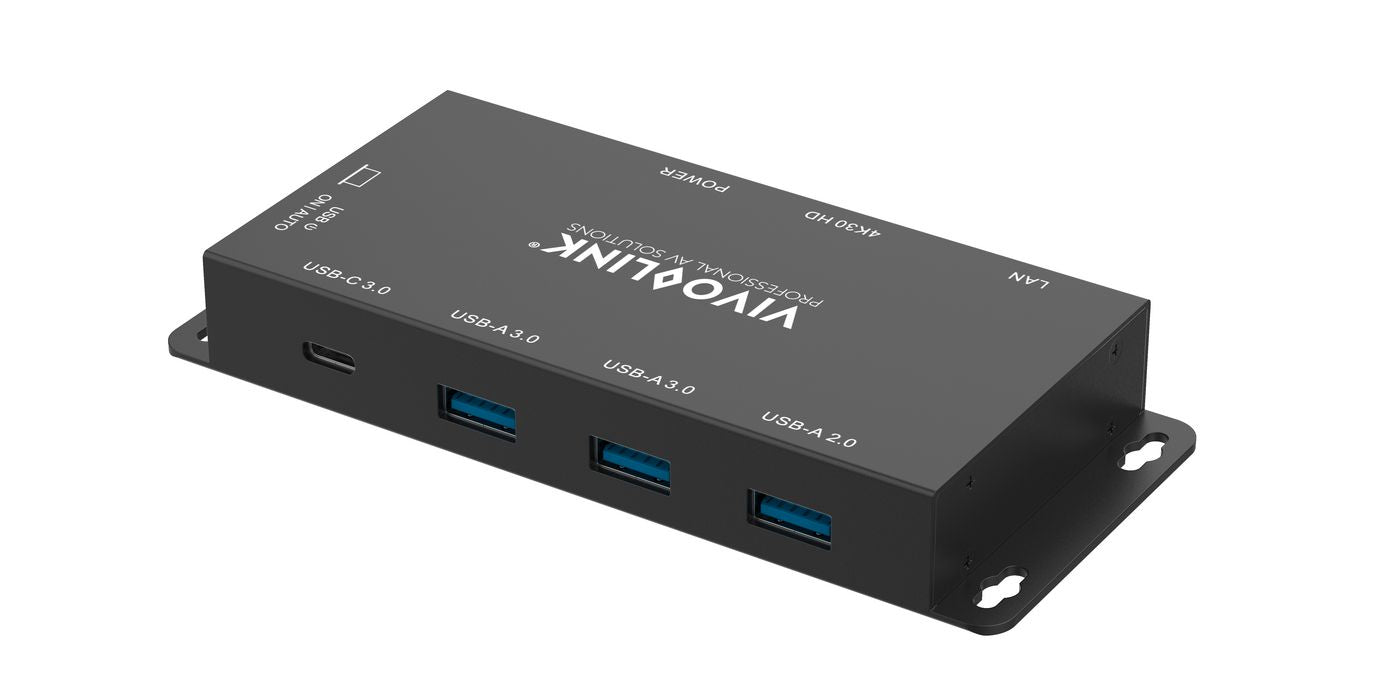

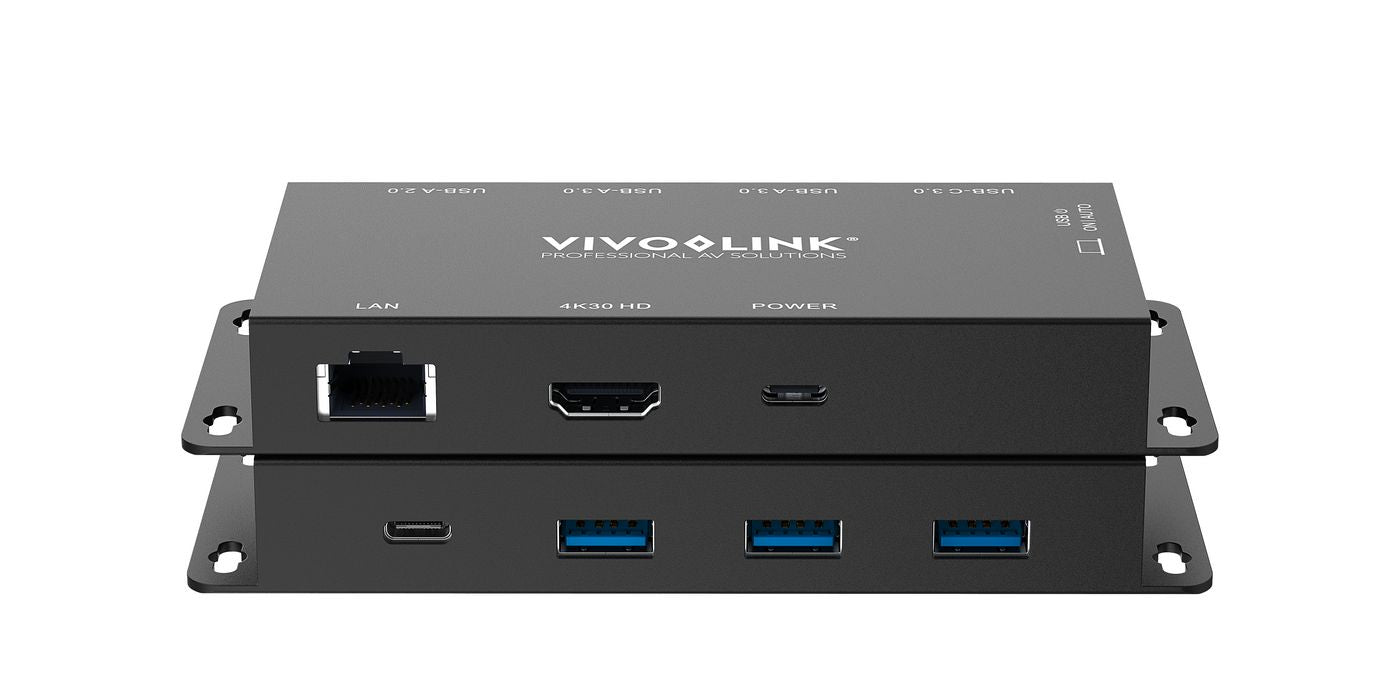

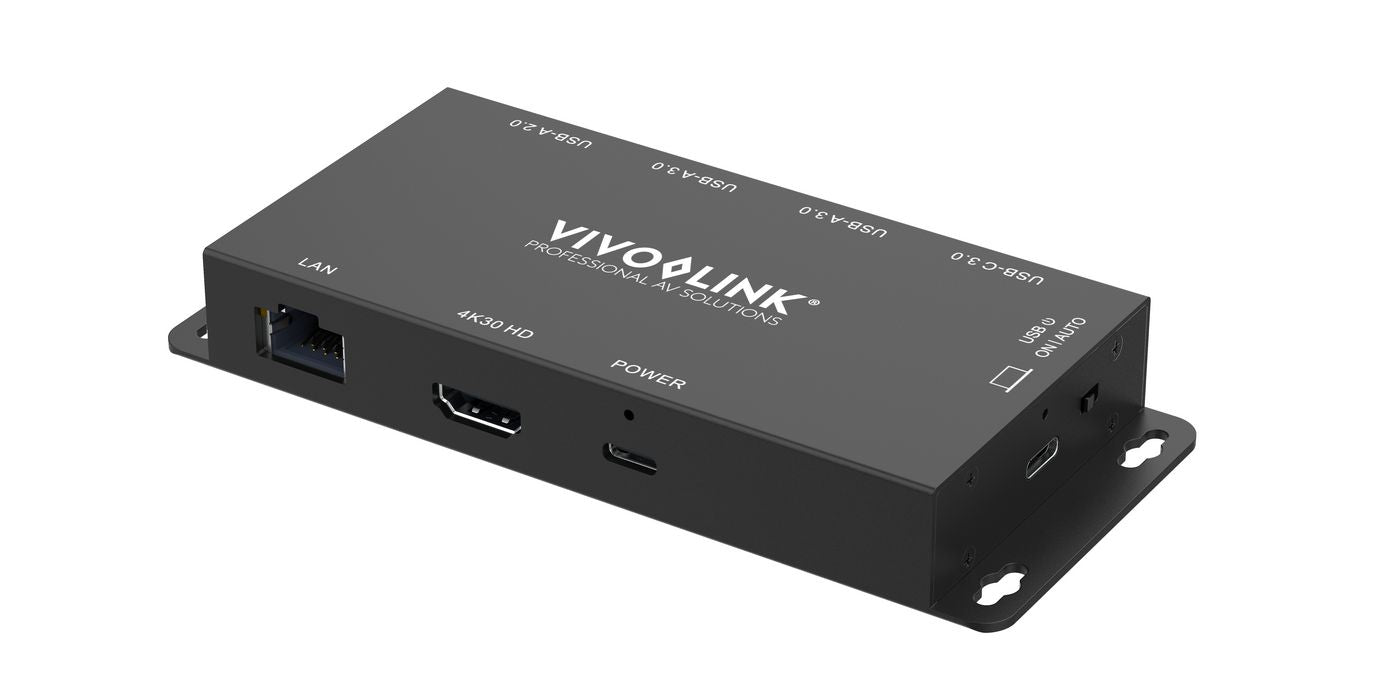

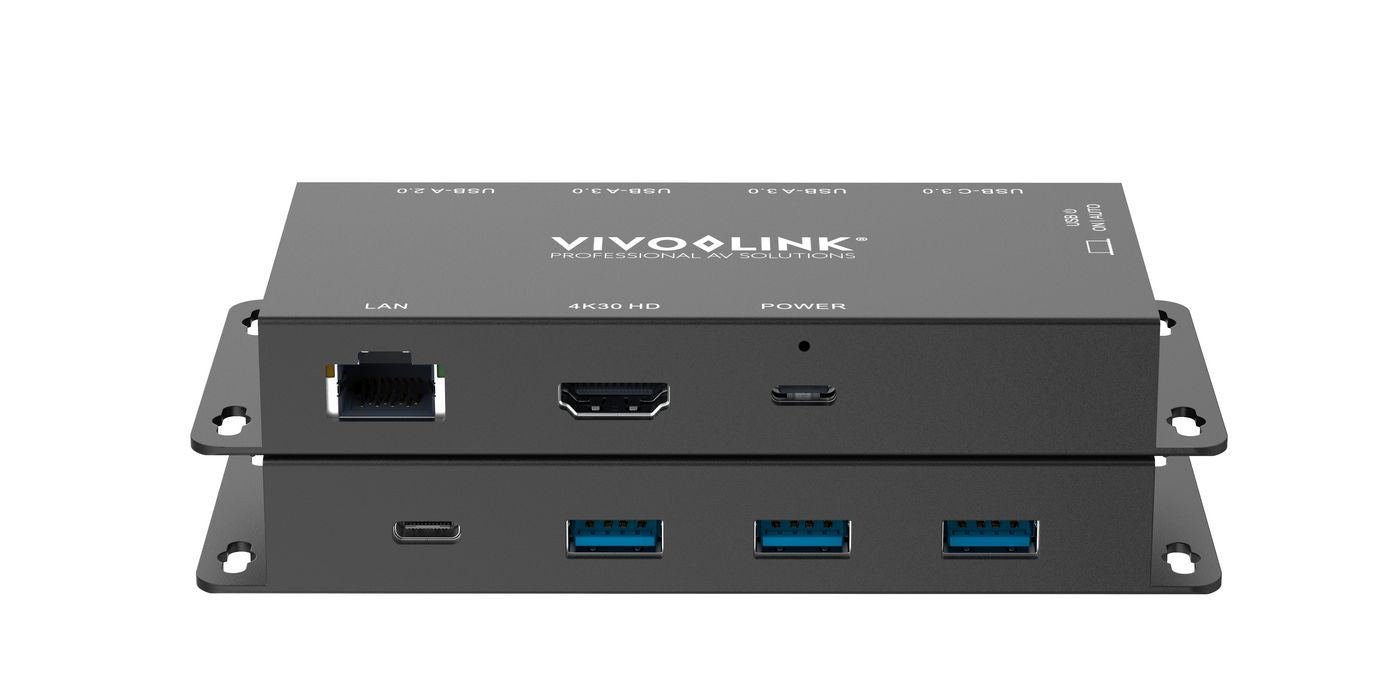

VivoLink VLUSBCHUB2V2 USB graphics adapter 3840 x 2160 pixels

£194.37 GBP

Sale Sold out

Taxes included.

Condition New

The VivoLink VLUSBCHUB2V2 expands your ports in seconds — plug in and go.

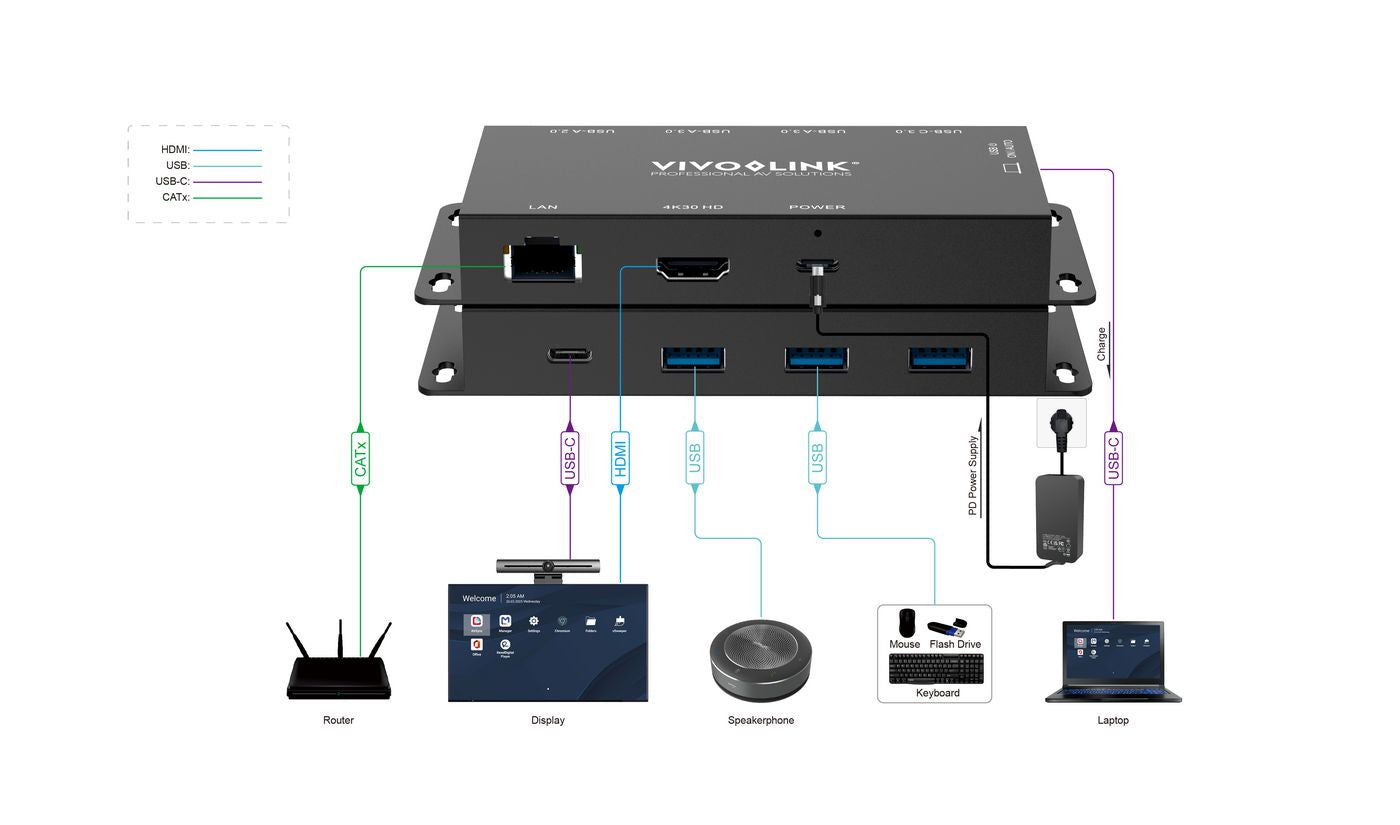

Vivolink 4K USB-C HUB – Your all-in-one solution for video conferencing systems. Connect all your equipment, just like you would with a docking station for your computer.
The VLUSBCHUB2V2 is your key to effortless conferencing. Designed as a 4K USB-C Hub, it allows you to connect multiple devices via USB and share content seamlessly on a single screen.
This Hub is designed to be fixed either under, or on top of, the desk to support all connections within a conference setting.

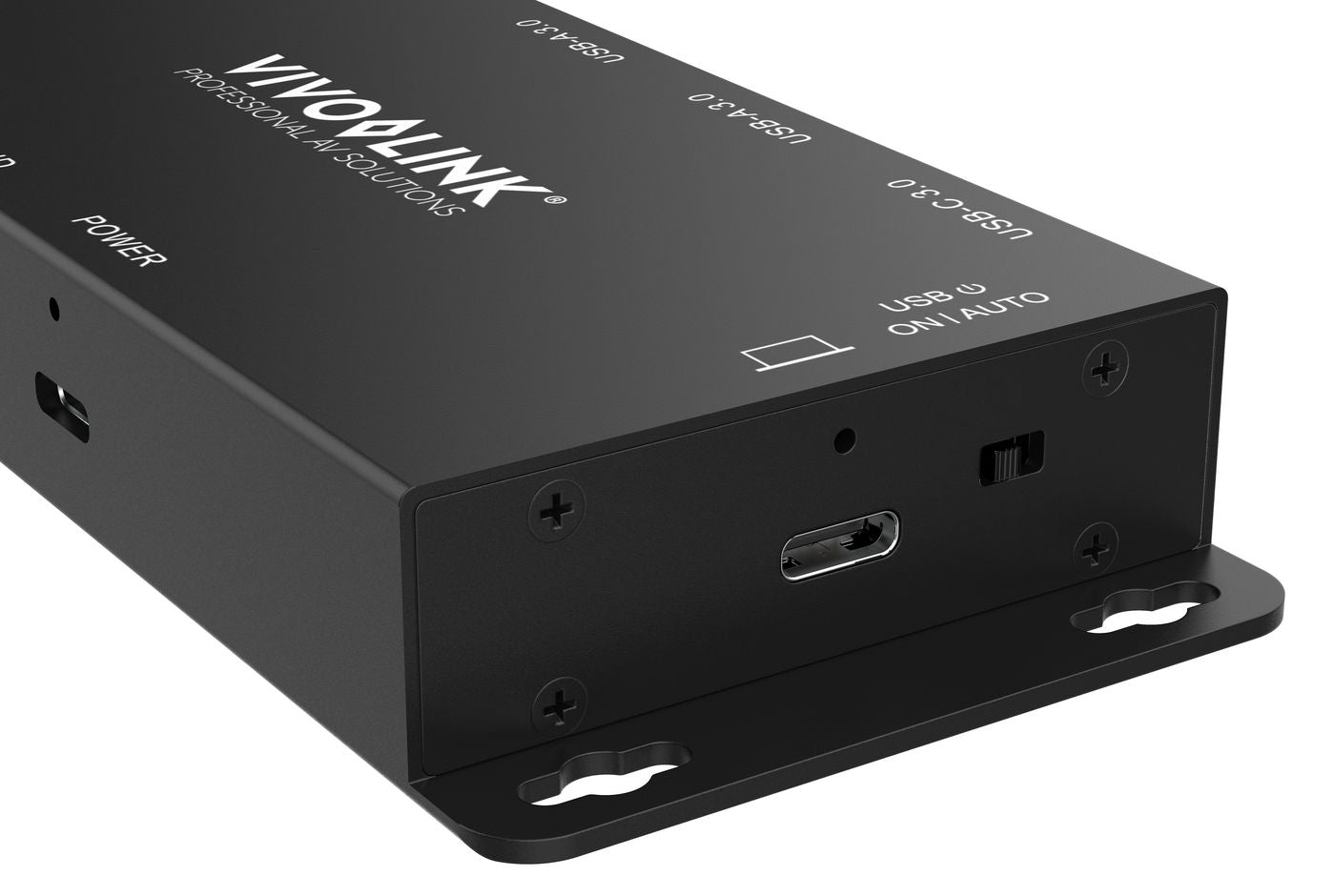

The Hub provides power for the connected device, thus reducing the need for extra unnecessary power cables. DIP switch on product can control powering of USB decives, constant power or auto power that follows HOST connection.
The HDMI output delivers both 4K video and sound from the device, while the LAN port provides cabled network connection to the laptop.
Supports:
HDMI 1.4, 4K@30Hz 4:4:4
USB-C input supports 100W power delivery
Supports USB3.2 Gen2 data transfer via USB-C
2 USB3.2 Gen 1 and 1 USB2.0 KVM for camera, keyboard and mouse
Supports USB power management, maximum power delivery shared for all four ports is 2Amp
Ethernet Gigabit LAN
Plug and Play
Ensure to use cable PROUSBCMM* for the connection from PC to HUB.
The maximum recommend length of cable is 5m (PROUSBCMMS5)
The following formats are supported:
DP Alt Mode, DisplayPort Supported products: Windows PC, Apple MacBook including iPad Pro M2
Recommended HDMI cables for long distance is: PROHDMIOP20
Package Content:
1 x HUB
1 x 100W USB-C PSU incl. mount for PSU
1 x UK Power Plug (Type G)
1 x EU Power Plug (Type C)

Specifications

Performance
USB connector form factor	Straight
USB connector type	USB Type-C
USB connector gender	Male
USB version	3.2 Gen 1 (3.1 Gen 1)
HDMI output	Yes
Number of displays supported	1
HDMI version	1.4
Maximum resolution	3840 x 2160 pixels
Refresh rate at maximum resolution	30 Hz
HDMI ports quantity	1
Design
Housing material	Metal
Weight & dimensions
Width	60 mm
Height	155 mm
Weight	138 g
Package weight	472 g
Technical details
Master (outer) case width	165 mm
Master (outer) case length	330 mm
Master (outer) case height	50 mm
