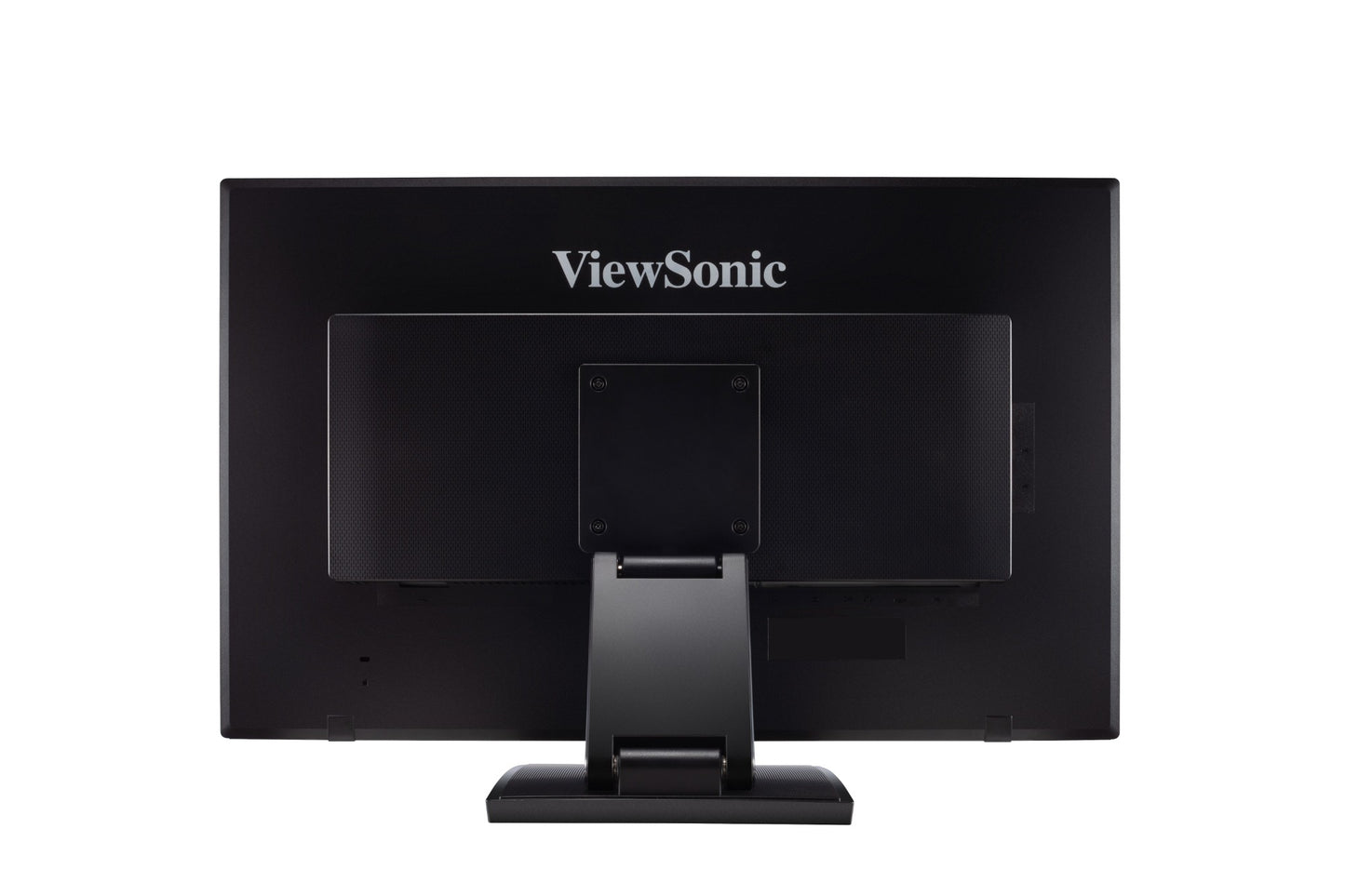

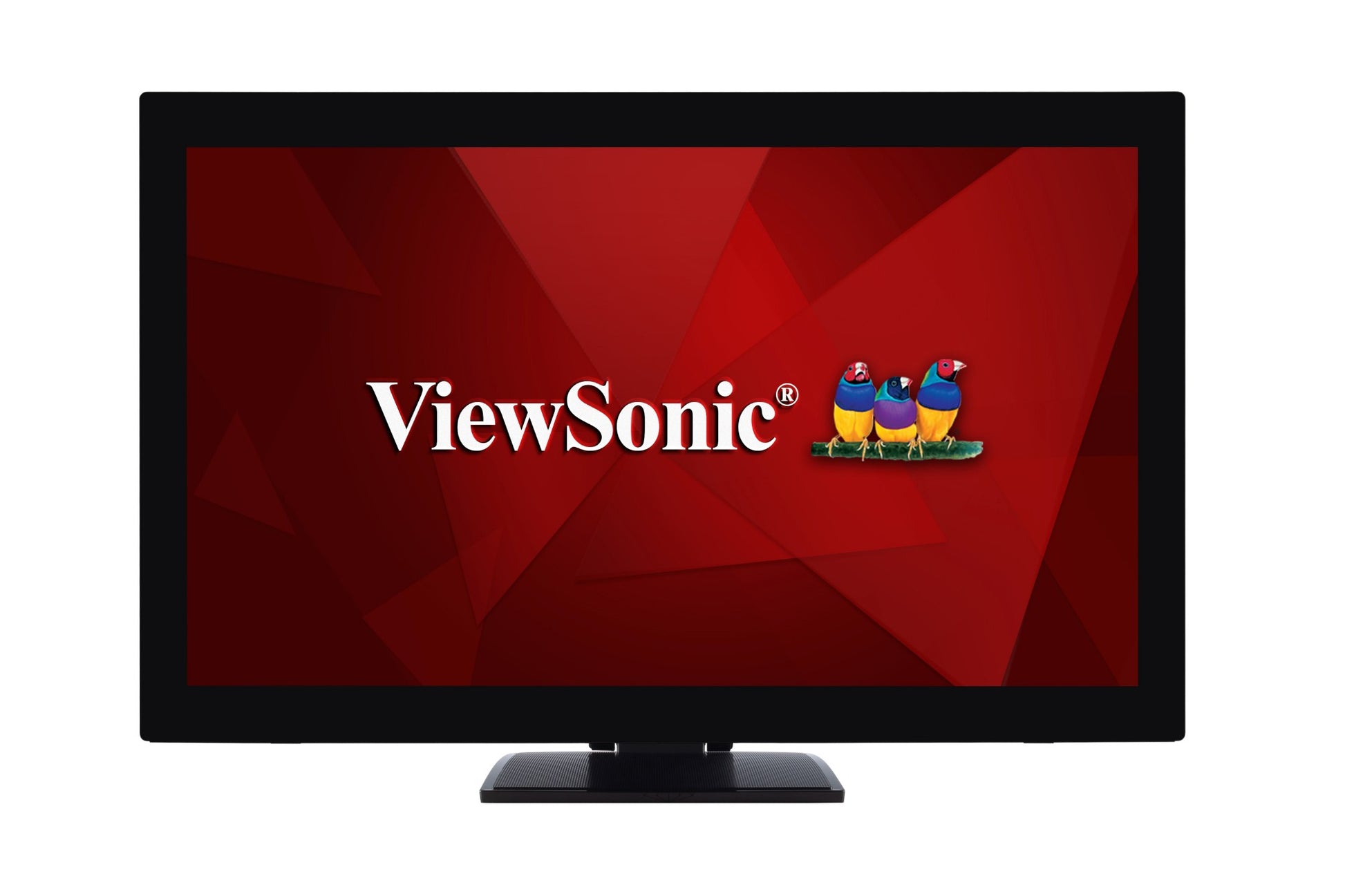

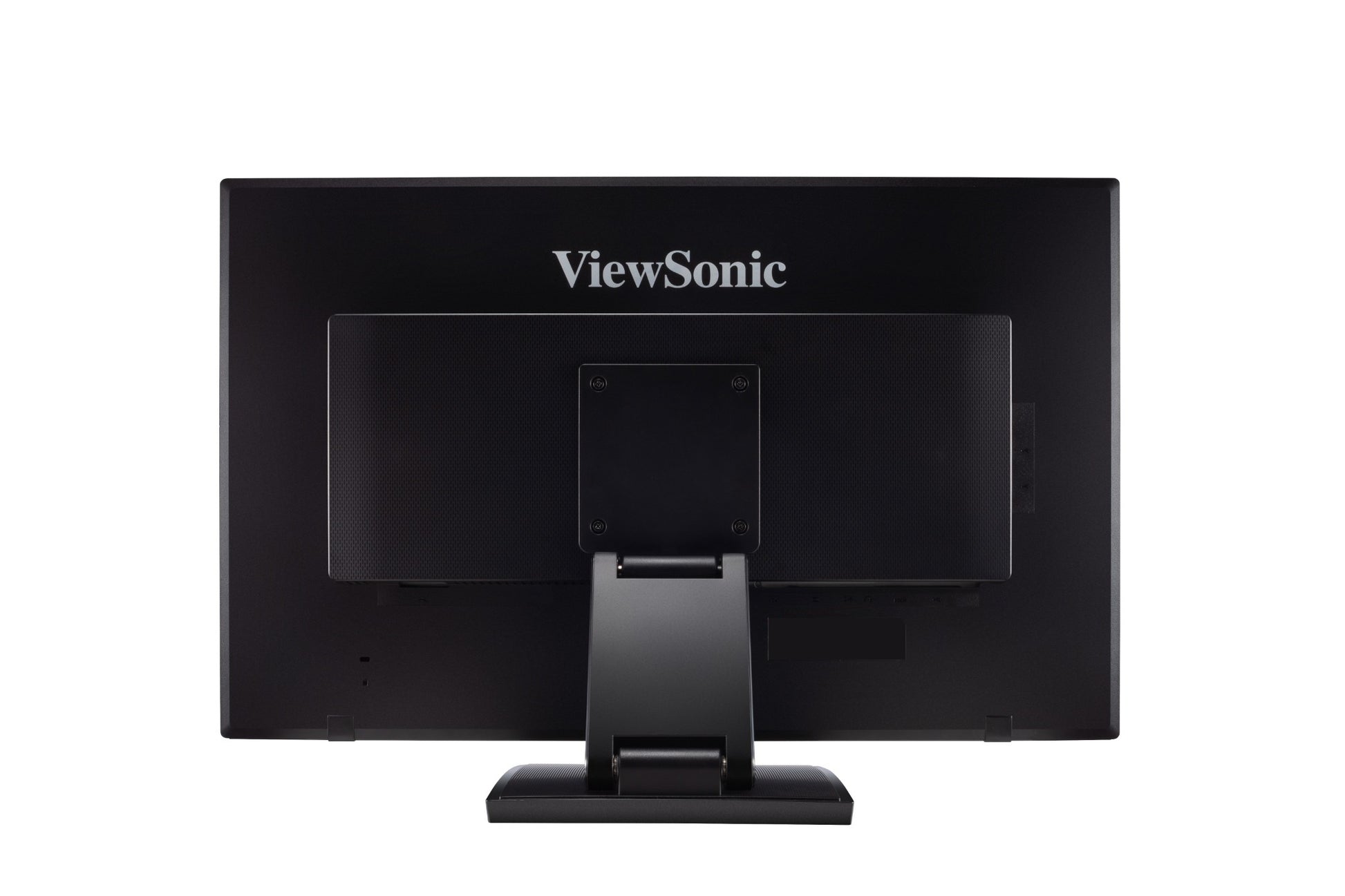

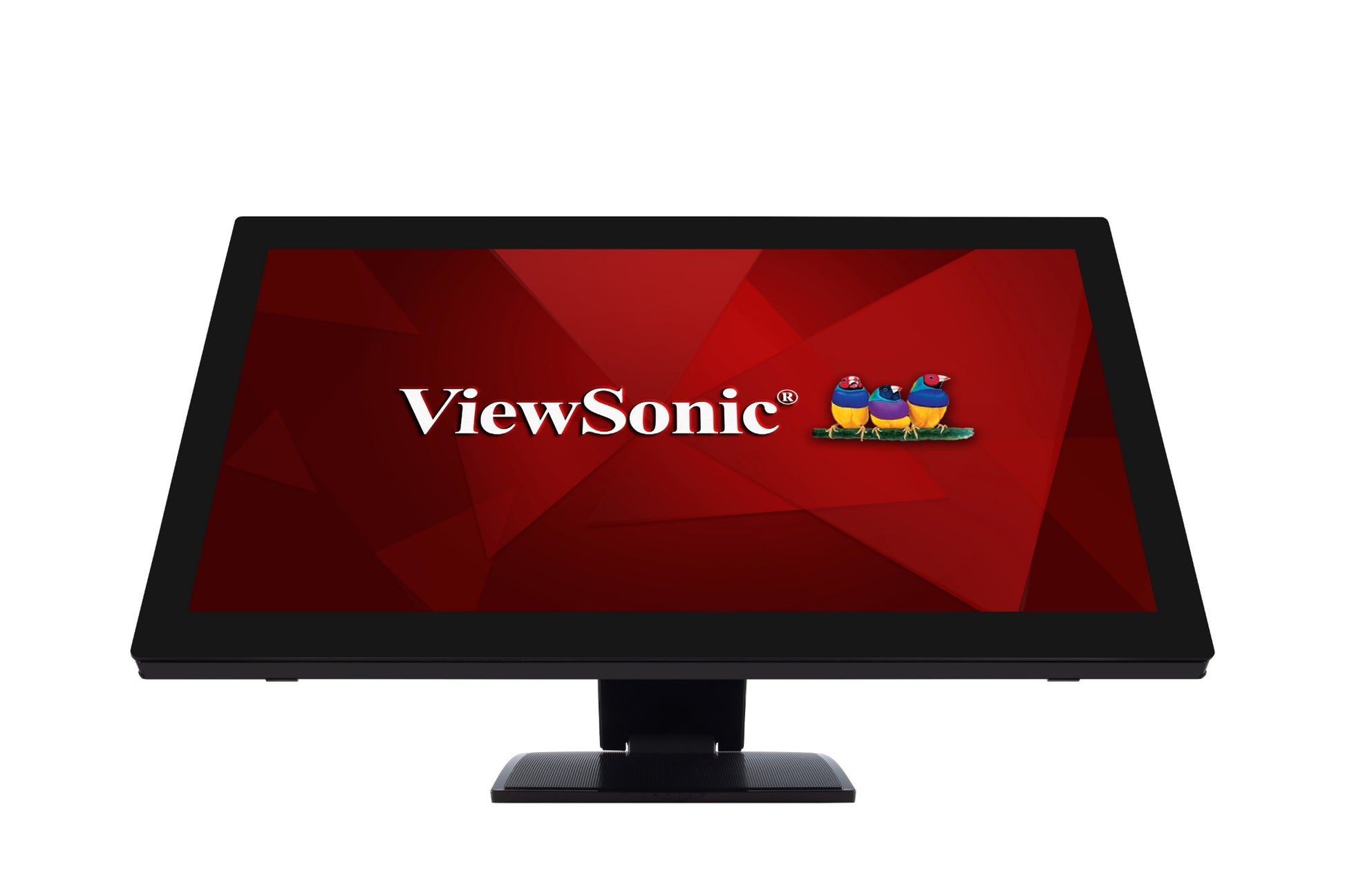

ViewSonic TD2760 27" Full HD VA Touch Monitor

The ViewSonic TD2760 brings touch control to a 27" Full HD 1920x1080 VA monitor — ideal for POS, kiosks and interactive work.

The ViewSonic® TD2760 is an ideal solution for both commercial and consumer touch-screen applications. With an intuitive 10-point multi-touch display and a Full 1080p HD resolution, the 27-inch TD2760 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, retail, and corporate sectors. SuperClear® IPS Panel technology with ultra-wide viewing angles and 50M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. For added convenience, cross-platform compatibility works with operating systems such as Windows 10, Linux, Chrome, and Android. Built-in connectivity options include DisplayPort, HDMI, and VGA ports along with a VESA compatible mount design, offering additional convenience for use as a wall-mount display. With serial port RS232 and HDMI CEC, the TD2760 can directly control connected devices. Even more, the ergonomic stand makes it easy for the user to tilt, raise, and lay the monitor flat for the most natural position, and create a comfortable working environment. Lastly, low power consumption with ENERGY STAR certification saves energy costs while reducing carbon emissions.

10-POINT MULTI-TOUCH

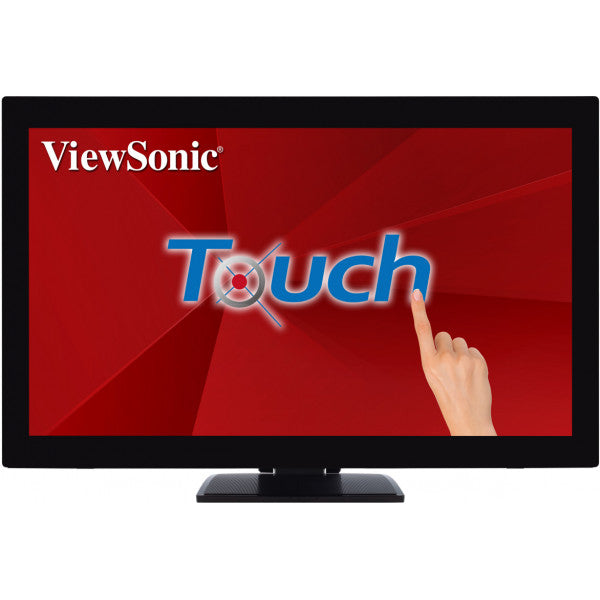

With 10-point multi-touch capabilities, multiple users can simultaneously write or draw on the display's surface using styluses or their fingers – or both at the same time.

SUPERCLEAR ® MVA PANEL TECHNOLOGY
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

ERGONOMIC DUAL-HINGE DESIGN

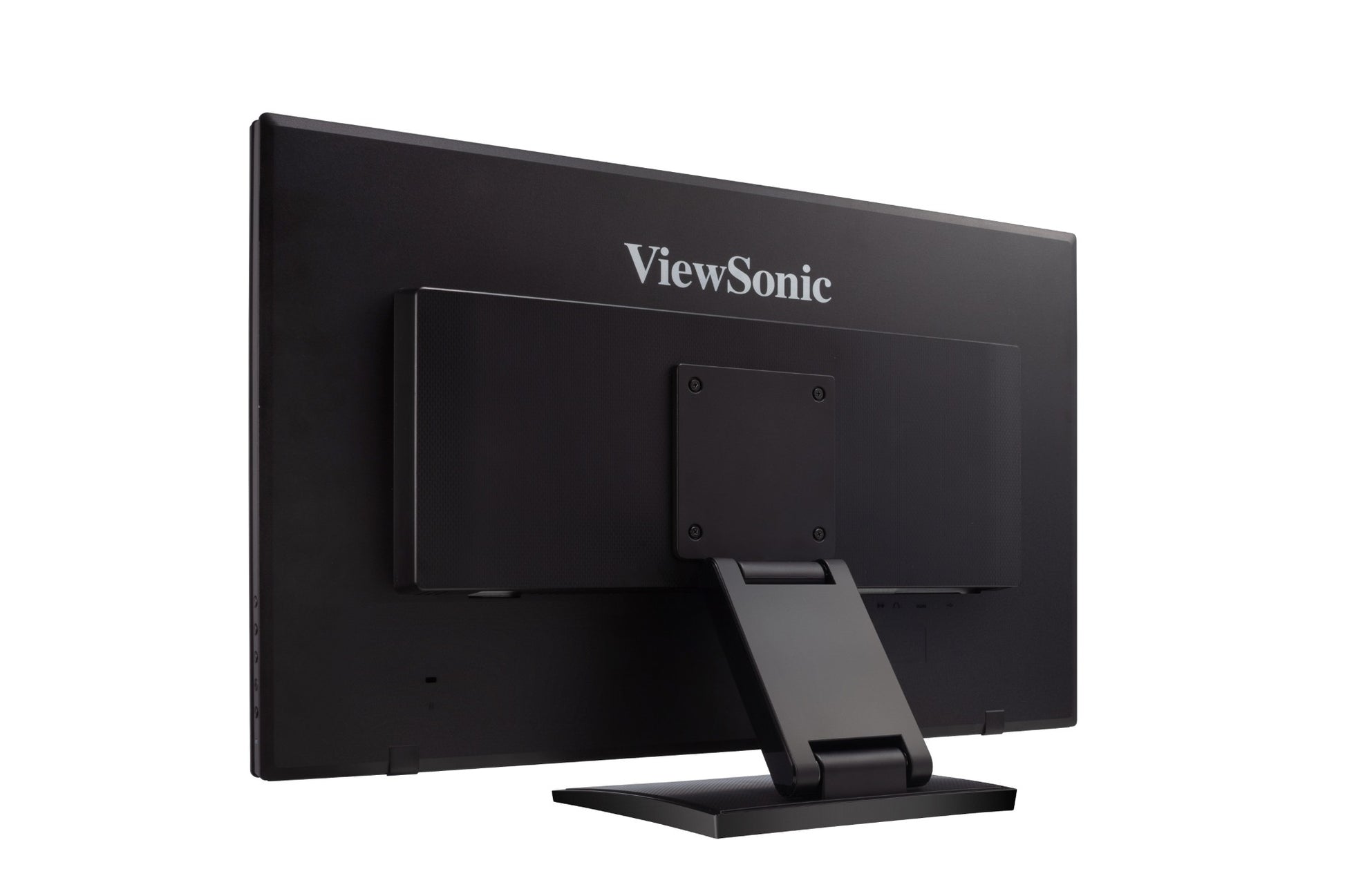

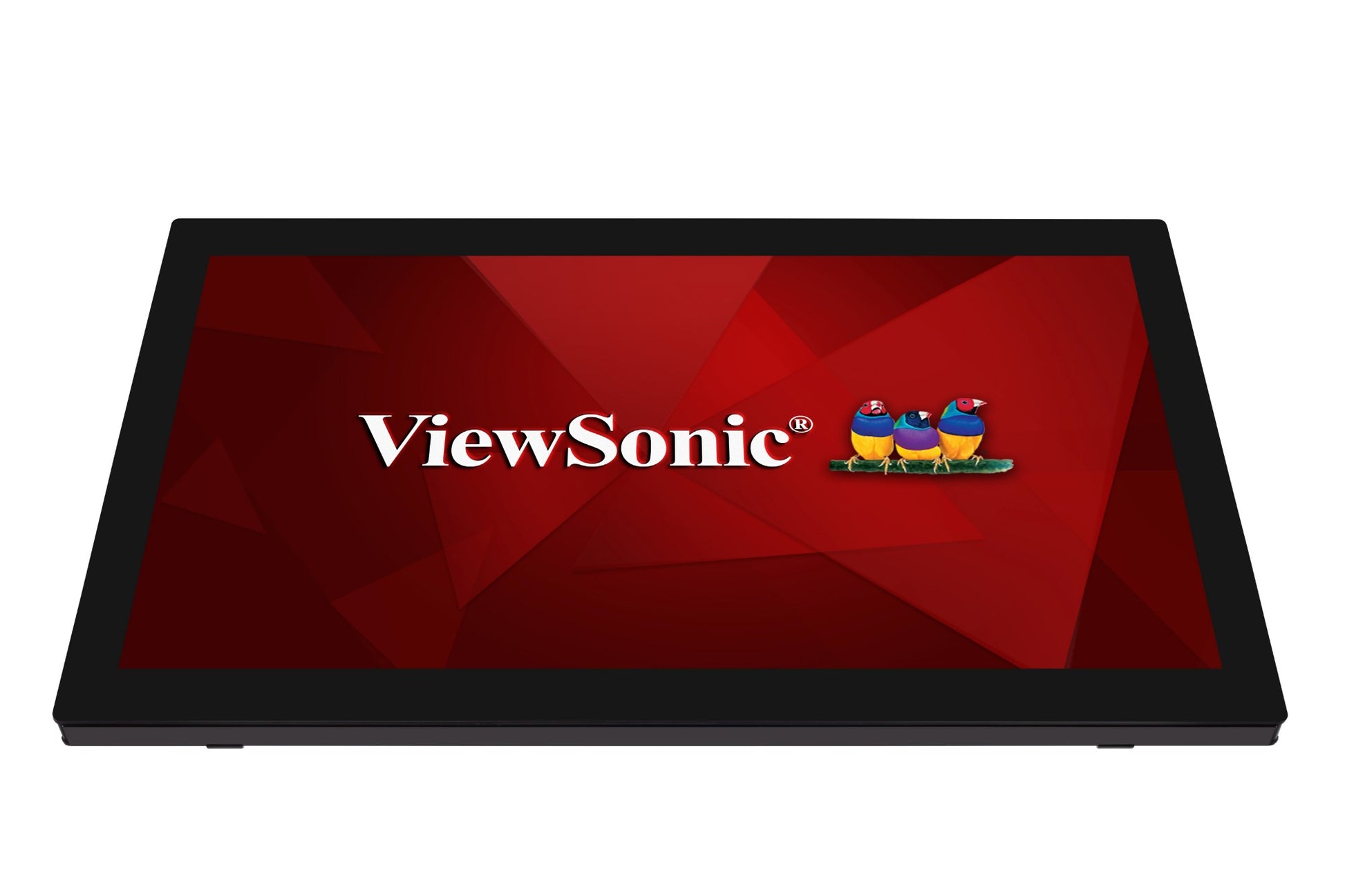

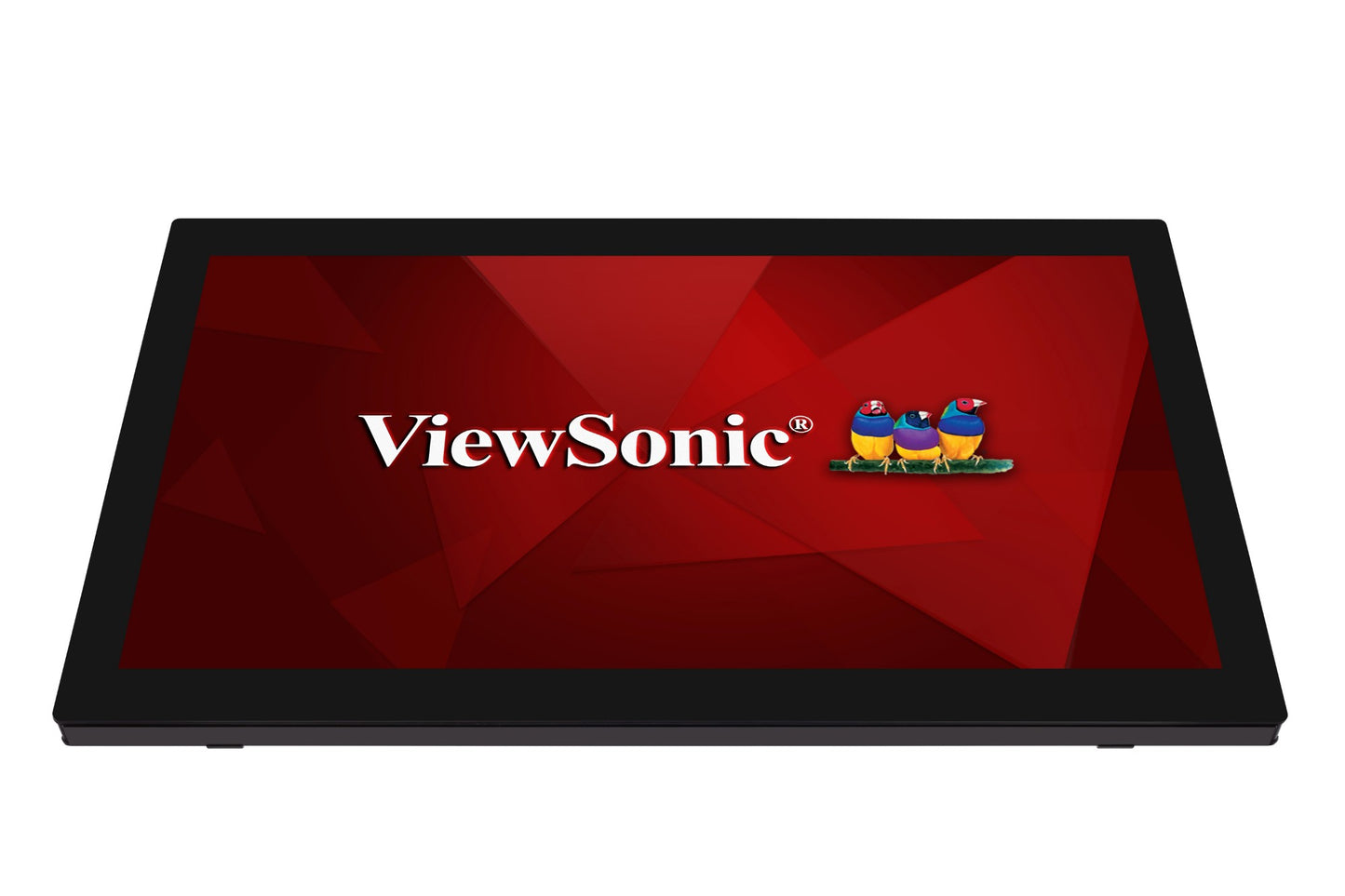

A dual-hinge stand allows the screen to be tilted and adjusted, or rest flat on a desk or table. This sturdy ergonomic design maximizes comfort and productivity, and makes this touch display well suited to a variety of touch scenarios in the home, school or office.

VERSATILE CONNECTIVITY

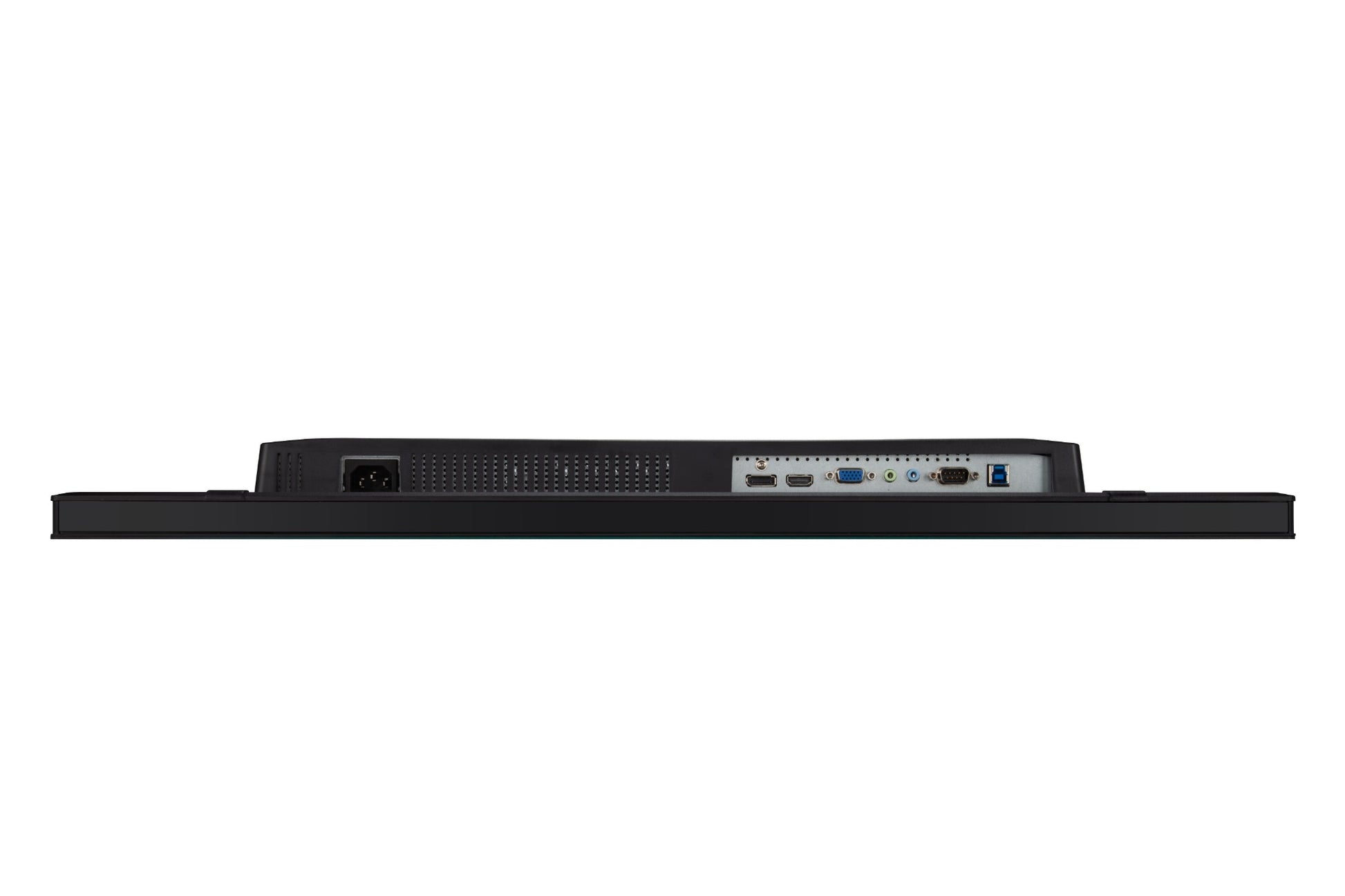

DisplayPort, HDMI, and VGA inputs give you the freedom to connect your display to a variety of devices.

CONTROL MULTIPLE DEVICES
RS232 offers local control for set-top boxes and other RS232 connected devices, directly with the display’s remote controller. HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display’s remote controller.

Specifications

Display
HDCP	Yes
Screen shape	Flat
Display number of colours	16.78 million colours
Native aspect ratio	16:9
HD type	Full HD
Display technology	LED
Contrast ratio (dynamic)	50000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.311 x 0.311 mm
Horizontal scan range	15 - 90 kHz
Vertical scan range	50 - 76 Hz
Aspect ratio	16:9
Viewable size, horizontal	59.8 cm
Viewable size, vertical	33.6 cm
Separate H/V sync	Yes
Backlight type	LED
Display resolution	1920 x 1080 pixels
Response time	6 ms
Display diagonal	68.6 cm (27")
Contrast ratio (typical)	3000:1
Surface hardness	6H
Touchscreen type	Multi-user
Touchscreen	Yes
Number of simultaneous touchpoints	10
Panel type	VA
Display diagonal (metric)	68.58 cm
Touch technology	Multi-touch
Touchscreen technology	Projected capacitive system
LED backlight	Yes
Display brightness	300 cd/m²
Anti-glare screen	Yes
Audio
Built-in speaker(s)	Yes
RMS rated power	4 W
Performance
Mean time between failures (MTBF)	30000 h
Built-in microphone	No
Built-in camera	No
AMD FreeSync	No
NVIDIA G-SYNC	No
Management features
On Screen Display (OSD)	Yes
Number of OSD languages	14
Multimedia
Number of speakers	2
Design
Certification	MX-CoC, Mexico Energy, CE, CE EMC, CB
Product colour	Black
Glass thickness	1.88 mm
Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B
Number of upstream ports	1
USB Type-A downstream ports quantity	2
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
RS-232 ports	1
Audio input	1
Audio output	1
HDMI	Yes
HDMI version	1.4
DisplayPort version	1.2
Number of USB Type-B upstream ports quantity	1
Technical details
Height (without stand)	410 mm
Depth (without stand)	58 mm
Width (without stand)	660 mm
Cable lock slot	Yes
Power supply type	AC
Weight (with stand)	7.9 kg
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Tilt angle range	-4 - 90°
Cable lock slot type	Kensington
Tilt adjustment	Yes
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	26 W
Power consumption (off)	0.3 W
Energy efficiency class (SDR)	F
Energy consumption (SDR) per 1000 hours	19 kWh
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 90%
Weight & dimensions
Width (with stand)	660 mm
Depth (with stand)	239 mm
Height (with stand)	443 mm
Weight (without stand)	5.5 kg
Package width	753 mm
Package depth	204 mm
Package height	525 mm
Package weight	10.2 kg
Weight	7.9 kg
Packaging data
Quick start guide	Yes
Cables included	Power, VGA, HDMI, USB, Audio
Other features
Supplied AC adapter type	AC
Logistics data
Pallet gross width	120 cm
Pallet gross length	100 cm
Pallet gross height	2.24 m
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	8528521000
