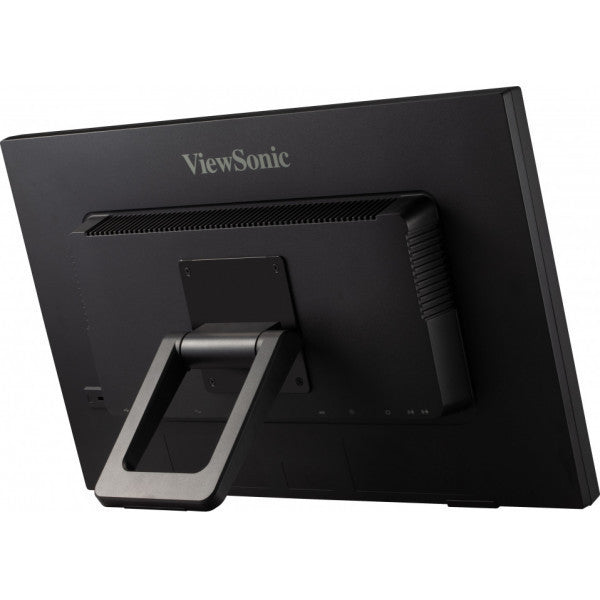

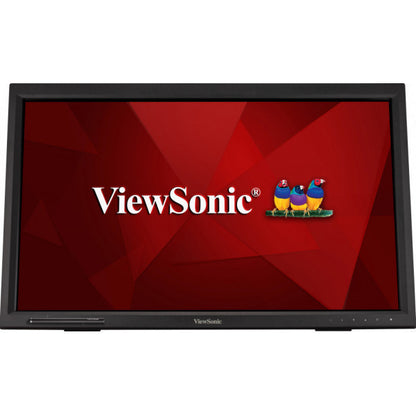

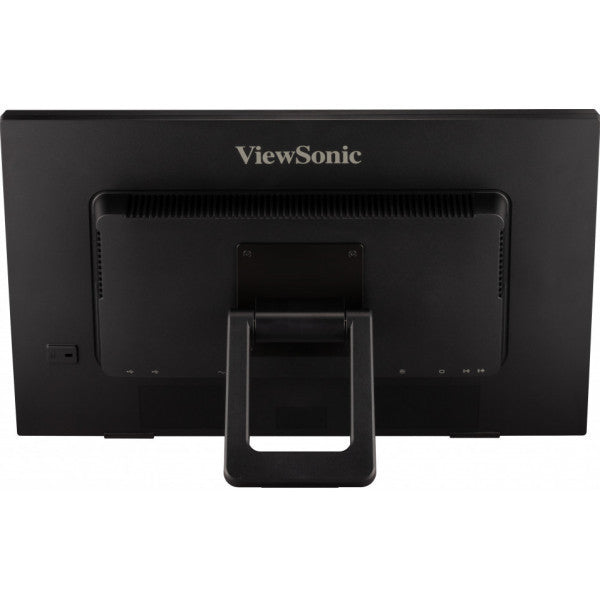

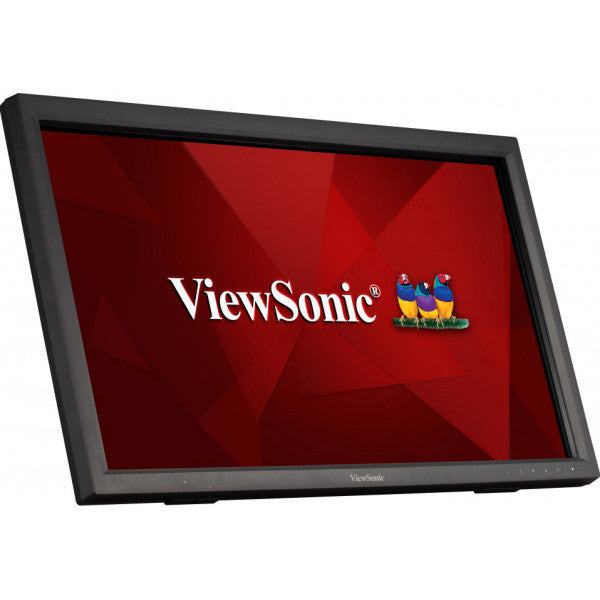

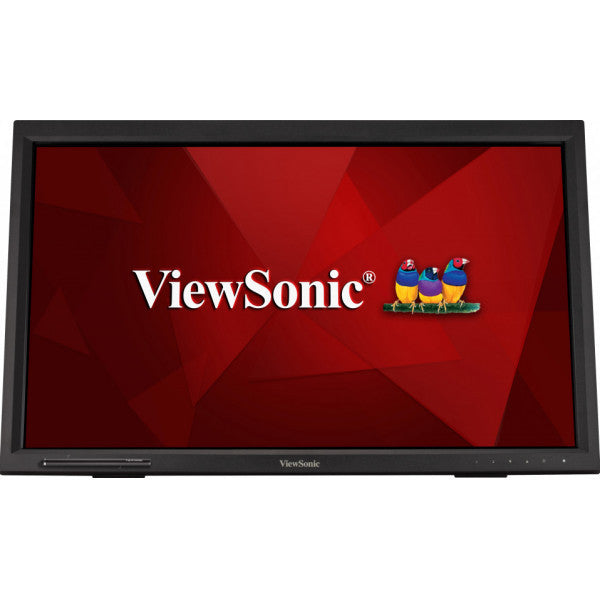

ViewSonic TD2423 23.6" Full HD VA Touch Monitor
ViewSonic TD2423 23.6" Full HD VA Touch Monitor
Regular price
£223.17 GBP
Regular price
Sale price
£223.17 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The ViewSonic TD2423 brings touch control to a 23.6" Full HD 1920x1080 VA monitor — ideal for POS, kiosks and interactive work.
The ViewSonic® TD2423 is a 24” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2423 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2423 is equipped with VGA, HDMI, DVI and USB connectivity.Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens. The TD2423 delivers an intuitive multi-touch experience with every tap, pinch, and swipe with the finger touch, gloved touch, and stylus inputs.
Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.
Simple and Safer Way to Interact
This monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging and drawing. What’s more, there is a magnetic pen placeholder on the base.
Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.
7H Hardness Screen

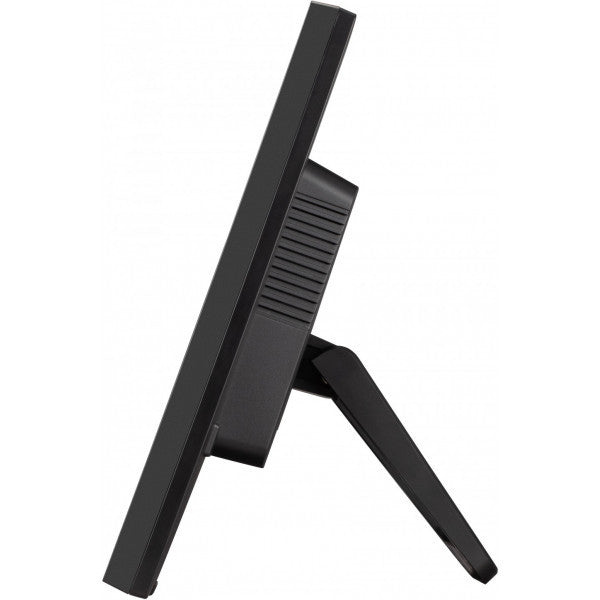

Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Clear Images
This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.
Full HD 1080p Resolution
Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Enhanced Viewing Comfort
This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.
Specifications
| Display | |
|---|---|
| HDCP | Yes |
| Screen shape | Flat |
| Display number of colours | 16.78 million colours |
| Native aspect ratio | 16:9 |
| Maximum refresh rate | 60 Hz |
| HD type | Full HD |
| Display technology | LED |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.271 x 0.271 mm |
| Digital horizontal frequency | 24 - 82 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Display resolution | 1920 x 1080 pixels |
| Response time | 7 ms |
| Display diagonal | 59.9 cm (23.6") |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | VA |
| Display diagonal (metric) | 59.94 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Infrared |
| Display brightness | 250 cd/m² |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Performance | |
| Built-in microphone | No |
| Built-in camera | No |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
| Number of speakers | 2 |
| Design | |
| Certification | cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Silver, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP |
| Product colour | Black |
| Glass thickness | 1.85 mm |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 2 |
| DVI port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| Audio input | 1 |
| Audio output | 1 |
| HDMI | Yes |
| HDMI version | 1.4 |
| Technical details | |
| Height (without stand) | 348 mm |
| Depth (without stand) | 61 mm |
| Width (without stand) | 571 mm |
| Cable lock slot | Yes |
| Display viewable area (HxV) | 521 x 293 mm |
| Sustainability certificates | EPEAT Silver |
| Compliance certificates | CE, REACH, RoHS |
| Power supply type | AC |
| Weight (with stand) | 5.2 kg |
| Ergonomics | |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | 22 - 38° |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 16.5 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 15.5 W |
| Energy efficiency class (SDR) | D |
| Energy consumption (SDR) per 1000 hours | 14 kWh |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width (with stand) | 571 mm |
| Depth (with stand) | 101 mm |
| Height (with stand) | 348 mm |
| Weight (without stand) | 4.7 kg |
| Package width | 645 mm |
| Package depth | 166 mm |
| Package height | 422 mm |
| Package weight | 7 kg |
| Weight | 5.2 kg |
| Packaging data | |
| Cables included | AC, Audio (3.5mm), HDMI, USB Type-A to USB Type-B |
| Logistics data | |
| Pallet gross width | 120 cm |
| Pallet gross length | 100 cm |
| Pallet gross height | 2.24 m |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 8528521000 |
