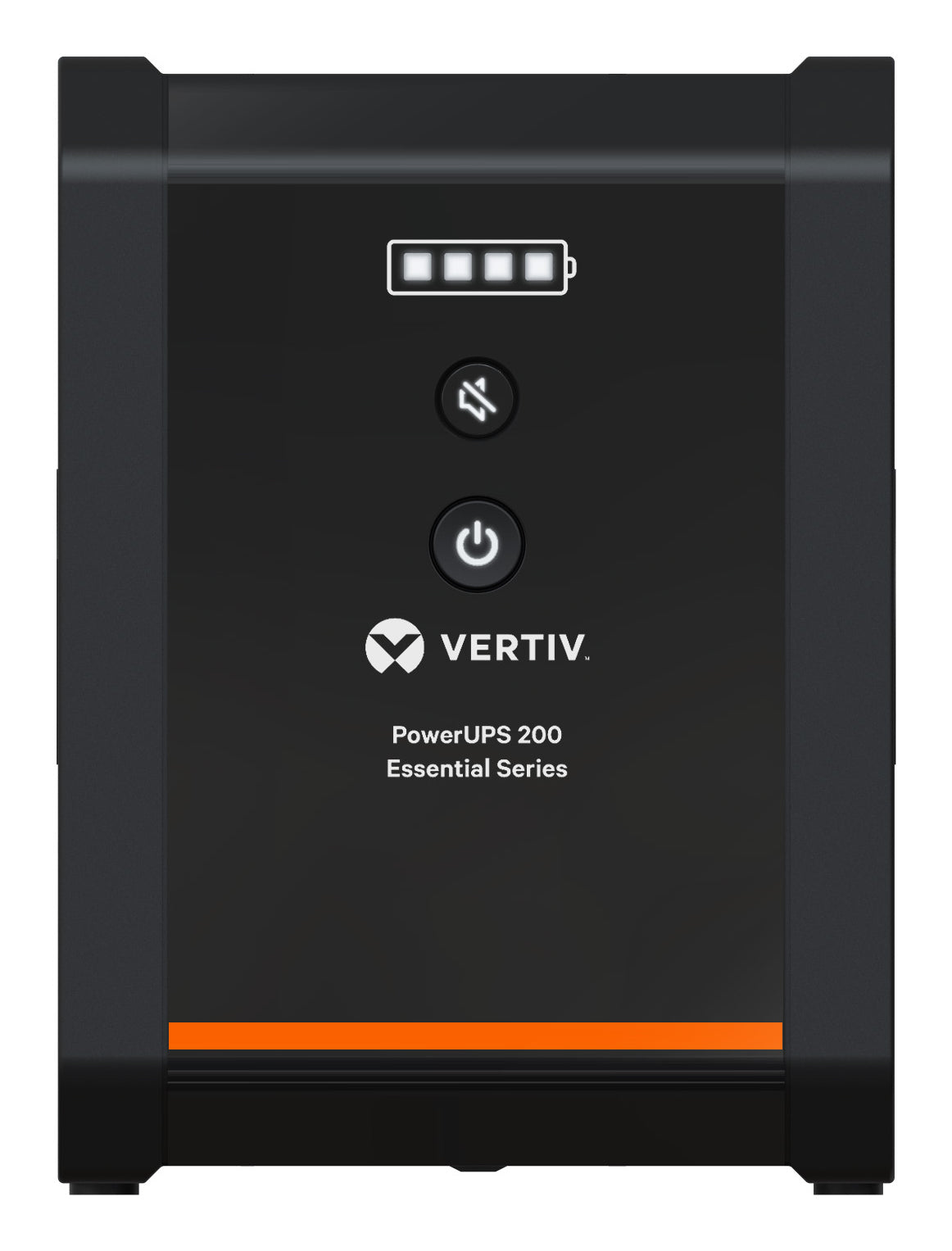

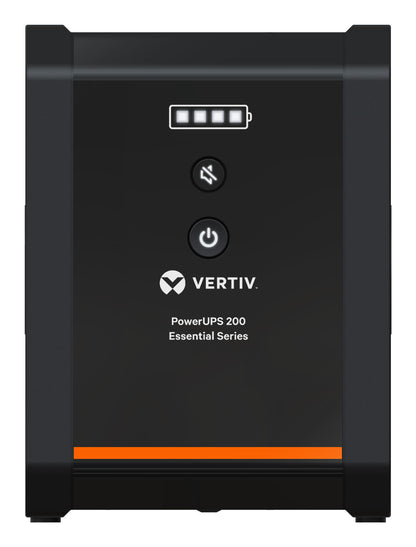

Vertiv 2200VA 1225W Line-Interactive UPS

When the power cuts out, the Vertiv 2200VA keeps your desktop, NAS or router running at up to 1225W — long enough to save work and shut down safely.

The Vertiv PowerUPS 200 Essential Line Interactive Series PSA6E-2200IT-IEC is an affordable and reliable 230VAC uninterruptible power supply (UPS) battery backup system. With 6 IEC outlets, this UPS offers flexible, basic power protection to multiple devices simultaneously, including computers, wireless networks, retail point-of-sale (POS) equipment, surveillance systems, and more. It has automatic voltage regulation (AVR) which helps to stabilize output power during fluctuations and extend battery life, as well as a two-year warranty for long-term peace of mind. The PowerUPS 200 Essential Series is now more intuitive and user-friendly than ever before with LED lights to easily indicate remaining runtime, user-replaceable batteries, and a dedicated mute button to silence alarms. It also includes Vertiv’s free management software, Vertiv Power Assist, which can be used to gracefully shut down connected equipment during an outage to protect it from damage and data loss.

Specifications

Power
Output power	1225 W
Input operation voltage (min)	140 V
Input operation voltage (max)	290 V
Output operation voltage (min)	195 V
Output operation voltage (max)	255 V
Surge energy rating	475 J
Efficiency	100%
Output power capacity	2.2 kVA
Performance
UPS topology	Line-Interactive
Waveform	Sine
Noise level	45 dB
Features
Output frequency	50/60 Hz
Input frequency	50/60 Hz
Ports & interfaces

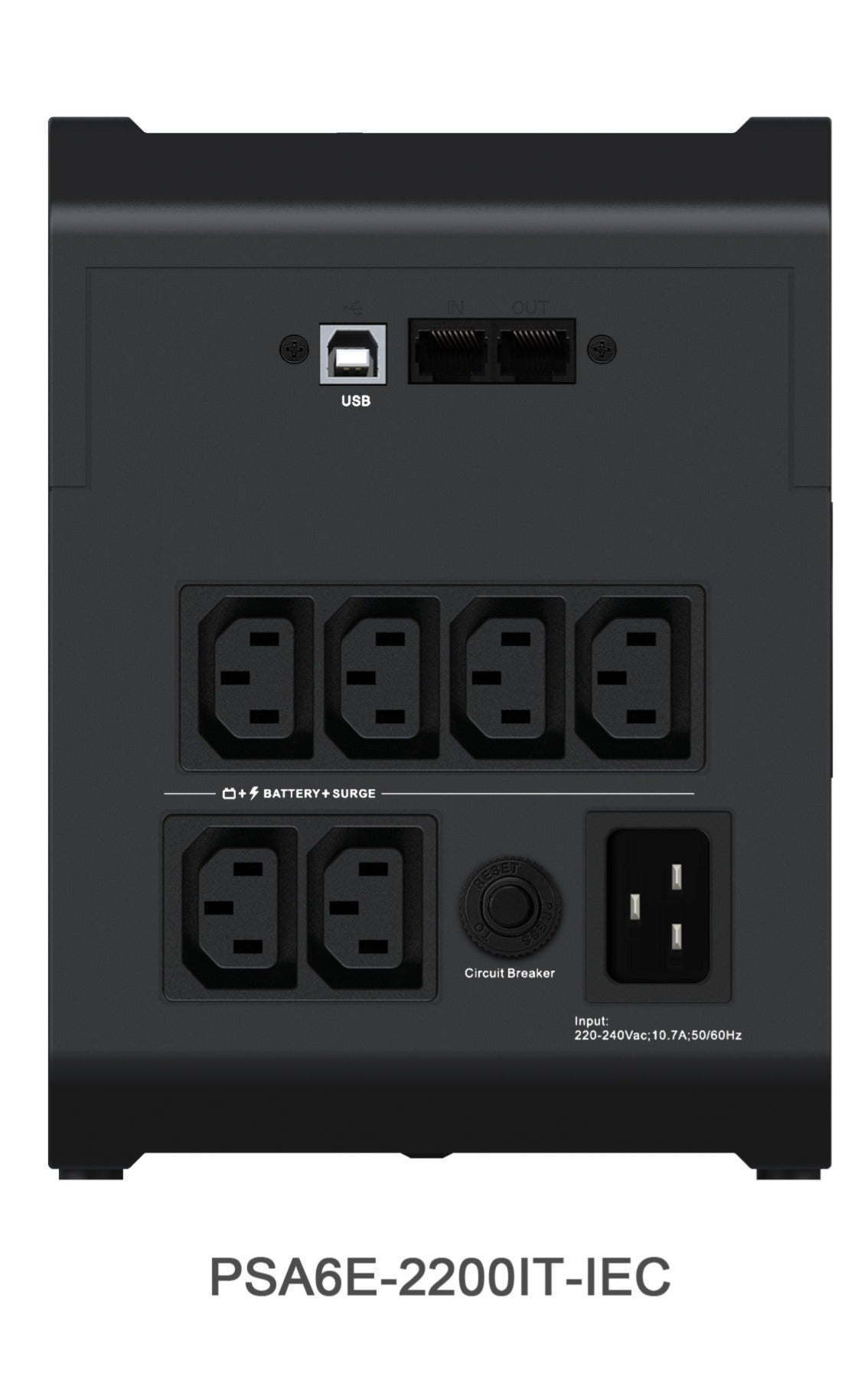

AC outlets quantity	6 AC outlet(s)
AC outlet types	C20 coupler
Battery
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	9 min
Typical backup time at full load	2 min
Design
Product colour	Black
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Technical details
Compliance certificates	REACH, RoHS, WEEE
Weight & dimensions
Package width	235 mm
Package depth	495 mm
Package height	305 mm
Weight	12.9 kg
Width	145 mm
Package weight	14.4 kg
Height	195 mm
Depth	400 mm

Downloads

• Datasheet (PDF)
