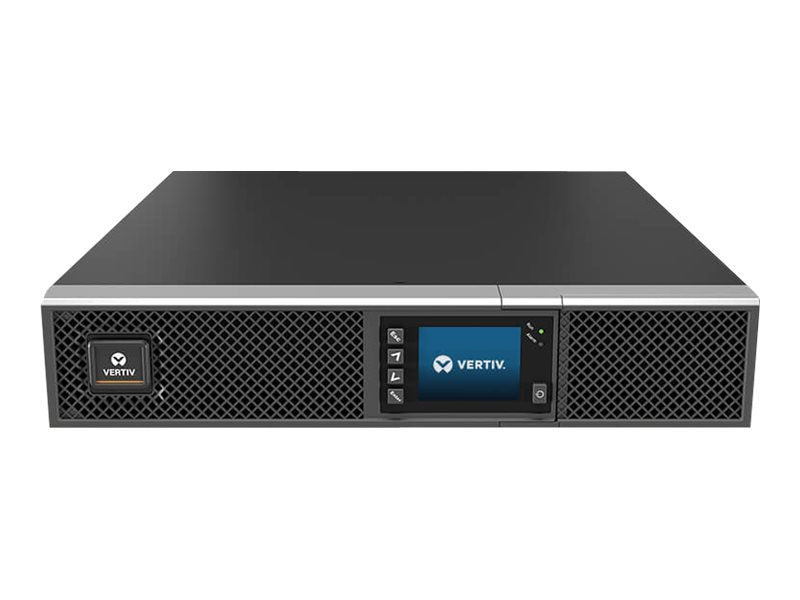

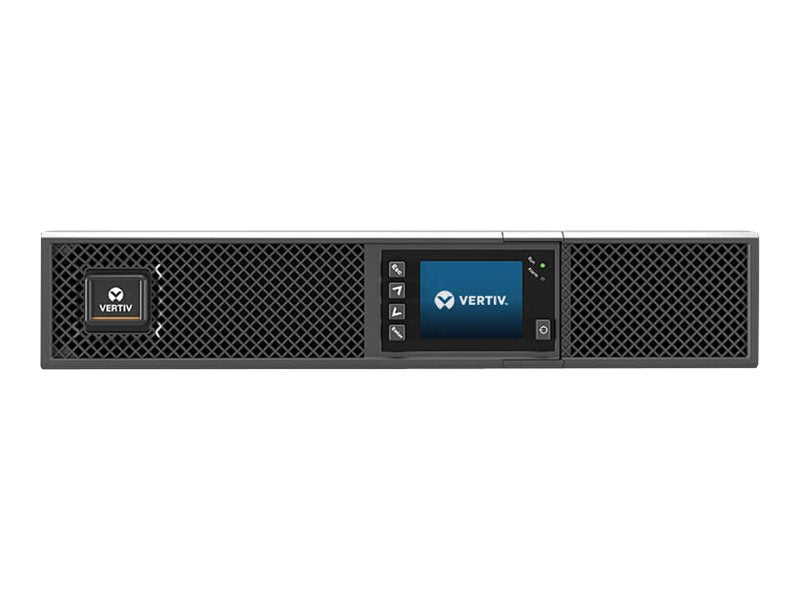

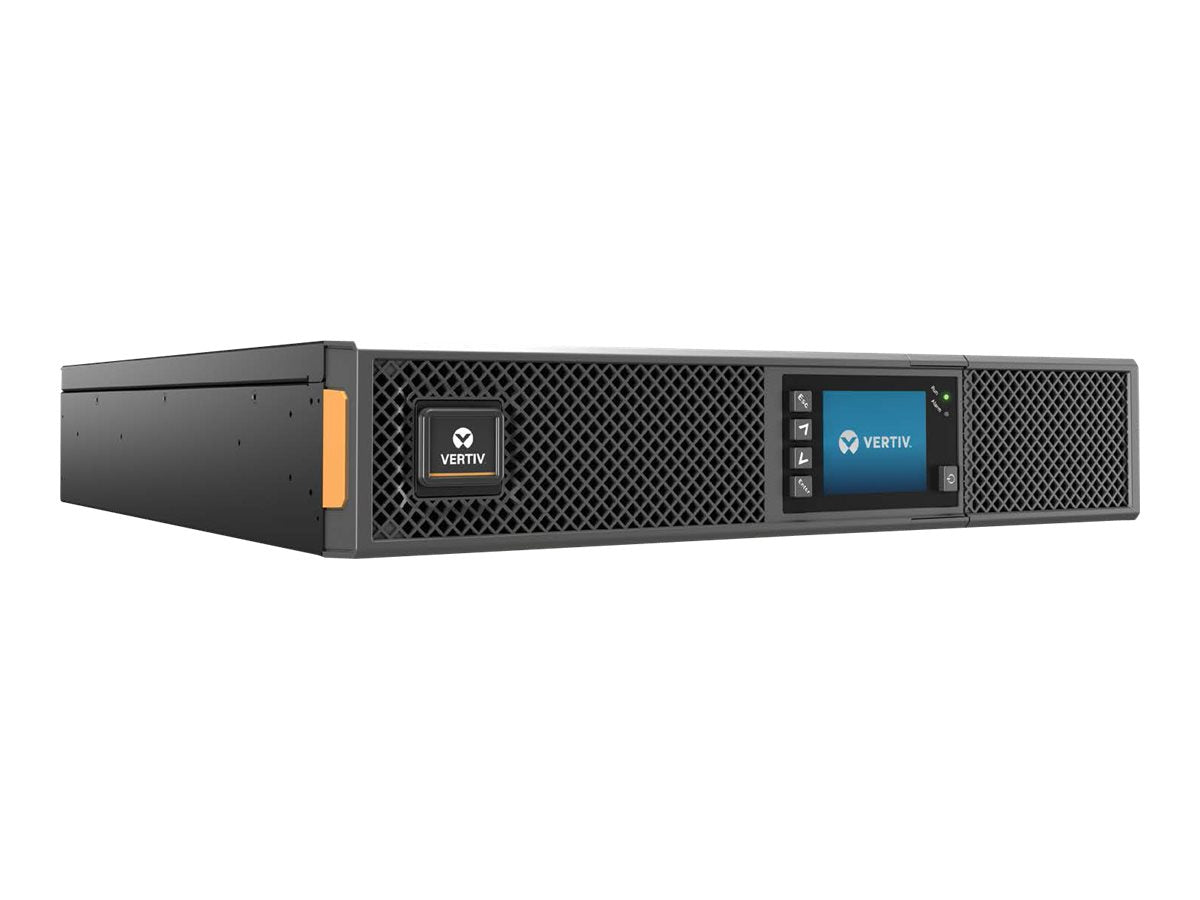

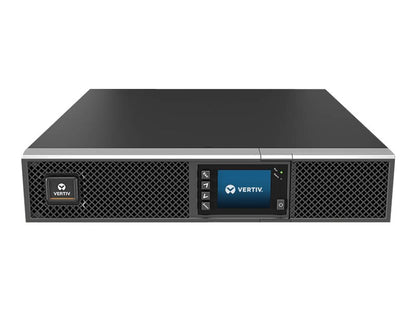

Vertiv 1500VA 1500W Online Rackmount UPS
Vertiv 1500VA 1500W Online Rackmount UPS
Couldn't load pickup availability
When the power cuts out, the Vertiv 1500VA keeps your rack running at up to 1500W — long enough to save work and shut down safely.
The Vertiv Liebert GXT5 UPS 1500VA/1500W is a 2U UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support a wide range of power environments including 200/208/220/230/240V user configurable AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. It includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It comes with a 5-year warranty (3-year factory warranty plus 2-year extended warranty). This promotion is subject to the Distributor’s product availability and is only available while product stocks last. Vertiv reserves the right to provide a 1-month notice to terminate the offer. This offer is not available in conjunction with any other offer/discount.
Specifications
| Power | |
|---|---|
| Output power | 1500 W |
| Input operation voltage (min) | 115 V |
| Input operation voltage (max) | 280 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 93% |
| Power factor | 0.99 |
| Output power capacity | 1.5 kVA |
| Charging current | 2.2 A |
| ECO mode | Yes |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| Noise level | 46 dB |
| Features | |
| Input frequency | 40 - 70 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Modem (RJ-11) ports | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Battery | |
| Typical backup time at half load | 16.3 min |
| Typical backup time at full load | 5.6 min |
| Design | |
| Rack capacity | 2U |
| Form factor | Tower |
| Product colour | Black |
| Certification | UL-1778 (Fifth Edition), C-UL listed, IEC 62040-1: 2008 (First Edition) + Am 1:2013, EN 62040-1:2008+A1:2013, CISPR22 Class A (RFI)/ FCC Part 15 (Class A), ISTA Procedure 1A, ANSI C62.41 Category B |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Package width | 617 mm |
| Package depth | 570 mm |
| Package height | 262 mm |
| Weight | 21.4 kg |
| Width | 430 mm |
| Package weight | 25.9 kg |
| Height | 85 mm |
| Depth | 470 mm |
