Vertiv 1000VA 1000W Online UPS

When the power cuts out, the Vertiv 1000VA keeps your desktop, NAS or router running at up to 1000W — long enough to save work and shut down safely.

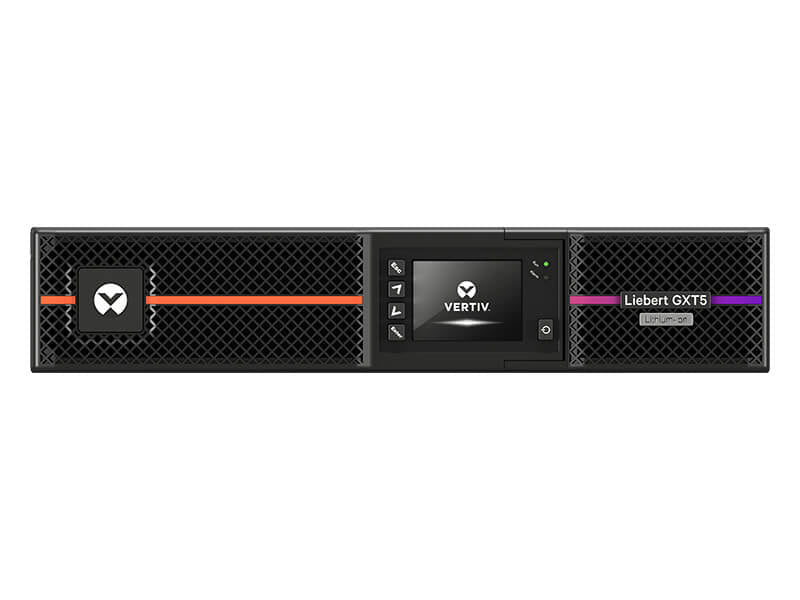

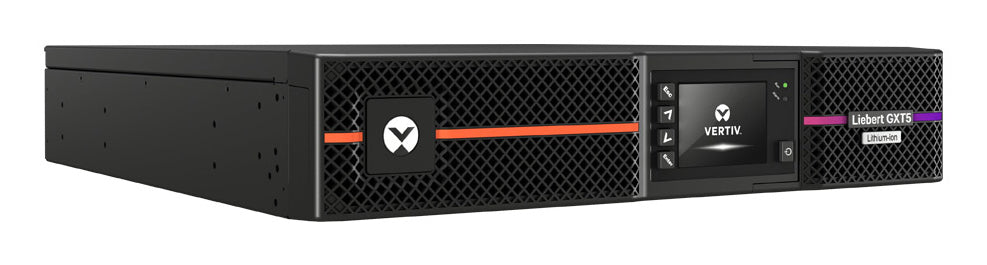

The Vertiv Liebert GXT5 Lithium-Ion UPS protects critical IT applications against outages and various power disturbances. This online UPS offers the highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations. Lithium LFB batteries require fewer battery replacements and last up to 3x as long as traditional VRLA batteries reducing maintenance, labor, and replacement costs (resulting in the lowest TCO). Internal batteries offer industry-leading runtime (up to 14 minutes at full load (varies by model)) to protect critical equipment during an unexpected power loss. They offer better performance at higher temperatures, supports up to 10 times more discharge cycles, and delivers faster recharge times compared to VRLA batteries. Hot-swappable, user-replaceable batteries may increase the useable life of the UPS by allowing you to easily replace the batteries, if needed, without disrupting power to connected equipment.

Specifications

Power
Output power	1000 W
Input operation voltage (min)	115 V
Input operation voltage (max)	280 V
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Power factor	0.99
Output power capacity	1 kVA
Efficiency (On-line mode)	93%
Performance
UPS topology	Double-conversion (Online)
Waveform	Pure sine
LED indicators	Yes
Audible alarm(s)	Yes
Features
Country of origin	China
Input frequency	40 - 70 Hz

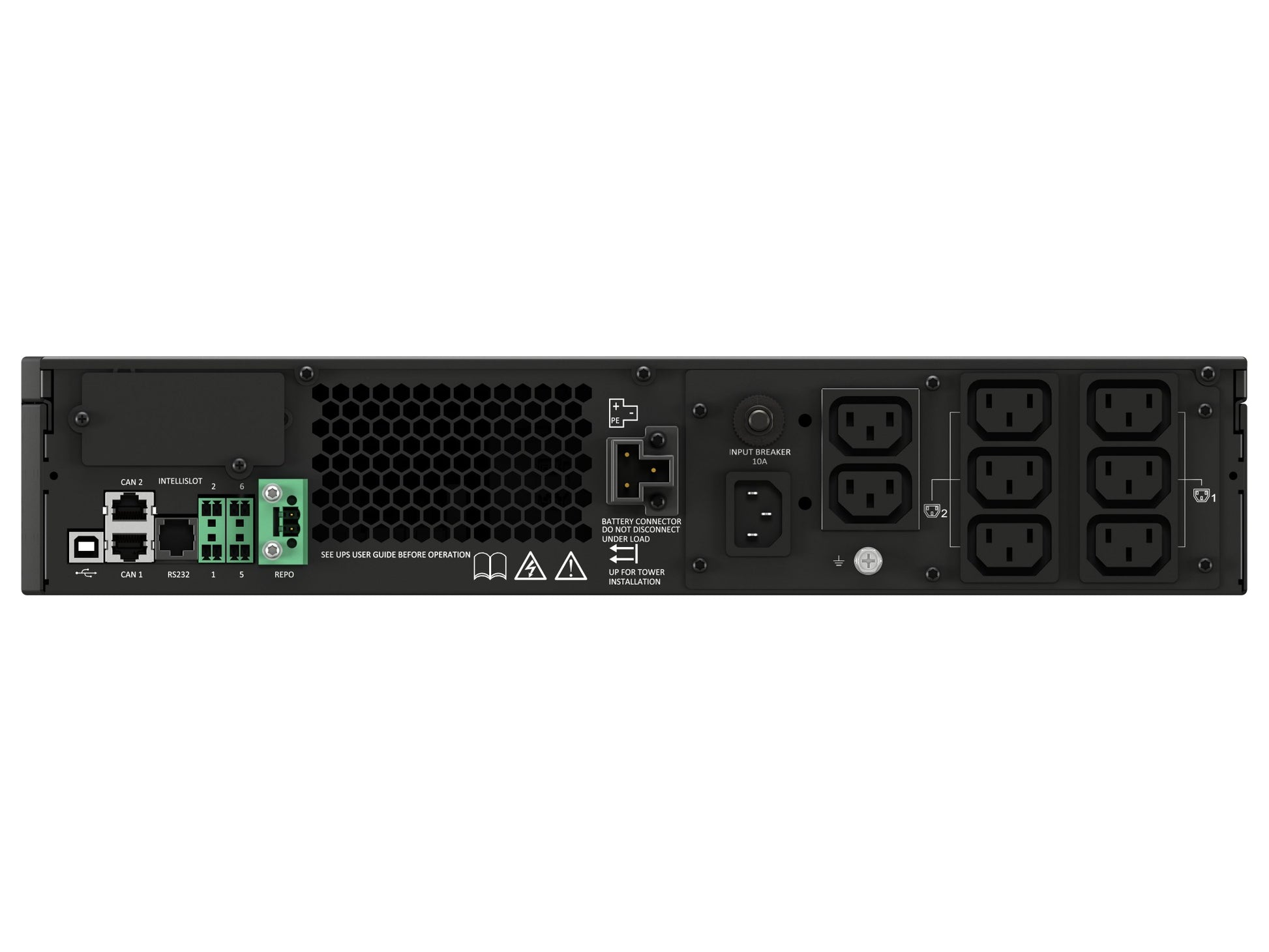

Ports & interfaces
USB port	Yes
Serial interface	Yes
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
Battery
Typical backup time at half load	26.5 min
Typical backup time at full load	12 min
Design
Rack capacity	2U
Form factor	Tower
Product colour	Black
Certification	UL1778,4thEd.FCCPart15ClassAANSIC62.41Cat.BISTA1A
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Technical details
Sustainability certificates	ENERGY STAR
Compliance certificates	REACH, RoHS
Packaging data
Packaging content	GXT5LI UPS, USB Cable, Quick Install Guide (QIG), 4-Post Rack 2U Rail Kit, Tower Base Kit
Quick installation guide	Yes
Cables included	USB cable
Manual	Yes
Package width	570 mm
Package depth	597 mm
Package height	242 mm
Package weight	21 kg
Weight & dimensions
Weight	15 kg
Width	430 mm
Height	85 mm
Depth	446 mm

Downloads

• Datasheet (PDF)
