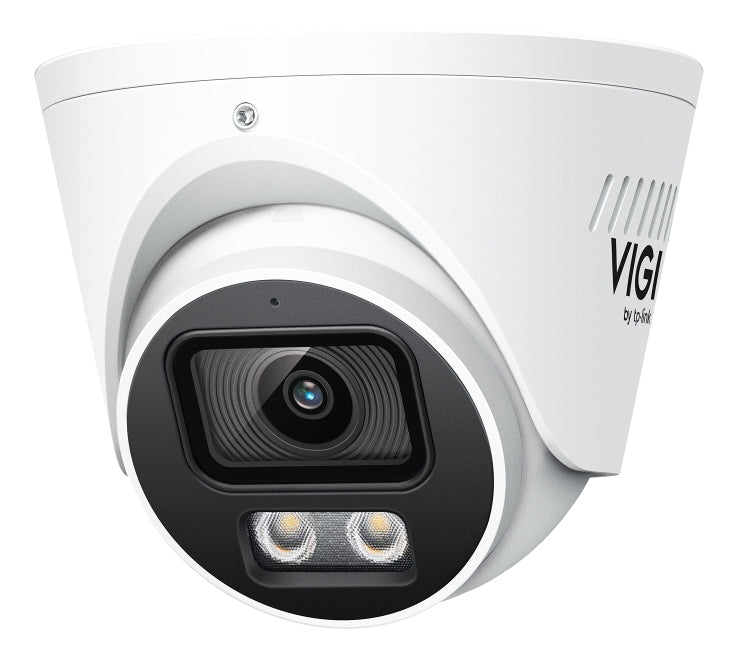

TP-LINK VIGI InSight S445S(2.8mm) Dome IP security camera Outdoor 2688 x 1520 pixels

Keep an eye on what matters with the TP-LINK VIGI InSight S445S(2.8mm) Dome — resolution, optics and mounting details are in the spec table.

See True Colors and Details in the Dark

Unveiling every detail in the dark, experiencing clarity and color as vivid as daylight — no extra fill lights needed.

Worry-Free Night Surveillance: Beyond IR & Full-Color

Eliminates general night vision issues like dark corners, glare, and color loss — enjoy worry-free nighttime monitoring.

See Vividly — Even No Extra Fill Lights Needed

Enables full-color imaging in low-light conditions without fill-in lighting, reducing both energy consumption and insect-triggered false alarms for a more eco-friendly solution.

People or Vehicle Triggered Intelligent IR-White Lights Reveal More in Total Darkness

In complete darkness with zero illumination, VIGI’s intelligent infrared-white lights will automatically activate white lights upon detecting people or vehicles, delivering vivid color imaging while deterring intruders.

Accurate Detection with Clear and Extended Vision

Ideal for Low-Light Conditions Where Colors and Details Matter

VIGI AI Detection Technology

People & Vehicle Attributes Analytics: Search and filter to people or vehicle of interest based on many different attributes, like hair length, topwear color, vehicle type, making post-event search faster and easier

Human & Vehicle Classification: Distinguish humans and vehicles from other objects, such as moving animals, falling leaves, changing lights, and receive more accurate event notifications

Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.

Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology

H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

Specifications

Performance
Auto pan mode	Yes
Infrared (IR) cut-off filter	Yes
Type	IP security camera
Connectivity technology	Wired
Placement supported	Outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Alarm input/output	Yes
Certification	CE, NTRA, VCCI, KC, IC, BSMI, FCC, IP67, ONVIF
Dynamic range	120 dB
Design
Weatherproof	Yes
Form factor	Dome
Product colour	White
Mounting type	Ceiling/wall
International Protection (IP) code	IP67
Housing material	Metal
Camera
Minimum illumination	0.0005 lx
Tilt angle range	0 - 75°
Pan range	0 - 360°
White balance	Area white balance
Angle of rotation	360°
Camera shutter type	Electronic
Camera shutter speed	1/3 - 1/10000 s
Lens viewing angle, horizontal	112.5°
Lens viewing angle, vertical	61.4°
Lens viewing angle, diagonal	137°
Number of Privacy masking areas	4
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Optical sensor size	25.4 / 79 mm (1 / 79")
Panoramic camera
Sensor type (panoramic camera)	CMOS
Signal-to-Noise Ratio (SNR) (panoramic camera)	52 dB
Lens system
Number of lenses	1
Maximum aperture number	1
Detect distance	59 m
Observe distance	25 m
Recognize distance	12 m
Identify distance	6 m
Fixed focus	Yes
Fixed focal length	2.8 mm
Night vision
Night vision	Yes
Infra-red wavelength	850 nm
Video
Noise reduction	Yes
Image quality adjustment	Brightness, Contrast, DNR, Saturation, Sharpness
Smart IR	Yes
Region of Interest (ROI) encoding	Yes
Highlight Compensation (HLC)	Yes
Bit rate control	Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Bit rate	64 Kbit/s
Back Light Compensation (BLC)	Yes
Video compression formats	H.264, H.264+, H.265, H.265+
Maximum resolution	2688 x 1520 pixels
Video formats supported	H.264, H.264+, H.265, H.265+
Supported graphics resolutions	320 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 704 x 576, 848 x 480, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Frame rate	30 fps
Video streaming	Yes
Total megapixels	4 MP
Thermal frame rate (PAL)	60 Hz
Thermal frame rate (NTSC)	50 Hz
Video recording	Yes
Audio
Audio input channels	2.0 channels
Audio output channels	2.0 channels
Built-in speaker(s)	Yes
Built-in microphone	Yes
Audio system	2-way
Bit rate range	256 - 6000 Kbit/s
Number of microphones	1
Network
Networking standards	IEEE 802.1x, IEEE 802.3at
Ethernet LAN	Yes
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP
Number of simultaneous live view channels	3 channels
Live view	Yes
Storage
Cloud services supported	FTP
Maximum memory card size	512 GB
Card reader integrated	Yes
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Ports & interfaces
Microphone in	Yes
Ethernet LAN (RJ-45) ports	1
Security
Alert notification type	E-mail, Push notification
Intelligent Video Surveillance (IVS) system features	Abandoned object, Abnormal sound detection, Intrusion, Line crossing detection, People counting, Region entrance detection, Region exiting detection, Scene change, Vehicle detection
Motion sensor	Yes
Video motion detection	Yes
Password protection type	User
IP address filtering	Yes
HTTPS encryption	Yes
Active tampering alarm	Yes
Password protection	Yes
Mirror	Yes
Human and vehicle targets classification	Yes
Digest authentication	Yes
Alarm input channels	1
Alarm output channels	1
Management features
Web browser	Yes
Web-based management	Yes
Reset button	Yes
Behavior analysis	Audio exception detection, Object removal detection
Cloud-managed	Yes
Power
Power source type	DC, PoE
Power consumption (max)	17.9 W
AC input voltage	12 V
Power consumption (typical)	15.6 W
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Weight & dimensions
Package type	Box
Width	111 mm
Depth	111 mm
Height	81.4 mm
Weight	550 g
Sustainability
Compliance certificates	CE
Packaging content
Number of cameras	1
Mounting kit	Yes
