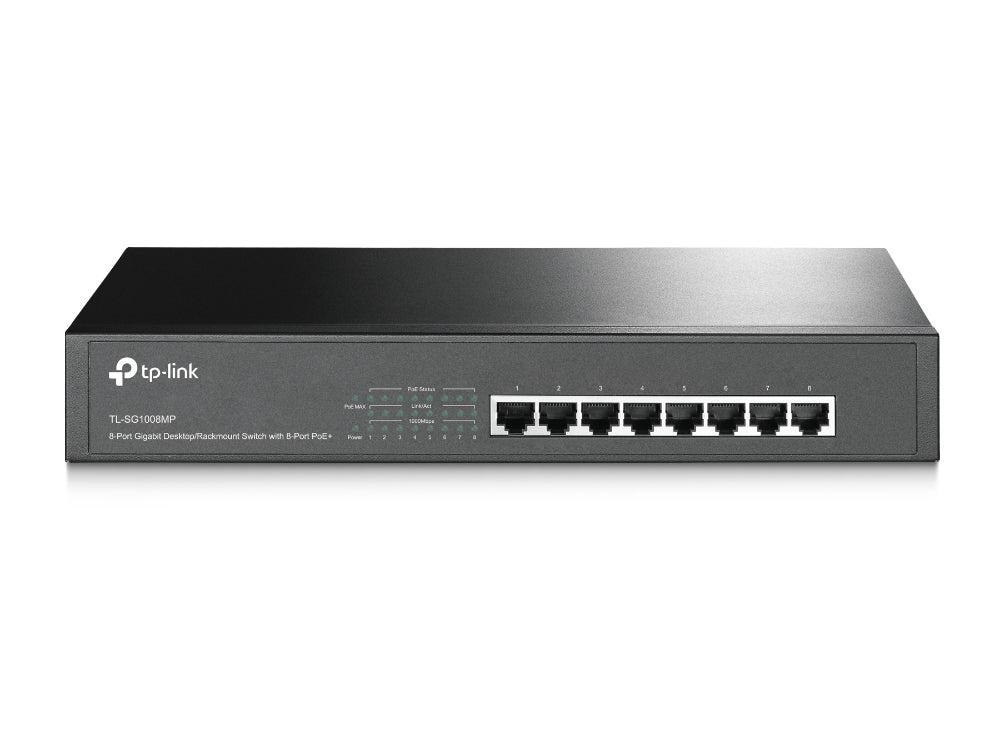

TP-LINK TL-SG1008MP network switch PoE
TP-LINK TL-SG1008MP network switch PoE
Regular price
£78.14 GBP
Regular price
Sale price
£78.14 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The TP-LINK TL-SG1008MP network switch keeps your wired network organised with PoE power for APs and cameras.
What This Product DoesThe TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
How This Product Works
All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.
Prioritized Power Supply
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.
Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Data transmission | |
| Packet buffer memory | 1.5 MB |
| MAC address table | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Design | |
| Product colour | Black |
| Rack mounting | Yes |
| Number of fans | 1 fan(s) |
| Certification | FCC, CE, RoHS |
| Performance | |
| Minimum system requirements | 1 |
| Mean time between failures (MTBF) | 1 h |
| Commodity Classification Automated Tracking System (CCATS) | 11 |
| MTBF (PoE) | 1 h |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 144.4 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 140.1 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 492.6 BTU/h |
| Weight & dimensions | |
| Width | 294 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Packaging content | |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | AC |
| Technical details | |
| Shipping (inner) case width | 1 mm |
| Shipping (inner) case net weight | 1 g |
| Shipping (inner) case length | 1 mm |
| Shipping (inner) case height | 1 mm |
| Products per shipping (inner) case | 1 pc(s) |
| Layers per pallet (sea) | 1 pc(s) |
| Layers per pallet (air) | 1 pc(s) |
| Master (outer) cases per pallet layer | 1 pc(s) |
| Products per pallet (sea) | 11 pc(s) |
| Products per pallet (air) | 1 pc(s) |
| Pallet gross width | 1 mm |
| Pallet gross length | 1 mm |
| Pallet height (sea) | 1 mm |
| Pallet height (air) | 1 mm |
| Pallet gross weight (sea) | 1 g |
| Pallet gross weight (air) | 1 g |
| Master (outer) cases per pallet (sea) | 1 pc(s) |
| Master (outer) cases per pallet (air) | 11 pc(s) |
| Shipping (inner) case gross weight | 1 g |
