TP-LINK TL-PA4010KIT 600 Mbit/s Ethernet LAN White 2 pc(s) Network Adapter

Upgrade your connectivity with the TP-LINK TL-PA4010KIT — ports, speeds and interface details are in the spec table.

600Mbps Powerline Speeds Ideal for HD Streaming

Using advanced Home Plug AV technology, TL-PA4010 KIT provides users with stable, high-speed data transfer rates of up to 600Mbps on a line length of up to 300 meters. With speed of up to 600Mbps,
TL-PA4010 KIT enables heavy-bandwidth applications like HD streaming, on-line gaming and large file downloading, turning your home into a robust and high-speed networking.

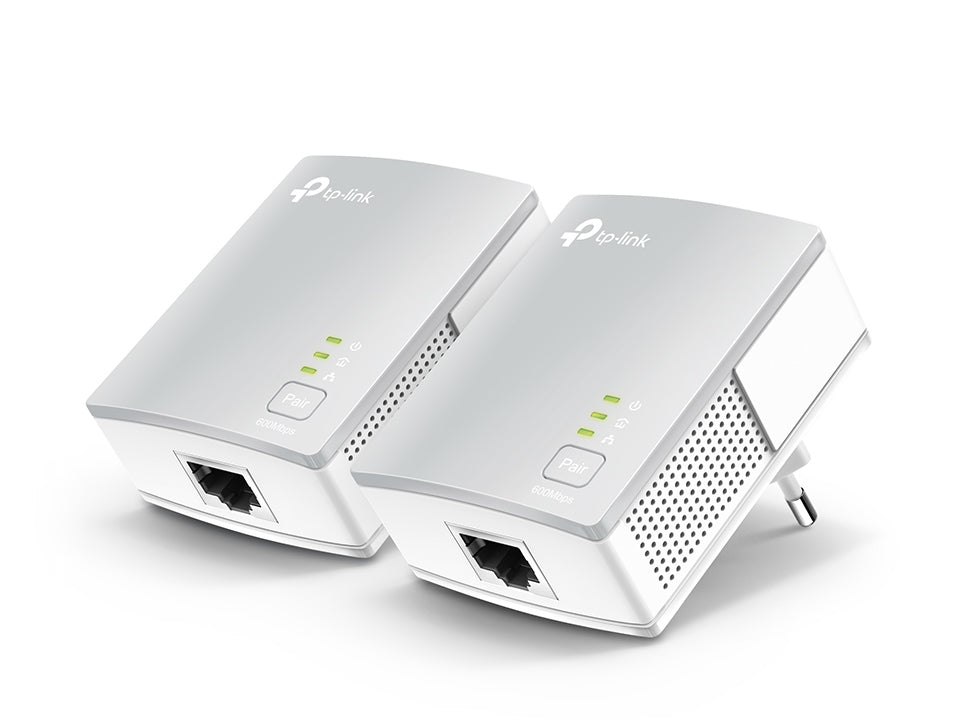

Miniature Design

With its new ultra-compact housing design, TL-PA4010 KIT is much smaller than TP-Link’s legacy mini 600Mbps powerline products. At just 28.5mm thick, it nearly blends completely in front of any power outlet.

Pair Button for Easy Network Security

Simply by pushing the Pair button on the adapters, users can set up a hassle-free Powerline network within minutes, complete with 128-bit AES encryption for network security and data protection.

It's that simple!

1. Plug the adapter into the power outlet

2. Connect the device via the network cable to the adapter

3. Press the pair buttons—and you're done!

Specifications

Performance
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Wi-Fi	No
Maximum data transfer rate	600 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3u
Built-in power socket	No
PowerLine standard	HomePlug AV
Modulation	OFDM
Security algorithms	128-bit AES
Maximum operating distance	300 m
Encryption button	Yes
Plug and Play	Yes
Technical details
LED indicators	Yes
Product colour	White
Certification	CE, FCC
Harmonized System (HS) code	85171800
Compliance certificates	RoHS
Power
Power consumption (typical)	4.26 W
Power consumption (standby)	0.88 W
System requirements
Mac compatibility	Yes
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	65 mm
Depth	52 mm
Height	28.5 mm
Packaging content
Quantity per pack	2 pc(s)
Quick installation guide	Yes
Cables included	LAN (RJ-45)

Downloads

• Datasheet (PDF)
