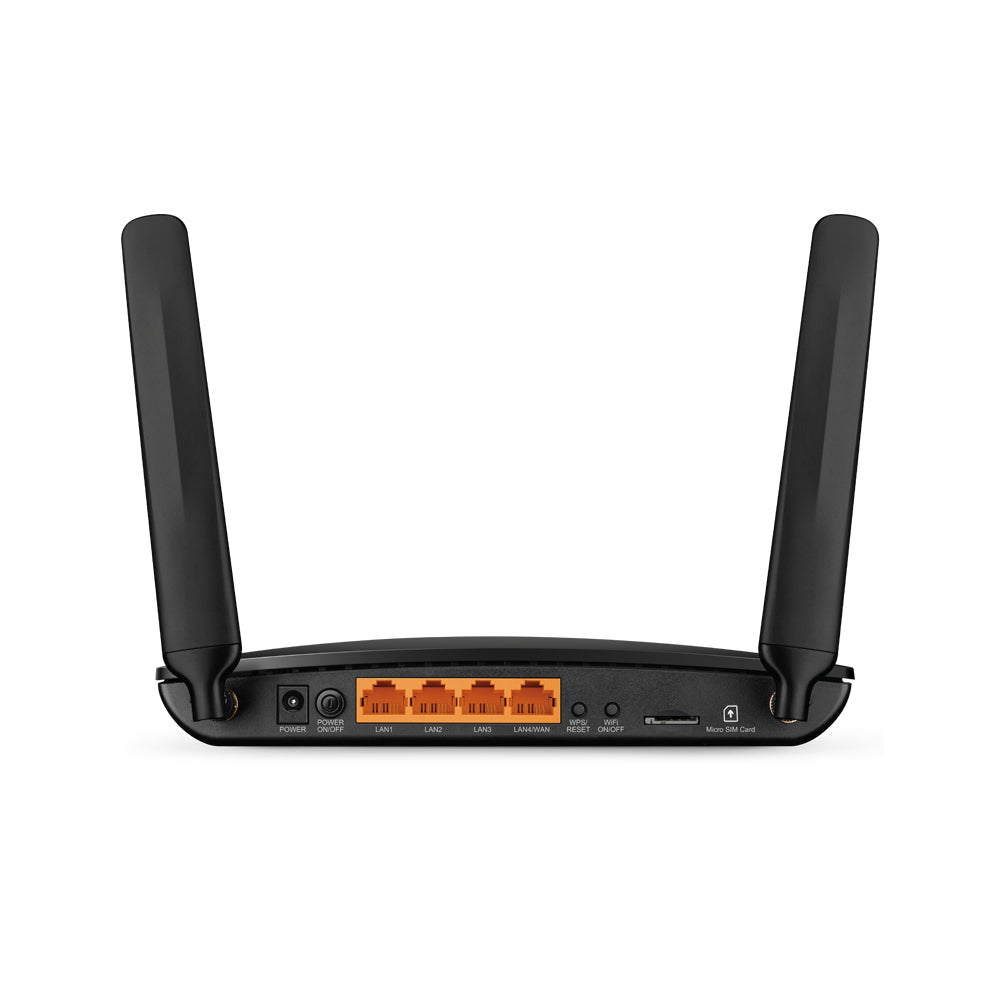

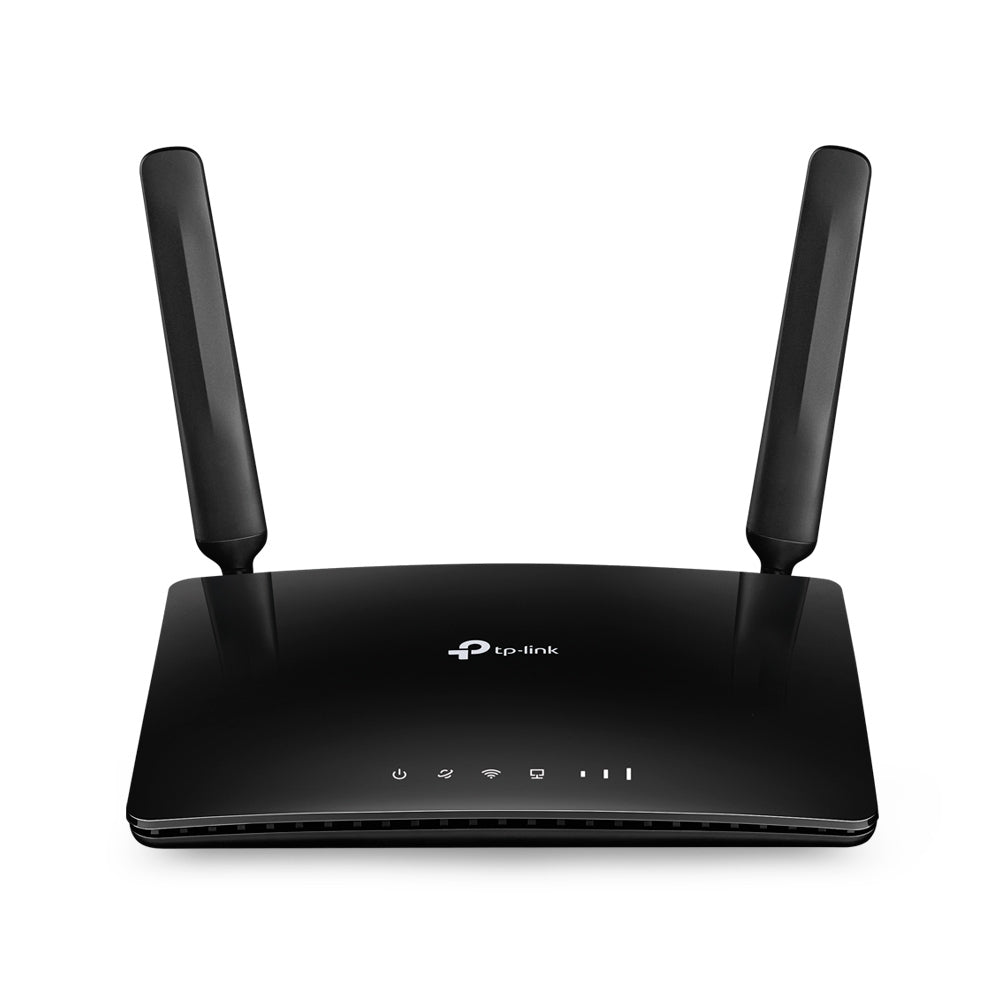

TP-LINK TL-MR6400 Router

The TP-LINK TL-MR6400 sits at the heart of your network: routing, security and central management in one compact unit.

No Configuration Needed Simply Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is insert a SIM card and turn on the TL-MR6400. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.

Share Your 4G LTE Network
Take full of advantage of your cutting-edge 4G LTE network, which can achieve download speeds of up to 150 Mbps. The TL-MR6400 shares your 4G LTE network with multiple Wi-Fi devices, so you can enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. It is also fully compatible with FDD-LTE and TDD-LTE, which are supported by most operators around the world.

Wi-Fi Where You Need It
The TL-MR6400 offers unmatched convenience and versatility. Whether you’re at hom or working in a remote location, the TL-MR6400 is the perfect solution. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments.
From the exhibition center to the RV, the TL-MR6400 always has you covered.

Internet Access for up to 32 Devices simultaneously
The TL-MR6400 can easily share a 3G/4G connection with up to 32 wireless devices, such as tablets, laptops and mobile phones at the same time. The LAN ports are also ready to provide internet for wired devices like desktop computers.

Easy Management
Set up the TL-MR6400 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings from any Android or iOS device. Control your home network anytime and anywhere.

Specifications

Ethernet LAN features
Ethernet WAN	Yes
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
DSL features
DSL WAN	No
Mobile network
SIM card slot	Yes
3G/4G USB modem compatibility	No
Mobile network generation	4G
3G	Yes
4G	Yes
4G bands supported	800,900,1800,1900,2100,2600 MHz
3G standards	HSPA+, UMTS
4G standard	LTE
3G bands supported	1900,2100 MHz
Protocols
DMZ support	Yes
Universal Plug and Play (UPnP)	Yes
Supported network protocols	IPv4, IPv6
DHCP server	Yes
DHCP client	Yes
Management features
WPS push button	Yes
Web-based management	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
Performance
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Memory card slot(s)	No
Weight & dimensions
Package width	307 mm
Package weight	600 g
Package height	70 mm
Package depth	223 mm
Width	202 mm
Height	33.6 mm
Depth	141 mm
WAN connection
WAN connection type	RJ-45
Wireless LAN features
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Network
Port forwarding	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3
Ports & interfaces
USB port	No
Ethernet LAN (RJ-45) ports	4
DC-in jack	Yes
Security
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
IP address filtering	Yes
Firewall	Yes
DoS attack prevention	Yes
Filtering	Yes
Stateful Packet Inspection (SPI)	Yes
Design
Product type	Tabletop router
On/off switch	Yes
LED indicators	LAN, Power, WLAN
Product colour	Black
Certificates
Certification	CE, RoHS
Software
Mac compatibility	Yes
Packaging content
Quick start guide	Yes
Manual	Yes
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes
Antenna
Antenna design	External
Detachable antenna(s)	Yes
Antennas quantity	2
Features
Harmonized System (HS) code	85176990
Power
Power source type	DC
Output voltage	9 V
Output current	0.85 A
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%

Downloads

• Datasheet (PDF)
