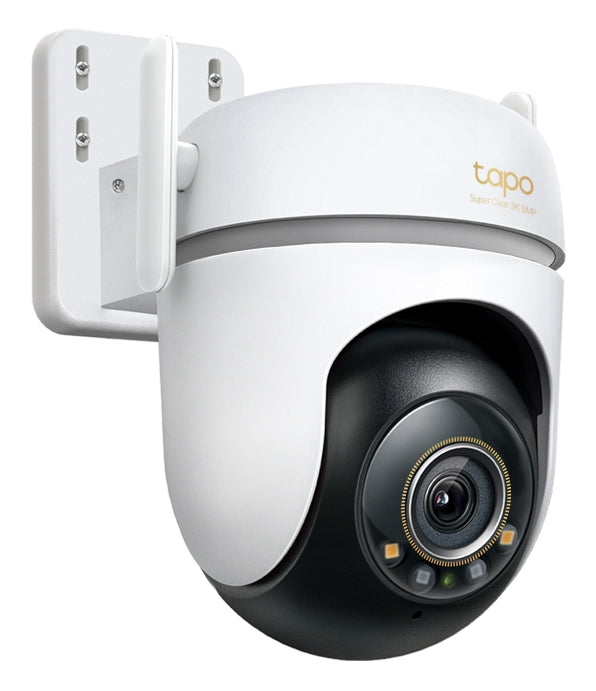

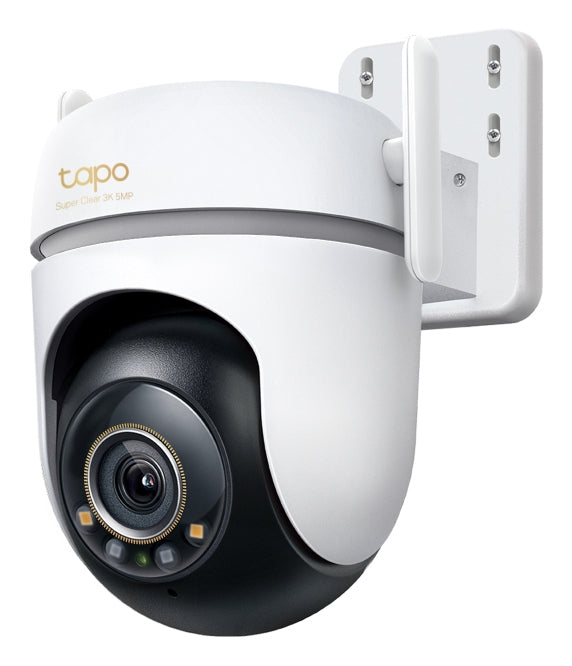

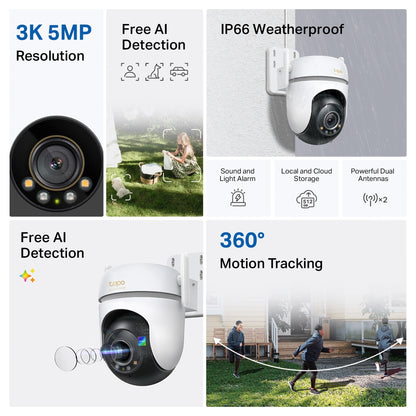

TP-LINK Tapo TC43(EU) V2 Spherical IP security camera Indoor & outdoor 2880 x 1620

Keep an eye on what matters with the TP-LINK Tapo TC43(EU) V2 Spherical — resolution, optics and mounting details are in the spec table.

Capture Every Detail, Day and Night
With 3K resolution, TC43 offers enhanced video quality better than 1080P.
Enjoy colourful images in low-light conditions at night with built-in spotlights and a starlight sensor.
With smart mode, the live view turns from black and white to colour after detecting person.

Complete 360° Coverage, No Blind Spots
A combination of scene images from different angles showcases the comprehensiveness of the perspective with 360° horizontal & 130° vertical viewing range.

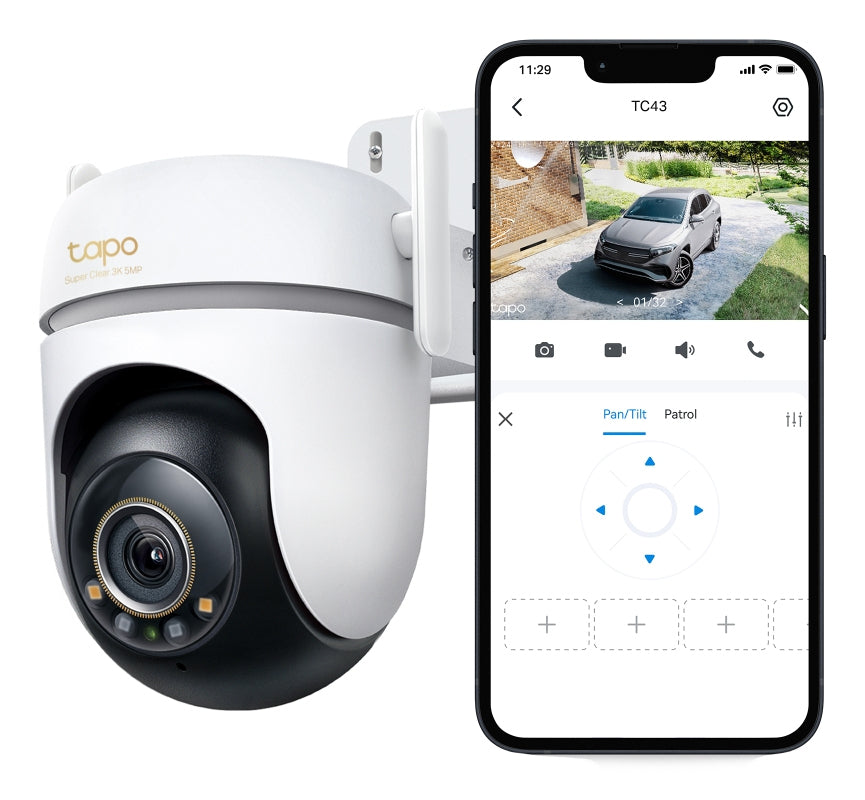

Motion Tracking to Follow Every Detail
Track the motion to focus on what matters.Turn on the patrol mode to keep the camera cruising among several customised points.

AI Detection for More Relevant Notifications
Smart AI accurately identifies people, pets, and vehicles and detects tampering and line crossing. It sends instant notifications when specific objects are detected, ensuring you receive timely and precise alerts.

Long-Range Uninterrupted Connectivity
Dual high-performance external antennas extend wireless coverage up to 492 ft in open areas.
You can also connect your camera to the network through the Ethernet port for a stable connection.

Designed to Withstand Extreme Conditions
With IP66 weatherproofing, TC43 offers excellent waterproof and dustproof performance for outdoor scenarios. It works well in rain, dust, and heat, operating reliably in different environments.

Custom Sound and Light Alarm
Customise your own audio alarm to frighten away unwanted visitors. Adjust two built-in spotlights for fine-tuned illumination.

24/7 Secure Local & Cloud Storage
Save crucial moments to a microSD card (up to 512 GB) or subscribe to Tapo Care for cloud storage‡ after a 30-day free trial, ensuring you never lose important footage.

Multiple Installation Options
Use the mounting screws, template, and loops△ to install on any wall, ceiling, or pole for the perfect view—wherever you want.

Customisable Activity Zone
Customise detection zones to receive alerts for your most important areas.

Two-Way Audio
Communicate directly with the outdoors for your convenience.

Physical Privacy Mode
Maintains your privacy with the lens physically blocked by the housing.

Specifications

Performance
Infrared (IR) cut-off filter	Yes
Type	IP security camera
Connectivity technology	Wired & Wireless
Placement supported	Indoor & outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Cable length	3 m
Virtual assistant	Amazon Alexa & Google Assistant
Built-in light	Yes
Design
Weatherproof	Yes
Form factor	Spherical
Product colour	Black, White
Mounting type	Ceiling/Wall/Pole
Protection features	Dust resistant, Heat resistant, Rain proof, Snow resistant, Weather resistant
LED indicators	Yes
International Protection (IP) code	IP66
Camera
Field of view (FOV) angle	102°
Camera pan control	Yes
Camera tilt control	Yes
Lens viewing angle, horizontal	87°
Lens viewing angle, vertical	45.5°
Lens viewing angle, diagonal	102°
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")
Lens system
Number of lenses	1
Maximum aperture number	1.6
Fixed focal length	4 mm
Night vision
Night vision	Yes
Night vision distance	29.9 m
LED type	IR
Infra-red wavelength	830 nm
Video
Noise reduction	Yes
Image quality adjustment	DNR
Maximum resolution	2880 x 1620 pixels
Video formats supported	H.264
Supported graphics resolutions	2880 x 1620
Supported video modes	1620p
Frame rate	30 fps
Total megapixels	5 MP
Audio
Built-in speaker(s)	Yes
Built-in microphone	Yes
Network
Networking standards	IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Supported network protocols	TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP
Works with the Google Assistant	Yes
Works with Amazon Alexa	Yes
Live view	Yes
Channel bandwidth	2400 MHz
Storage
Maximum memory card size	512 GB
Card reader integrated	Yes
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Security
Alert notification type	Push notification, Snapshot alert message
Intelligent Video Surveillance (IVS) system features	Human detection, Line crossing detection, Moving object, Pet detection, Vehicle detection
Video motion detection	Yes
Security algorithms	128-bit AES, SSL/TLS, WPA, WPA2-PSK, WPA3
Active tampering alarm	Yes
Built-in siren	Yes
Siren noise level	93 dB
Management features
Reset button	Yes
Cloud-managed	Yes
Power
Power source type	AC, DC
Power consumption (max)	7.41 W
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Power consumption (typical)	3.9 W
DC output voltage	9
DC output current	0.85 A
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 90%
Weight & dimensions
Package type	Box
Width	121.7 mm
Depth	90 mm
Height	123 mm
Weight	347 g
Packaging content
Number of cameras	1
Screws included	Yes
Mounting kit	Yes
Mounting brackets included	Yes
Manual	Yes
Packaging content	TC43 Camera Power Adapter Mounting Anchors Mounting Screws Bracket Screws Mounting Template Mounting Bracket Waterproof Seal Waterproof Cable Attachments Quick Start Guide
