TP-LINK

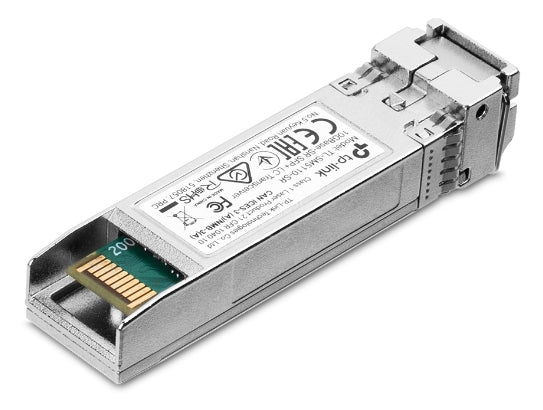

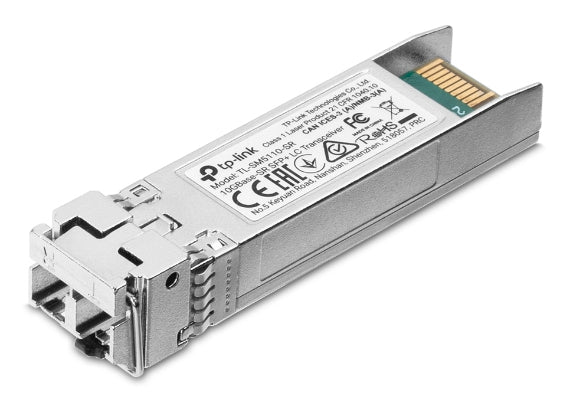

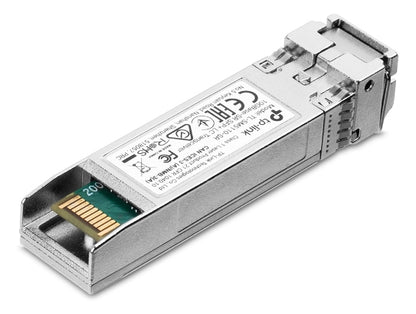

TP-LINK SM6110-SR network transceiver module Fiber optic Networking
TP-LINK SM6110-SR network transceiver module Fiber optic Networking
Regular price
£47.84 GBP
Regular price
Sale price
£47.84 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The TP-LINK SM6110-SR network transceiver module Fiber optic is a dependable addition to any modern network installation.
The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC (UPC) |
| Wavelength | 850 nm |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| SFP transceiver standard | SR |
| Hot-swap | Yes |
| Features | |
| Certification | FCC, CE |
| Power | |
| Input voltage | 3.3 V |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Weight & dimensions | |
| Width | 61.3 mm |
| Depth | 14.5 mm |
| Height | 12.2 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
