TP-LINK Outdoor Pan/Tilt Security Wi-Fi Camera SPEC: 3K 5MP (2880x1620), 2.4 GHz, 2

Keep an eye on what matters with the TP-LINK Outdoor Pan/Tilt Security Wi-Fi — resolution, optics and mounting details are in the spec table.

Power Your 360° Vision with 3K Clarity

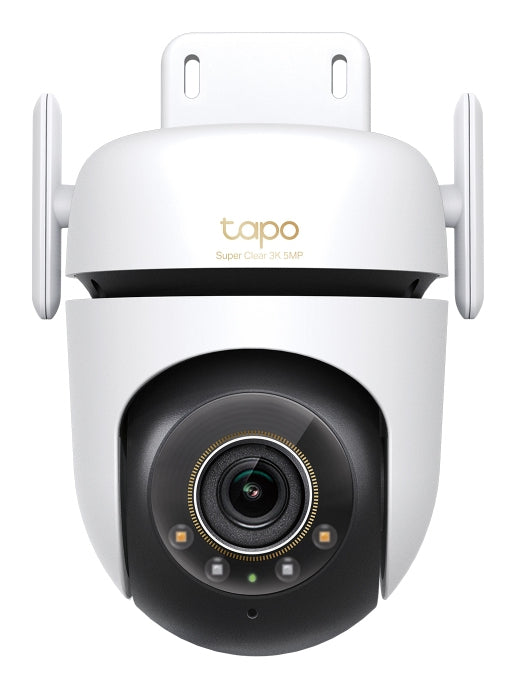

Outdoor Pan/Tilt Security Wi-Fi Camera

Capture Every Detail, Day and Night
With 3K resolution, Tapo C530WS offers enhanced video quality better than 1080P.

Enjoy colorful images in low-light conditions at night with built-in spotlights and a starlight sensor. With smart mode, the live view turns from black and white to color after detecting person.

AI Detection for More Relevant Notifications
Smart AI accurately identifies people, pets, and vehicles and detects tampering and line crossing. It sends instant notifications when specific objects are detected, ensuring you receive timely and precise alerts.

Long-Range Uninterrupted Connectivity
Dual high-performance external antennas extend wireless coverage up to 492 ft in open areas. You can also connect your camera to the network through the Ethernet port for a stable connection.

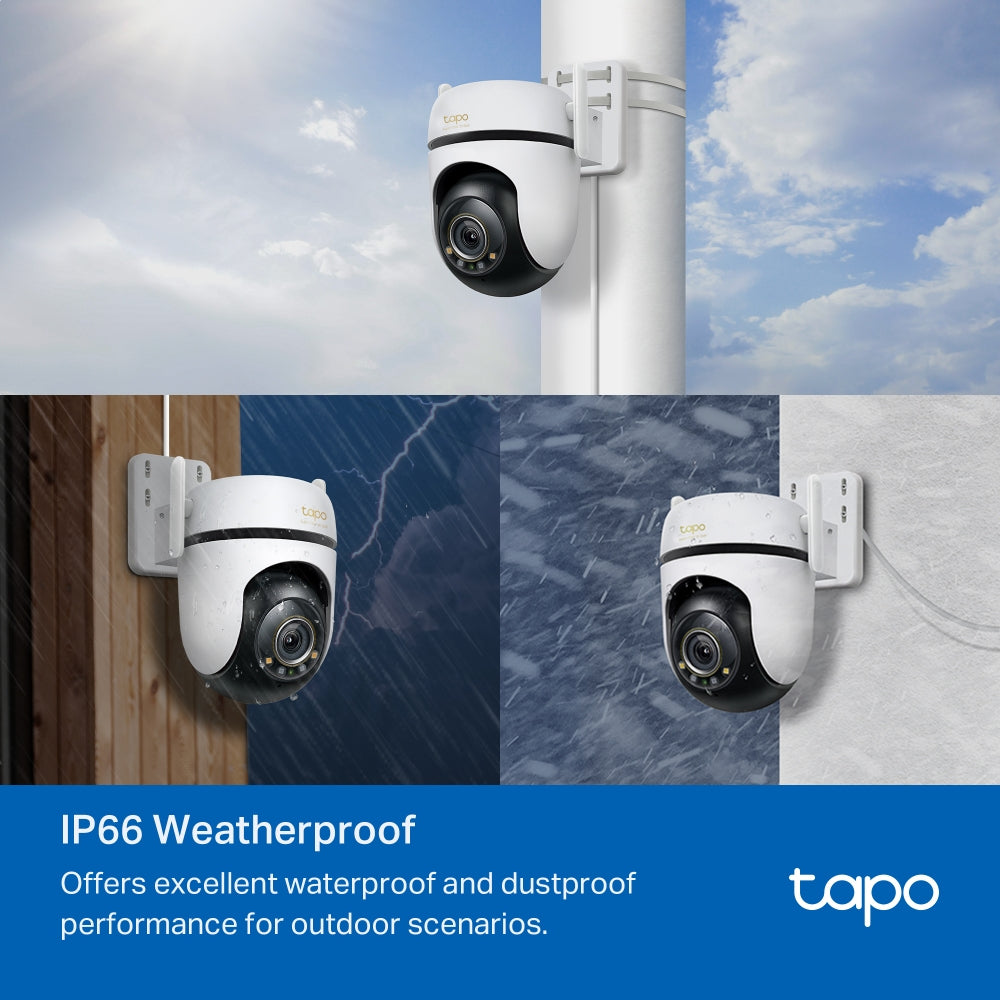

Designed to Withstand Extreme Conditions
With IP66 weatherproofing, Tapo C530WS offers excellent waterproof and dustproof performance for outdoor scenarios. It works well in rain, dust, and heat, operating reliably in different environments.

Custom Sound and Light Alarm
Customize your own audio alarm to frighten away unwanted visitors. Adjust two built-in spotlights for fine-tuned illumination.

24/7 Secure Local & Cloud Storage
Save crucial moments to a microSD card† (up to 512 GB) or subscribe to Tapo Care for cloud storage‡ after a 30-day free trial, ensuring you never lose important footage.

Multiple Installation Options
Use the mounting screws, template, and loops△ to install on any wall, ceiling, or pole for the perfect view—wherever you want.

Customizable Activity Zone
Customize detection zones to receive alerts for your most important areas.

Two-Way Audio
Communicate directly with the outdoors for your convenience.

Physical Privacy Mode
Maintains your privacy with the lens physically blocked by the housing.

Specifications

Performance
Antenna type	External
Auto pan mode	Yes
Antennas quantity	2
Remote viewing	Yes
Type	IP security camera
Connectivity technology	Wired & Wireless
Placement supported	Outdoor
Day/night mode	Yes
Maximum operating distance	29.9 m
Design
Weatherproof	Yes
Form factor	Turret
Product colour	White
Mounting type	Wall
Protection features	Waterproof
International Protection (IP) code	IP66
Housing material	Metal
Camera
Tilt angle range	60 - 130°
Camera pan control	Yes
Camera tilt control	Yes
Lens viewing angle, horizontal	95°
Lens viewing angle, vertical	53°
Lens viewing angle, diagonal	112°
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Optical sensor size	25.4 / 3 mm (1 / 3")
Panoramic camera
Sensor type (panoramic camera)	CMOS
Lens system
Digital zoom	12x
Focal length range	3.2 mm
Night vision
Night vision	Yes
LED type	IR/White
Video
Image quality adjustment	DNR
Video compression formats	H.264
Maximum resolution	2880 x 1620 pixels
Supported graphics resolutions	2880 x 1620
Frame rate	30 fps
Total megapixels	5 MP
Video recording	Yes
Audio
Audio input channels	1.0 channels
Audio output channels	1.0 channels
Built-in speaker(s)	Yes
Built-in microphone	Yes
Audio system	2-way
Audio formats supported	RTSP
Audio detection	Yes
Number of microphones	1
Network
Bluetooth	No
Networking standards	IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Live view	Yes
Storage
Maximum memory card size	512 GB
Compatible memory cards	MicroSD (TransFlash)
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Security
Alert notification type	Push notification
Motion sensor	Yes
Video motion detection	Yes
HTTPS encryption	Yes
Mirror	Yes
Built-in siren	Yes
Siren noise level	99 dB
Management features
Remotely operated	Yes
Reset button	Yes
Cloud-managed	Yes
Power
Power source type	AC, DC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
DC output voltage	9
DC output current	0.85 A
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 90%
Weight & dimensions
Package type	Box
Width	123.8 mm
Depth	90 mm
Height	123 mm
Package width	160 mm
Package height	145 mm
Package depth	210 mm
Package weight	740 g
Packaging content
Number of cameras	1
Screws included	Yes
Mounting kit	Yes
Mounting brackets included	Yes
Manual	Yes
Drilling template included	Yes
