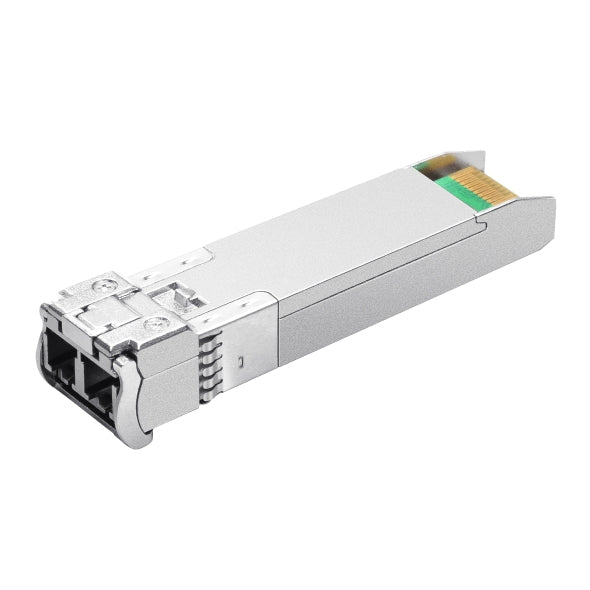

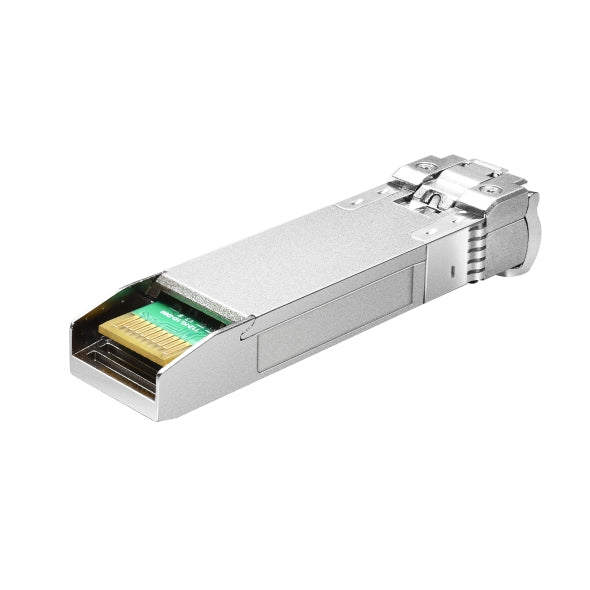

TP-LINK Omada SM6110-LR network transceiver module Fiber optic Networking

TP-LINK Omada SM6110-LR network transceiver module Fiber optic Networking

£69.84 GBP
£69.84 GBP
Sale Sold out
Taxes included.
Condition

The TP-LINK Omada SM6110-LR network transceiver module Fiber optic is a dependable addition to any modern network installation.

The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.

Specifications

Performance
SFP transceiver type Fiber optic
Maximum transfer distance 10000 m
Wavelength 1310 nm
Fiber cable diameters supported (core/cladding) 9/125 µm
Maximum data transfer rate 25780 Mbit/s
Interface type SFP+
Product colour Grey
Hot-Plug support Yes
Hot-swap Yes
Power
Input voltage 3.3 V
Operational conditions
Storage temperature (T-T) -40 - 85 °C
Storage relative humidity (H-H) 5 - 90%
Minimum operating temperature 0 °C
Maximum operating temperature 70 °C
Weight & dimensions
Width 57 mm
Depth 14 mm
Height 12 mm
Packaging content
Quantity per pack 1 pc(s)
