TP-LINK

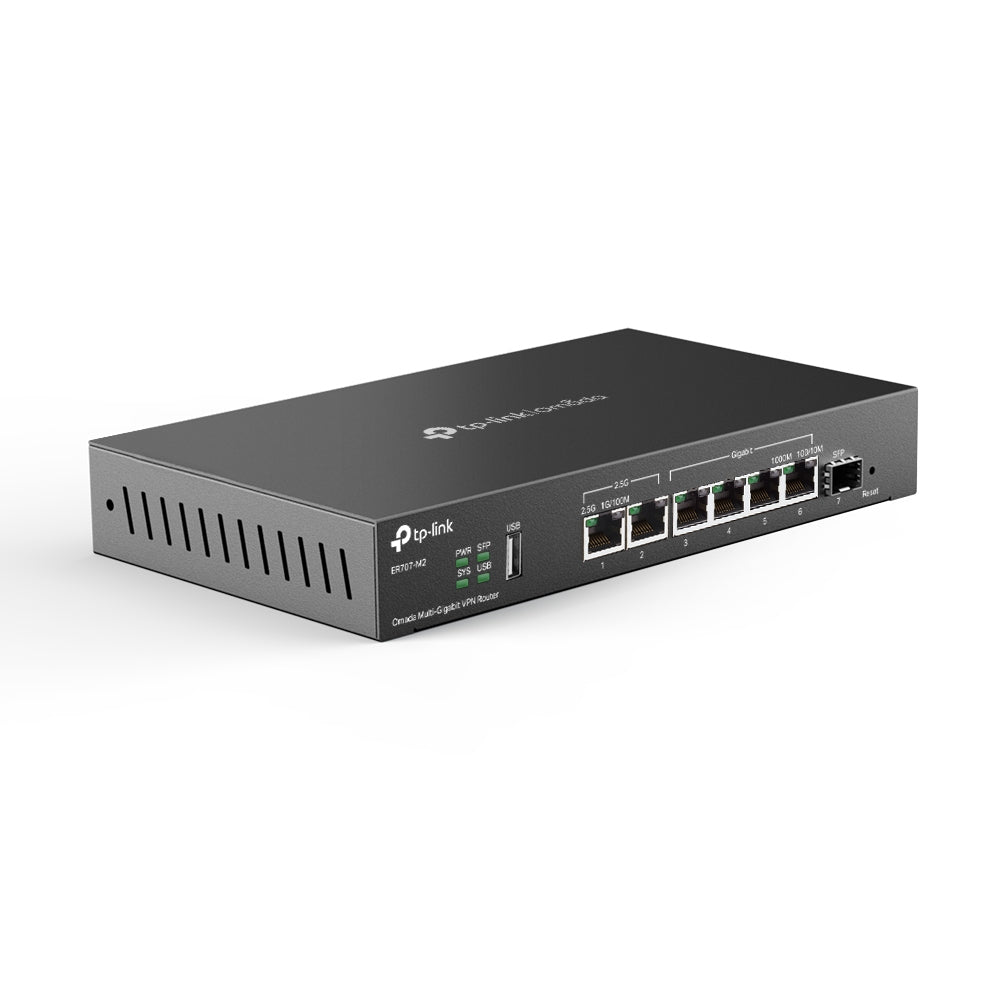

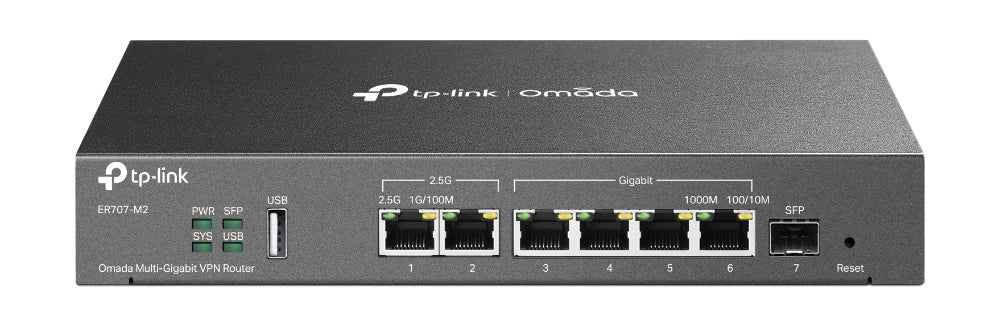

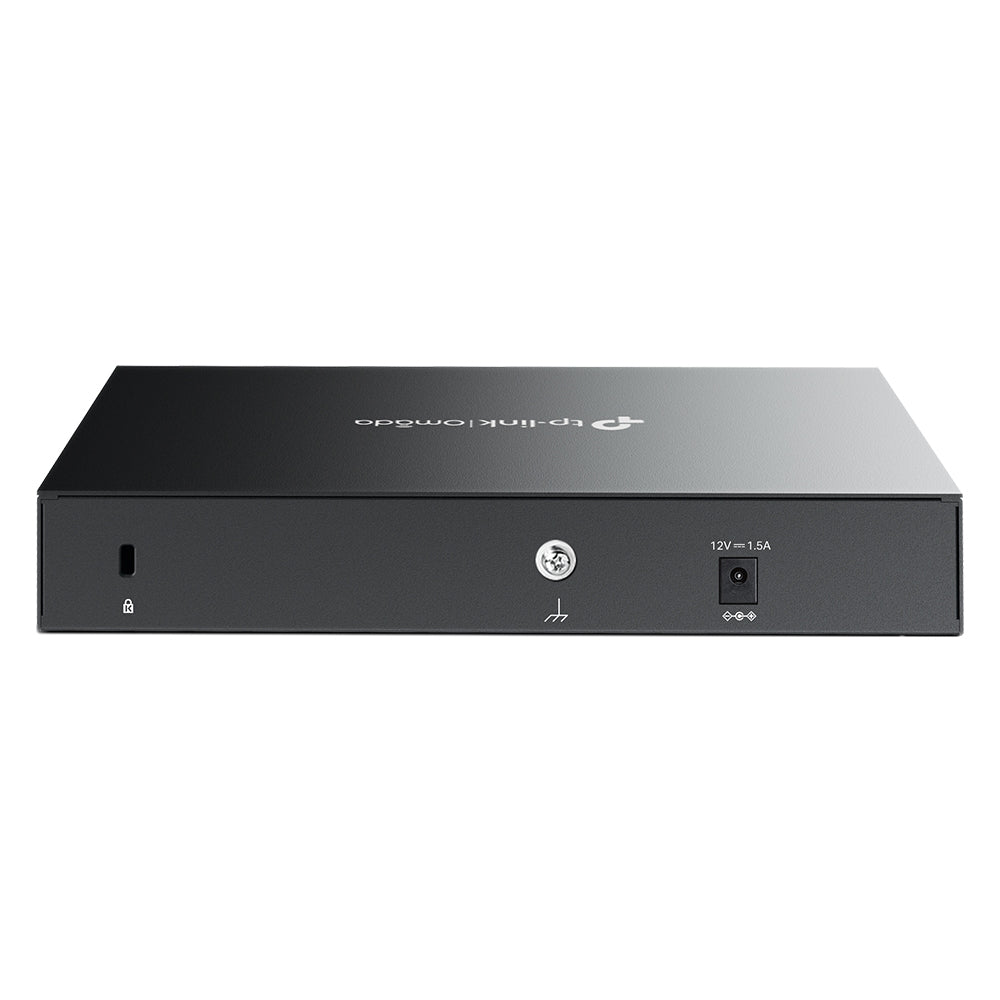

TP-LINK Omada Multi-Gigabit VPN Router Networking
TP-LINK Omada Multi-Gigabit VPN Router Networking
Regular price
£141.17 GBP
Regular price
Sale price
£141.17 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The TP-LINK Omada Multi-Gigabit VPN Router is a dependable addition to any modern network installation.
Dual 2.5 Gbps Ports, Engineered for Dense EnvironmentsDelivering high-speed transmissions through dual 2.5 Gbps ports, ER707-M2 is designed for multi-person environments such as retail stores, hotels, and offices. Enjoy a blazing-fast network experience while working from home.
6× WAN Ports & 1 USB WAN for Mobile Broadband
Empowered with up to 6× WAN SFP and RJ45 ports, ER707-M2 supports various internet access.△ Multi-WAN Load Balancing distributes data streams based on the bandwidth proportion of every WAN port to increase the utilization rate of multi-line broadband.
Connect a 4G/3G modem to the USB 2.0 port for a LTE WAN backup.
High-Security VPN
Pass-through traffic and a variety of VPN protocols, such as SSL, GRE§, IPSec, PPTP, and L2TP, are available on ER707-M2, giving consumers versatile options. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.* The router also features a built-in hardware engine to boost VPN performance.
Internet Access Management Strategy
Standardize users’ online behavior and easily specify the internet access rights and strategies of employees via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.
Omada SDN—The Smarter Cloud Solution for Business Networking
As the router that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER707-M2 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Network | |
| Network address translation (NAT) | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x |
| Throughput | 1.44 Gbit/s |
| Static route | Yes |
| Policy-based routing | Yes |
| VLAN support | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Memory | |
| Flash memory | 128 MB |
| Internal memory | 1000 MB |
| Performance | |
| Internal memory type | DDR4 |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| WAN connection | |
| SFP WAN | Yes |
| Ethernet WAN | Yes |
| Management features | |
| Universal Plug and Play (UPnP) | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Ports & interfaces | |
| Installed SFP modules quantity | 1 |
| USB ports quantity | 1 |
| USB version | 2.0 |
| Ethernet LAN (RJ-45) ports | 6 |
| WAN/Ethernet LAN ports quantity | 6 |
| WAN ports quantity | 1 |
| Protocols | |
| Supported network protocols | TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
| DMZ support | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Technical details | |
| LED indicators | LAN, Link, Power, Speed, System, USB, WAN |
| Product colour | Black |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Security | |
| URL filtering | Yes |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SNMP, SNMPv2, SNMPv3 |
| VPN tunnels quantity | 66 |
| System event log | Yes |
| Access Control List (ACL) | Yes |
| ICMP attack prevention | Yes |
| Packaging content | |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Design | |
| Housing material | Steel |
| Wall mountable | Yes |
| Power | |
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 226 mm |
| Depth | 131 mm |
| Height | 35 mm |
| Package width | 242 mm |
| Package depth | 323 mm |
| Package height | 73 mm |
| Package weight | 1.1 kg |
