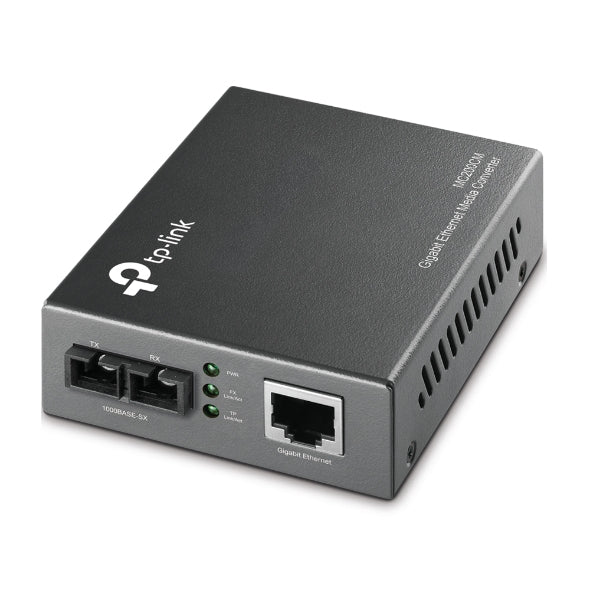

TP-LINK Omada MC200CM network media converter Networking

The TP-LINK Omada MC200CM network media converter is a dependable addition to any modern network installation.

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data

Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1,800 feet (550 meters).

Specifications

Network
Cable types supported	Cat5, Cat5e
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Duplex system	Full, Half
Auto MDI/MDI-X	Yes
Maximum data transfer rate	1000 Mbit/s
Fiber optic connector	SC
Performance
Wavelength	850 nm
Maximum transfer distance	550 m
Fiber mode structure	Multi-mode
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm
Features
LED indicators	Yes
Product colour	Black
Internal	No
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Power
Power consumption (max)	1.66 W
Weight & dimensions
Width	95 mm
Depth	73 mm
Height	27 mm
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
Manual	Yes
Technical details
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
