TP-LINK

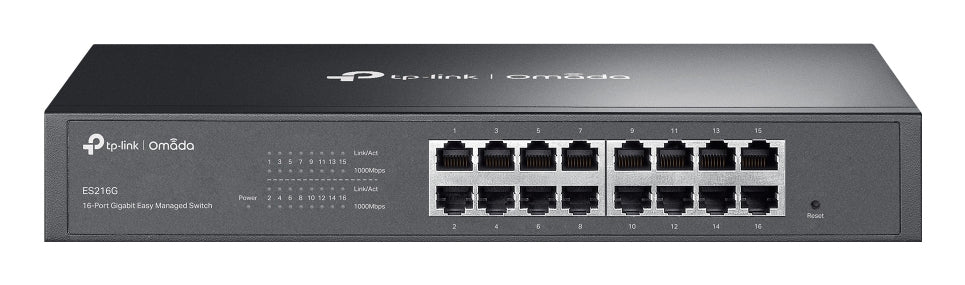

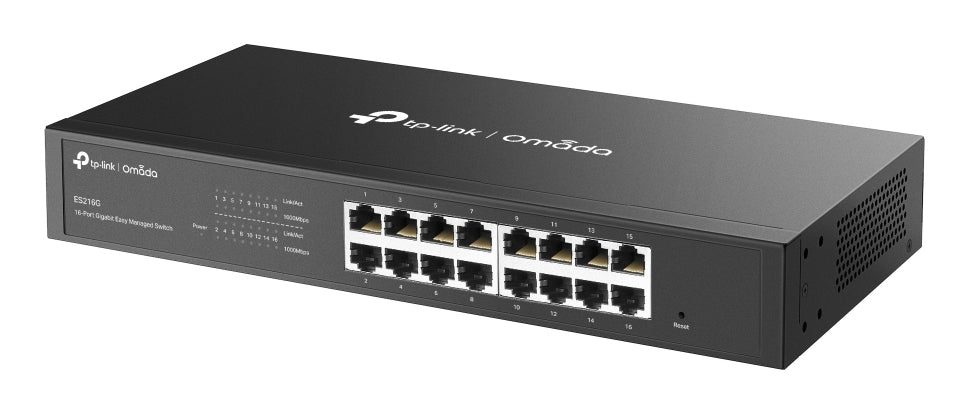

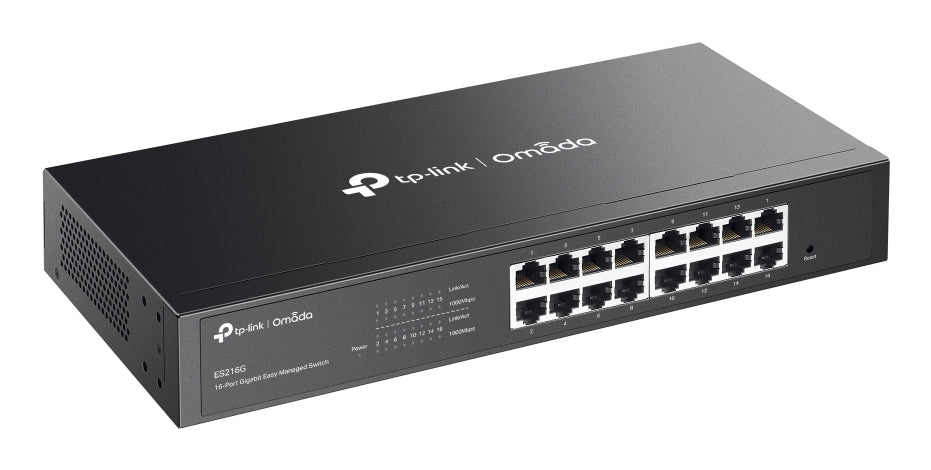

TP-LINK Omada ES216G network switch

£74.43 GBP

Sale Sold out

Taxes included.

Condition New

The TP-LINK Omada ES216G network switch keeps your wired network organised.

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2
Unified static configuration	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
Power connector	AC-in jack
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x
VLAN support	Yes
Port mirroring	Yes
Number of VLANs	32
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Fast leave	Yes
Zero Touch Provisioning (ZTP)	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
IGMP snooping	Yes
Data transmission
Jumbo frames	15000
Packet buffer memory	4 MB
MAC address table	8000 entries
Switching capacity	32 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Forwarding rate	23.8 Mpps
Security
Loop protection	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
DHCP features	DHCP client
Design
Product colour	Black
LED indicators	Yes
Rack mounting	Yes
Performance
Mean time between failures (MTBF)	2131140 h
Flash memory	64 MB
Firmware upgradeable	Yes
Fanless	Yes
Power
Power consumption (max)	8.4 W
Power supply included	Yes
Surge protection voltage	6 kV
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Surge protection	Yes
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	-5 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	28.52 BTU/h
Weight & dimensions
Width	294 mm
Depth	140 mm
Height	44 mm
Packaging content
Rack mount kit	Yes
User guide	Yes
Cables included	AC
Packaging data
Package type	Box
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
