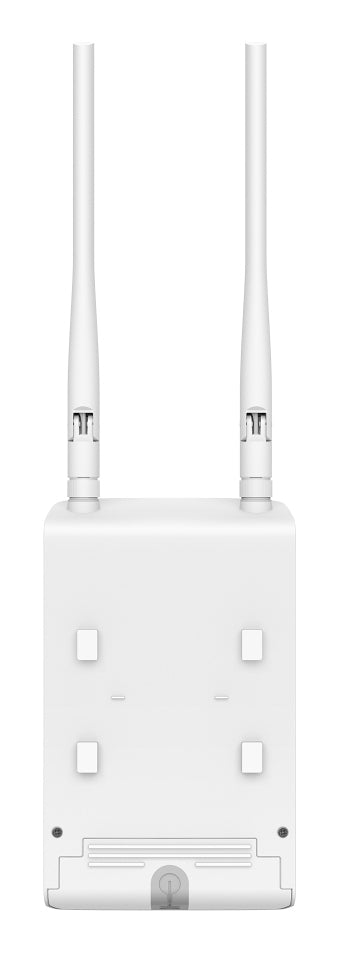

TP-LINK Omada EAP603-Outdoor Networking
TP-LINK Omada EAP603-Outdoor Networking
Regular price
£83.81 GBP
Regular price
Sale price
£83.81 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The TP-LINK Omada EAP603-Outdoor is a dependable addition to any modern network installation.
AX1800 Indoor/Outdoor Wi-Fi 6 Access Point Seamless 1.8Gbps Wi-Fi 6 Speeds: 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz.† Dual-Band Omnidirectional Coverage: Up to 300 m (984 ft) long-range coverage.* PoE+ Powered: Supports both 802.3at PoE and Passive PoE (adapter included). Ideal for Outdoor Environments: IP65 weatherproof, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C. Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup Advanced Features: Omada Mesh, Seamless Roaming, and Centralized Cloud Management.§
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1800 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Web-based management | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3at |
| Maximum outdoor range | 300 m |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Features | |
| 6 GHz | No |
| Bluetooth | Yes |
| Maximum data transfer rate (2.4 GHz) | 573 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Security | |
| Number of SSID supported | 16 |
| IP address filtering | Yes |
| Security algorithms | EAP, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, PEAP, PPSK, SNMP, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Guest access | Yes |
| Management features | |
| Cloud-managed | Yes |
| Backup function | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 4.8 W |
| Power over Ethernet (PoE) | Yes |
| Input current | 0.36 A |
| Power over Ethernet (PoE) type supported | Passive PoE |
| DC voltage range | 42.5 - 57 V |
| Design | |
| International Protection (IP) code | IP65, IP66 |
| Placement | Pole, Wall |
| Product colour | White |
| Antenna | |
| Antenna type | Internal & external |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5 dBi |
| Antenna direction type | Omni-directional |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Weight & dimensions | |
| Width | 230 mm |
| Depth | 207.5 mm |
| Height | 69.7 mm |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
