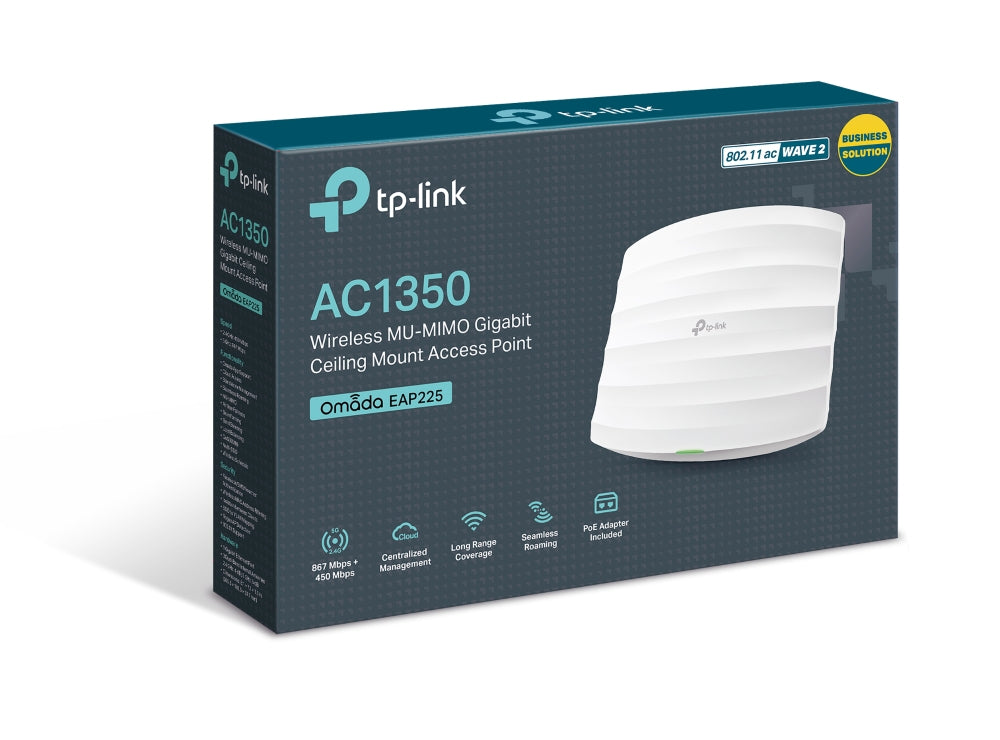

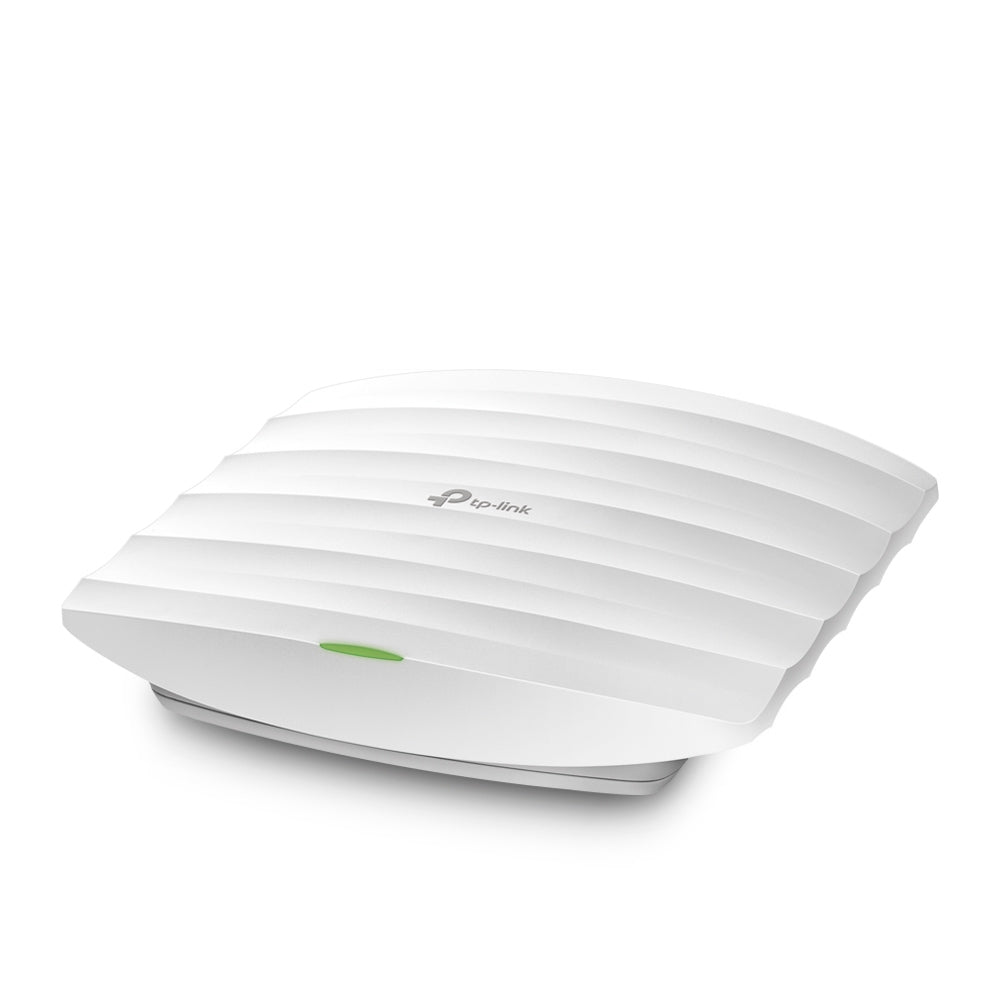

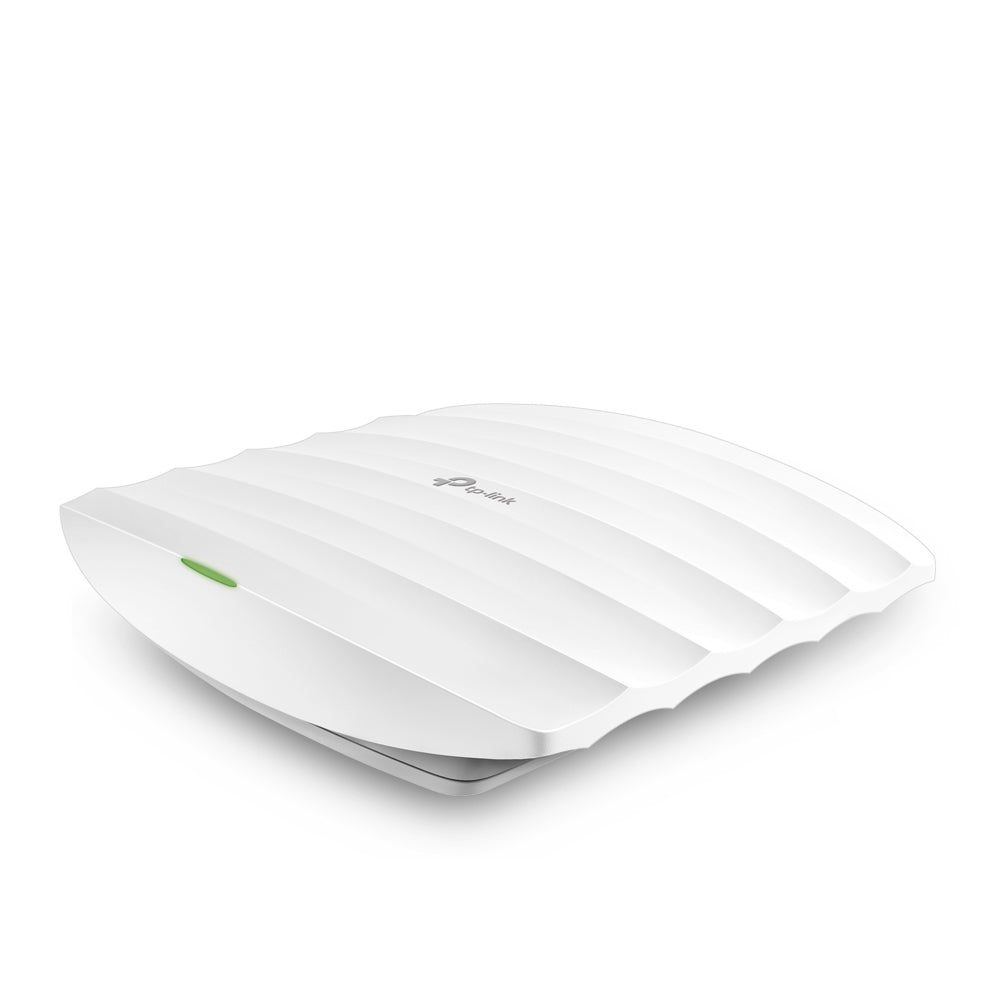

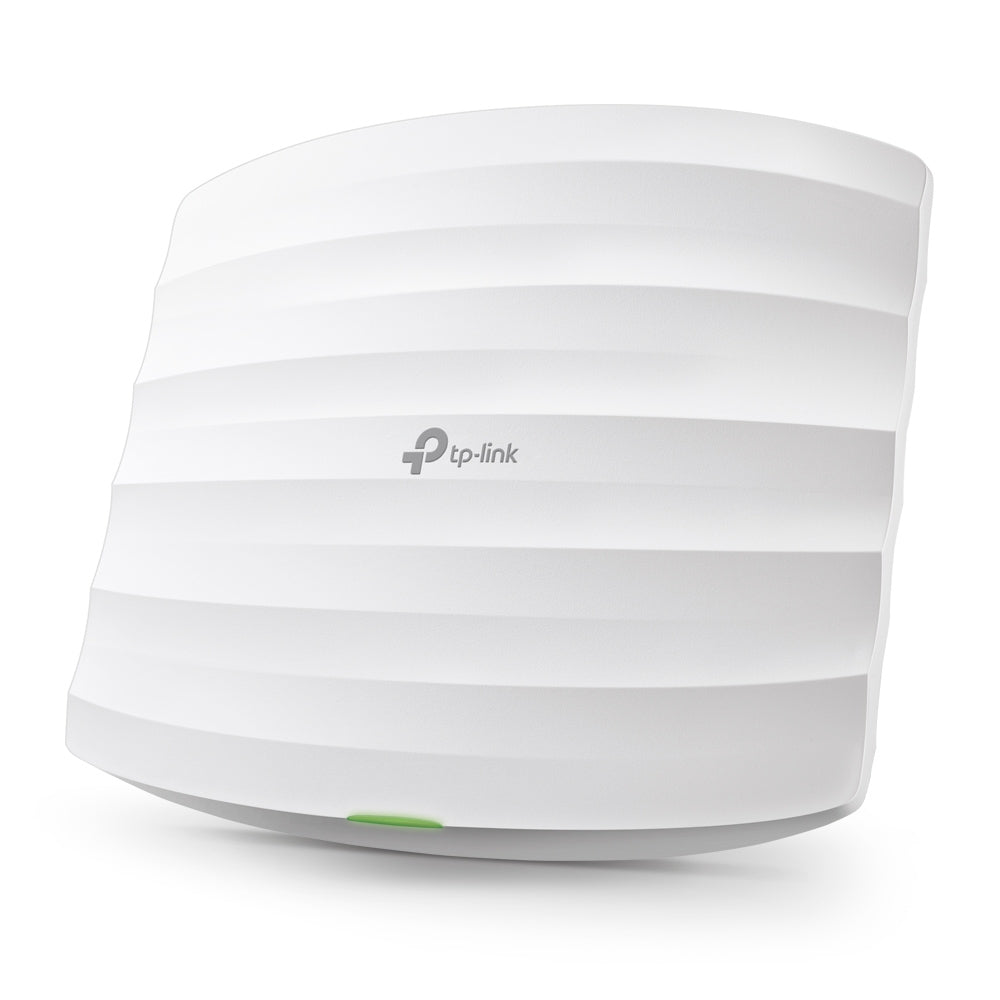

TP-LINK Omada EAP225 Access Point PoE

with simple central management.

Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Facebook check-in and SMS authentication expands your social influence in secured ways
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Multiple PoE Options for Easy Installation
EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE injector, making deployment effortless and flexible.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.

Specifications

Data transmission
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1350 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Syslog	Yes
On/off switch	Yes
Reset button	Yes
Web-based management	Yes
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Security
Cable lock slot	Yes
Number of SSID supported	16
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
Access Control List (ACL)	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Features
6 GHz	No
Cabling technology	10/100/1000Base-T(X)
Transmitting power (FCC)	24 dBm
Transmitting power (CE)	23 dBm
Maximum data transfer rate (2.4 GHz)	450 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Virtual LAN features	VLAN mapping
BeamForming	Yes
Ports & interfaces
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Power
Output voltage	12 V
Output current	1.5 A
Power consumption (typical)	10.15 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
Design

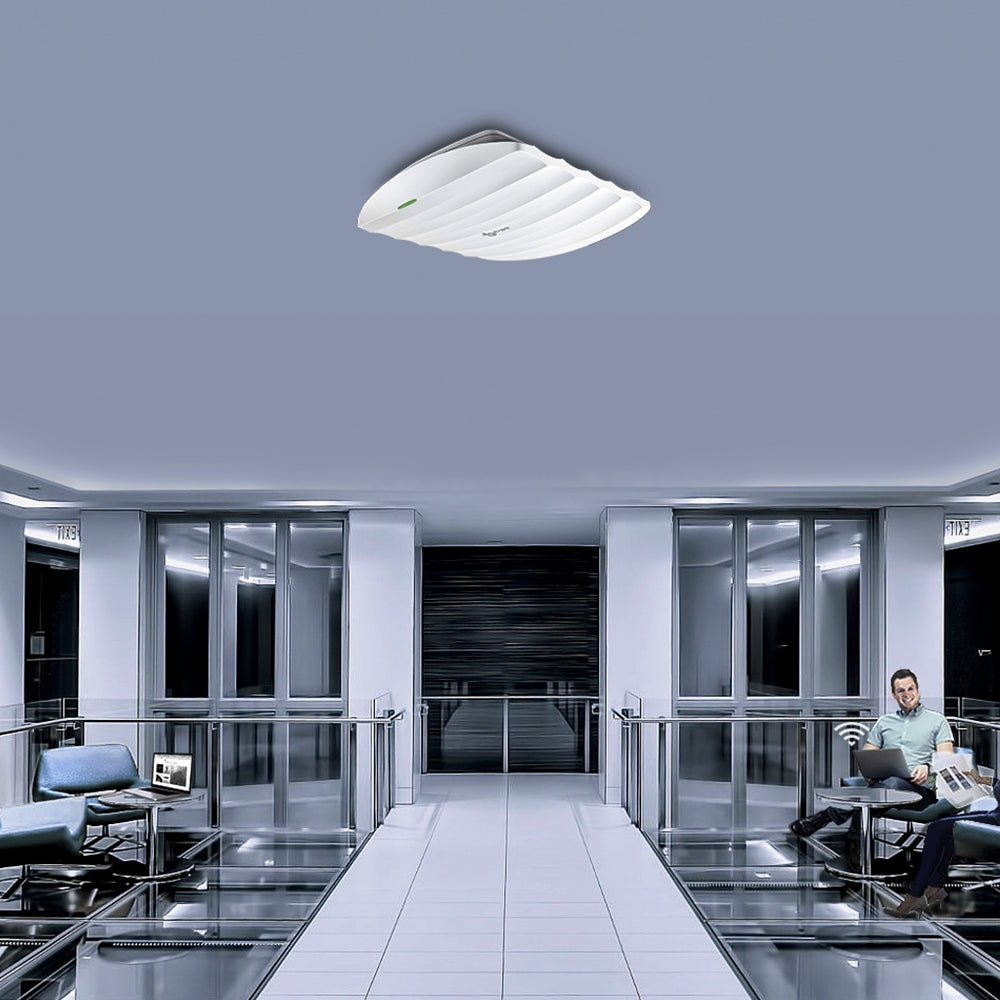

Placement	Ceiling, Wall
Product colour	White
LED indicators	Power, WLAN
Cable lock slot type	Kensington
Antenna
Antenna type	Internal
Antennas quantity	5
Antenna gain level (max)	5 dBi
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Technical details
Sustainability compliance	Yes
Harmonized System (HS) code	85176990
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Mobile network
SIM card slot	No
Weight & dimensions
Width	205.5 mm
Depth	181.5 mm
Height	37.1 mm
Package width	228 mm
Package depth	340 mm
Package height	65 mm
Package weight	910 g

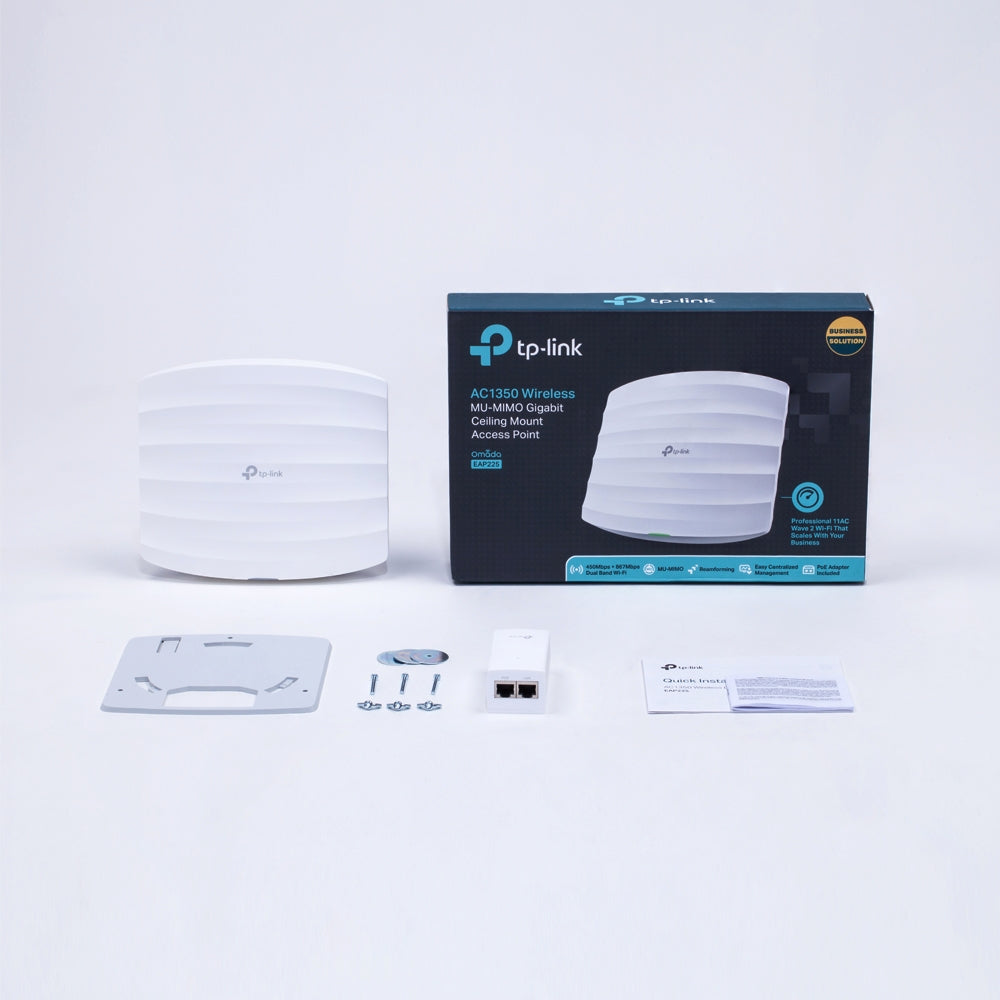

Packaging data
Quick start guide	Yes
Mounting kit	Yes
PoE adapter included	Yes
Package type	Box
AC adapter included	Yes
Packaging content
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
