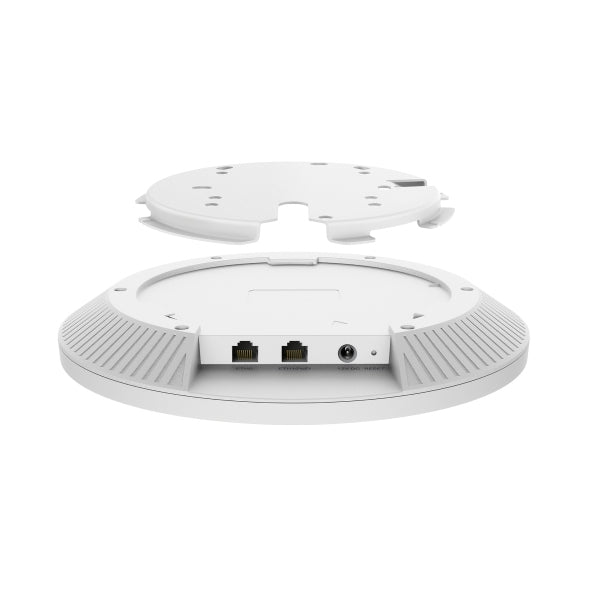

TP-LINK Omada BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point Networking
TP-LINK Omada BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point Networking
Regular price
£468.76 GBP
Regular price
Sale price
£468.76 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The TP-LINK Omada BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point is a dependable addition to any modern network installation.
Multi-Link Operation (MLO)Enables devices to simultaneously send and receive data across different frequency bands and channels.
Two 10G PoE++ Ports
Boosts overall throughput and offers flexible deployment with two 10 Gbps PoE++ ports.
Auto Channel Selection and Power Adjustment
Boost WiFi performance and minimize interference for your network.
Intelligent Power Management
Offers more reliable network operation for your business.
Centralized Cloud Management
Manage the whole network locally or from the cloud.
Omada Mesh Technology
More flexible and convenient wireless deployment.△
PoE++ Power
Supports both 12V DC and 802.3bt PoE++ for flexible installations.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10000 Mbit/s |
| Maximum data transfer rate | 19000 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Flow control support | Yes |
| Automatic channel selection | Yes |
| Reset button | Yes |
| Frequency band | 2.4 - 6 GHz |
| Number of users | 760 user(s) |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Features | |
| 6 GHz | Yes |
| Automatic channel scanning | Yes |
| Maximum data transfer rate (2.4 GHz) | 1376 Mbit/s |
| Maximum data transfer rate (5 GHz) | 5760 Mbit/s |
| Maximum data transfer rate (6 GHz) | 11520 Mbit/s |
| BeamForming | Yes |
| Security | |
| Security algorithms | WPA, WPA2, WPA3 |
| Access Control List (ACL) | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 12 V |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| LED indicators | Yes |
| Antenna | |
| Antenna type | Internal |
| Weight & dimensions | |
| Width | 280 mm |
| Depth | 280 mm |
| Height | 46.5 mm |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Package type | Box |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
