TP-LINK Omada AX5400 Ceiling Mount WiFi 6 Access Point WiFi 6 Networking

The TP-LINK Omada AX5400 Ceiling Mount WiFi 6 Access Point is a dependable addition to any modern network installation.

High-End Business WiFi 6 to Power Up Your Business

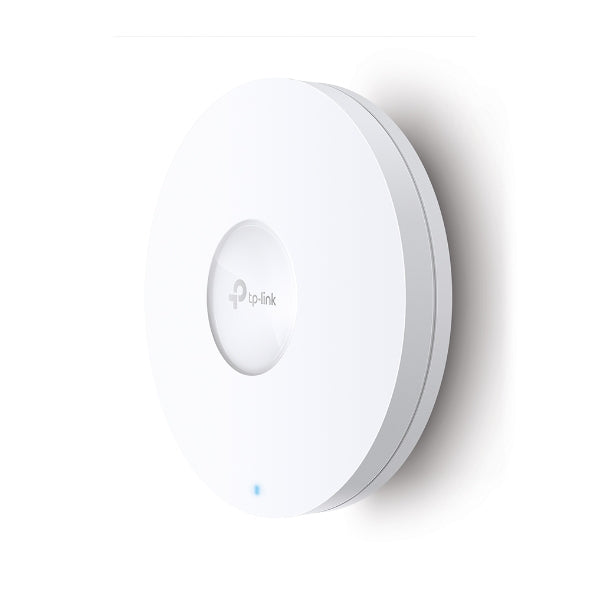

AX5400 Ceiling Mount Wi-Fi 6 Access Point

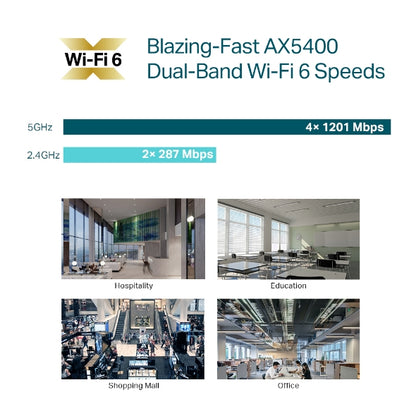

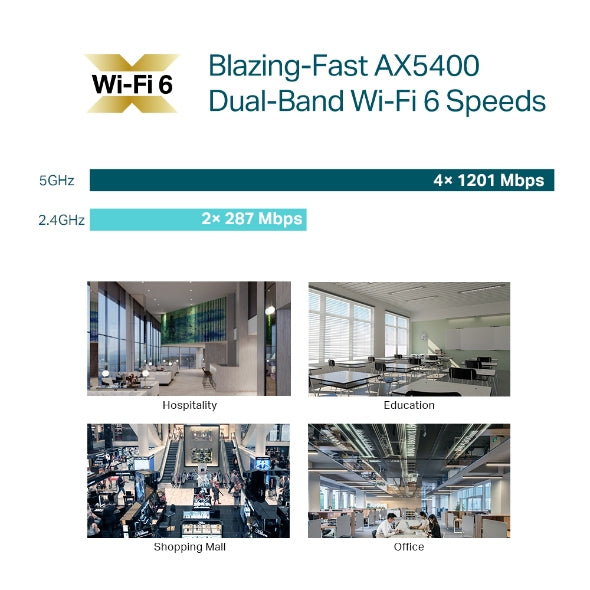

AX5400 WiFi 6 Speed
4804 Mbps on 5 GHz +
574 Mbps on 2.4 GHz†

High-Efficiency WiFi 6
More connected devices can enjoy faster speeds

Centralized Cloud Management
Manage the whole network locally or from the cloud

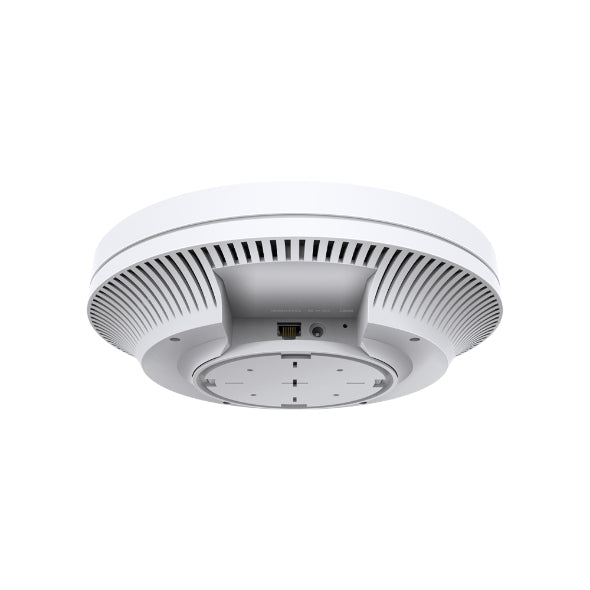

2.5GE Wired Performance
Boosts overall throughput with a 2.5 Gbps Ethernet port

160 MHz Channel
Double the data at peak transmission times on a single stream with HE160

Auto Channel Selection and Power Adjustment*
Optimize overall performance by reducing WiFi interference

Omada Mesh Technology
More flexible and convenient wireless deployment§

Seamless Roaming
Uninterrupted streaming when moving between APs§

PoE+ Powered
Supports both DC (adapter included) and 802.3at PoE+ for flexible installations

Designed for Business Environments
Requiring High-Performance WiFi

High-End Business Wi-Fi 6 Bring Real Power to Your Business
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

Auto Channel Selection and Power Adjustment
to Optimize Overall Performance*
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network

Deployment & Higher Performance by Omada Mesh§
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

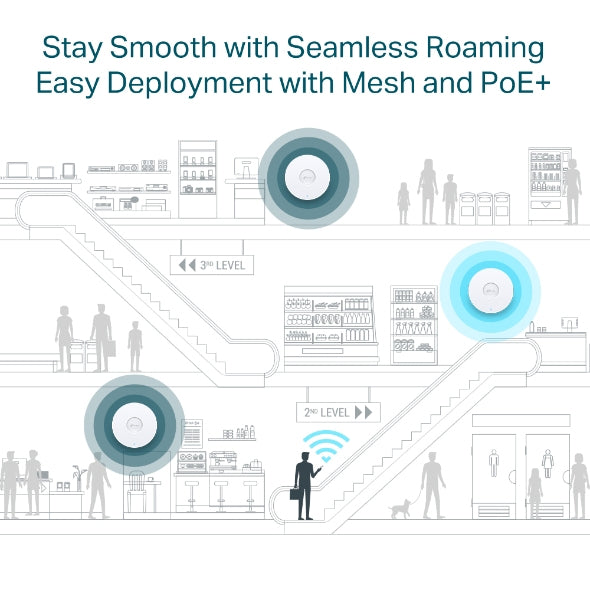

Always Stay Smooth with Fast Roaming§
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Specifications

Data transmission
Ethernet LAN data rates	2500 Mbit/s
Maximum data transfer rate	5400 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Wireless isolation	Yes
Automatic channel selection	Yes
Reset button	Yes
Firmware upgradeable	Yes
Frequency band	2.4 - 5 GHz
Number of users	250 user(s)
Web-based management	Yes
VLAN support	No
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Certification	CE, FCC, RoHS
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Features
6 GHz	No
Transmitting power (FCC)	<25 dBm (2.4 GHz); <28 dBm (5 GHz)
Transmitting power (CE)	<20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz, band1 & band2, EIRP); <30 dBm(5 GHz, band3, EIRP)
Automatic channel scanning	Yes
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	4804 Mbit/s
BeamForming	Yes
Security
Number of SSID supported	16
Access Control List (ACL)	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Power
Power over Ethernet (PoE)	Yes
Input current	1.5 A
Design
International Protection (IP) code	IP67
Placement	Ceiling, Wall
Product colour	White
LED indicators	Yes
Antenna
Antenna type	Internal
Antennas quantity	6
Antenna gain level (max)	5 dBi
Antenna direction type	Omni-directional
Technical details
Harmonized System (HS) code	85176990
Weight & dimensions
Width	243 mm
Depth	243 mm
Height	64 mm
Package width	302 mm
Package depth	304 mm
Package height	82 mm
Package weight	1.32 kg
Packaging content
Quantity per pack	1 pc(s)
