TP-LINK

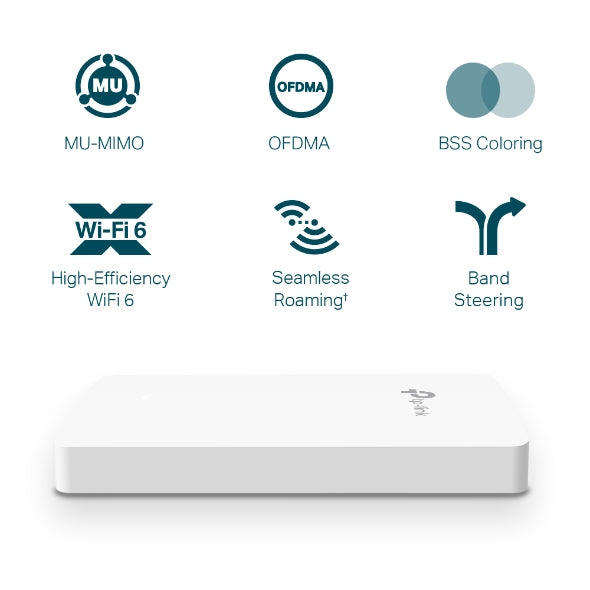

TP-LINK Omada AX3000 Wall Plate WiFi 6 Access Point WiFi 6 Networking
TP-LINK Omada AX3000 Wall Plate WiFi 6 Access Point WiFi 6 Networking
Regular price
£351.28 GBP
Regular price
Sale price
£351.28 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The TP-LINK Omada AX3000 Wall Plate WiFi 6 Access Point is a dependable addition to any modern network installation.
The Smarter Cloud Solution for Business Networking.AX1800 Wall Plate WiFi 6 Access Point
Futureproof Your Network with WiFi 6 Connectivity
Connect more devices at the same time with WiFi 6 speeds of up to 1800 Mbps..
Corner-to-Corner Indoor WiFi Coverage
Guests can enjoy strong private networks that paint their entire space by installing EAP615-Walls in each guest room.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1774 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Automatic channel selection | Yes |
| Syslog | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Frequency band | 2.4 - 5 GHz |
| Web-based management | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Security | |
| Cable lock slot | Yes |
| Number of SSID supported | 16 |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Features | |
| 6 GHz | No |
| Cabling technology | 10/100/1000Base-T(X) |
| Transmitting power (FCC) | 21 dBm |
| Transmitting power (CE) | 23 dBm |
| Automatic channel scanning | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| BeamForming | Yes |
| Protocols | |
| STelnet using SSH v2 | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 4 |
| Power | |
| Power consumption (typical) | 10 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Wall |
| Product colour | White |
| LED indicators | Power |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna gain level (max) | 4 dBi |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Weight & dimensions | |
| Width | 143 mm |
| Depth | 86 mm |
| Height | 20 mm |
| Package width | 385 mm |
| Package depth | 495 mm |
| Package height | 210 mm |
| Package weight | 330 g |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Packaging content | |
| Quantity per pack | 5 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
