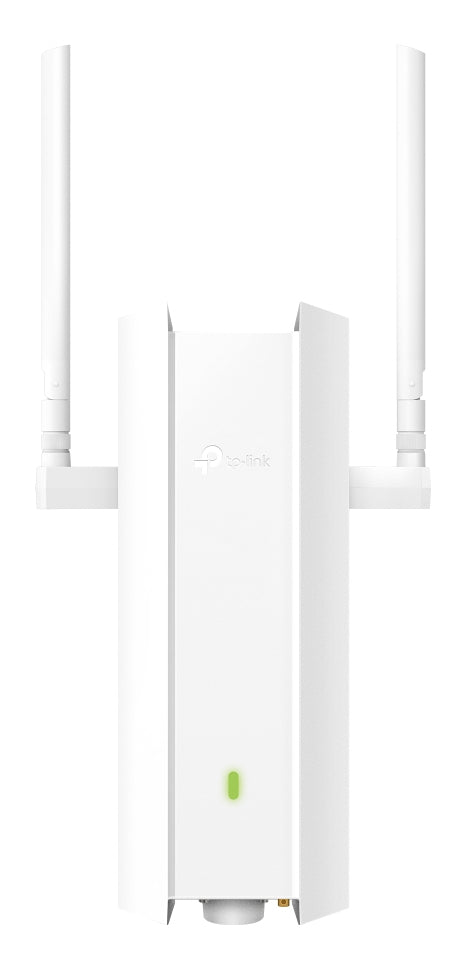

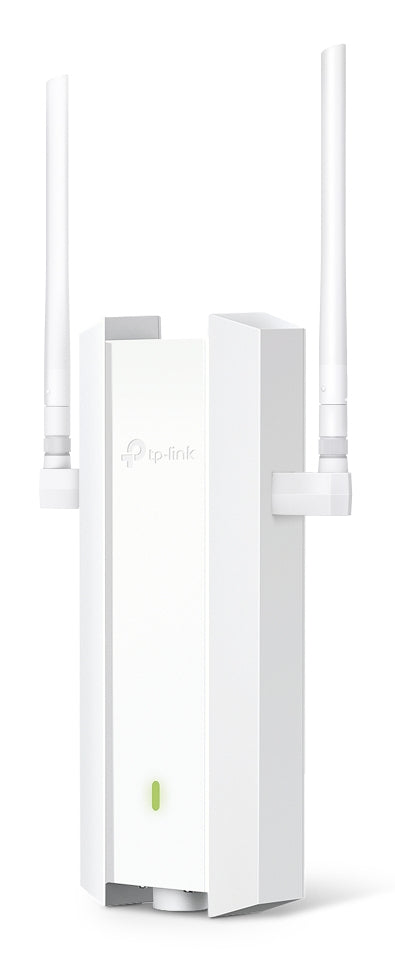

TP-LINK Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point Networking

The TP-LINK Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point is a dependable addition to any modern network installation.

Long Distance Starts with External Antennas
Two detachable external antennas for 5 GHz and 2.4 GHz provide optimal coverage and greater flexibility for your network.

Ideal for High-Density Outdoor Scenes
OFDMA and MU-MIMO provide simultaneous connections for dozens of clients in large open areas.
Equipped with an IP67 weatherproof enclosure, our EAP625-Outdoor HD withstands the most extreme environments.

Flexible Deployment with Omada Mesh and PoE Support

- Less Wiring with Omada Mesh
- Powered with PoE+ Switch
- Powered with Passive PoE

Specifications

Data transmission
Maximum data transfer rate	1800 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Reset button	Yes
Frequency band	2.4 - 5 GHz
Number of users	1020 user(s)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Features
6 GHz	No
Cabling technology	10/100/1000Base-T(X)
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1201 Mbit/s
Security
IP address filtering	Yes
Security algorithms	WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Power
Power over Ethernet (PoE)	Yes
Design
International Protection (IP) code	IP67
Placement	Pole, Wall
Product colour	White
LED indicators	Yes
Antenna
Antenna type	External
Antennas quantity	2
Weight & dimensions
Width	280.4 mm
Depth	182.2 mm
Height	56.9 mm
Packaging content
Quantity per pack	1 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
