TP-LINK Omada AC1200 Networking (235WALL)
TP-LINK Omada AC1200 Networking (235WALL)
Regular price
£66.88 GBP
Regular price
Sale price
£66.88 GBP
Taxes included.
Quantity
Couldn't load pickup availability

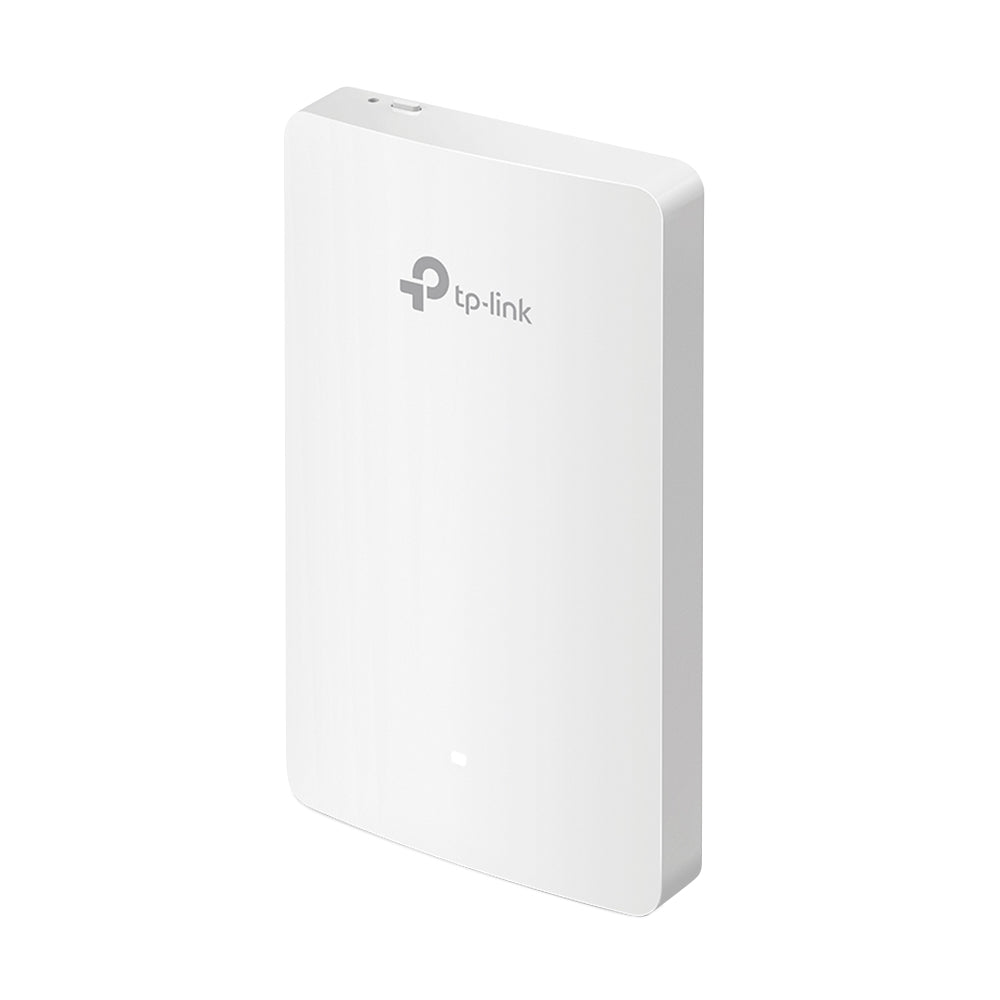

The TP-LINK Omada AC1200 is a dependable addition to any modern network installation.

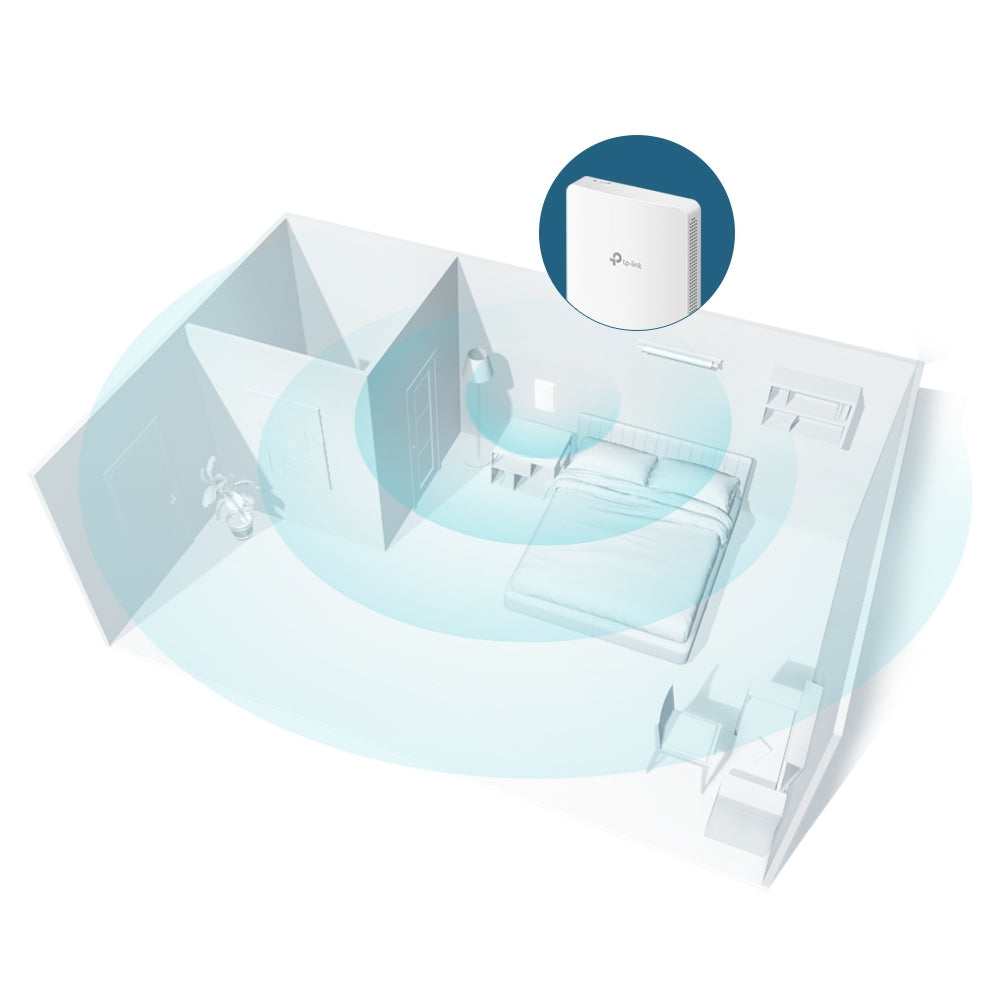

Dedicated Complete, Private Wi-Fi Network in Each RoomAn EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.
MU-MIMO + Dual-Band: Connect Faster and More
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.

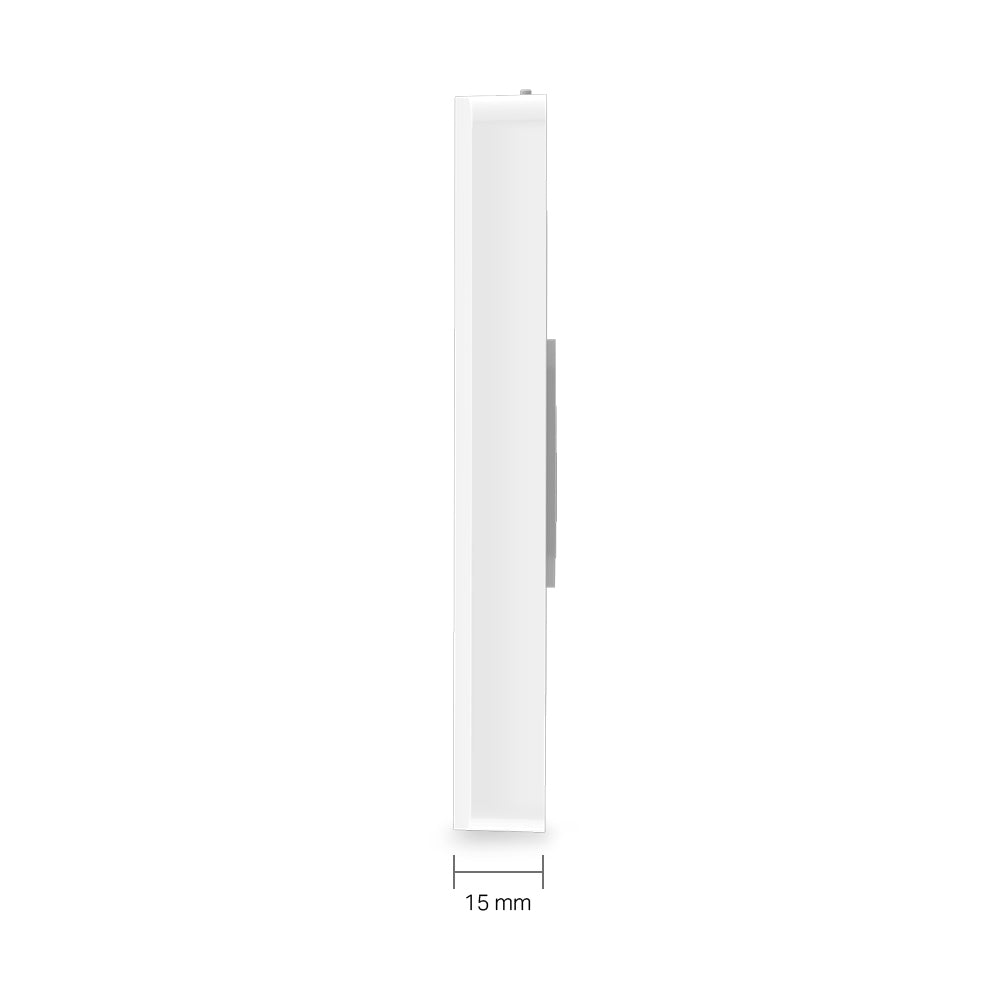

Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.
Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.
Quick, Simplified Installation
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.

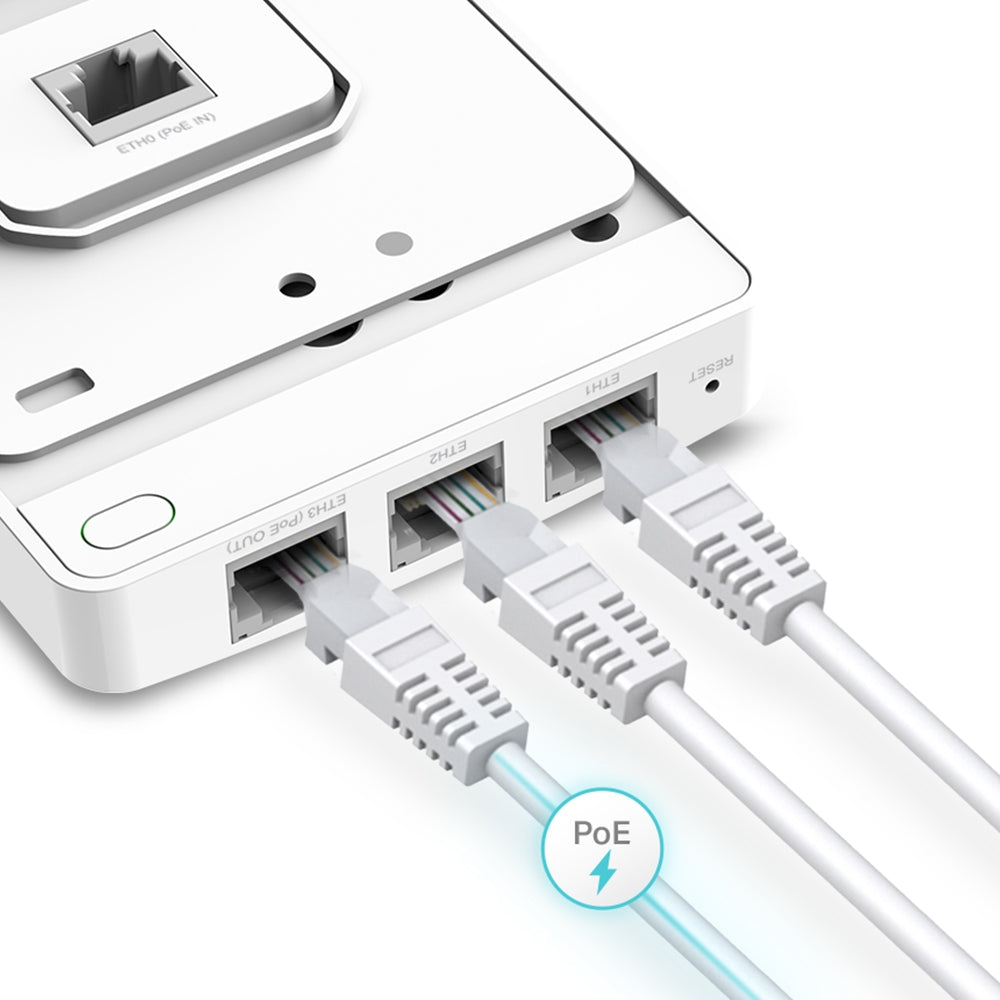

Full Gigabit Ports to Bridge Network
Equipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.
Cloud Centralized Management Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1167 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Automatic channel selection | Yes |
| Syslog | Yes |
| Reset button | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Frequency band | 2.4 - 5 GHz |
| Web-based management | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Security | |
| Cable lock slot | Yes |
| Number of SSID supported | 16 |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Features | |
| 6 GHz | No |
| Cabling technology | 10/100/1000Base-T(X) |
| Transmitting power (FCC) | 21 dBm |
| Transmitting power (CE) | 20 - 23 dBm |
| Automatic channel scanning | Yes |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Virtual LAN features | Port-based VLAN, VLAN mapping |
| BeamForming | Yes |
| Ports & interfaces | |
| WAN connection | Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports | 4 |
| Power | |
| Power consumption (typical) | 24.4 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE, Passive PoE |
| Design | |
| Placement | Wall |
| Product colour | White |
| LED indicators | LAN, Power, Status, WAN, WLAN |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 4 dBi |
| Antenna features | Integrated antenna |
| Technical details | |
| Sustainability compliance | Yes |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Weight & dimensions | |
| Width | 143 mm |
| Depth | 86 mm |
| Height | 20 mm |
| Package width | 117 mm |
| Package depth | 184 mm |
| Package height | 33 mm |
| Package weight | 300 g |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Package type | Box |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
