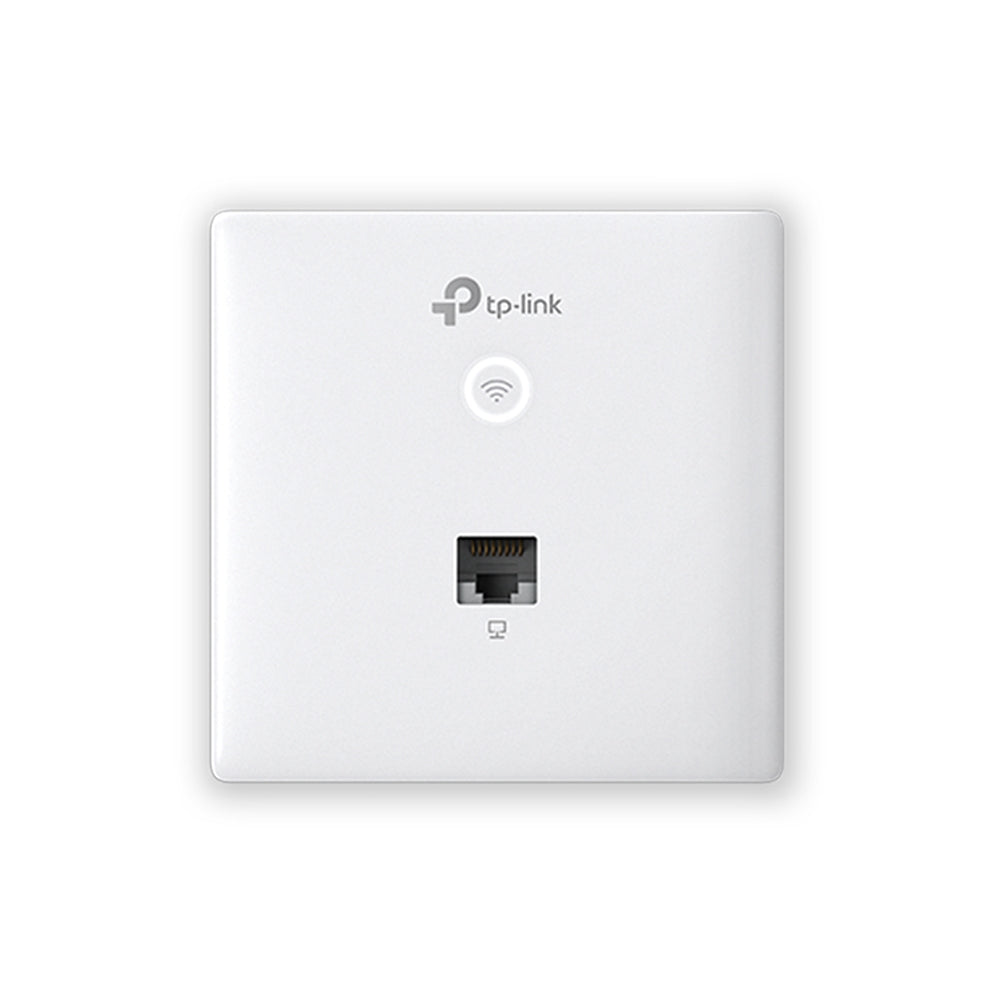

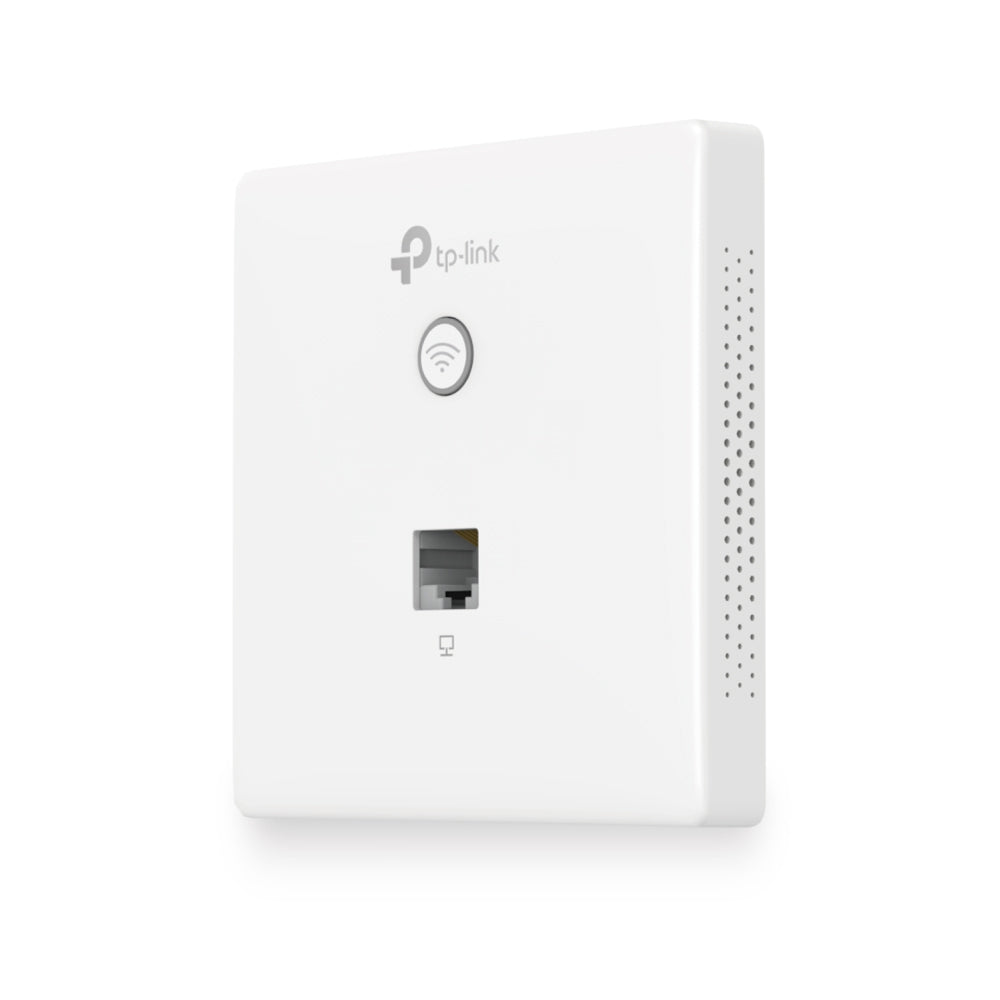

TP-LINK Omada AC1200 Networking (230WALL)

The TP-LINK Omada AC1200 is a dependable addition to any modern network installation.

Unprecedented Thin Design with 11mm
Omada EAP230-Wall
AC Access Point

Private Connection for Every Room.
EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user.

MU-MIMO + Dual-Band: Faster Connection for More Devices
802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.

Seamlessly Blends with any Décor
The same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.

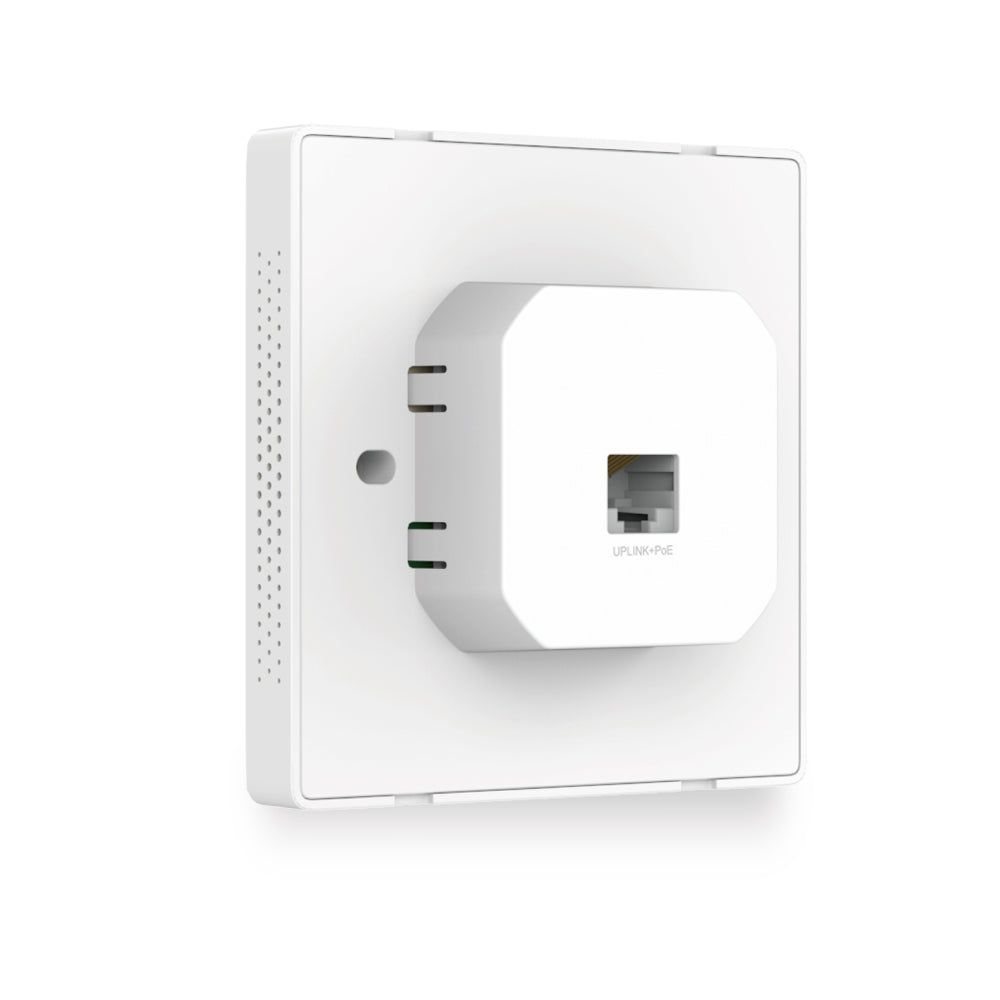

High-Speed Gigabit Port
Equipped with a Gigabit port to deliver the fastest possible wired transmission.

Effortless Deployment with Power over Ethernet
802.3af/802.3at PoE support means there’s no need for extra wiring. Plug in existing Ethernet cables to transmit both power and data to your APs.

Quick, Simple Installation
1.Detach and remove the faceplate of the junction box.
2.Plug an Ethernet cable in to the port.
3.Secure the Access Point to the wall using the provided screws.
4.Press the faceplate back into position.

Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Specifications

Data transmission
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1167 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Automatic channel selection	Yes
Syslog	Yes
Reset button	Yes
Frequency band	2.4 - 5 GHz
Web-based management	Yes
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Features
6 GHz	No
Cabling technology	10/100/1000Base-T(X)
Transmitting power (CE)	20 - 23 dBm
Automatic channel scanning	Yes
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Virtual LAN features	Port-based VLAN, VLAN mapping
BeamForming	Yes
Security
Number of SSID supported	16
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
MAC address filtering	Yes
Access Control List (ACL)	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Ports & interfaces
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	25.5 W
Power consumption (typical)	9 W
Power over Ethernet (PoE)	Yes
Design
Placement	Wall
Product colour	White
LED indicators	Operation
Antenna
Antenna type	Internal
Antennas quantity	2
Antenna gain level (max)	3.6 dBi
Antenna features	Integrated antenna
Technical details
Sustainability compliance	Yes
Harmonized System (HS) code	85176990
Compliance certificates	CE, RoHS
Weight & dimensions
Width	86.8 mm
Depth	86.8 mm
Height	30.2 mm
Package width	118 mm
Package depth	130 mm
Package height	47 mm
Package weight	210 g
Packaging data
Quick start guide	Yes
Mounting kit	Yes
Packaging content
Quantity per pack	2 pc(s)
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
