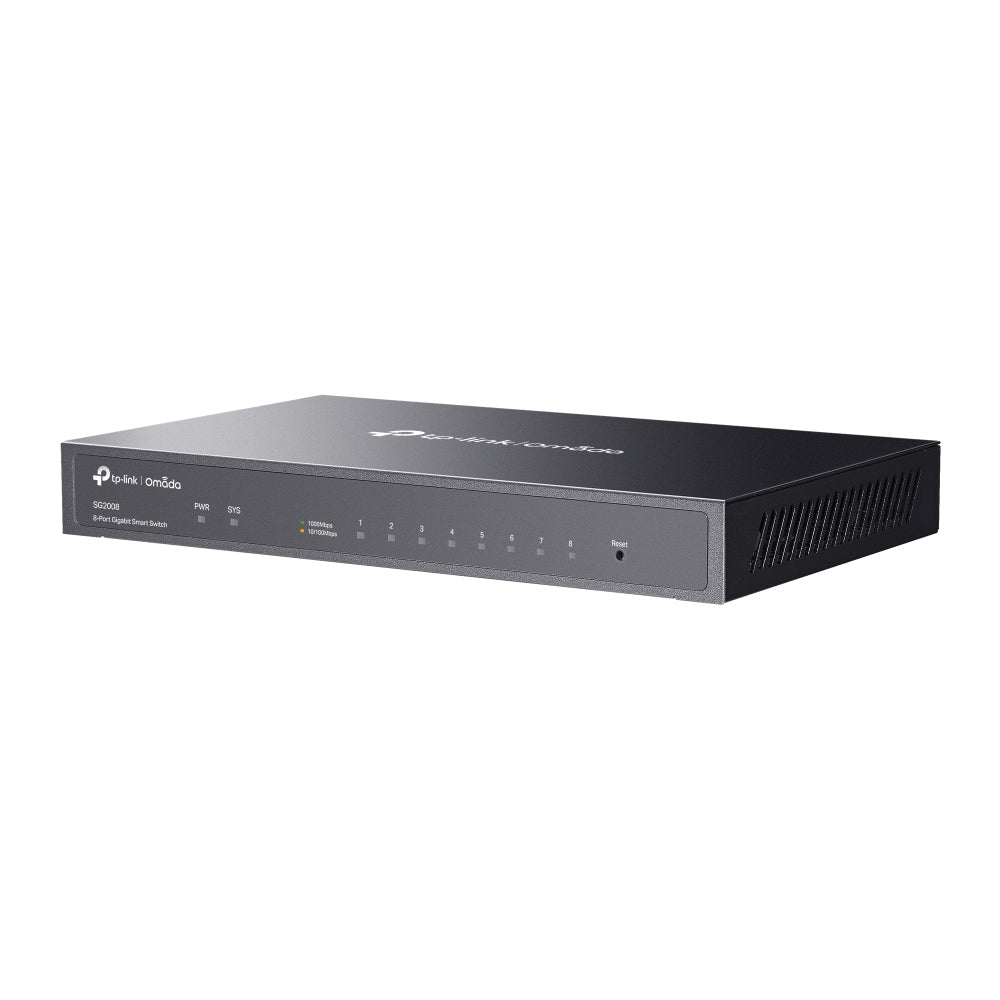

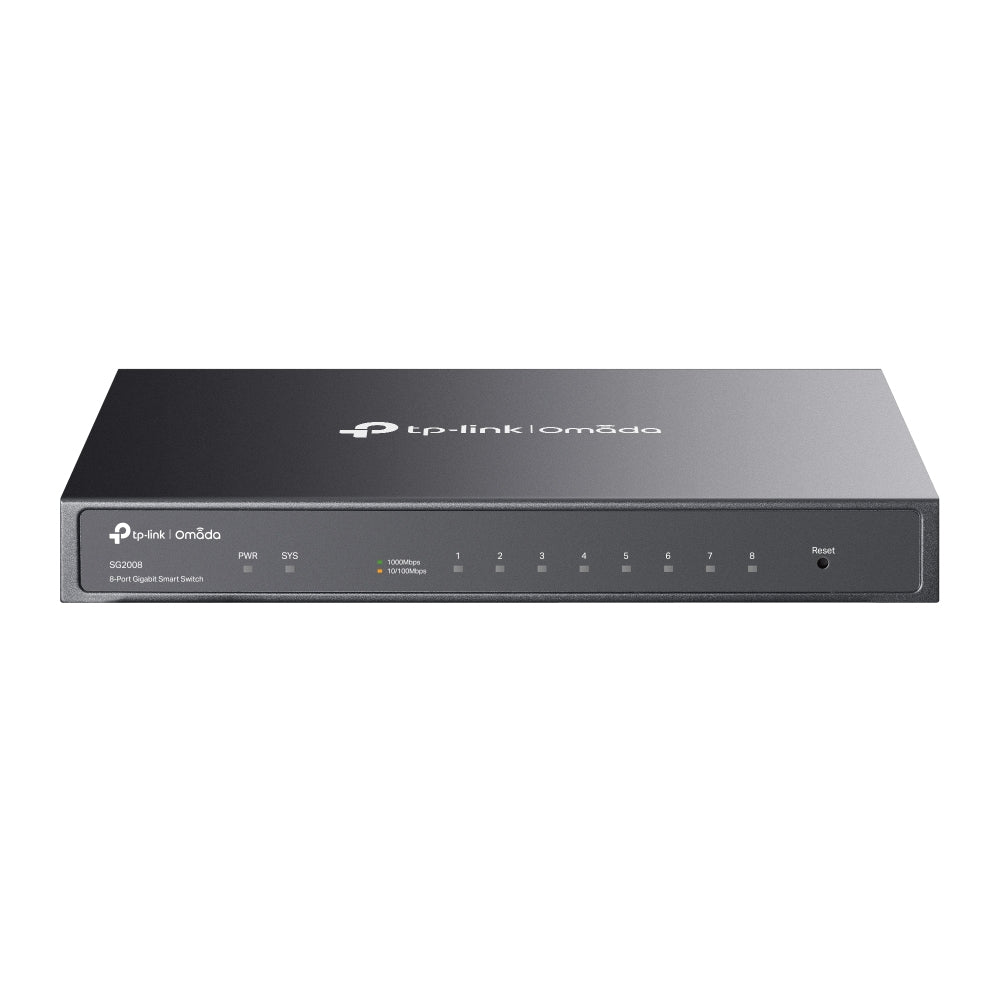

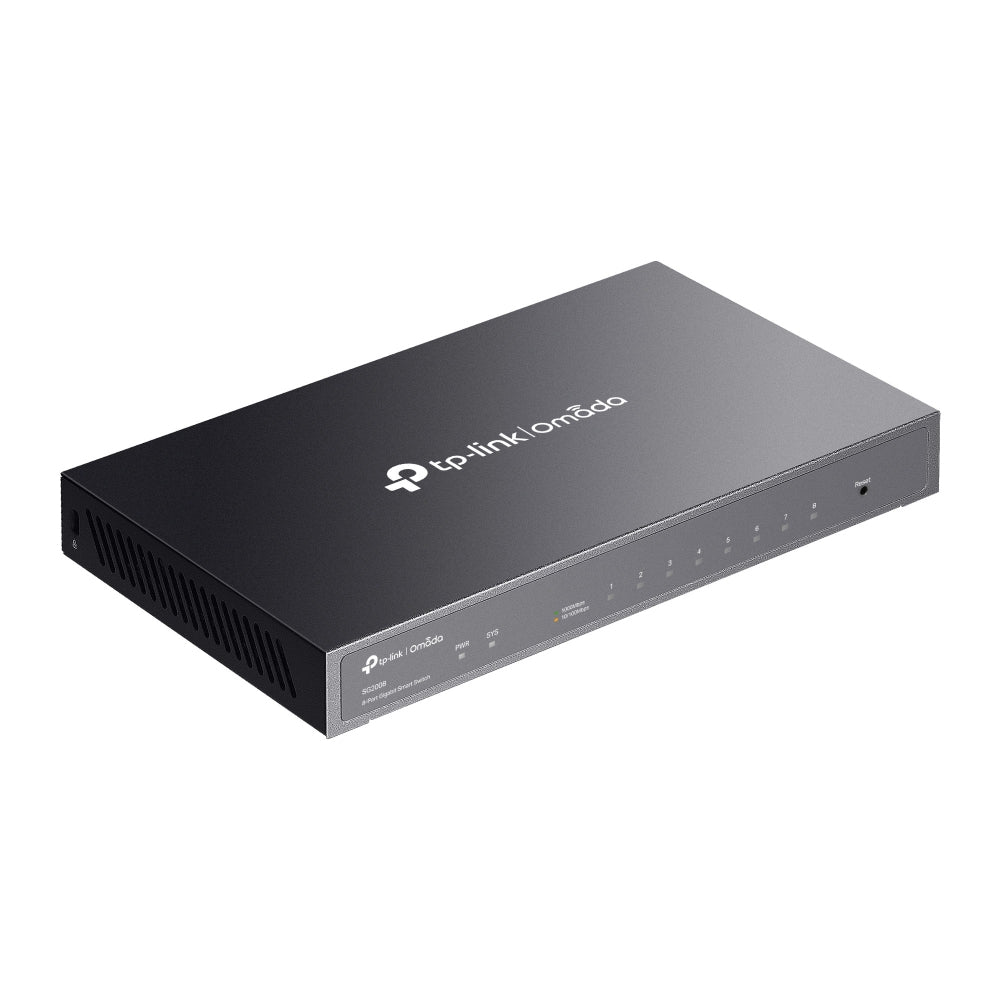

TP-LINK Omada 8-Port Gigabit Smart Switch
TP-LINK Omada 8-Port Gigabit Smart Switch
Regular price
£69.84 GBP
Regular price
Sale price
£69.84 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The TP-LINK Omada 8-Port Gigabit Smart Switch keeps your wired network organised.
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2/L2+ |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| Number of static routes | 32 |
| Number of IP interfaces | 16 |
| Packet buffer memory | 4.1 MB |
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 11.9 Mpps |
| Security | |
| IP-MAC-Port binding | Yes |
| BPDU filtering/protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | SSH, SSH-2, SSL/TLS |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| Design | |

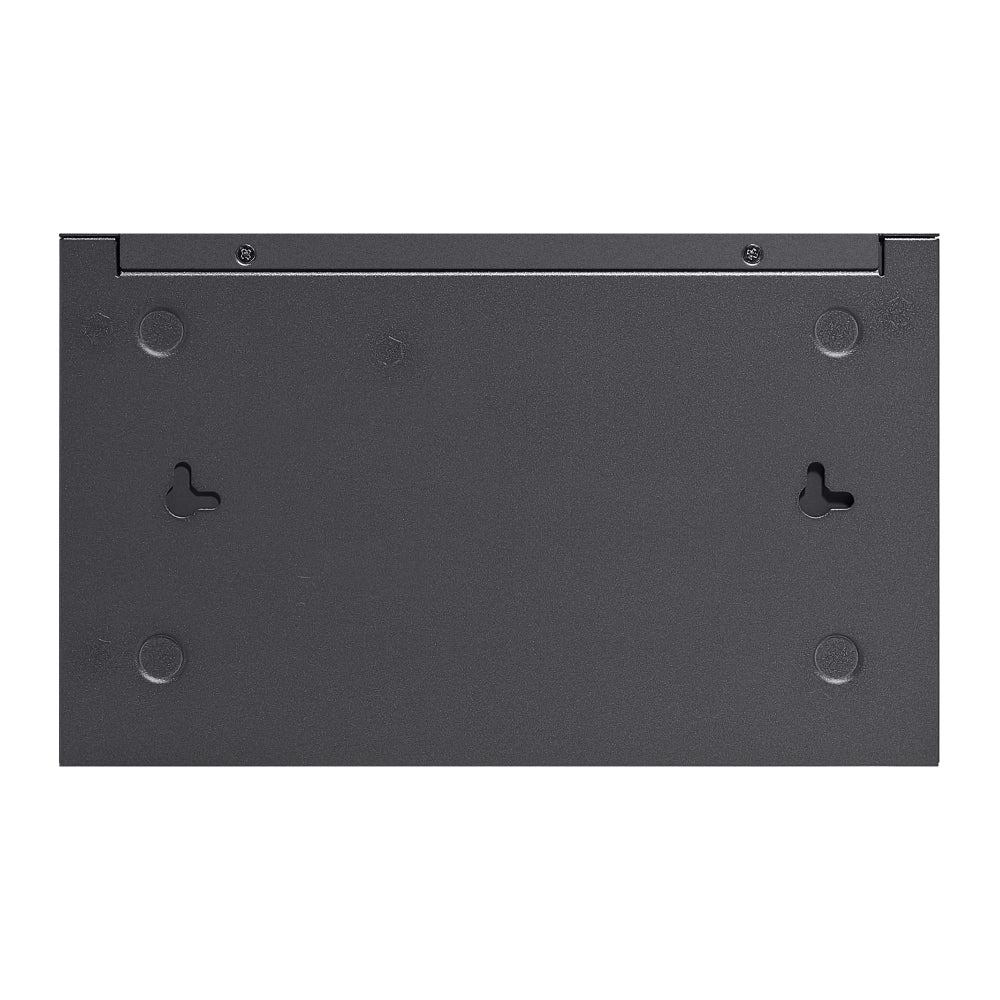

| Wall mountable | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS |
| Performance | |
| Fanless | Yes |
| Power | |
| Power consumption (max) | 6.4 W |
| Power supply included | Yes |
| Input voltage | 12 V |
| Input current | 1 A |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 21.84 BTU/h |
| Weight & dimensions | |
| Width | 209 mm |
| Depth | 126 mm |
| Height | 26 mm |
| Packaging content | |
| User guide | Yes |
| Cables included | AC |
