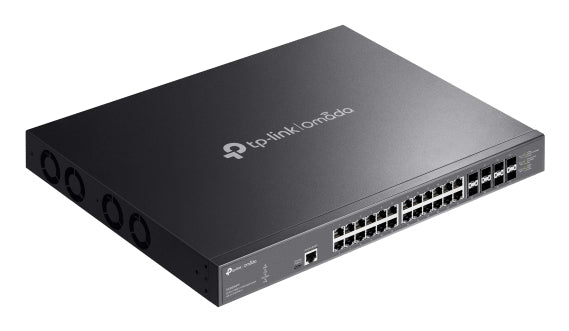

TP-LINK Omada 32-Port 10GE L2+ Switch PoE

The TP-LINK Omada 32-Port 10GE L2+ keeps your wired network organised with PoE power for APs and cameras.

- Empowering the Real Wi-Fi 6 and Wi-Fi 7 with 10G PoE++ Ports
- Easily Build a Whole 10G Multi-gigabit Network

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Specifications

Management features
ARP inspection	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Switch layer	L2+
Unified static configuration	Yes
Configuring Location Settings (CLI)	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Installed SFP+ modules quantity	8
Gigabit Ethernet (copper) ports quantity	24
Fast Ethernet (copper) ports quantity	24
Console port	RJ-45/USB Type-C
2.5G Ethernet (copper) ports quantity	24
10G Ethernet (copper) ports quantity	24
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	4000
Link aggregation	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Auto-negotiation	Yes
Ethernet Ring Protection Switching (ERPS)	Yes
Address Resolution Protocol (ARP) entries (max)	510
Virtual LAN features	MVRP, Private VLAN, SSID-based VLAN assignment, VLAN Identifier ( VLAN ID), Voice VLAN
IPv6 routes	48
IPv4 routes	48
IGMP snooping	Yes
Data transmission
Jumbo frames	9
Packet buffer memory	24 MB
MAC address table	32000 entries
Switching capacity	640 Gbit/s
Number of queues	8
Jumbo frames support	Yes
Static route	Yes
Forwarding rate	240 Mpps
Multicast Listener Discovery (MLD) snooping	Yes
Security
Authentication	Guest VLAN
Static port security	Yes
Security algorithms	HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
Access Control List (ACL)	Yes
Queue scheduling algorithms	Strict Priority Queue (SPQ), WRR+SP, Weighted Round Robin (WRR)
DoS attack prevention	Yes
CPU defense	Yes
Authentication type	AAA, RADIUS, TACACS+
DHCP features	DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Protocols
Device link detection protocol (DLDP)	Yes
IPv4 & IPv6 features	Dual stack IPv4/IPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Form factor	DIN rail
Product colour	Black
Stackable	Yes
LED indicators	Yes
Housing material	Metal
Rack mounting	Yes
Number of fans	4 fan(s)
Performance
Minimum system requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Firmware upgradeable	Yes
Fanless	No
Power
Power consumption (max)	1010.2 W
Power supply included	No
AC input voltage	110 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	953.7 W
Power source	AC
Power saving mode (EEE)	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	90 W
Total Power over Ethernet (PoE) budget	770 W
Power over Ethernet (PoE)	Yes
Power over Ethernet 4PPoE (PoE++) ports quantity	24
Other features
Packaging content	Console Cable
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	3444.7 BTU/h
Weight & dimensions
Width	440 mm
Depth	330 mm
Height	44 mm
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
Cables included	Power
Mounting brackets included	Yes
Rubber feet	Yes
Screws included	Yes
Sustainability
Sustainability organizations	Accountability
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
