TP-LINK

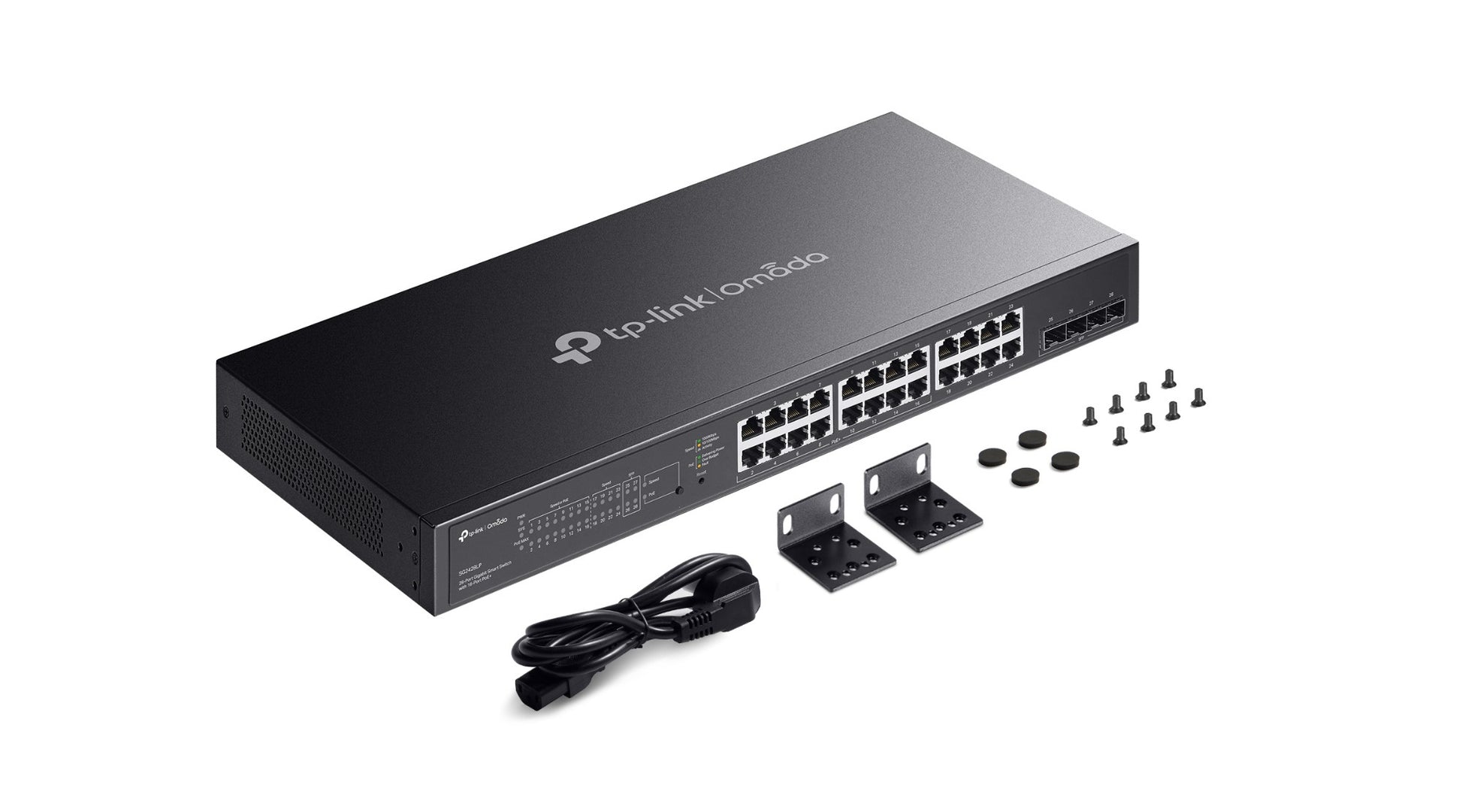

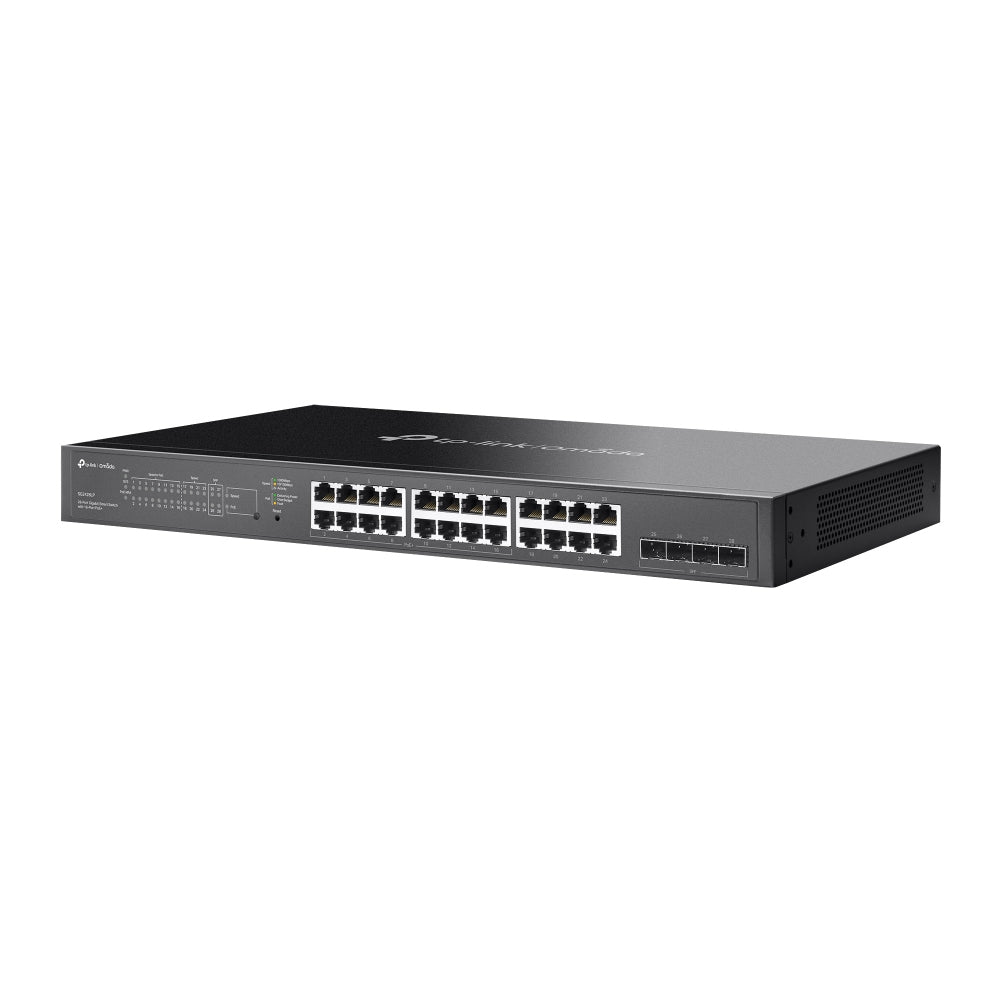

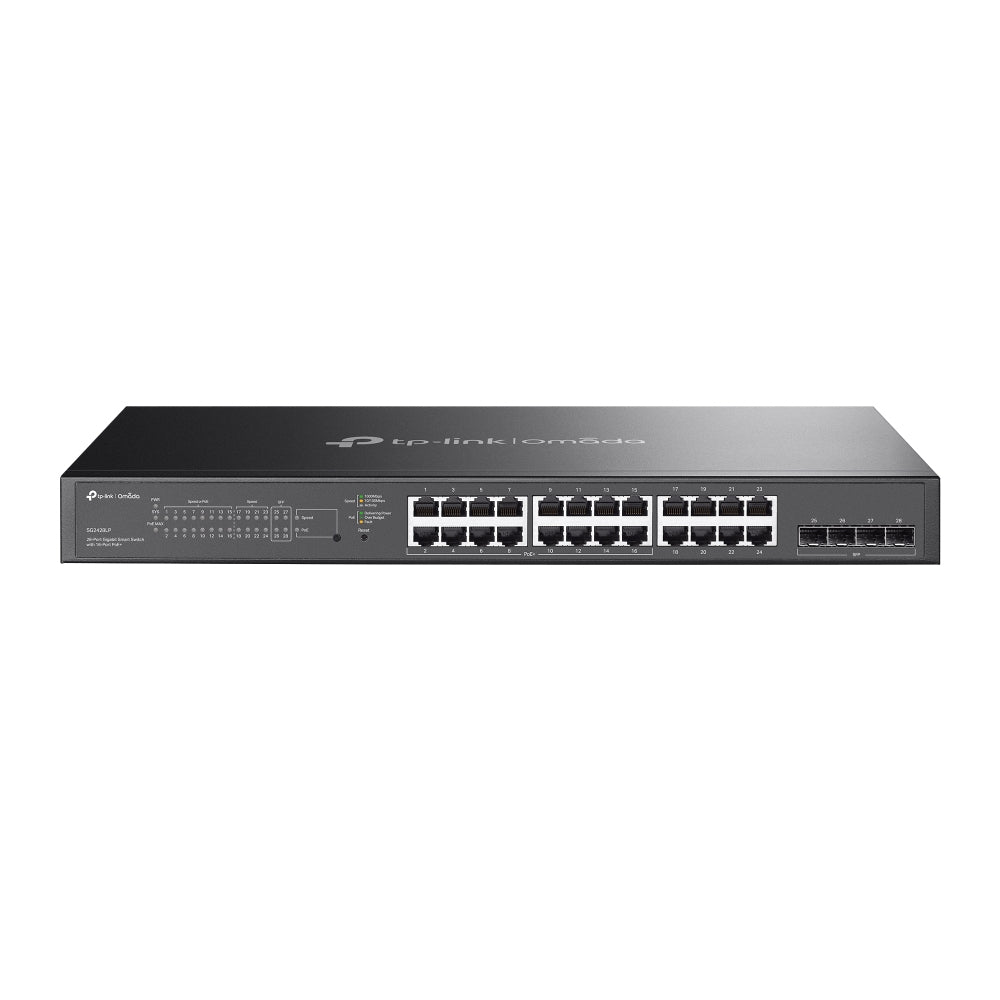

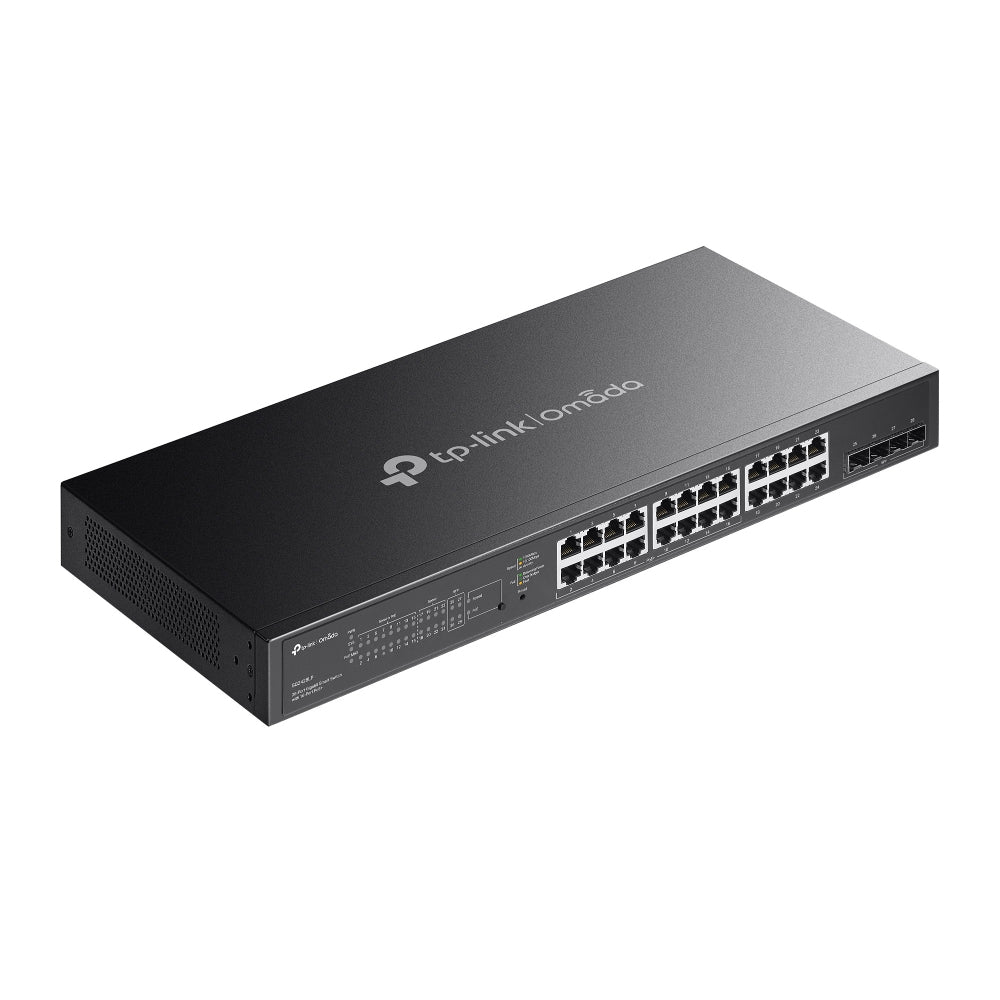

TP-LINK Omada 28-Port Gigabit Smart Switch with 16-Port PoE+

£232.57 GBP

Sale Sold out

Taxes included.

Condition New

The TP-LINK Omada 28-Port Gigabit Smart Switch with 16-Port PoE+ keeps your wired network organised with PoE power for APs and cameras.

- 24× Gigabit Ports (16× PoE+), 4× Gigabit SFP Slots
- 150 W Total PoE Budget
- Fanless Design for Silent Operation
- Zero-Touch Provisioning
- Centralized Management
- Omada App
- Static Routing
- Traffic Separation

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Multiple Application Scenarios

Surveillance
Works with IP Cameras

Conference Call
Works with IP Phones

Wi-Fi Coverage
Works with Access Points

Wired Connections
Works with Non-PoE Devices such as PCs and Printers

Specifications

Management features
ARP inspection	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L2/L2+
Cloud-managed	Yes
Ports & interfaces
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.3af, IEEE 802.3at
VLAN support	Yes
Spanning tree protocol	Yes
Number of VLANs	4000
Link aggregation	Yes
Flow control support	Yes
10G support	No
Auto-negotiation	Yes
Virtual LAN features	MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IGMP snooping	Yes
Data transmission
Jumbo frames	9000
Packet buffer memory	4.1 MB
MAC address table	8000 entries
Switching capacity	56 Gbit/s
Jumbo frames support	Yes
Forwarding rate	41.66 Mpps
Security
MAC address filtering	Yes
Access Control List (ACL)	Yes
Password protection	Yes
DHCP features	DHCP relay, DHCP server
Design
Product colour	Grey
LED indicators	Yes
Rack mounting	Yes
Performance
Fanless	Yes
Power
Power consumption (max)	184.7 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	150 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	628 BTU/h
Weight & dimensions
Width	440 mm
Depth	220 mm
Height	44 mm
