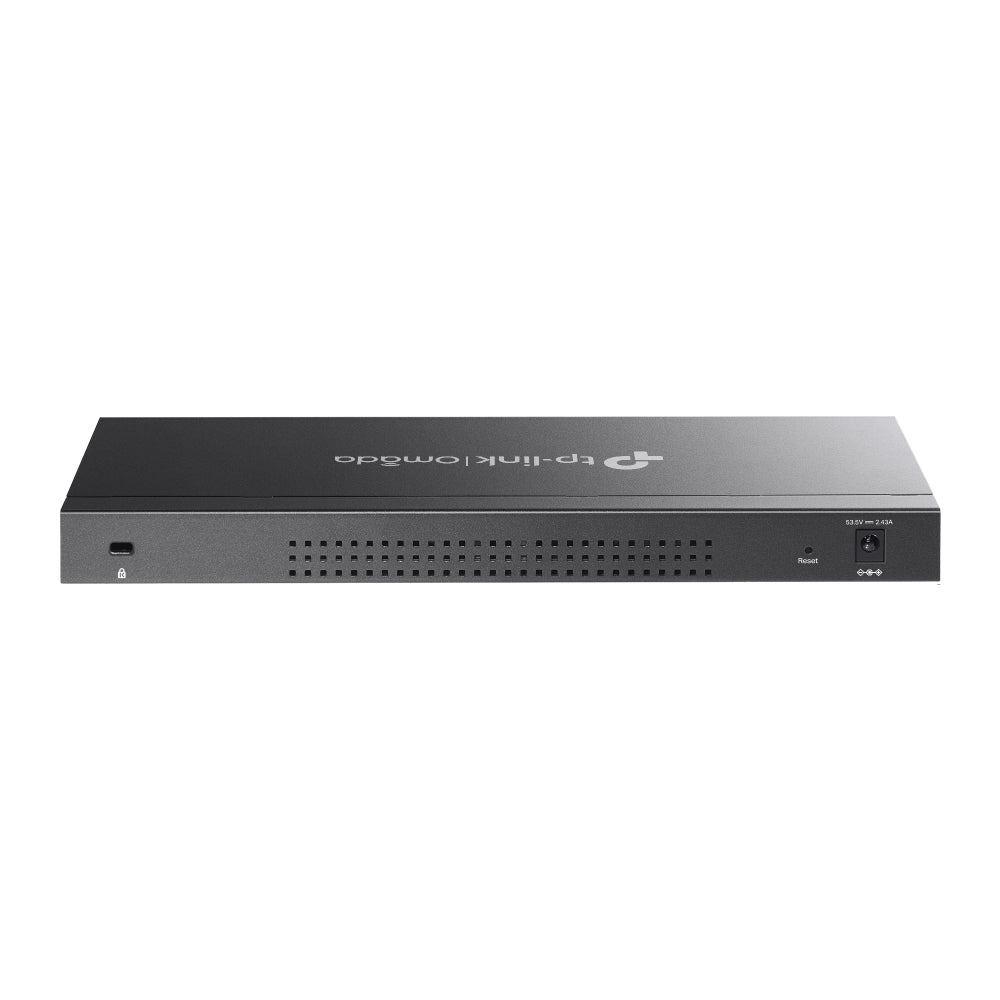

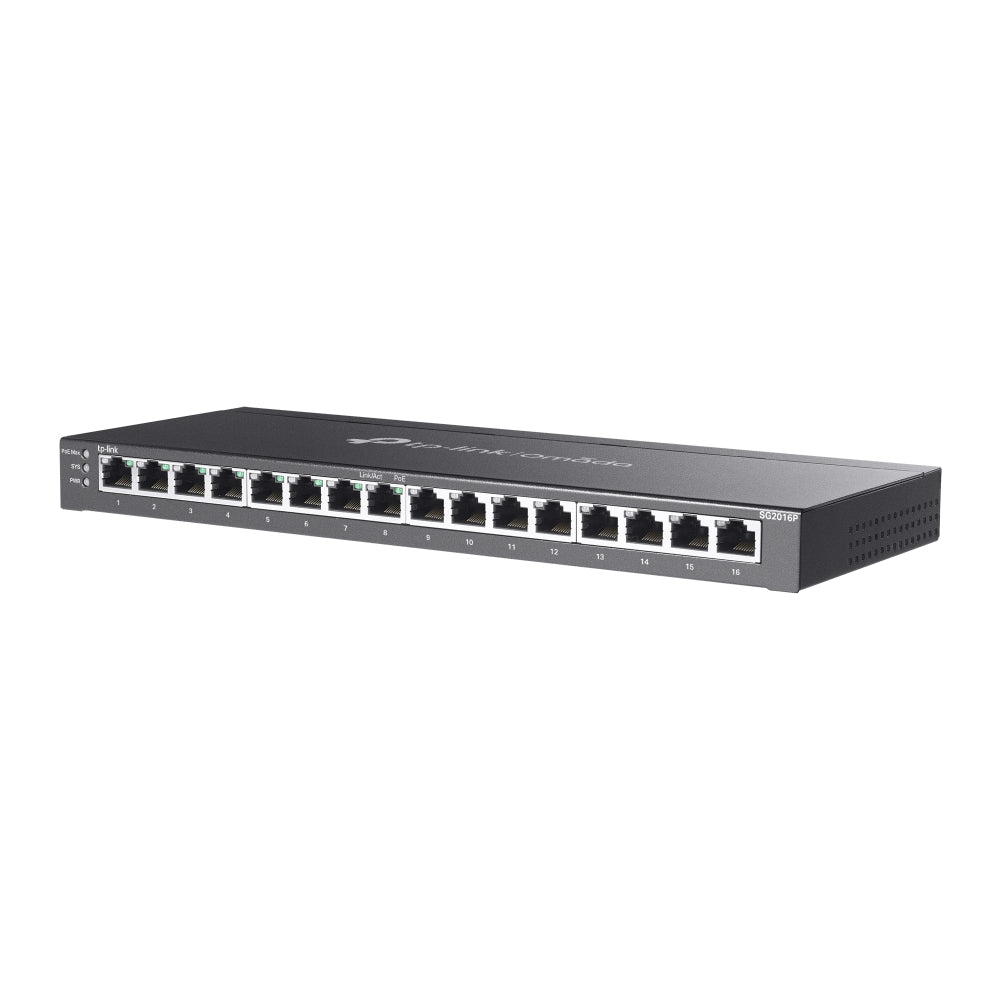

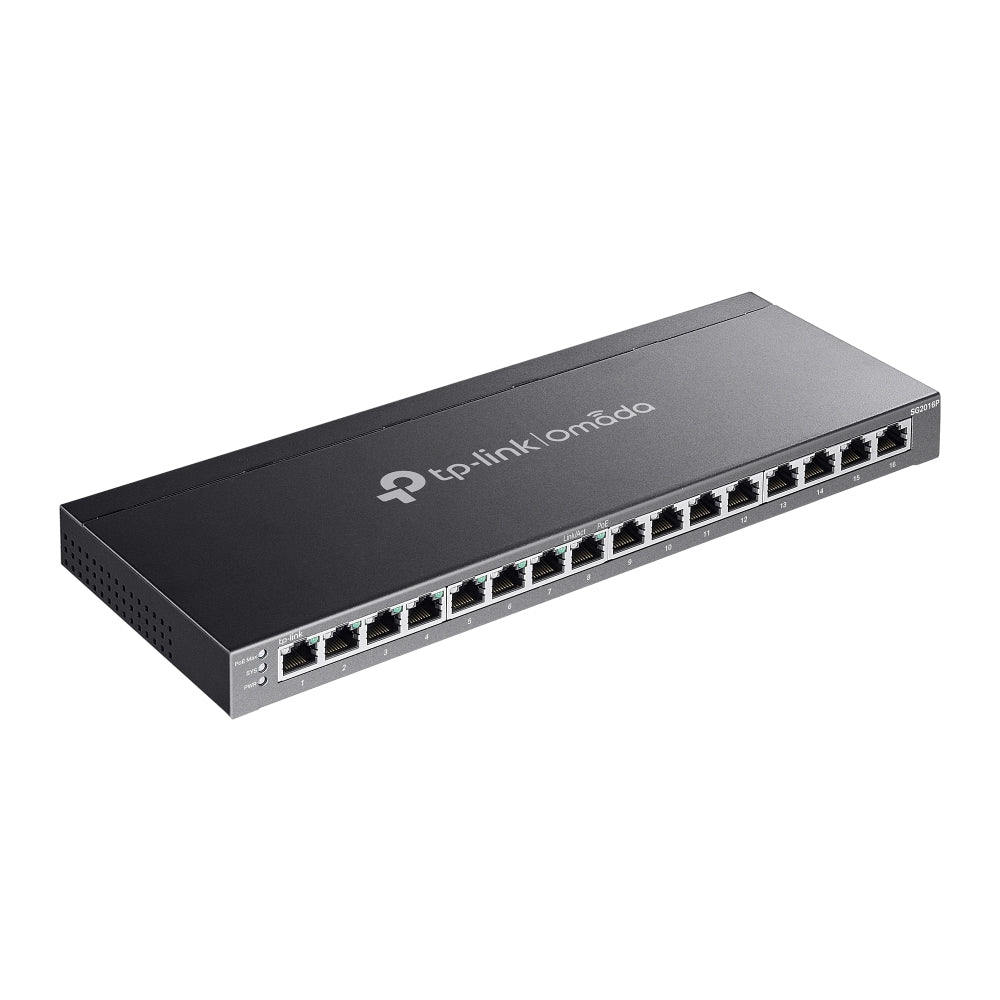

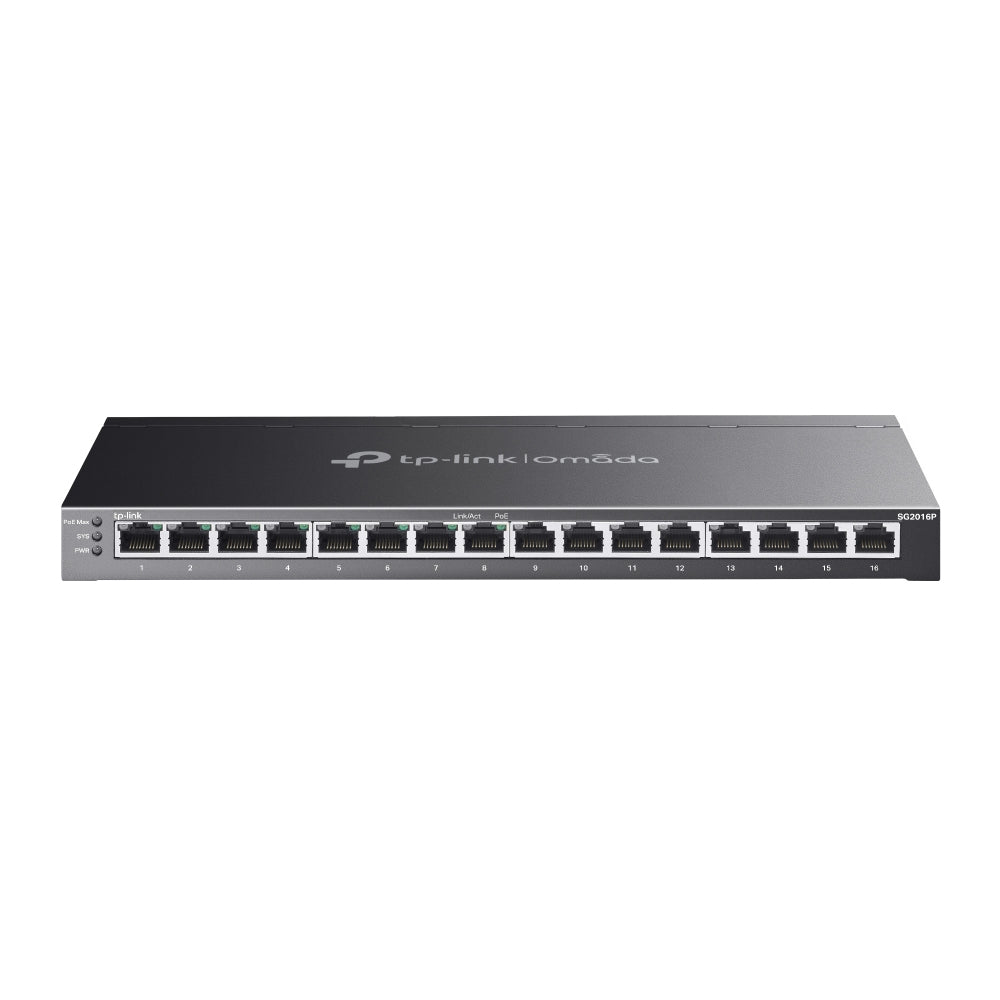

TP-LINK Omada 16-Port Gigabit Smart Switch with 8-Port PoE+

£168.66 GBP

Sale Sold out

Taxes included.

Condition New

The TP-LINK Omada 16-Port Gigabit Smart Switch with 8-Port PoE+ keeps your wired network organised with PoE power for APs and cameras.

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Specifications

Management features
ARP inspection	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757
Switch layer	L2/L2+
Configuring Location Settings (CLI)	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Power connector	DC-in jack
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Networking standards	IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	4000
Link aggregation	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Virtual LAN features	Multicast VLAN, Tagged VLAN, Voice VLAN
IGMP snooping	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
Data transmission
Jumbo frames	9000
Packet buffer memory	4.1 MB
MAC address table	8000 entries
Switching capacity	32 Gbit/s
Number of queues	8
Jumbo frames support	Yes
Forwarding rate	23.81 Mpps
Multicast Listener Discovery (MLD) snooping	MLD v1, MLD v2
Security
IP-MAC-Port binding	Yes
BPDU filtering/protection	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
SSH/SSL support	Yes
Security algorithms	EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
MAC address filtering	Yes
Access Control List (ACL)	Yes
Queue scheduling algorithms	SP, Weighted Round Robin (WRR)
MAC address entries	Dynamic MAC address entries, Static MAC address entries
DHCP features	DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Protocols
Supported network protocols	ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2
IPv4 & IPv6 features	Dual stack IPv4/IPv6
Design
Product colour	Black
LED indicators	PoE, Power, System
Rack mounting	Yes
Certification	CE, FCC, RoHS
Performance
Firmware upgradeable	Yes
Fanless	Yes
Power
Power consumption (max)	146.5 W
DC input voltage	53.5 V
Power source	DC/PoE
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	120 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	499.98 BTU/h
Weight & dimensions
Width	286 mm
Depth	111.7 mm
Height	25.4 mm
Packaging content
Manual	Yes
Cables included	AC
