The TP-LINK Omada 10Gbase-LR SFP+ LC Transceiver is a dependable addition to any modern network installation.

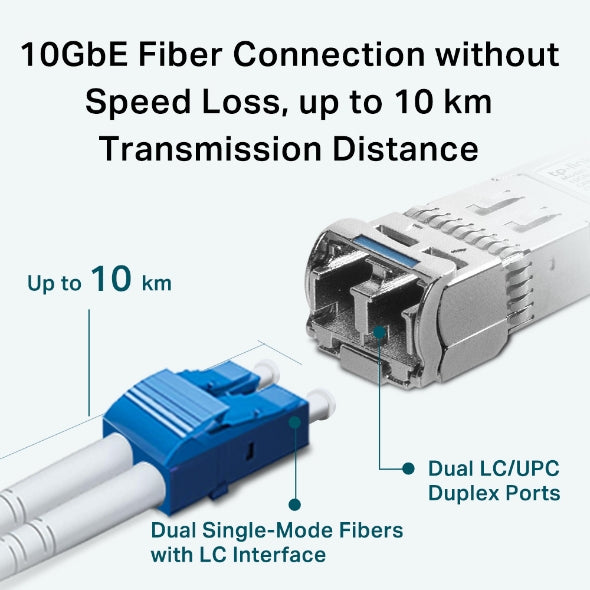

The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
Specifications
Performance
SFP transceiver type
Fiber optic
Digital Diagnostics Monitoring (DDM)
Yes
Fiber optic connector
LC
Networking standards
IEEE 802.3ae
Maximum transfer distance
10000 m
Wavelength
1310 nm
Fiber cable diameters supported (core/cladding)
9/125 µm
Duplex system
Full
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Single-mode fiber (SMF) supported
Yes
Multi-mode fiber (MMF) supported
No
SFP transceiver standard
LR
Hot-Plug support
Yes
Hot-swap
Yes

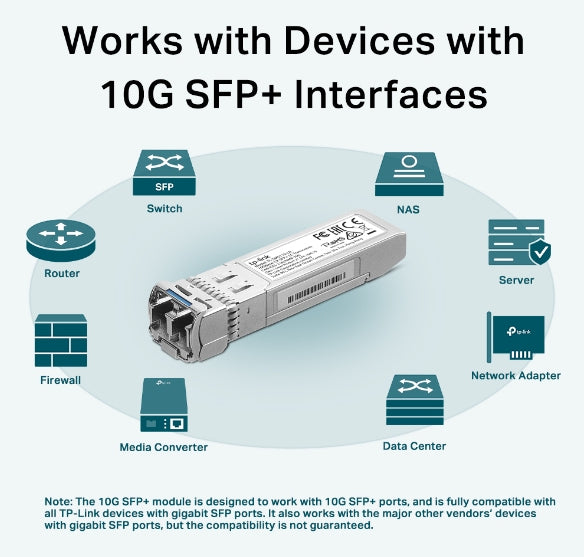

Compatible products
Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
