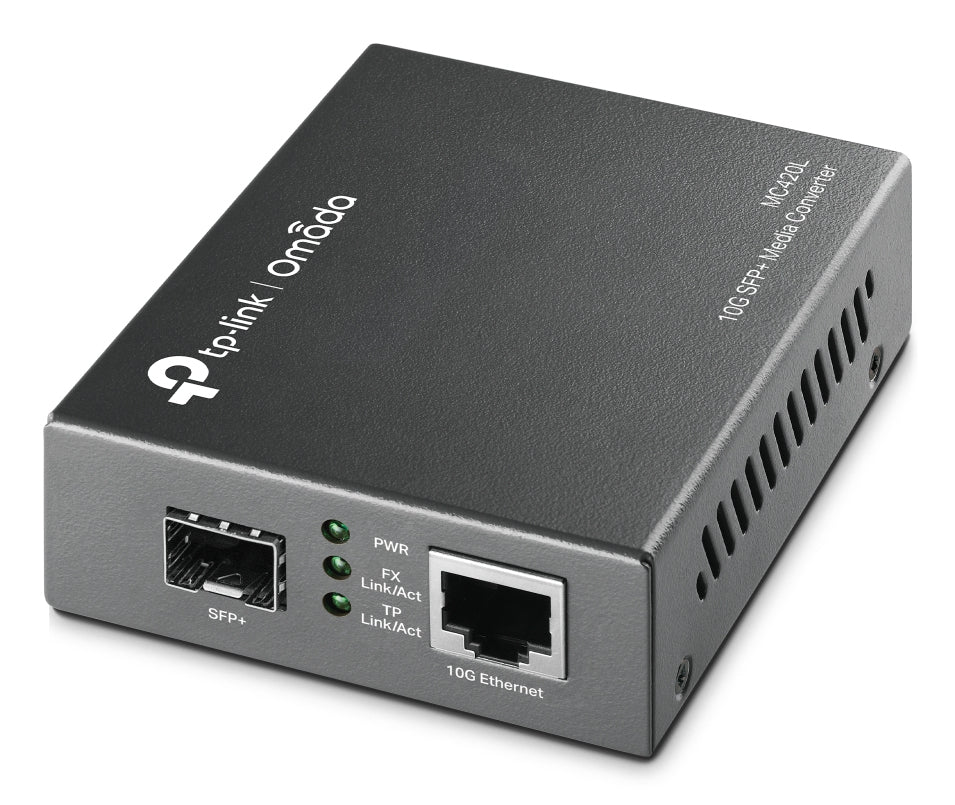

TP-LINK Omada 10G Multi-Gigabit SFP Media Converter Networking

The TP-LINK Omada 10G Multi-Gigabit SFP Media Converter is a dependable addition to any modern network installation.

What This Product Does
The MC420L is a media converter designed to convert between 10GBASE-SR/LR fiber, 10GBASE-LRM fiber and 10GBASE-T copper media. It easily extends the distance of an existing gigabit network via fiber optic when integrated with the SFP Module. The MC420L applies the IEEE 802.3ae 10GBASE-SR/LR 10G Ethernet & IEEE 802.3an 10GBASE-T 10G Ethernet standards as part of its intended use with multi-mode/single-mode SFP Module. Long-range point-to-point connections are easily built with the gigabit fiber converters, making them ideal for network connections across multiple buildings, for remote surveillance and automated factory equipment.

MC420L offers flexible installation on standalone desktops or inserted into a chassis (TP-Link's MC1400). The easy-to-view front panel status LEDs provide real-time status information to monitor up-to-the-minute network activity. While the maximum transmission distance of fiber optics depends on the insertion of the SFP module.

Specifications

Network
Data transfer rate	10000 Mbit/s
Auto-negotiation	Yes
Copper ethernet cabling technology	2.5GBASE-T, 10GBASE-T, 1000BASE-T
Networking standards	IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3x, IEEE 802.3z
Duplex system	Full, Half
Maximum data transfer rate	10000 Mbit/s
Fiber optic connector	SFP+
Performance
Maximum transfer distance	100 m
Fiber mode structure	Multi-mode, Single-mode
Features
LED indicators	Activity, Link, Power
Product colour	Black
Internal	No
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Power
Power consumption (max)	4.12 W
Weight & dimensions
Width	94.5 mm
Depth	73 mm
Height	27 mm
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
AC adapter included	Yes
Manual	Yes
Technical details
Compliance certificates	RoHS, UL

Downloads

• Datasheet (PDF)
