TP-LINK

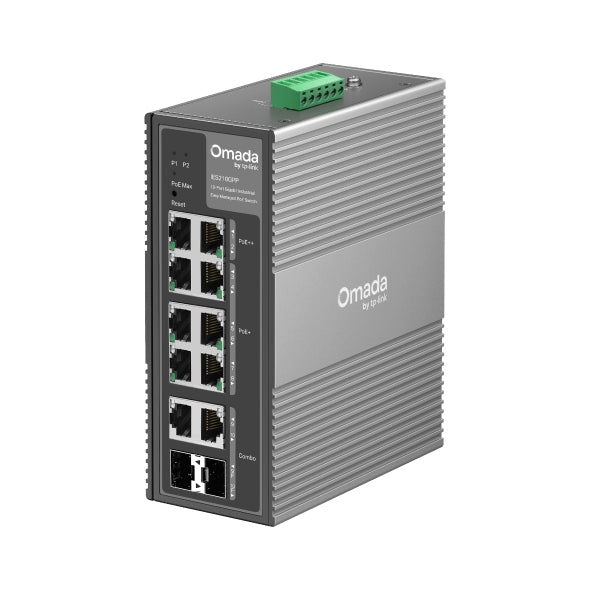

TP-LINK Omada 10-Port Gigabit Industrial Easy Switch PoE

£235.04 GBP

Sale Sold out

Taxes included.

Condition New

The TP-LINK Omada 10-Port Gigabit Industrial Easy keeps your wired network organised with PoE power for APs and cameras.

Omada Industrial 10-Port
Gigabit Easy Managed
PoE++ Switch

Industrial-Grade Protection Built for Harsh Environments

- 10× Gigabit Ports (2× PoE++, 6× PoE+, 2× RJ45/SFP Combo)
- 240W Total PoE Budget
- 40°C to 75°C Operating Temperature
- 12~57VDC 1+1 Redundant Power Input
- Industrial-Grade IP40 Aluminum Casing
- Abundant Functions for CCTV Networking
- Easy Centralised Management
- DIN-Rail & Wall Mounting

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	2
Network
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
VLAN support	Yes
Port mirroring	Yes
Number of VLANs	4000
Link aggregation	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
IGMP snooping	Yes
Data transmission
Jumbo frames	15000
Packet buffer memory	4000 MB
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Forwarding rate	14.88 Mpps
Security
Loop protection	Yes
DHCP features	DHCP client
Design
Form factor	DIN rail
Product colour	Grey
LED indicators	Yes
Rack mounting	Yes
Power
DC input voltage	12 - 57 V
Power source	DC
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	6
Total Power over Ethernet (PoE) budget	240 W
Power over Ethernet (PoE)	Yes
Power over Ethernet 4PPoE (PoE++) ports quantity	2
Weight & dimensions
Width	155 mm
Depth	120 mm
Height	60 mm
