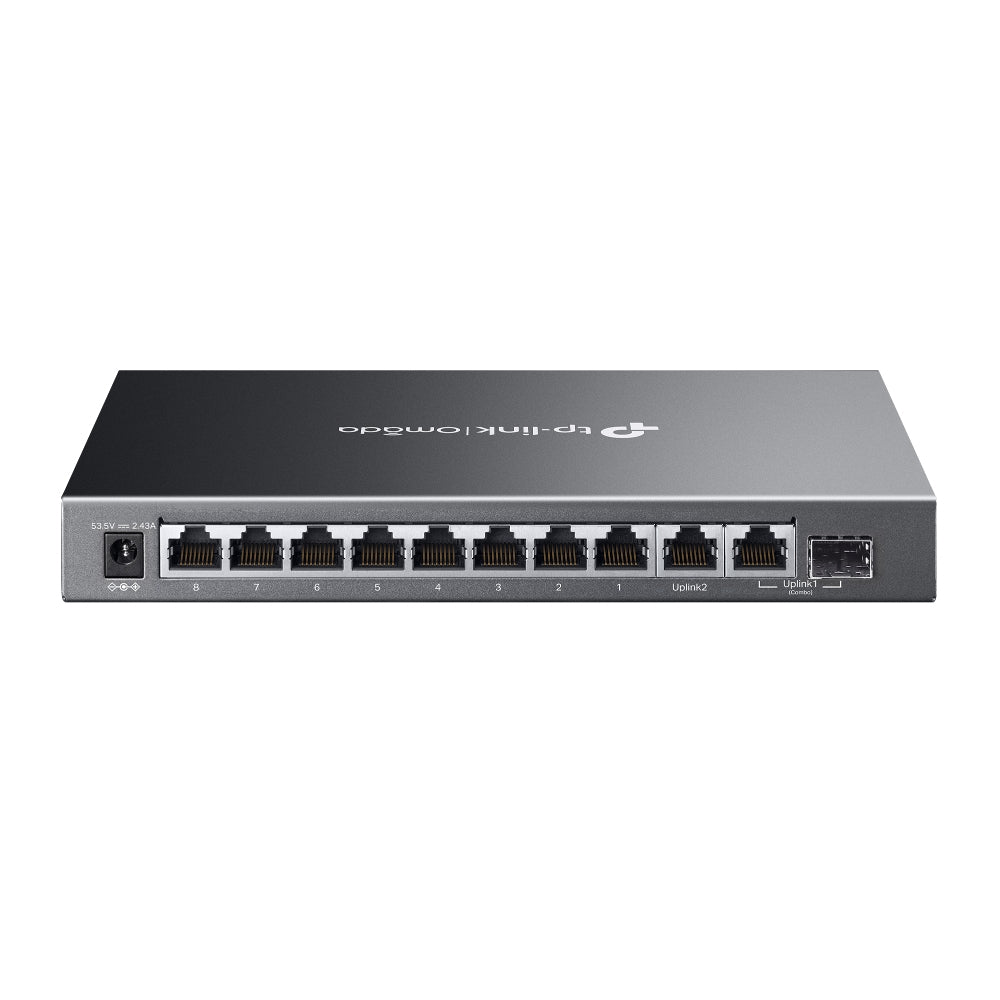

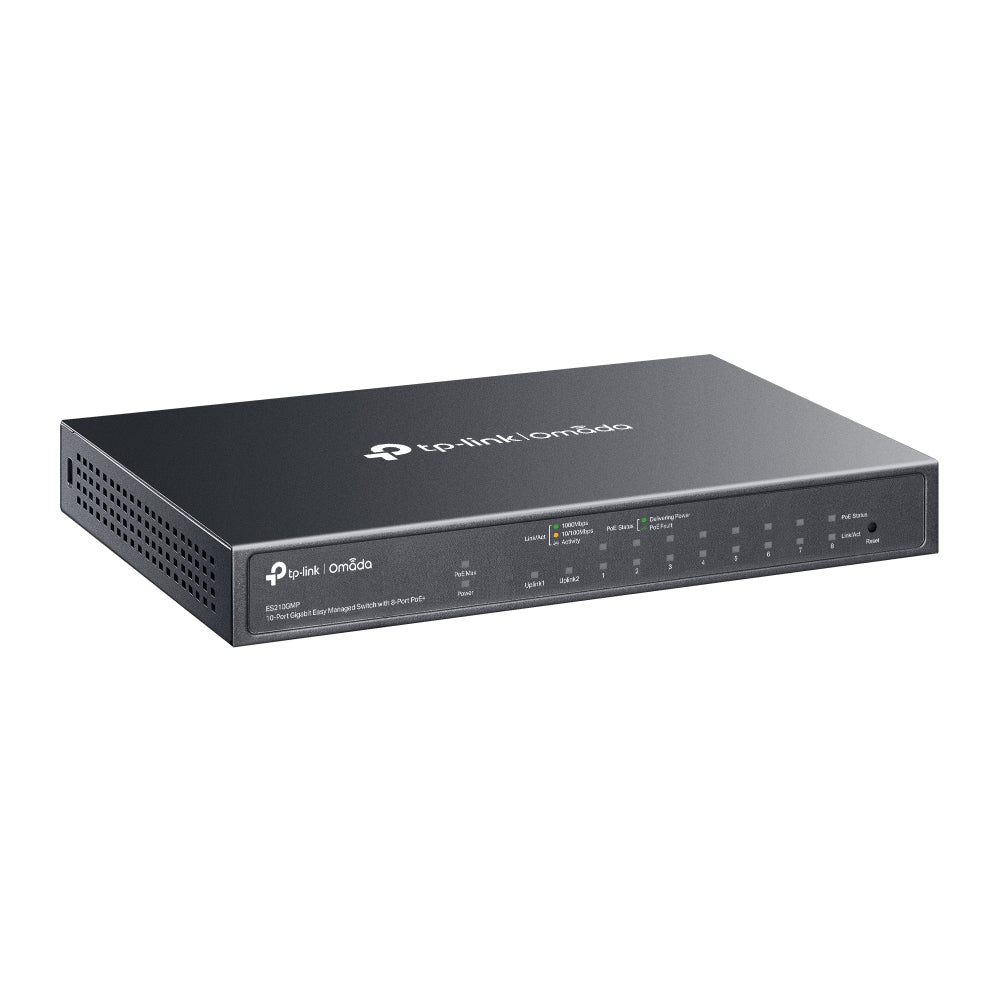

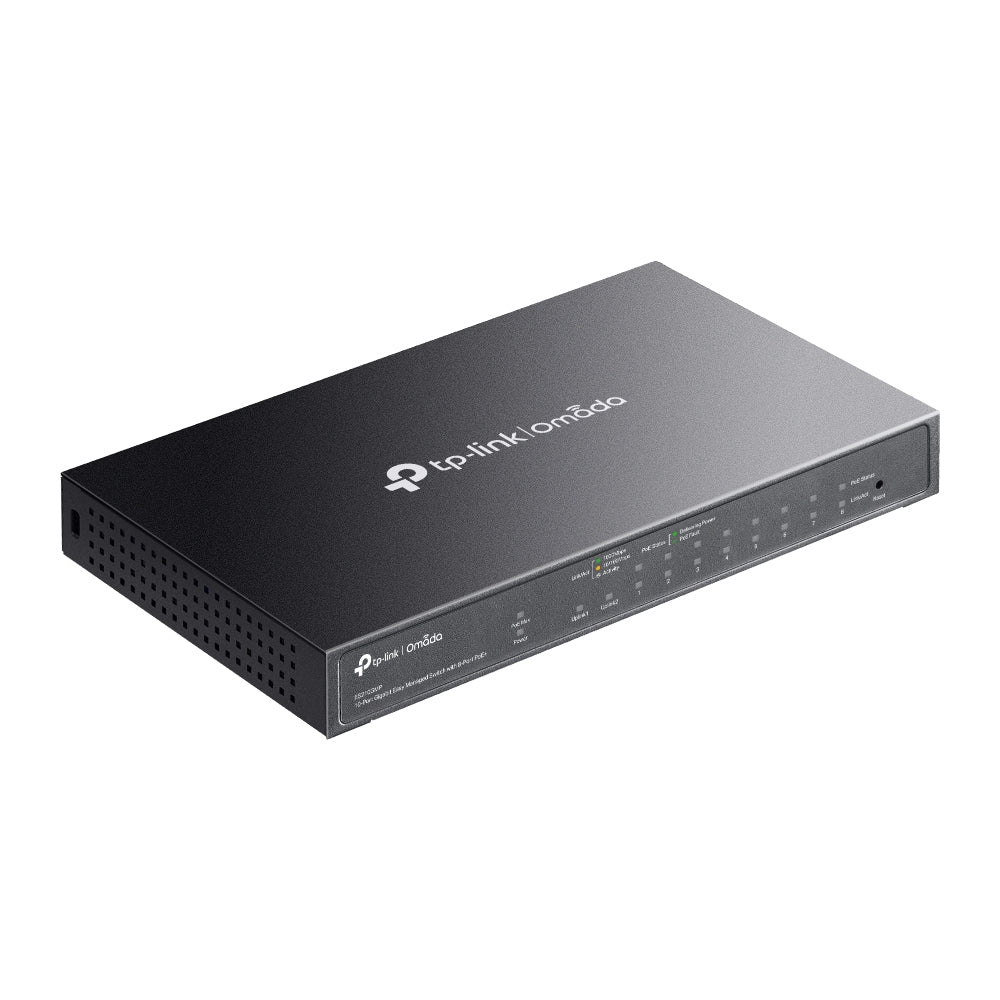

TP-LINK Omada 10-Port Gigabit Easy Switch PoE

The TP-LINK Omada 10-Port Gigabit Easy keeps your wired network organised with PoE power for APs and cameras.

Omada 10-Port Gigabit Easy Managed
Switch with 8-Port PoE+

Omada Cloud Essentials - A Free and Easy Cloud-Based Network Mnagement
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system§, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.

- Lifetime Free Cloud without Any Additional Fees
- Exists Entirely in the Cloud. No Hardware or Software Controller Needed
- Cloud Centralized Management for Multiple Sites
- Access Anytime via Omada App or Web
- Easy Setup, Use, and Maintenance
- Unlimited Management Scale
- Zero-Touch Provisioning (ZTP) without Unboxing
- Upgrade to Standard with a Seamless Subscription

Specifications

Management features
Reset button	Yes
Switch type	Managed
Quality of Service (QoS) support	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	1
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
VLAN support	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
IGMP snooping	Yes
Optical fiber
Transmission distance (max)	0.25 km
Data transmission
Jumbo frames	15
Packet buffer memory	4 MB
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Forwarding rate	14.88 Mpps
Security
DHCP features	DHCP client
Design

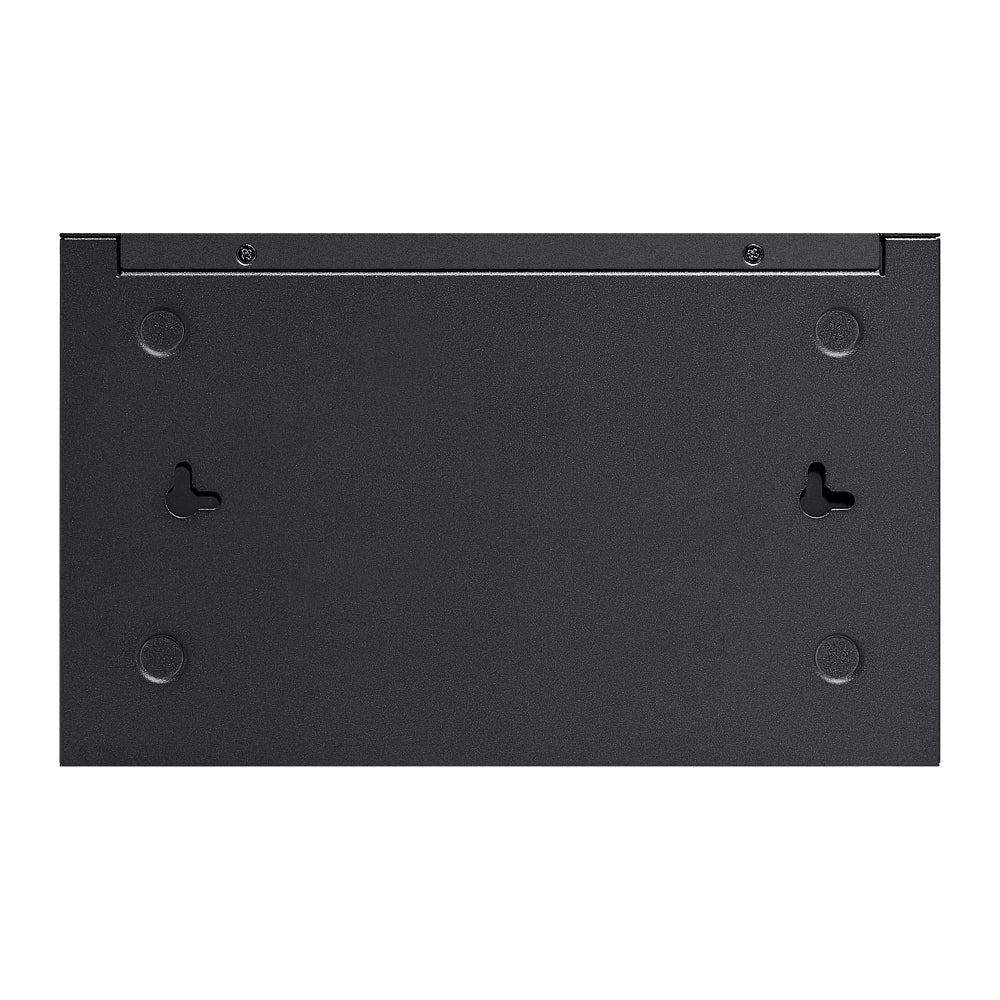

Wall mountable	Yes
Product colour	Black
Performance
Fanless	Yes
Power
Power supply included	Yes
Input current	2.43 A
DC input voltage	53.5 V
Power source	DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	123 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	209 mm
Depth	126 mm
Height	26 mm
Packaging content
User guide	Yes
Cables included	AC
Packaging data
Package type	Box
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS

Downloads

• Datasheet (PDF)
