TP-LINK

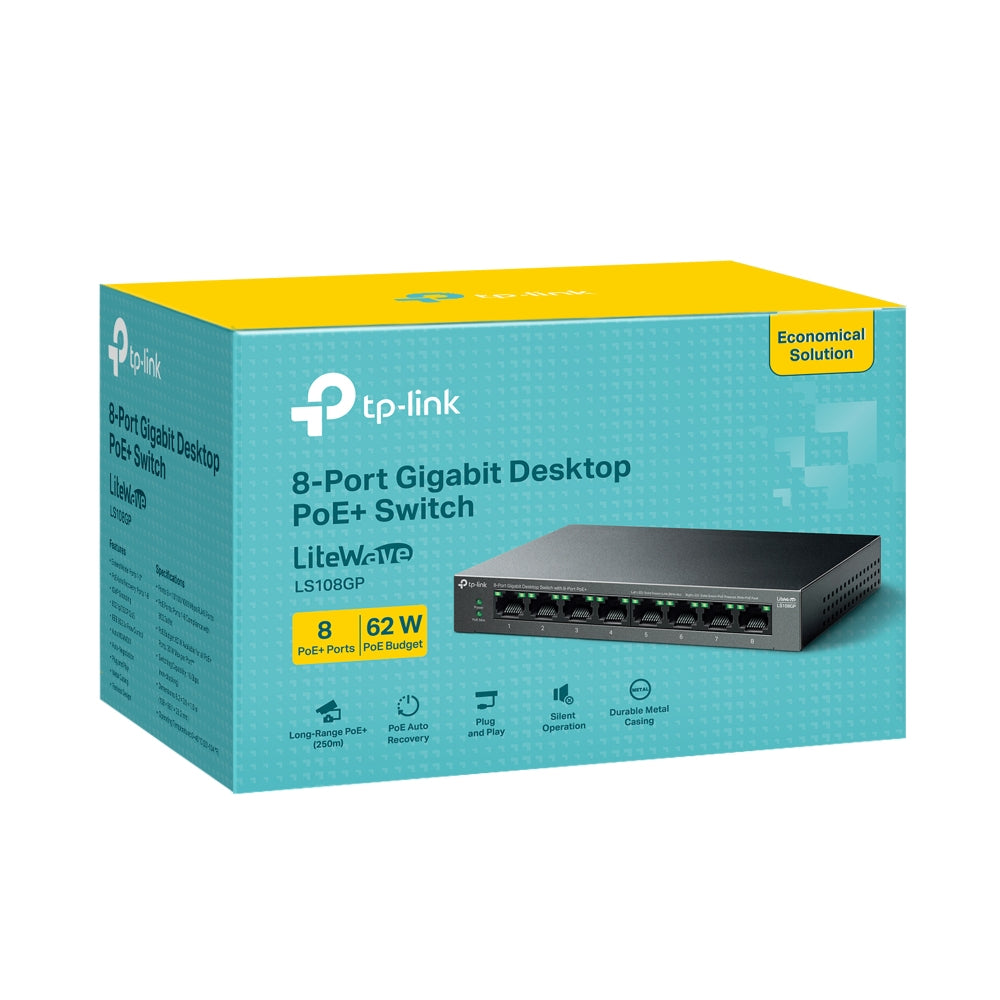

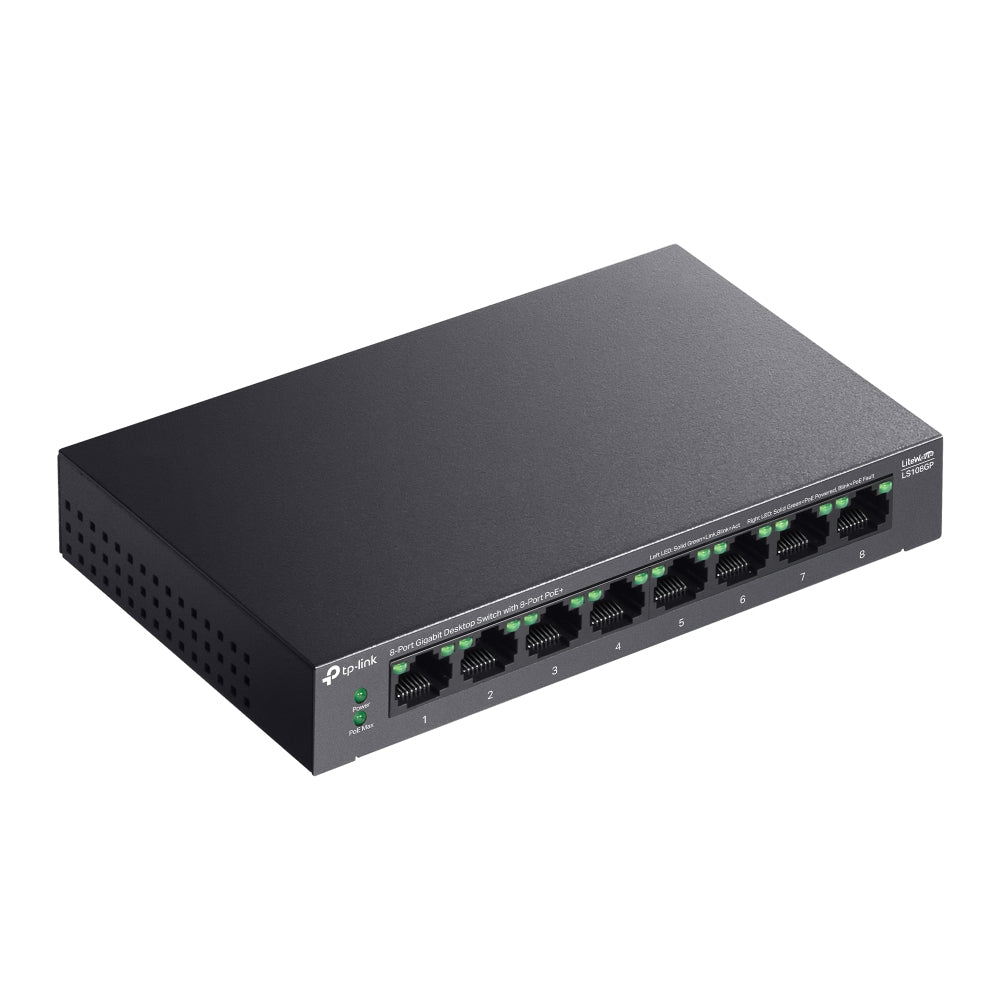

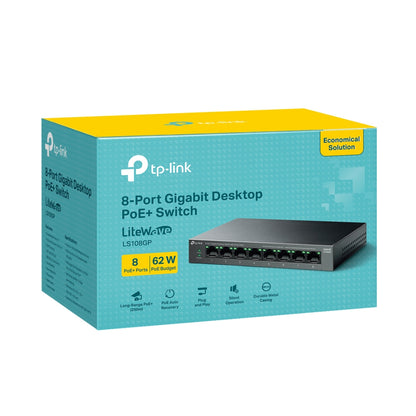

TP-LINK LiteWave 8-Port Gigabit Desktop Switch with 8-Port PoE+

£43.72 GBP

Sale Sold out

Taxes included.

Condition New

The TP-LINK LiteWave 8-Port Gigabit Desktop Switch with 8-Port PoE+ keeps your wired network organised with PoE power for APs and cameras.

The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Specifications

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Power connector	DC-in jack
Network
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Networking standards	IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
Jumbo frames	16000
MAC address table	4000 entries
Switching capacity	16 Gbit/s
Forwarding rate	11.9 Mpps
Design
Product colour	Black
LED indicators	Yes
Certification	CE, FCC, RoHS
Power
Power consumption (max)	71.61 W
Power supply included	Yes
AC input voltage	220 V
AC input frequency	50 Hz
Input current	1.31 A
DC input voltage	53.5 V
Power source	DC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	62 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	243.47 BTU/h
Weight & dimensions
Width	158 mm
Depth	99 mm
Height	25 mm
Packaging content
User guide	Yes
Packaging data
Package type	Box
