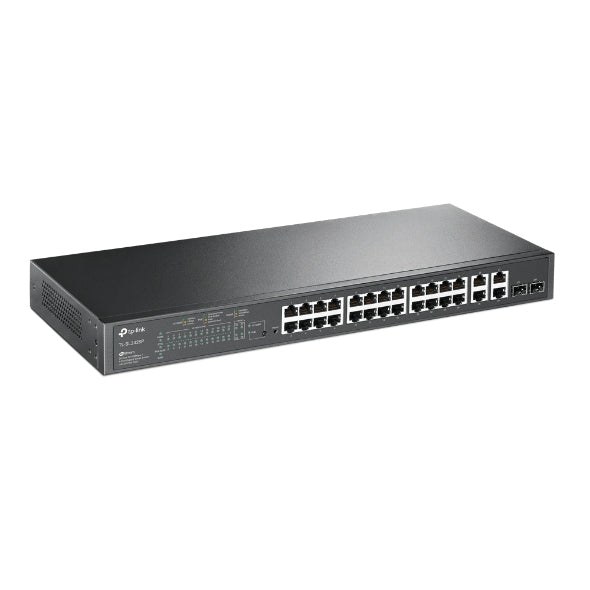

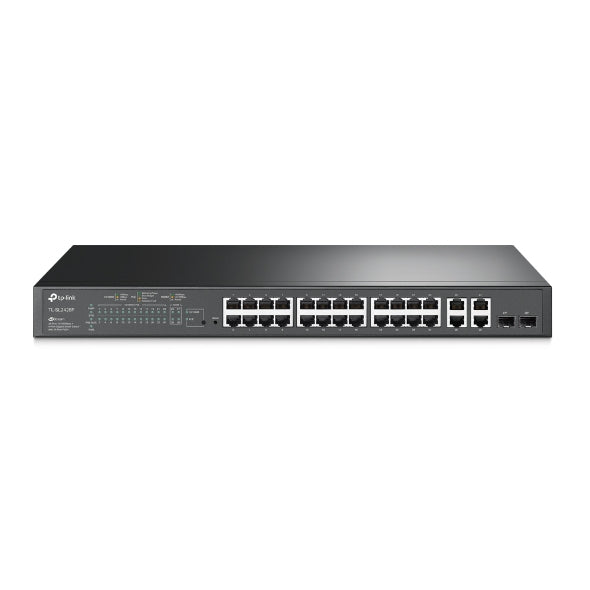

TP-LINK JetStream TL-SL2428P network switch PoE

The TP-LINK JetStream TL-SL2428P network switch keeps your wired network organised with PoE power for APs and cameras.

What This Product Does

The T1500-28PCT provides 24 10/100Mbps ports that supports 802.3at/af-compliant PoE, with a total PoE power supply up to 180W, powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch also comes equipped with 4 10/100/1000Mbps RJ45 ports and 2 combo SFP slots, expanding your network flexibly. In addition, it provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.

TP-LINK Smart PoE Switch T1500-28PCT is a cost-effective product solution for the small and medium business. T1500-28PCT has useful security features. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive layer 2 switch, TP-LINK smart PoE switch T1500-28PCT provides you the ideal access-edge solution.

IEEE 802.3at/af-compliant Power over Ethernet

The T1500-28PCT supports 24 ports of IEEE 802.3at/af-compliant PoE and has a total power supply of 180W to power any 802.3at or 802.3af compliant power device. It’s an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones and other PoE supported devices, while getting rid of cables or power lines running around. Compact and flexible, the T1500-28PCT is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.

Advanced QoS features

To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.

Abundant Layer 2 features

For more application of layer 2 switches, T1500-28PCT supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.

Enterprise Level Management Features

T1500-28PCT is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.

Specifications

Management features
ARP inspection	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L2
Configuring Location Settings (CLI)	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	2
Gigabit Ethernet (copper) ports quantity	4
Fast Ethernet (copper) ports quantity	24
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Cable types supported	Cat5, Cat5e
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	512
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
IGMP snooping	Yes
Data transmission
Throughput	9.5 Mpps
MAC address table	8000 entries
Switching capacity	12.8 Gbit/s
Number of queues	4
Jumbo frames support	Yes
Security
SSH/SSL support	Yes
Security algorithms	SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
Access Control List (ACL)	Yes
Protocols
Management protocols	SNMP v1/v2c/v3, RMON, SNTP, TFTP
Design
Form factor	1U
Product colour	Black
Rack mounting	Yes
Number of fans	2 fan(s)
Certification	CE, FCC, RoHS
Performance
Firmware upgradeable	Yes
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Harmonized System (HS) code	85176990
Power
Power consumption (max)	291.6 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	250 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	995.09 BTU/h
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC
Packaging data
Package width	250 mm
Package depth	528 mm
Package height	80 mm
Package weight	3.02 kg
