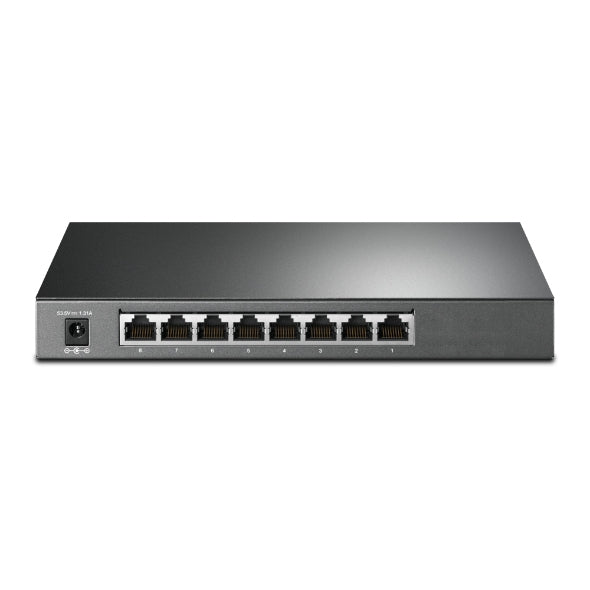

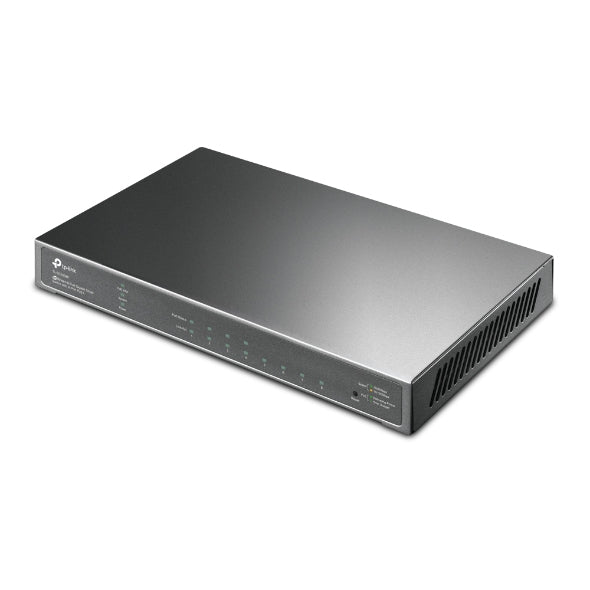

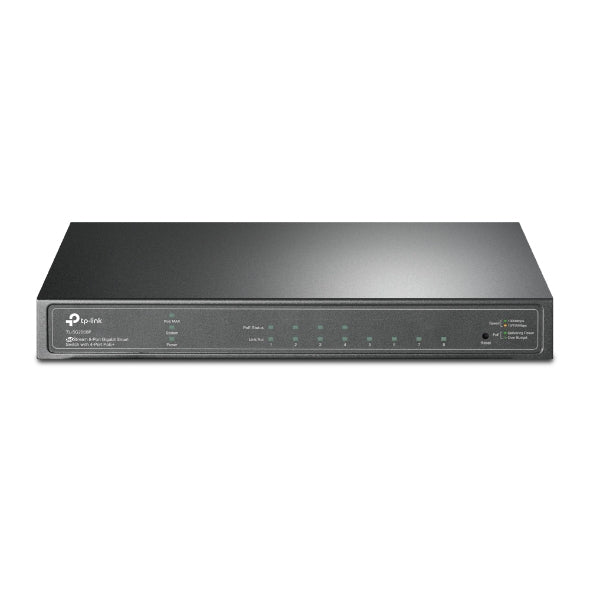

TP-LINK JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+

The TP-LINK JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+ keeps your wired network organised with PoE power for APs and cameras.

Smarter Switching for Smarter Results
JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+

Multiple Application Scenarios
The TL-SG2008P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Power over Ethernet for Simplified Network Deployment
Features four 802.3af/at compliant PoE+ ports, the switch supports up to 62 W total PoE power budget.* Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.

Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Specifications

Management features
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L2/L2+
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Fast Ethernet (copper) ports quantity	8
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
VLAN support	Yes
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	4094
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
IGMP snooping	Yes
Data transmission
Jumbo frames	9000
Packet buffer memory	0.5 MB
MAC address table	8000 entries
Switching capacity	16 Gbit/s
Number of queues	8
Jumbo frames support	Yes
Security
Authentication	MAC-based authentication, Web-based authentication
Security algorithms	802.1x RADIUS
MAC address filtering	Yes
Authentication type	RADIUS
DHCP features	DHCP client, DHCP relay, DHCP snooping, DHCPv6 server, DHCPv6 snooping
Protocols
Management protocols	SNMPv1/v2c/v3
IPv4 & IPv6 features	IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Product colour	Black
LED indicators	Yes
Rack mounting	Yes
Certification	CE, FCC, RoHS
Performance
Fanless	Yes
Harmonized System (HS) code	85176990
Power
Power consumption (max)	77.3 W
Power supply included	Yes
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	4
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	263.6 BTU/h
Weight & dimensions
Width	209 mm
Depth	126 mm
Height	26 mm
Packaging content
Manual	Yes
Packaging data
Package type	Box
Package width	240 mm
Package depth	315 mm
Package height	70 mm
Package weight	1.26 kg

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
