TP-LINK

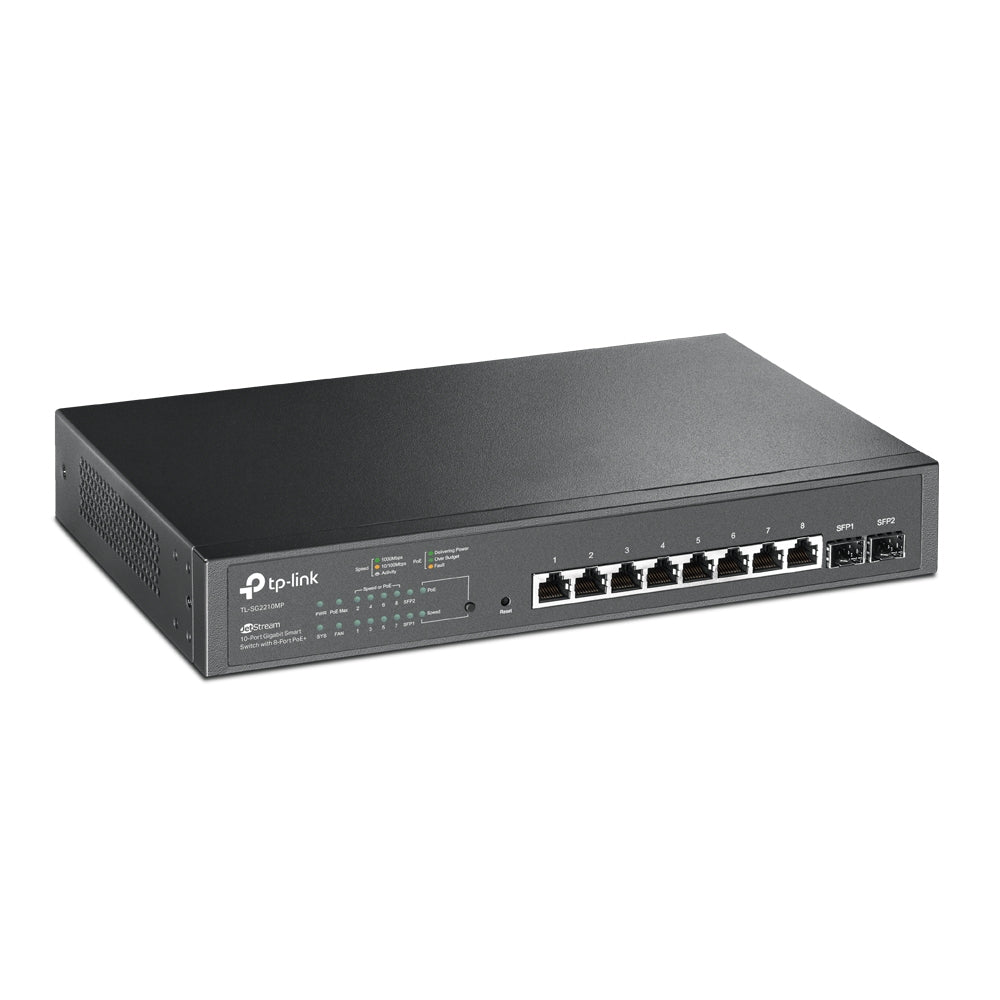

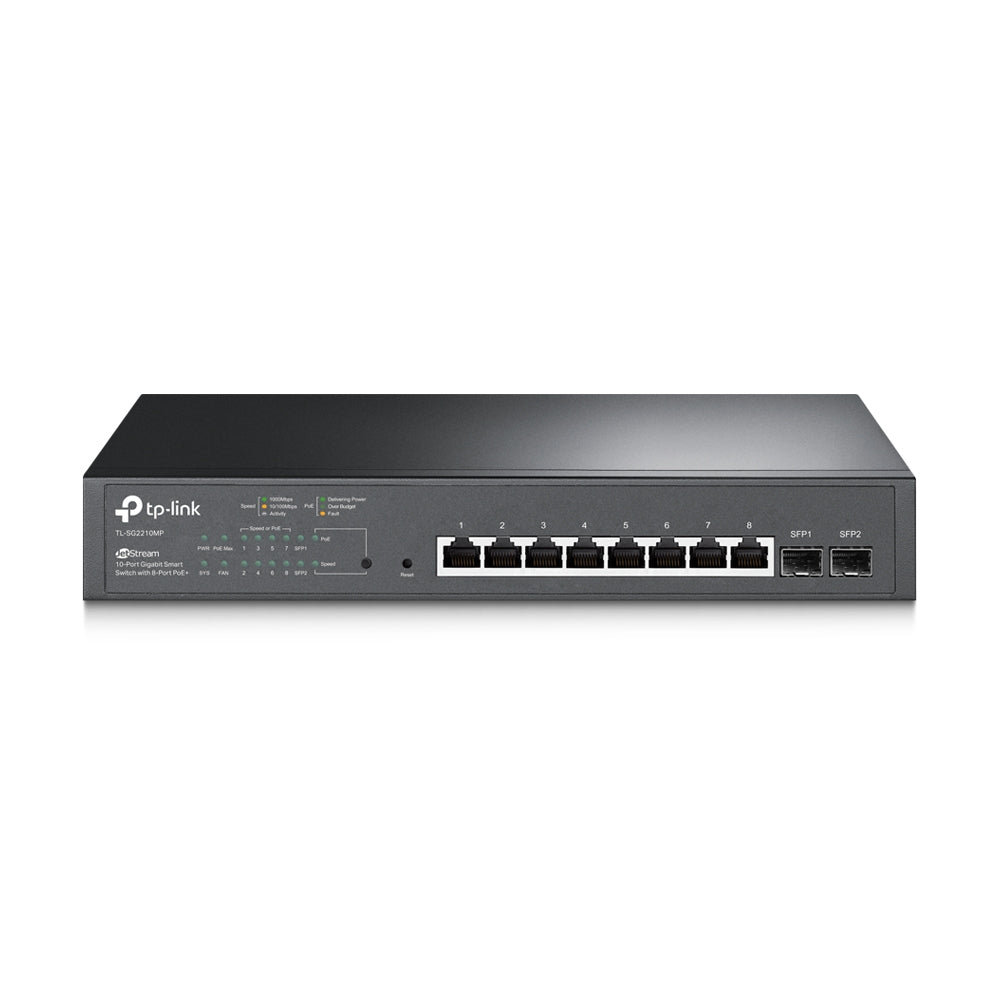

TP-LINK JetStream 10-Port Gigabit Smart PoE Switch with 8-Port PoE+

£156.59 GBP

Sale Sold out

Taxes included.

Condition New

The TP-LINK JetStream 10-Port Gigabit Smart PoE Switch with 8-Port PoE+ keeps your wired network organised with PoE power for APs and cameras.

Realize More Possibilities with Omada
JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+

Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Specifications

Management features
ARP inspection	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1213, RFC2233, RFC1643, RFC1493
Switch layer	L2/L2+
Configuring Location Settings (CLI)	Yes
Cloud-managed	Yes
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	8
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	4000
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	No
Virtual LAN features	MAC address-based VLAN, Multicast VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IGMP snooping	Yes
Optical fiber
Fiber ethernet cabling technology	100BASE-FX, 1000BASE-X
Data transmission
Jumbo frames	9000
Packet buffer memory	4.1 MB
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Number of queues	8
Jumbo frames support	Yes
Forwarding rate	14.9 Mpps
Security
IP-MAC-Port binding	Yes
BPDU filtering/protection	Yes
SSH/SSL support	Yes
Security algorithms	EAP-LEAP, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
Access Control List (ACL)	Yes
Queue scheduling algorithms	SP, Weighted Round Robin (WRR)
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
Design
Form factor	1U
Product colour	Black
Rack mounting	Yes
Number of fans	1 fan(s)
Certification	CE, FCC, RoHS
Power
Power consumption (max)	173.9 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	150 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	594.46 BTU/h
Weight & dimensions
Width	294 mm
Depth	180 mm
Height	44 mm
Packaging data
Package width	250 mm
Package depth	400 mm
Package height	80 mm
Package weight	2.12 kg
Performance
Harmonized System (HS) code	85176990
