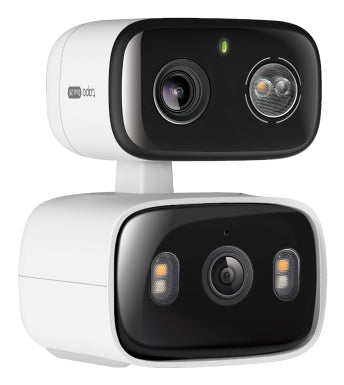

TP-LINK Indoor/Outdoor Dual Lens Pan/Tilt Security Camera

Keep an eye on what matters with the TP-LINK Indoor/Outdoor Dual Lens Pan/Tilt — resolution, optics and mounting details are in the spec table.

See Wide, Zoom Sharp, Secure Everything.
Indoor/Outdoor Dual Lens
Pan/Tilt Security Camera

2K Dual Lens
Get the Full Picture
with Dual Optics

Flexible Dual Coverage

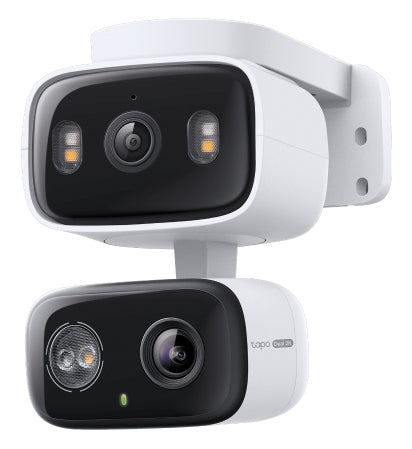

The bottom telephoto lens features automatic pan and tilt to follow motion or shift focus between different areas as needed. The top wide-angle lens is fixed but can be manually adjusted during installation 360° to allow for adjustable viewing.

Synchronized Smart Tracking:
Seamlessly Follows Movement
The two cameras dynamically work together to ensure you never miss a moment – when the fixed lens detects events like motion, people, and pets, the pan/tilt lens will automatically pivot to focus on and track the moving object.

Magnify Details with Telephoto Lens
The 6mm telephoto lens delivers 3× clarity compared to standard lens and supports up to 10.8× digital zoom, ensuring every detail is clearly visible when you zoom in.

Panoramic Coverage of Two Areas, Simultaneously
Monitor two separate areas at the same time with just one powerful camera. Reduce blind spots and get a more thorough, comprehensive overview of your home.

Instant Detail with One-Tap Smart Focus
One tap for instant clarity: select an area in the wide-angle view, and the pan/tilt camera will focus on it instantly.

Smarter, More Accurate Notifications Powered by AI
Stay informed with smart AI detection that recognizes and notifies you of people, pets, vehicles, and even baby cries – all without any subscription fees. Tailor your alerts by selecting which types of detection will trigger notifications.

360° Patrol, Preset Views & Custom Schedules
Activate Patrol Mode for continuous 360° surveillance, define up to 8 specific preset viewing points, and set personalized schedules to monitor specific areas at certain times.

Engineered for Weather Resilience
Delivers reliable surveillance through rain, snow, dust, and scorching heat. Monitor your property with confidence, no matter the weather.

Pair with Smart Assistants
Includes seamless integration with Amazon Alexa, Google Assistant, and Samsung SmartThings. View live streams on your Echo Show or Chromecast.

Two-Way Audio
Built-in premium microphone and speakers ensure you can hear and be heard with exceptional clarity.

Install Anywhere: Adaptable Indoor & Outdoor Monitoring
Tapo C246D can be positioned upright or upside down, placed discreetly on a desk, securely mounted on a wall, affixed to the ceiling, or even held by a rod – engineered to adapt and provide reliable monitoring in any indoor or outdoor setting.

Specifications

Performance
Type	IP security camera
Connectivity technology	Wired
Placement supported	Outdoor
Design
Form factor	Box
Product colour	White
Mounting type	Wall
International Protection (IP) code	IP65
Camera
Field of view (FOV) angle	107.8°
Image sensor
Sensor type	CMOS
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Number of sensors	1
Lens system
Number of lenses	2
Zoom capability	Yes
Digital zoom	10.8x
Fixed focal length	2.8 mm
Night vision
Night vision	Yes
Night vision distance	12 m
Infra-red wavelength	850 nm
Video
Video compression formats	H.264
Maximum resolution	2304 x 1296 pixels
Frame rate	15 fps
Total megapixels	3 MP
Audio
Built-in speaker(s)	Yes
Built-in microphone	Yes
Network
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	72.2 Mbit/s
Live view	Yes
Channel bandwidth	2400 MHz
Storage
Maximum memory card size	512 GB
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Security
Motion sensor	Yes
Video motion detection	Yes
Security algorithms	HTTPS, SSL/TLS, WPA2-PSK
Built-in siren	Yes
Human and vehicle targets classification	Yes
Siren noise level	99 dB
Management features
Cloud-managed	Yes
Power
Power source type	DC
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Power consumption	300 mA
Operational conditions
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 90%
Weight & dimensions
Width	78 mm
Depth	76.8 mm
Height	106.8 mm
Weight	277 g
Package width	110 mm
Package height	90 mm
Package depth	190 mm
Package weight	690 g
