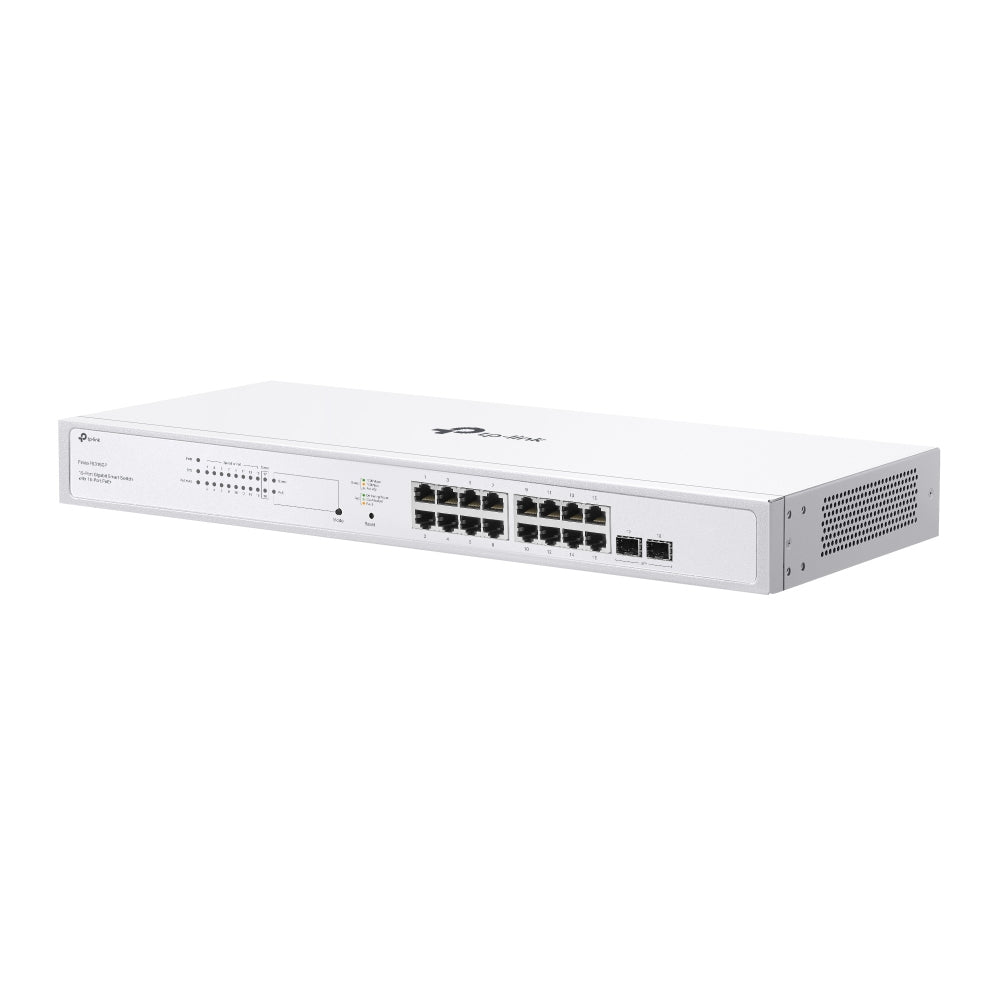

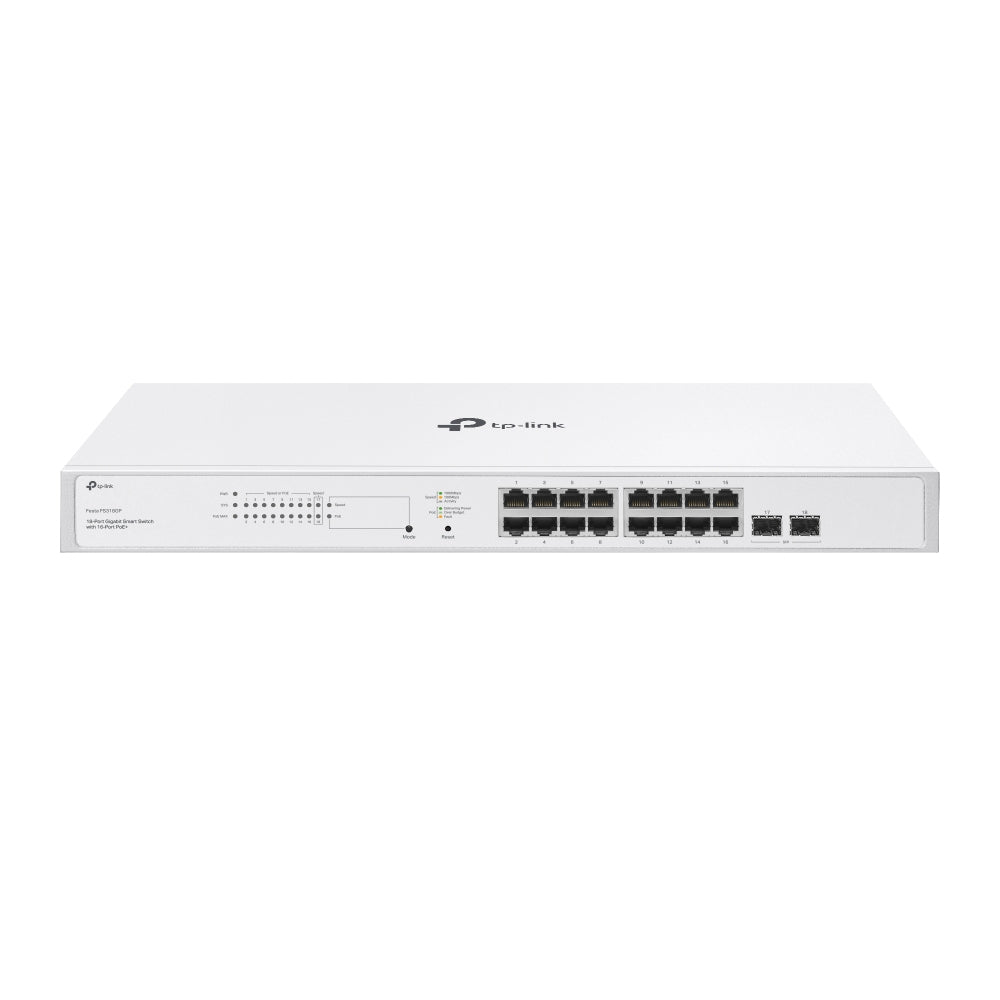

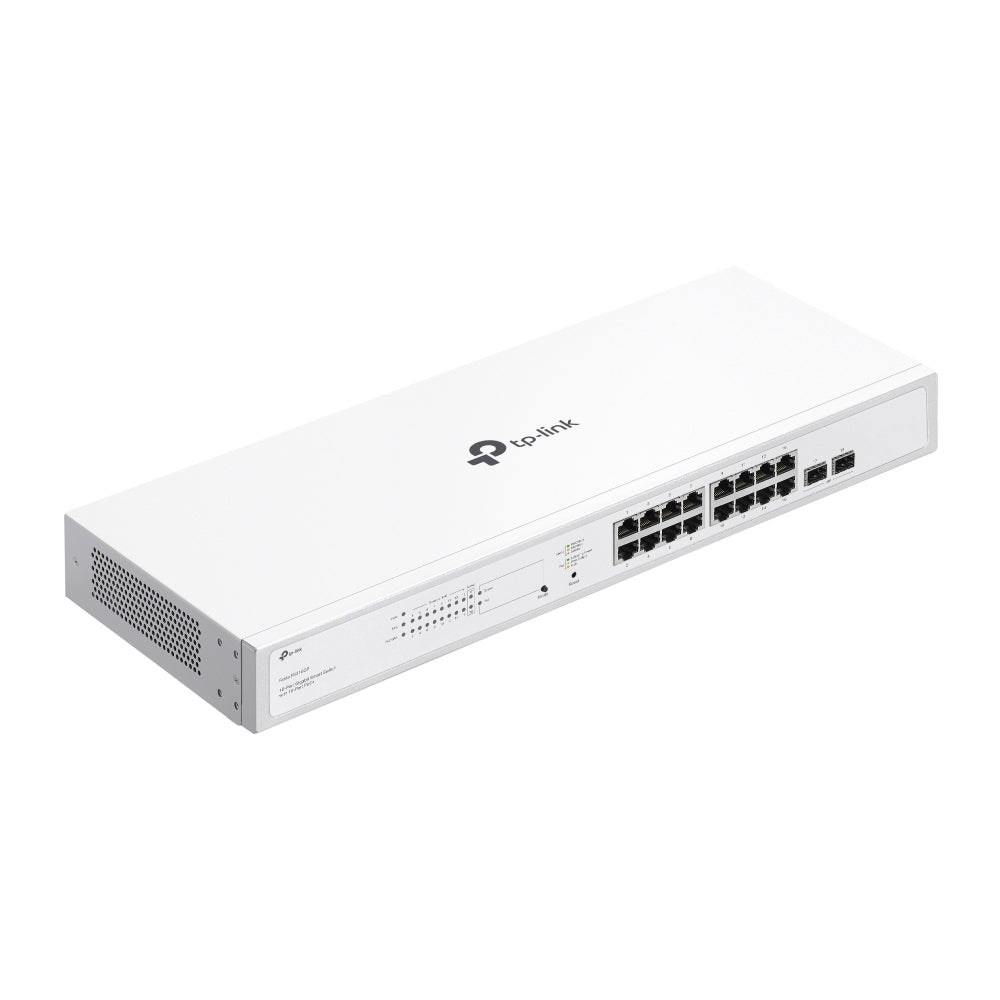

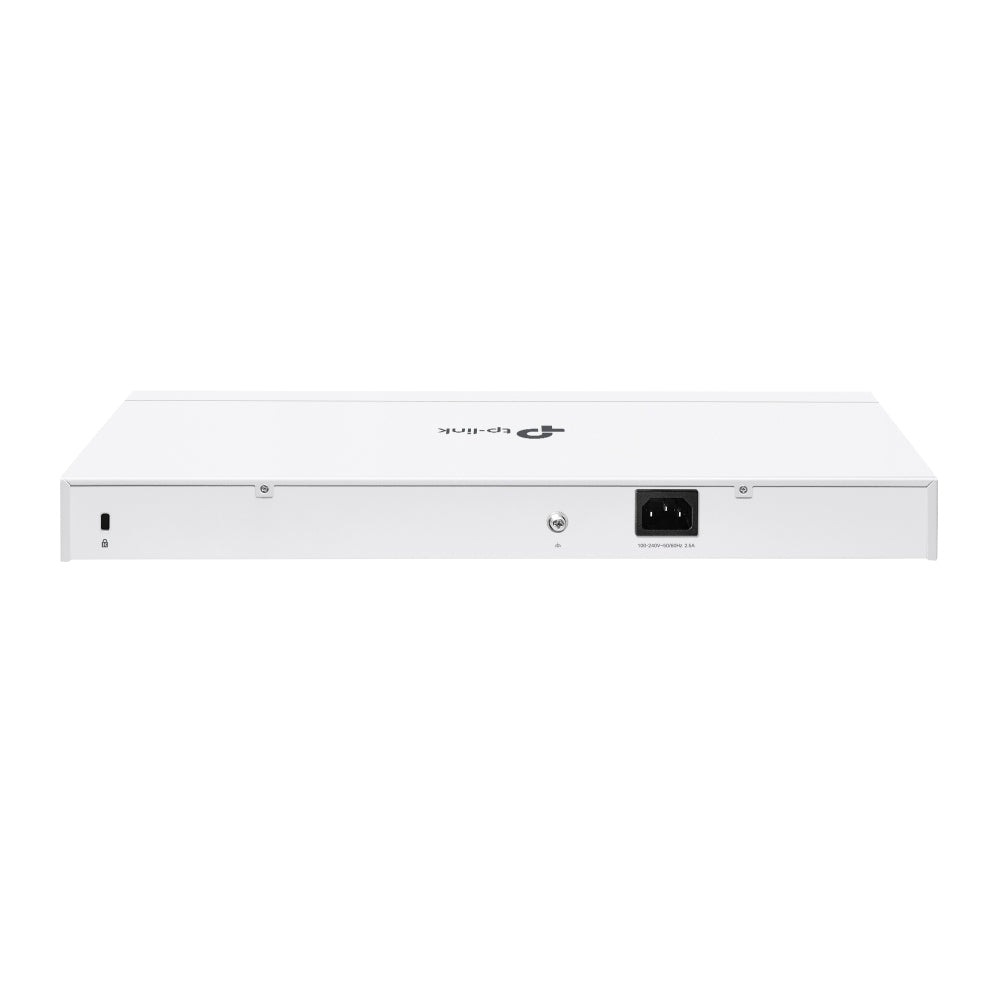

TP-LINK Festa FS318GP L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Switch

The TP-LINK Festa FS318GP L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) keeps your wired network organised with PoE power for APs and cameras.

Festa unifies APs, switches, and routers/gateways for full cloud-based management, offering an
easy, effective, and reliable business-level network controlled via app or web. Perfect for small
businesses, home offices, and cafes.

Specifications

Management features
Switch layer	L2/L2+
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
VLAN support	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
IGMP snooping	Yes
Data transmission
Packet buffer memory	4.1 MB
MAC address table	8000 entries
Switching capacity	36 Gbit/s
Jumbo frames support	Yes
Forwarding rate	26.78 Mpps
Security
IP-MAC-Port binding	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP relay, DHCP server, DHCP snooping
Design
LED indicators	Yes
Rack mounting	Yes
Performance
Internal memory	256 MB
Flash memory	32 MB
Firmware upgradeable	Yes
Fanless	Yes
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	150 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm
