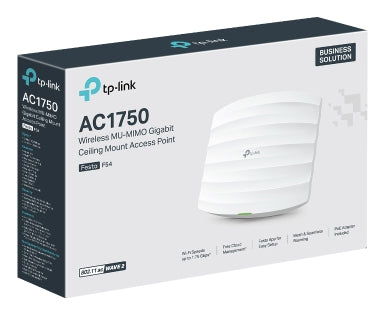

TP-LINK FESTA F54 Access Point PoE

with simple central management.

Festa offers business-class features with consumer-inspired simplicity. Our free cloud-based centralized management is accessible via the Festa app or web, providing essential features for small businesses without the complexity required by larger-scale operations.

Superior Wi-Fi Speeds
Festa F54 provides dual-band 1750 Mbps Wi-Fi for your networks, ensuring online access smooth and swift.

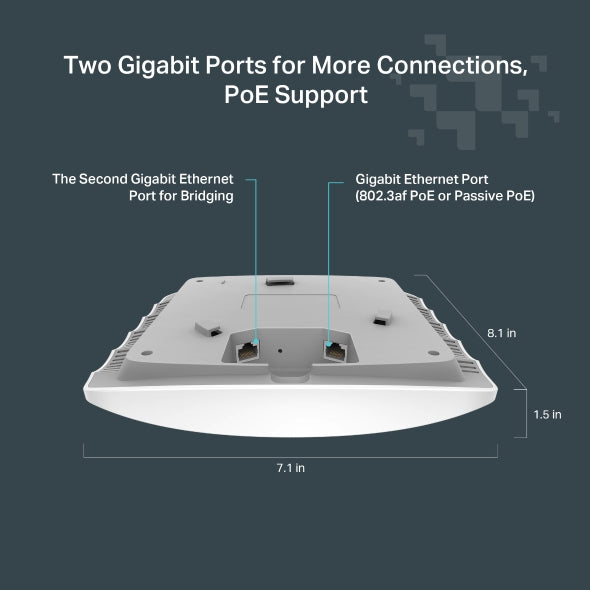

Two Gigabit Ports for More Connections
Festa F54 offers two Gigabit ports for flexible connectivity.

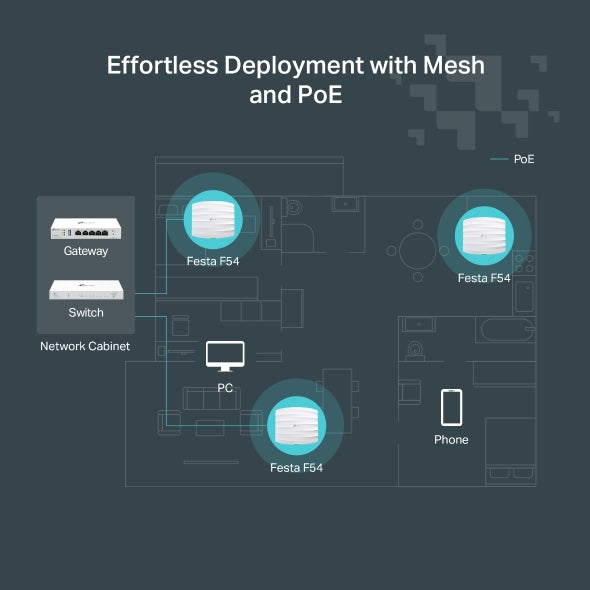

Seamless Mesh Networking For Business
Reduce the need for Additional Wiring
With wireless mesh technology, you won’t require extra Ethernet cables to link additional APs across the coverage area. With PoE support, a single cable effortlessly integrates data and power, obviating the necessity for extra wiring.

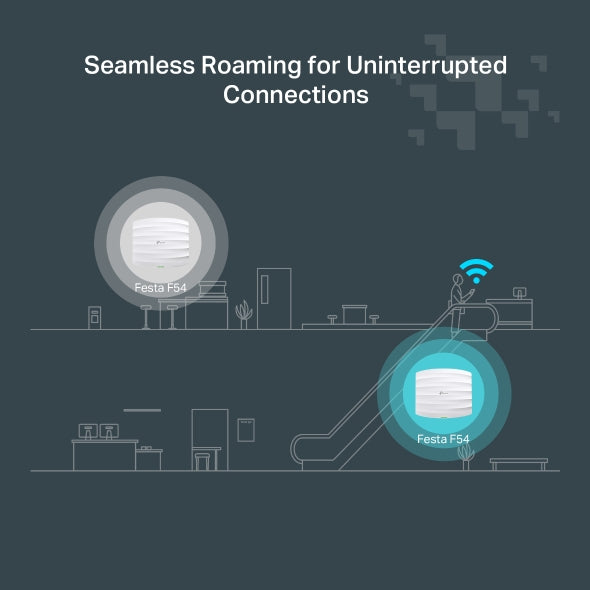

Seamless, Smooth, and Stable Wi-Fi
Seamless Wi-Fi ensures that all users enjoy uninterrupted connections when moving between different access points through 802.11 k/v/r seamless roaming technology.

Multiple PoE Options for Easy Installation
Festa F54 supports both 802.3af PoE and Passive PoE power supply, which can be either powered by a PoE switch or the provided PoE adapter. Choose a suitable method according to your needs.

Using Festa PoE Switch
Powered and connected by an 802.3at PoE switch using one single cable for convenient deployment.

Using the Provided Passive PoE Adapter
Easily powered and connected using a single cable via the provided passive PoE adapter.

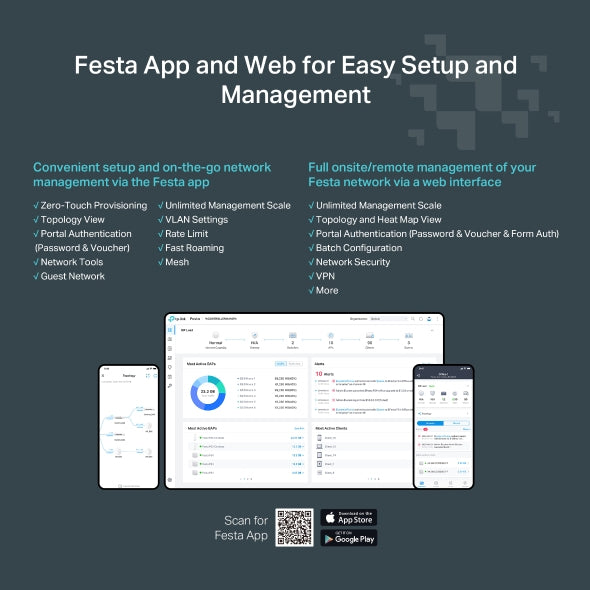

Festa App and Web for Easy Setup and Management
Convenient setup and on-the-go network management via the Festa app
- Zero-Touch Provisioning
- Unlimited Management Scale
- Topology View
- VLAN Settings
- Portal Authentication
- (Password & Voucher)
- Rate Limit
- Fast Roaming
- Network Tools
- Mesh
- Guest Network

Full onsite/remote management of your Festa network via a web interface
Unlimited Management Scale

- Topology and Heat Map View
- Portal Authentication (Password & Voucher & Form Auth)
- Batch Configuration
- Network Security
- VPN
- More

Specifications

Data transmission
Maximum data transfer rate	1300 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Frequency band	2.4 - 5 GHz
Number of users	220 user(s)
VLAN support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum indoor range	140 m
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Features
Maximum data transfer rate (2.4 GHz)	450 Mbit/s
Maximum data transfer rate (5 GHz)	1300 Mbit/s
Fit AP mode features	Mesh networking
Security
IP address filtering	Yes
Security algorithms	WPA, WPA2
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Power
Power consumption (typical)	12.3 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
Design
Placement	Ceiling, Wall
Product colour	White
LED indicators	Power
Antenna
Antenna type	Internal
Antenna gain level (max)	4 dBi
Technical details
Compliance certificates	CE, RoHS
Weight & dimensions
Width	205.5 mm
Depth	181.5 mm
Weight	359.2 g
Height	37.1 mm
Packaging data
Quick start guide	Yes
Mounting kit	Yes
Cables included	Power
Packaging content
Quantity per pack	1 pc(s)
