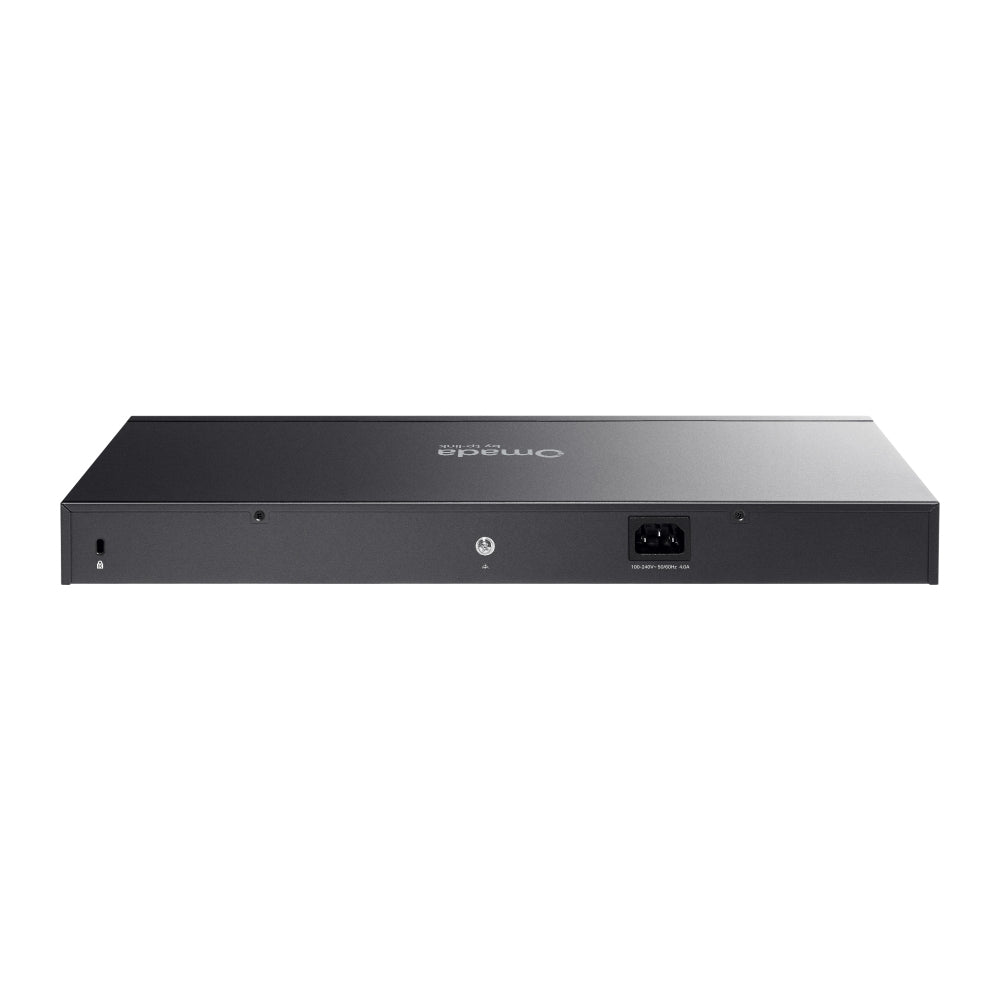

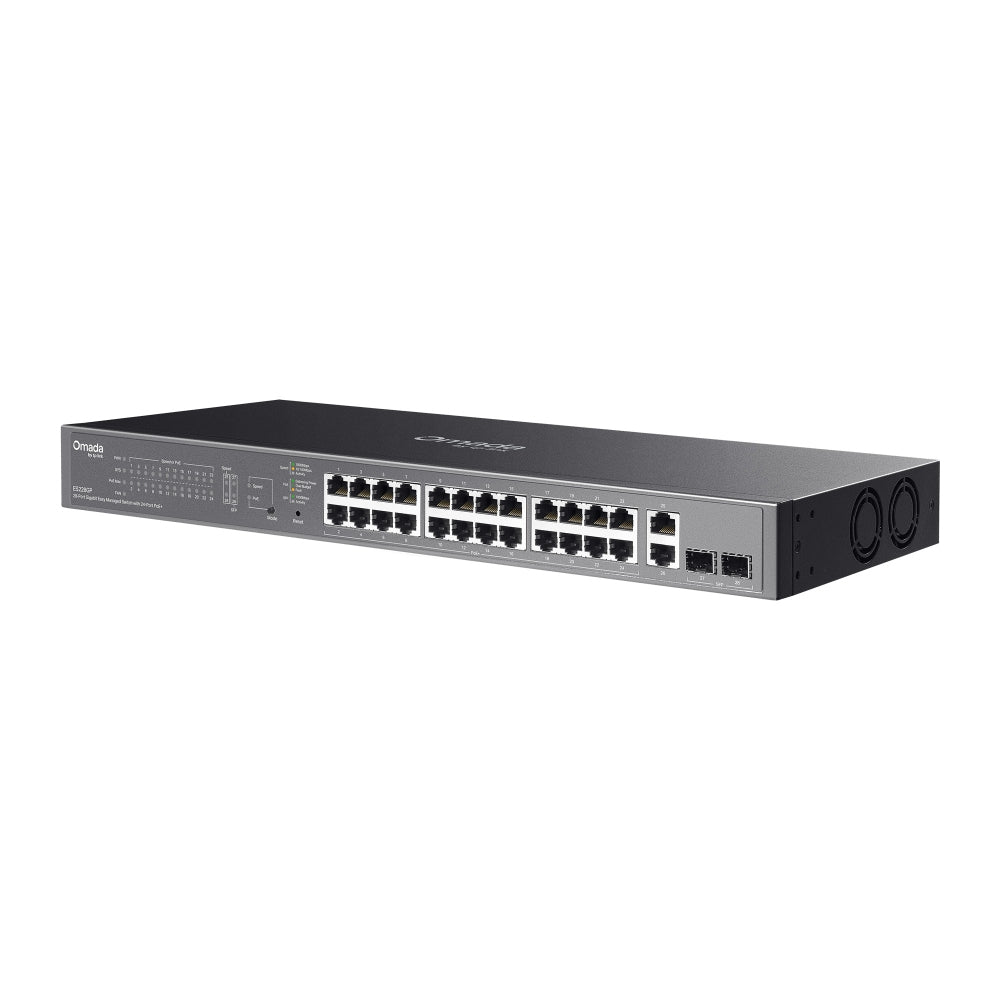

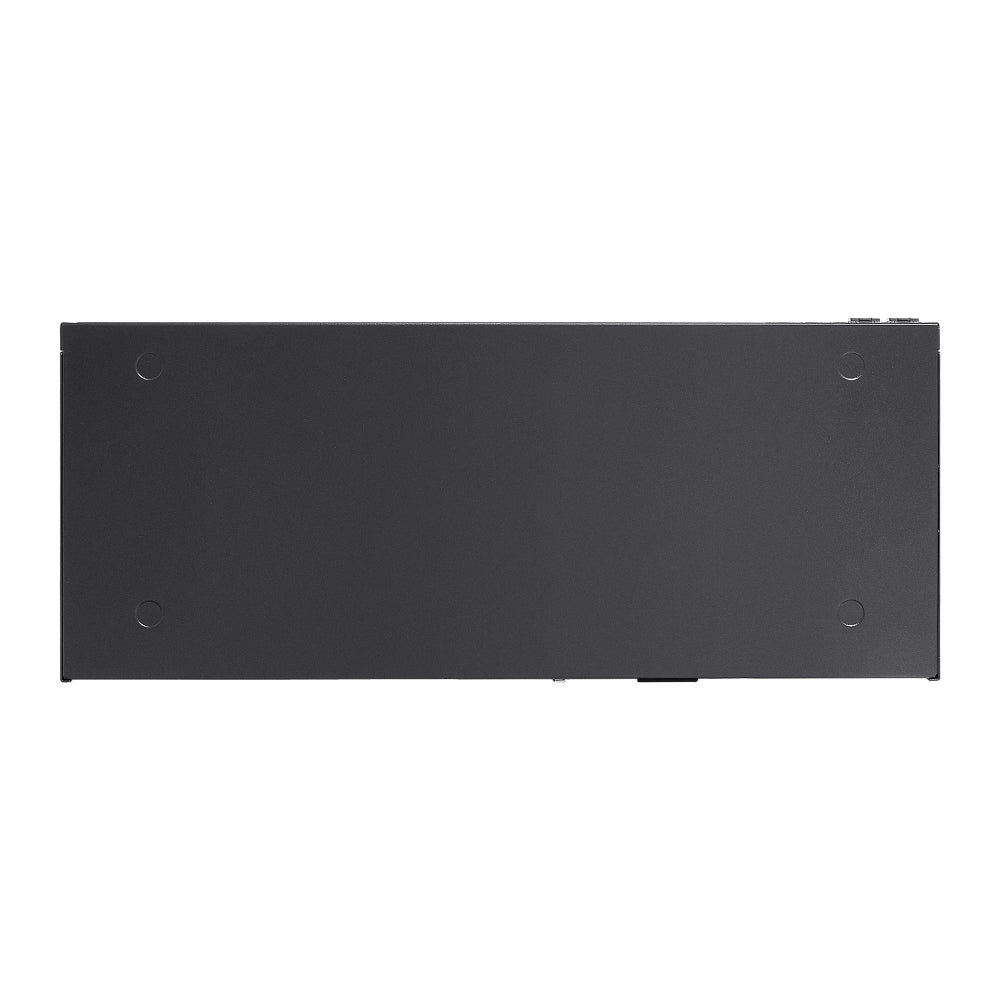

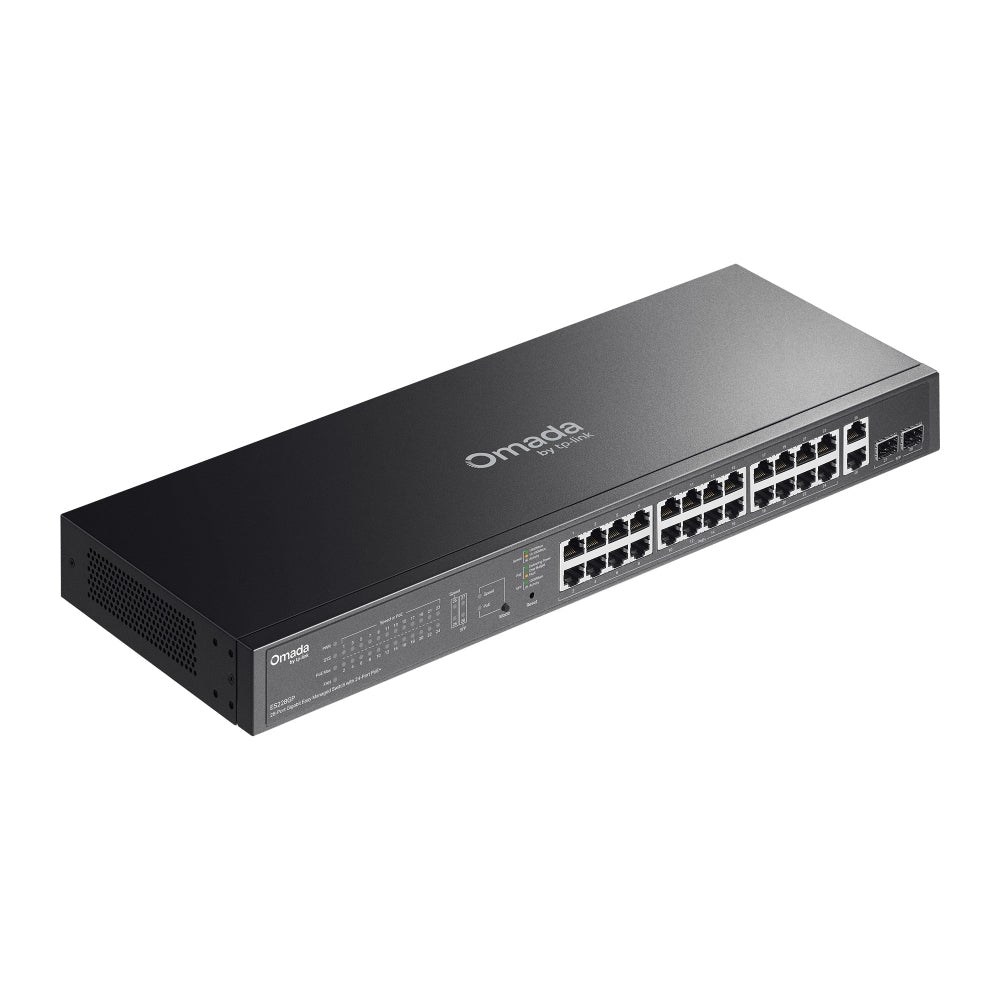

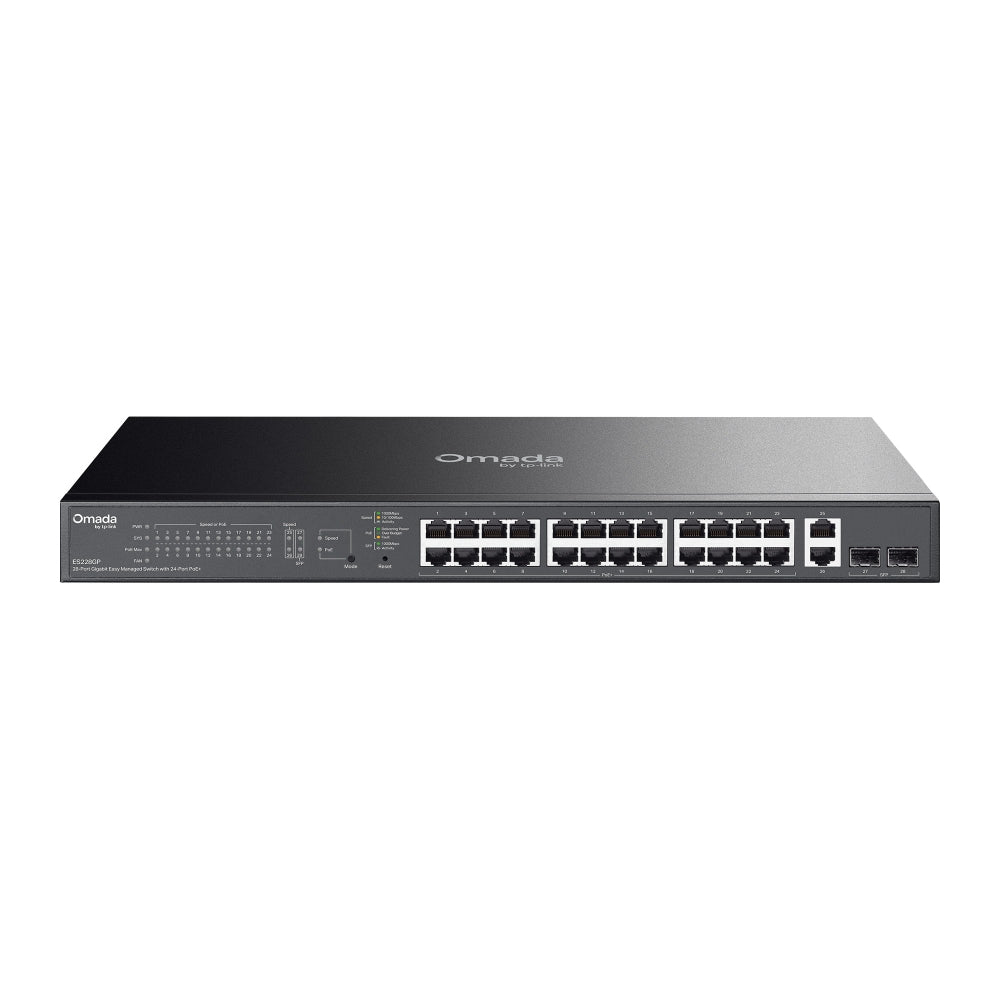

TP-LINK ES228GP network switch PoE

The TP-LINK ES228GP network switch keeps your wired network organised with PoE power for APs and cameras.

Omada Central Essentials — A Free and Easy Cloud-Based Network Management

Omada Central Essentials is a free, easy-to-use version of the Omada Central.
It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Multiple Application Scenarios

Surveillance

Works with IP Cameras

Wi-Fi Coverage

Works with Access Points

Wired Connections

Works with Non-PoE Devices such as PCs and Printers

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	26
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
VLAN support	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
IGMP snooping	Yes
Data transmission
Jumbo frames	15000
Packet buffer memory	4 MB
MAC address table	8000 entries
Switching capacity	56 Gbit/s
Store-and-forward	Yes
Number of queues	8
Jumbo frames support	Yes
Forwarding rate	41.67 Mpps
Security
Loop protection	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
DHCP features	DHCP client
Design
Product colour	Black
Rack mounting	Yes
Number of fans	2 fan(s)
Power
Power protection features	Surge protection
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	4 A
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	250 W
Power over Ethernet (PoE) ports quantity	24
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm
Packaging content
Manual	Yes
Cables included	AC
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
